Description

Detect Object: Magnetic Metal(the detection distance decreases when it is non-magnetic metal);Detection distance 5mm;Set distance 0-4mm;Power: AC90-250V;Temperature range -25 -+60℃;Isolation Resistance >50MΩ;Material ABS;Dimension: 18X18X29mm;Mounting Way: Non-shield type;CE certified.

  • Detection distance: 5mm±10%
  • Supply Voltage: AC 90-250V;
  • Output Current: 400mA
  • Type: NC(Normally Closed)
  • Installation: Non-Shield(non-flush)

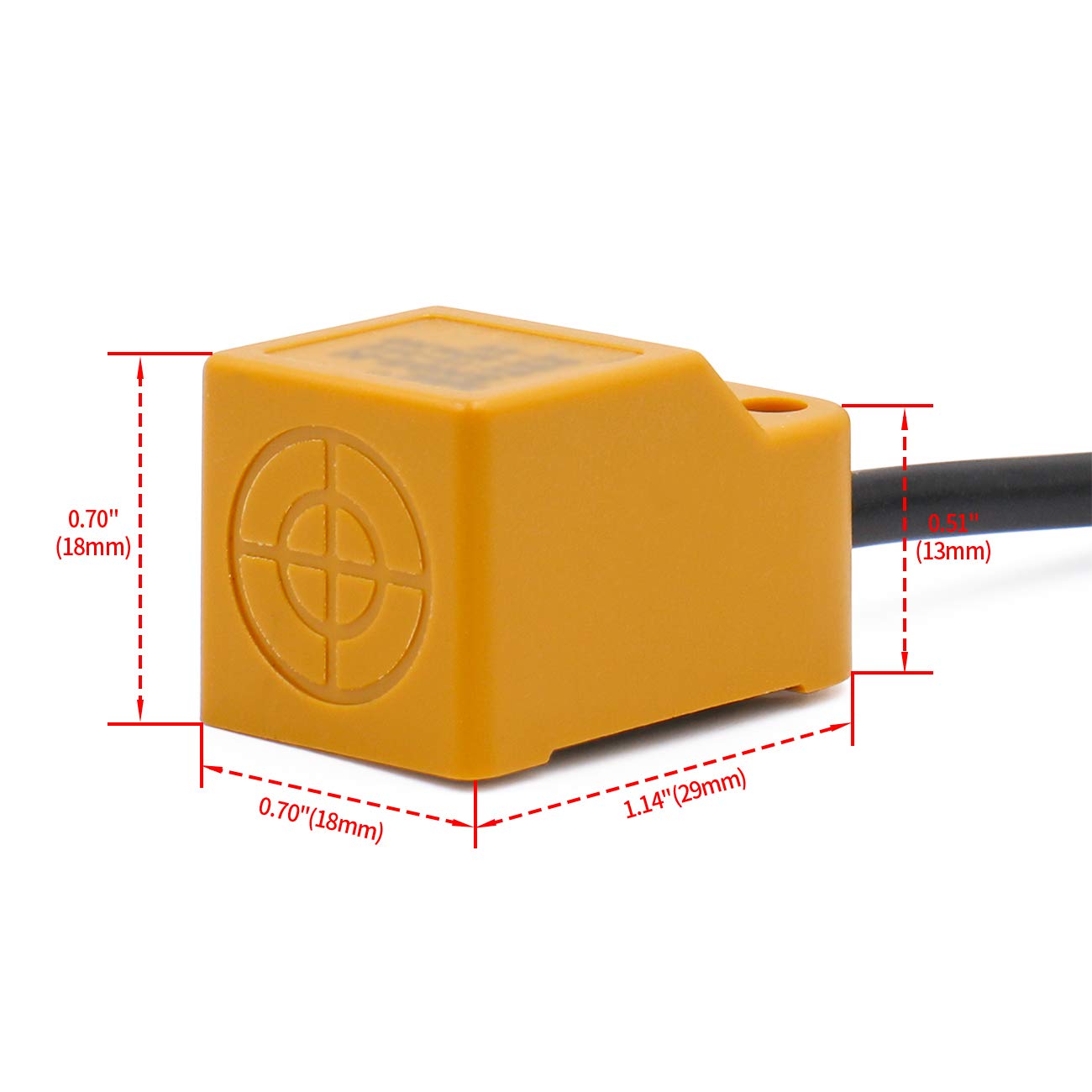

  • Dimension: 18×18×29mm
Description

Detect Object: Magnetic Metal(the detection distance decreases when it is non-magnetic metal);Detection distance 5mm;Set distance 0-4mm;Power: AC90-250V;Temperature range -25 -+60℃;Isolation Resistance >50MΩ;Material ABS;Dimension: 18X18X29mm;Mounting Way: Non-shield type;CE certified.

  • Detection distance: 5mm±10%
  • Supply Voltage: AC 90-250V;
  • Output Current: 400mA
  • Type: NC(Normally Closed)
  • Installation: Non-Shield(non-flush)
  • Dimension: 18×18×29mm
Heschen by Heschen

0D-KJRR-RO02

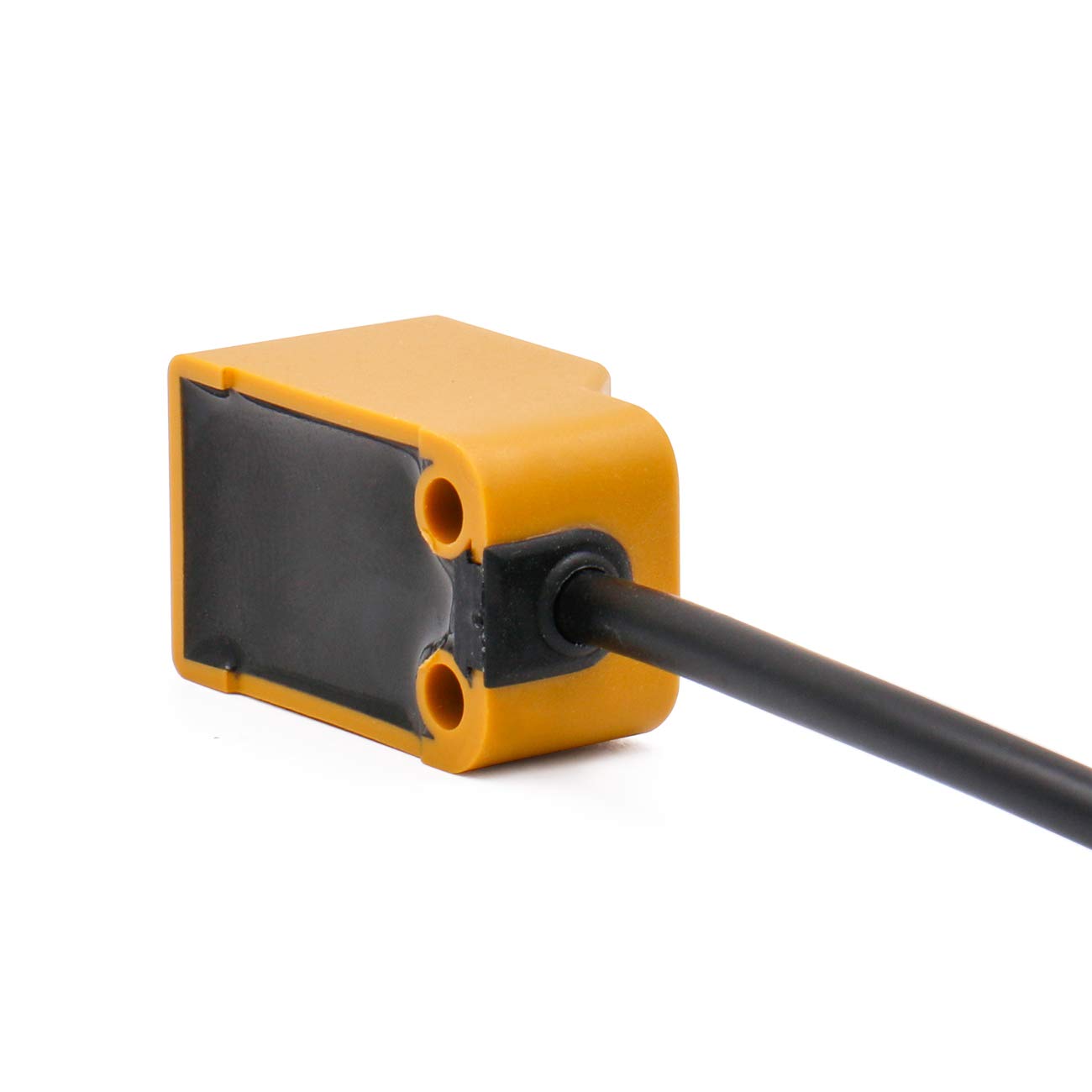

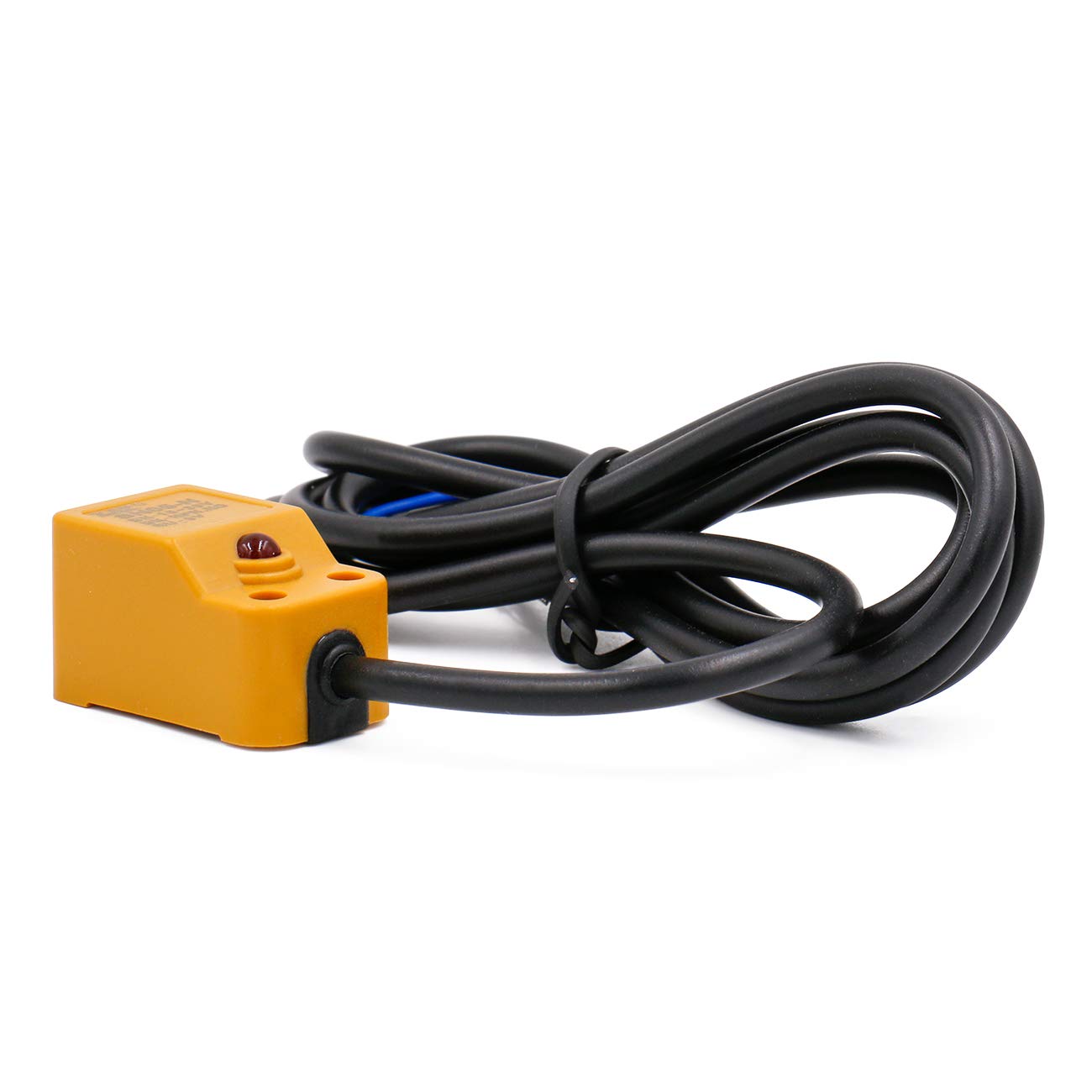

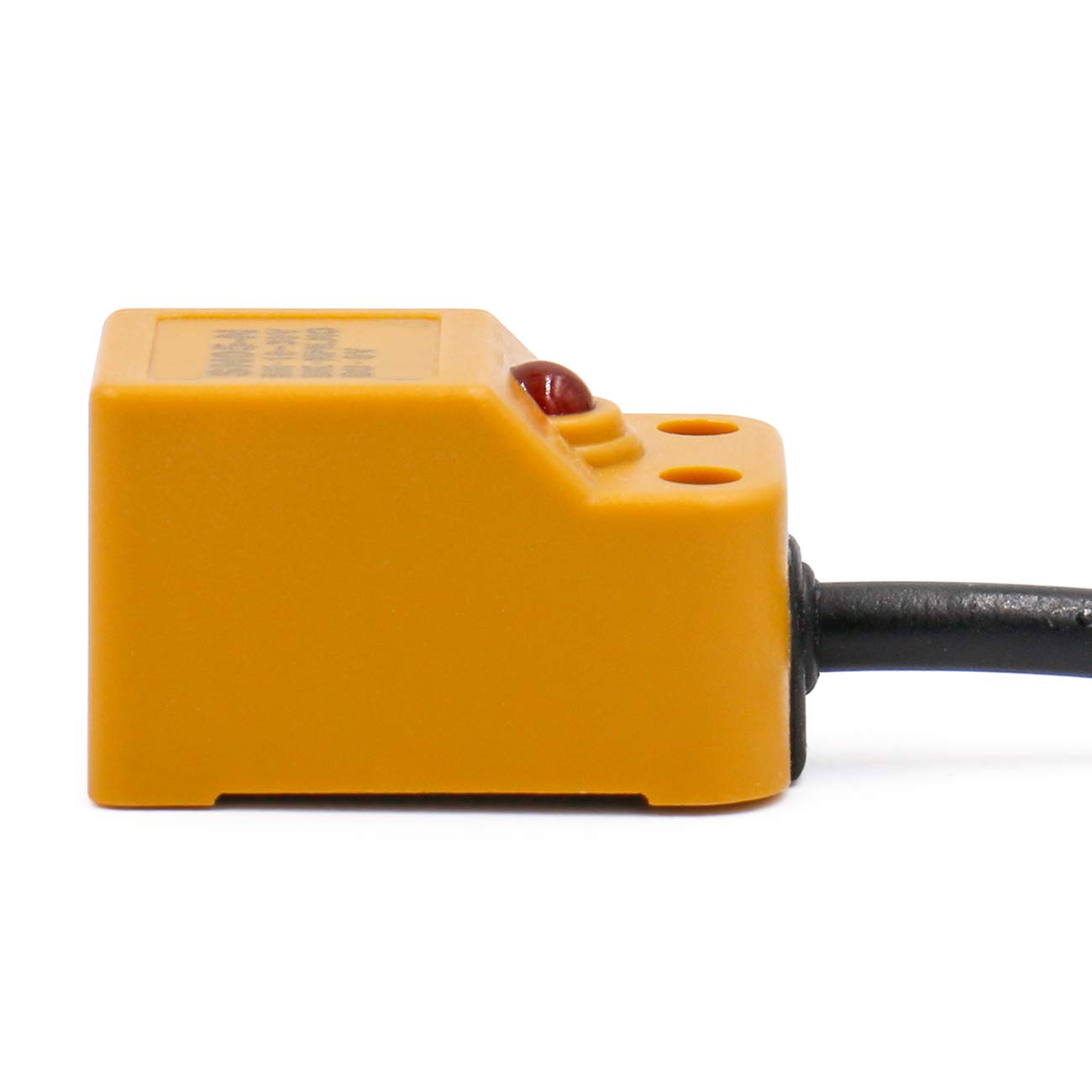

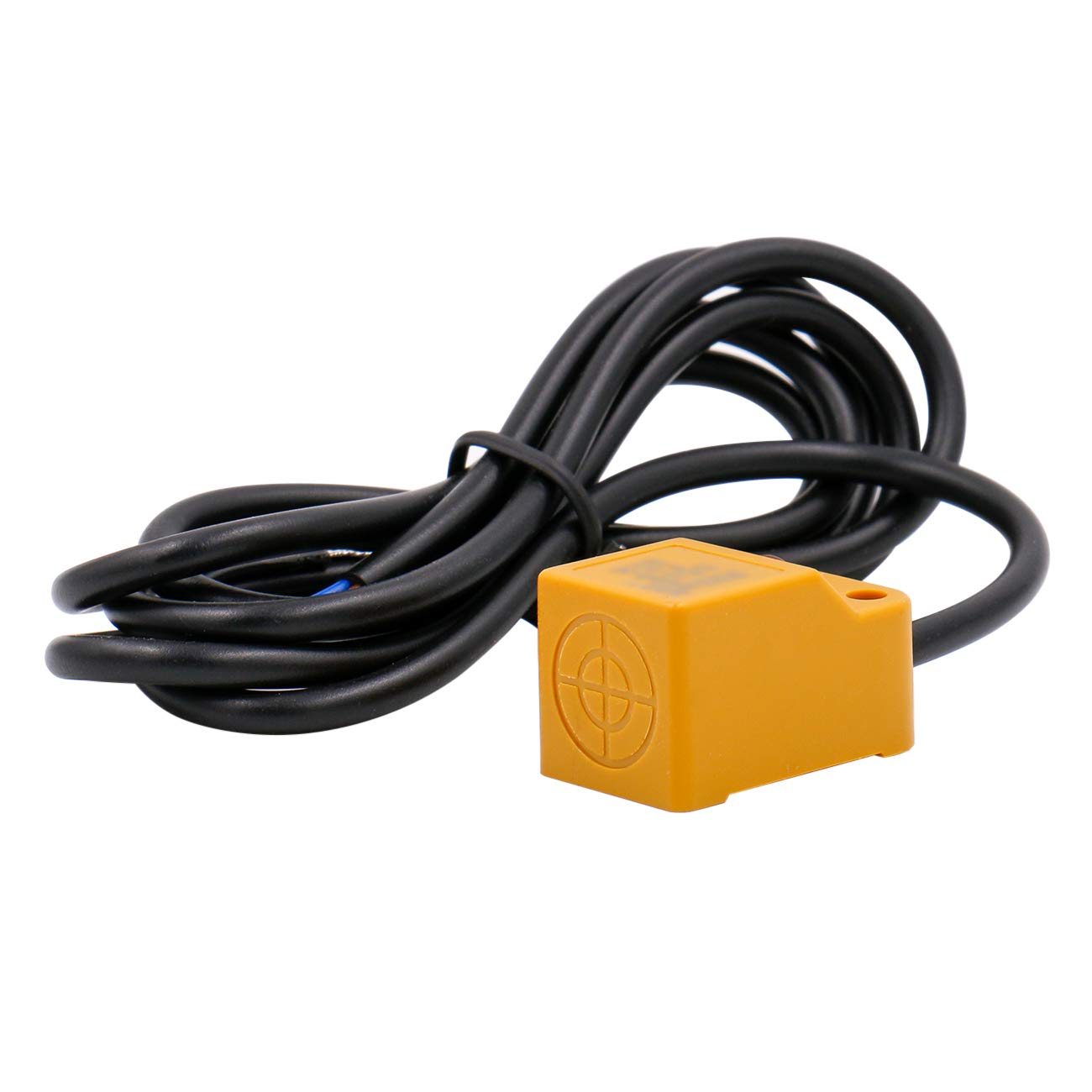

Heschen Square Inductive Proximity Sensor Switch Non-Shield Type SN05-Y2 Detector Distance 5mm 90-250VAC 400mA Normally Closed(NC) 2 Wire

€7,49
€7,49
Shipping calculated at checkout.
