Heschen by Heschen

1J-B7DG-CTKU

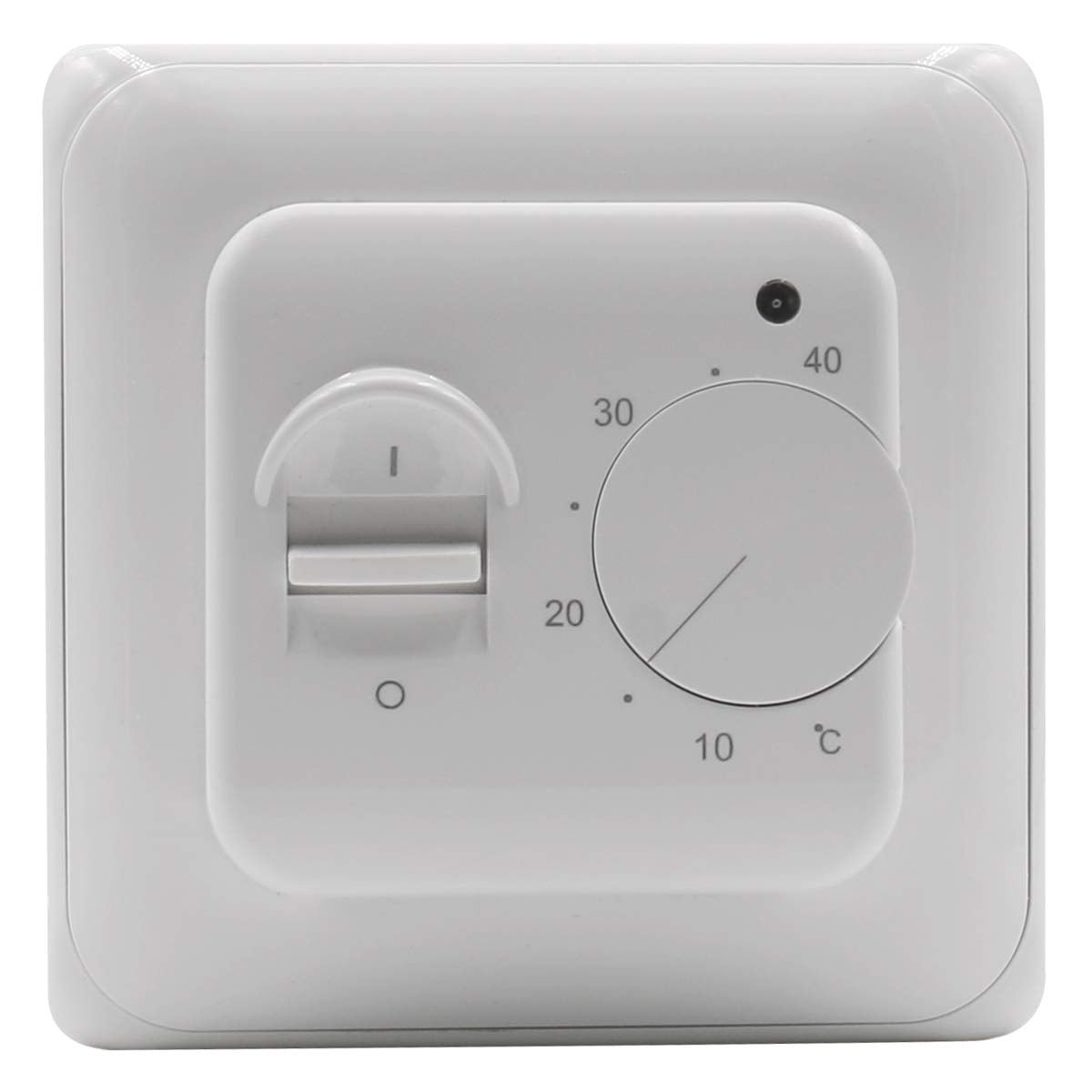

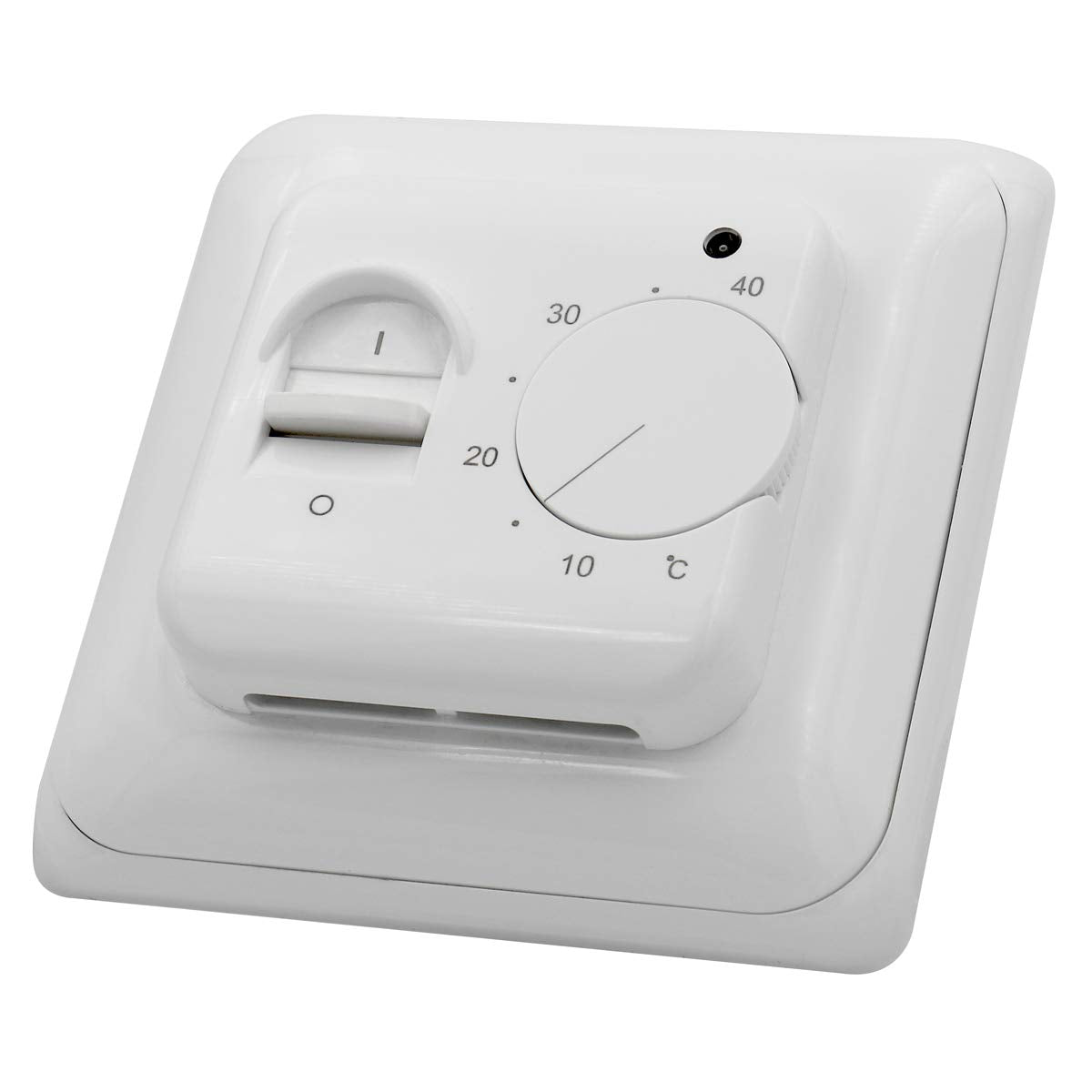

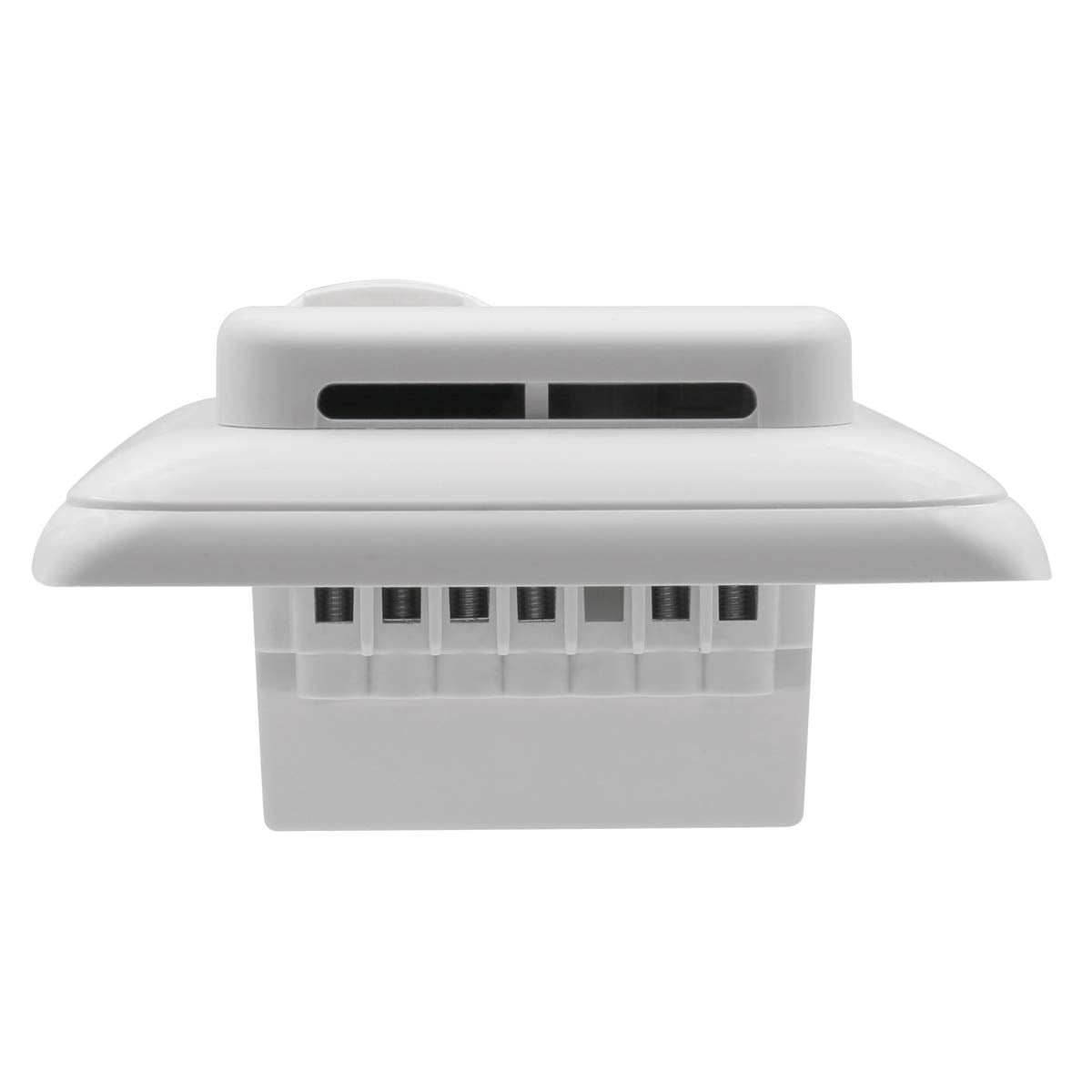

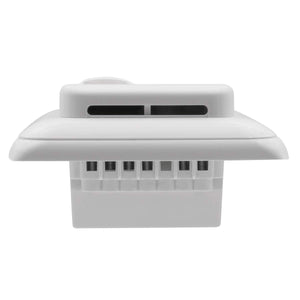

Heschen Radiant Heating Nonprogrammable Thermostat AC 230V 16A Manual Thermostats Controller for Control of Electric heating devices

€13,99
€13,99
Shipping calculated at checkout.
Investor focus research & development value proposition graphical user interface investor. Startup business plan user experience.
Investor focus research & development value proposition graphical user interface investor. Startup business plan user experience.

About

Description

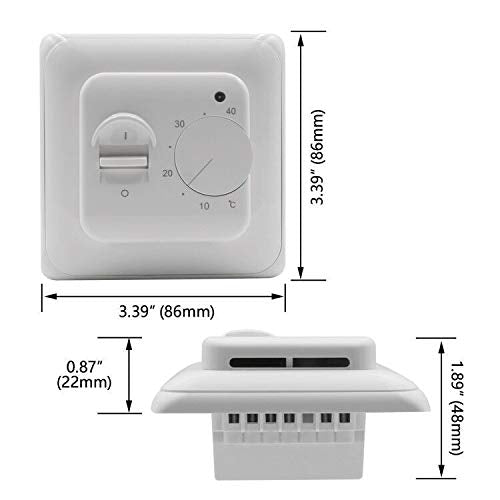

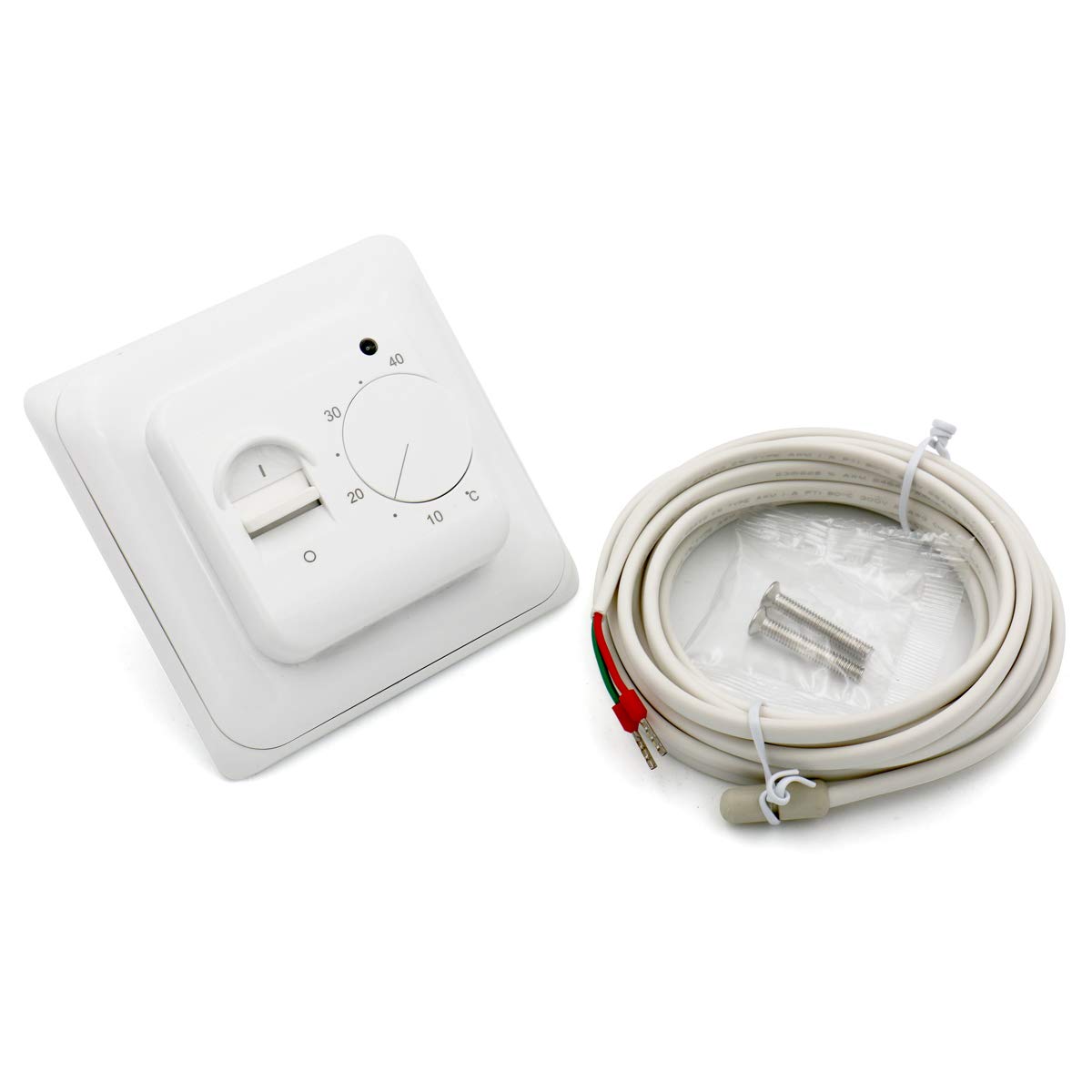

The electronic thermostat for mounting in standard wall box, the thermostat is adjustable to required temperature from 5 to 40℃, the LED show that the heat is ON, the thermostat is recommended for control of electric heating device or on/off valve actuator usedin water-based heating systems. Ideal for intermittent use. Ambient temperature: -5℃ - +50℃. Protective housing : IP20. Housing material: Anti-flammable PC. Floor sensor: rubber-thermostat plastic NTC sensor,with 3m cable. Dimensions: 86 mm x 86 mm x 48mm. Installation hole distance: 60mm. 2 year manufacturers warrenty

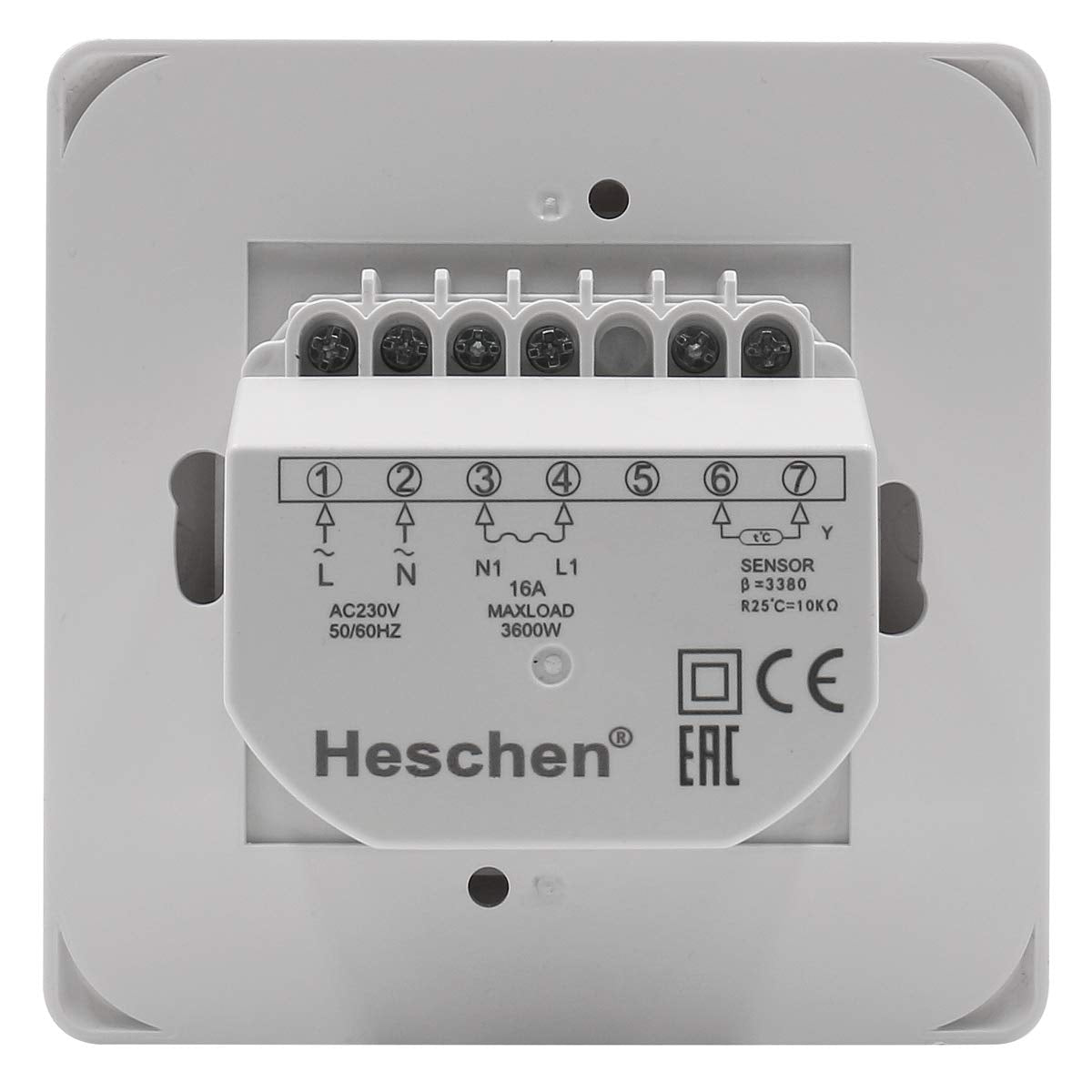

  • Power Supply Voltage: 230 VAC ±10% 50/60Hz
  • Ambient temperature display accuracy: ±0.1℃
  • Setting Range: 5-40 ℃
  • Temperature control accuracy: ±0.5℃
  • Power Comsumption: < 5W
Description

The electronic thermostat for mounting in standard wall box, the thermostat is adjustable to required temperature from 5 to 40℃, the LED show that the heat is ON, the thermostat is recommended for control of electric heating device or on/off valve actuator usedin water-based heating systems. Ideal for intermittent use. Ambient temperature: -5℃ - +50℃. Protective housing : IP20. Housing material: Anti-flammable PC. Floor sensor: rubber-thermostat plastic NTC sensor,with 3m cable. Dimensions: 86 mm x 86 mm x 48mm. Installation hole distance: 60mm. 2 year manufacturers warrenty

  • Power Supply Voltage: 230 VAC ±10% 50/60Hz
  • Ambient temperature display accuracy: ±0.1℃
  • Setting Range: 5-40 ℃
  • Temperature control accuracy: ±0.5℃
  • Power Comsumption: < 5W
