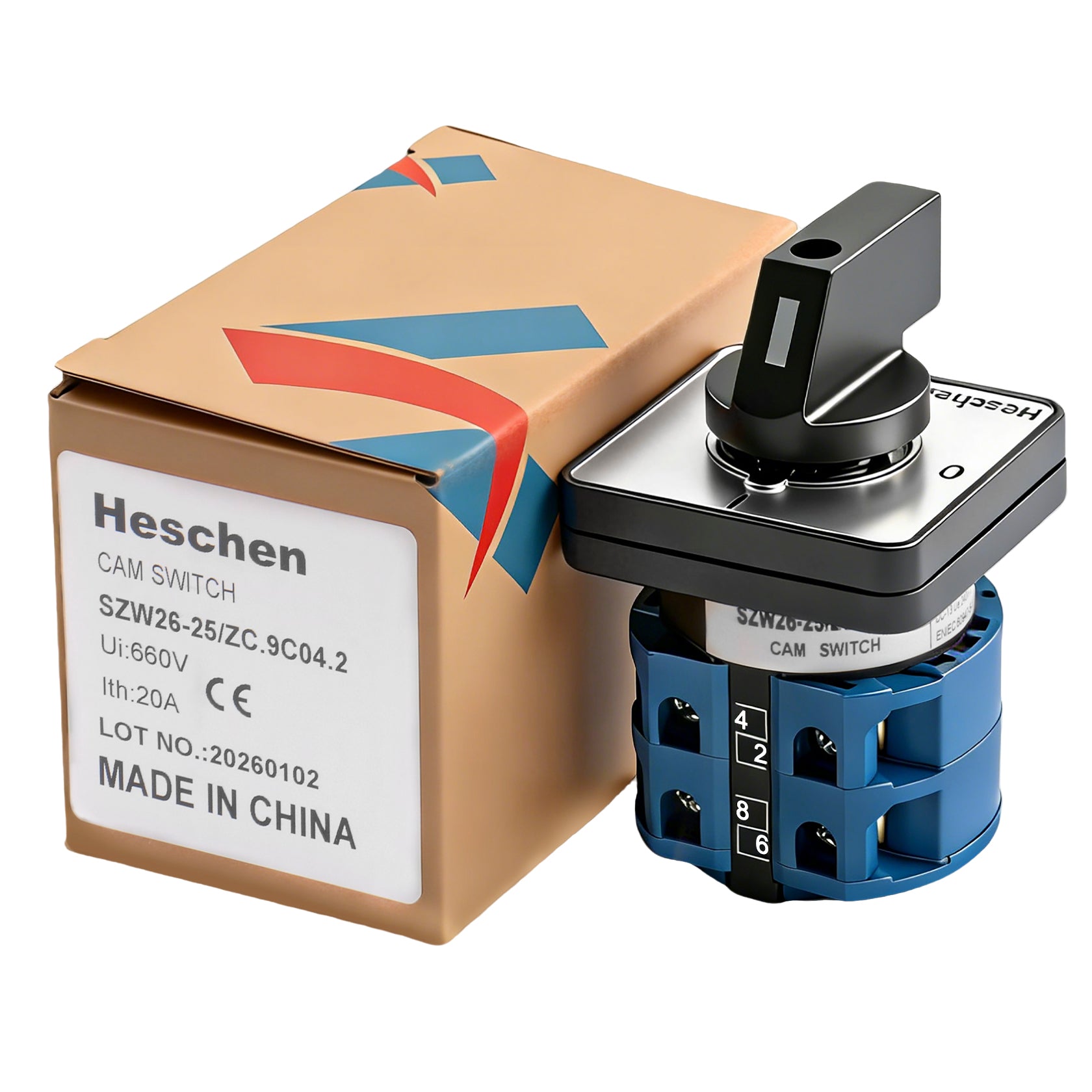

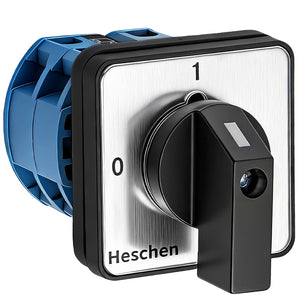

Heschen Universal Rotary Cam Selector Changeover Switch , SZW26-25/ZC.9C04.2, 690V 25A, 2 Position, 2 Phase, 8 Terminals, CE
- Regular price
- €9,99
- Sale price
- €9,99
- Regular price
-
Shipping calculated at checkout.
Investor focus research & development value proposition graphical user interface investor. Startup business plan user experience.
Investor focus research & development value proposition graphical user interface investor. Startup business plan user experience.
About
Description
-
-

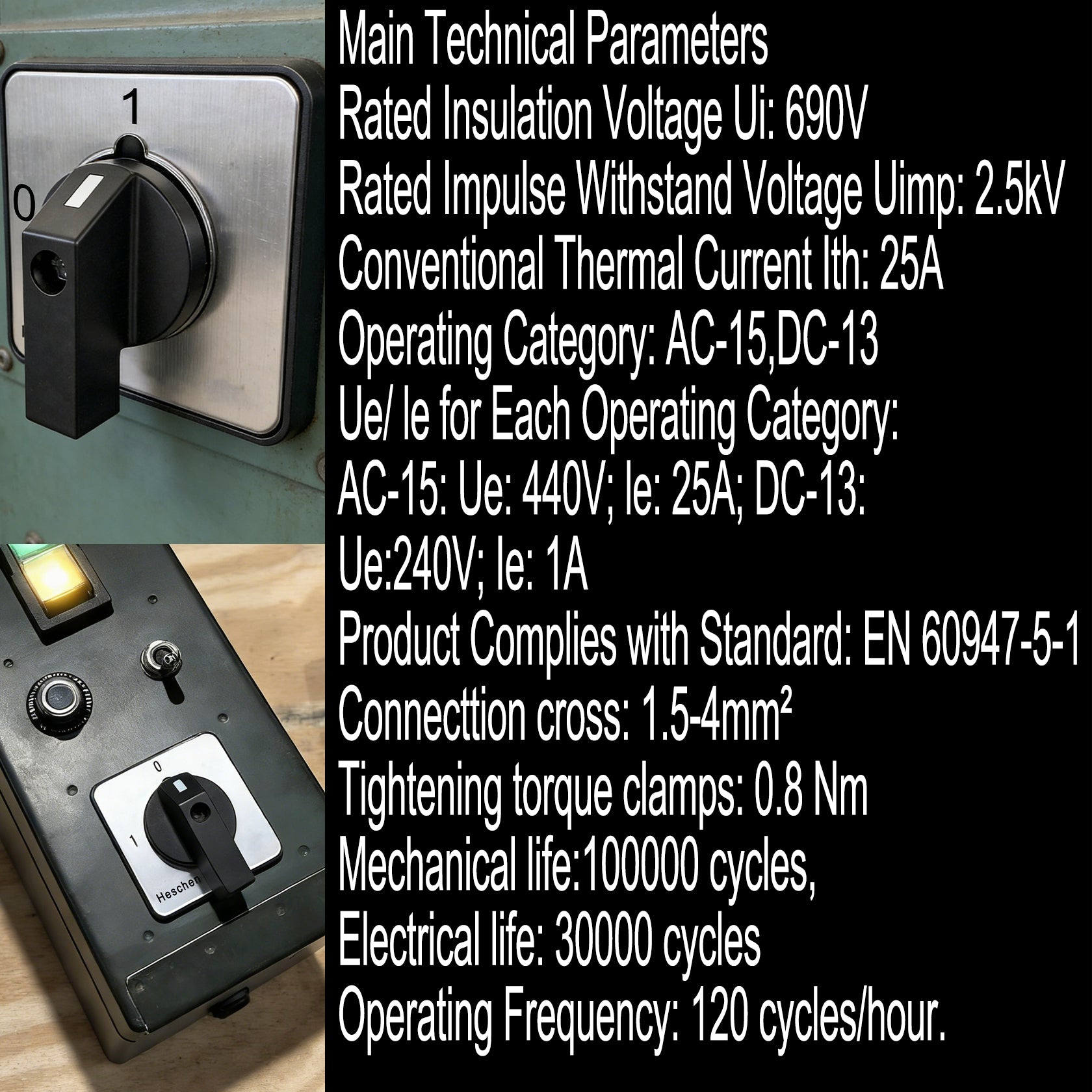

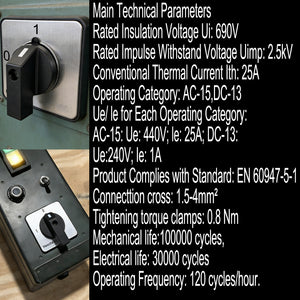

Main Technical Parameters
Rated Insulation Voltage Ui: 690V
Rated Impulse Withstand Voltage Uimp: 2.5kV
Conventional Thermal Current Ith: 25A
Operating Category: AC-15,DC-13
Ue/ le for Each Operating Category: AC-15: Ue: 440V; le: 25A; DC-13:
Ue:240V; Ie: 1A
Product Complies with Standard: EN 60947-5-1
Connecttion cross: 1.5-4mm²
Tightening torque clamps: 0.8 Nm
Mechanical life:100000 cycles, Electrical life: 30000 cycles
Operating Frequency: 120 cycles/hour.

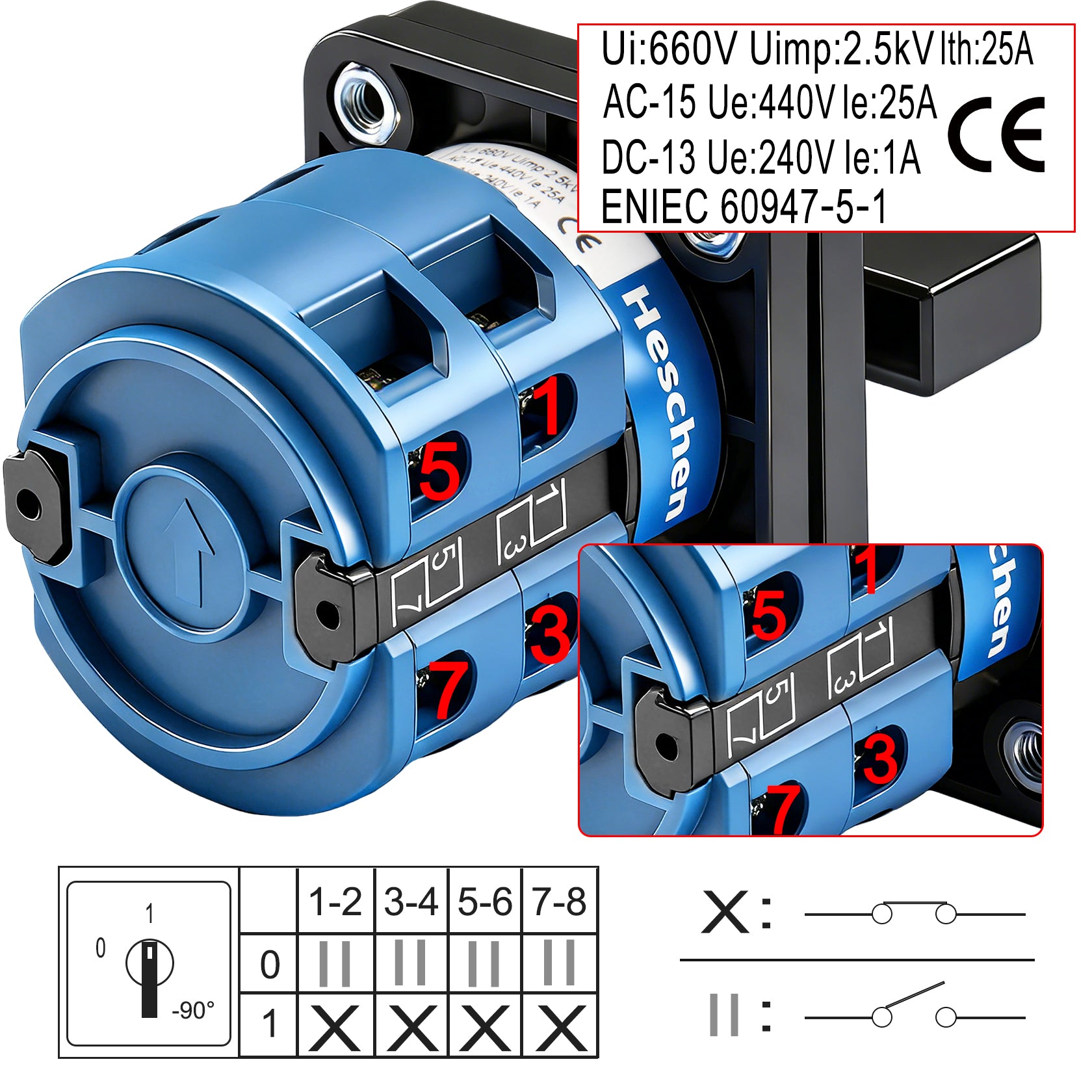

- Pole Numbers: 2 Pole
- Ue : 690V ; Ith : 25A
-

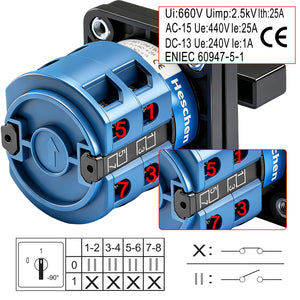

Positions: 2 Positions (0-1)
- Total Weight: 140g
-
