Heschen by Heschen

CJX1-12/22-AC24V

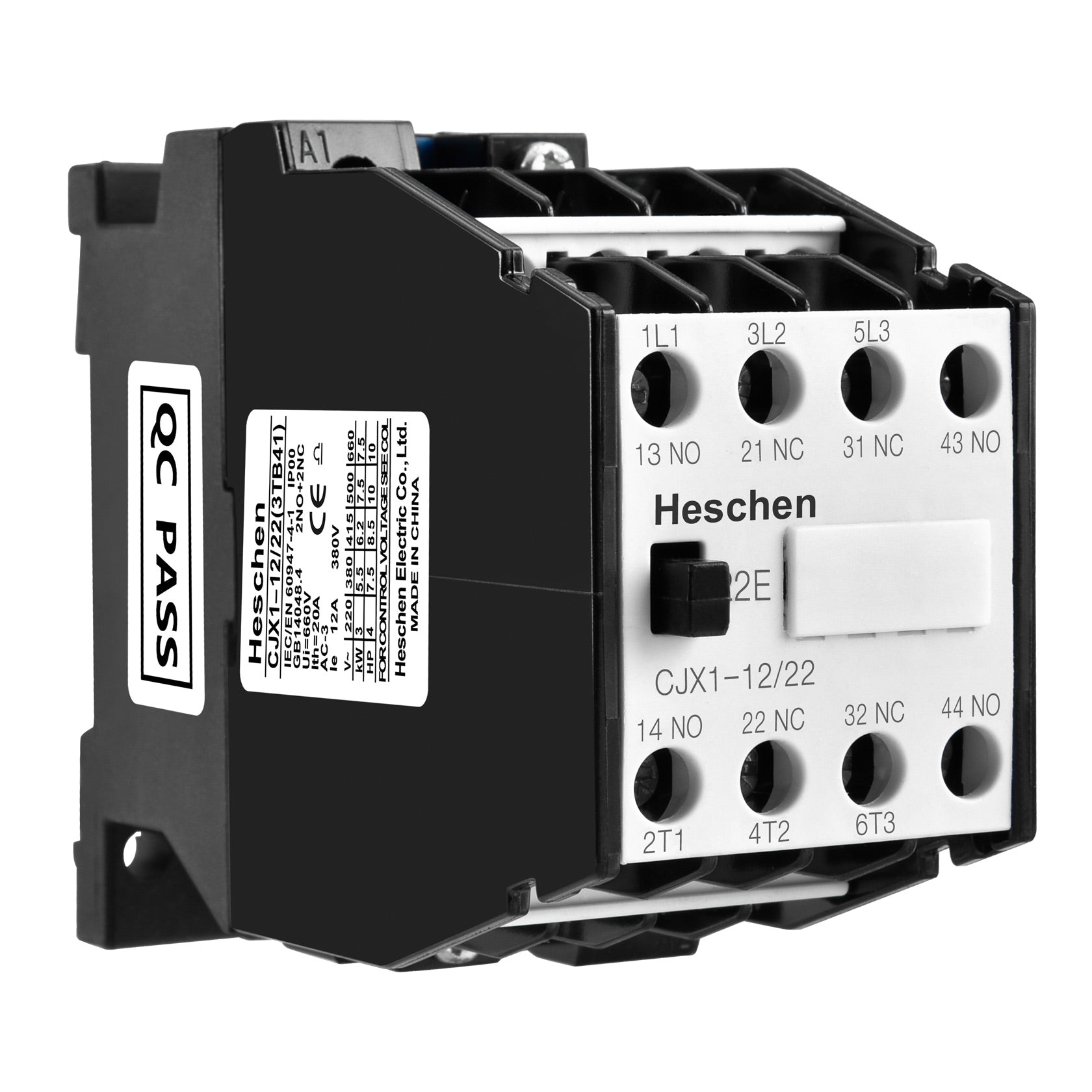

AC Contactor CJX1-12/22 AC24V/220V 50/60Hz Coil 3P 3 Pole 2NO+2NC 380V 20A 5.5KW

€15,79
€15,79
Shipping calculated at checkout.
Investor focus research & development value proposition graphical user interface investor. Startup business plan user experience.
Investor focus research & development value proposition graphical user interface investor. Startup business plan user experience.
COIL:

About

Description
  • Product Name: AC Contactor
  • Type: CJX1-12/22;

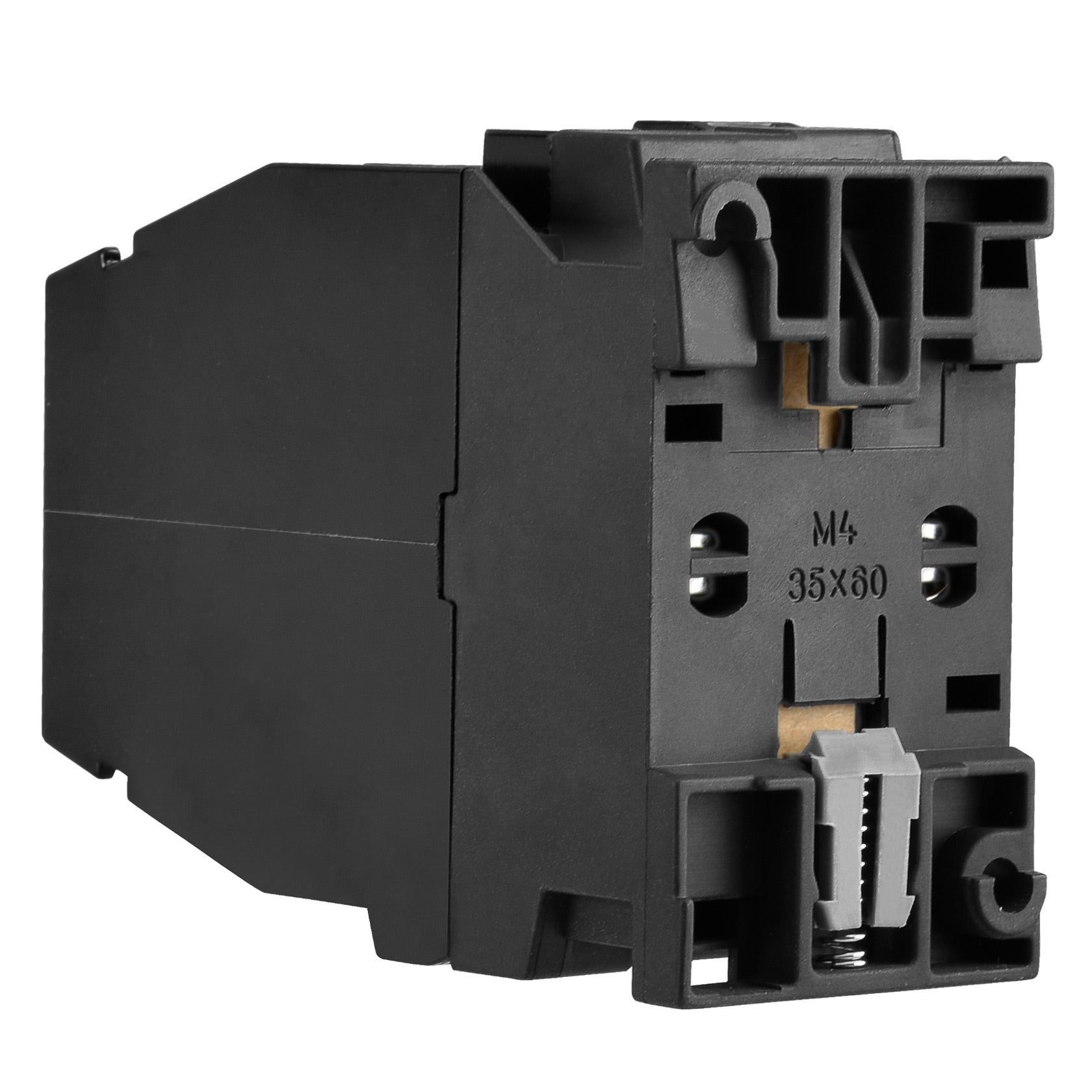

  • Rail Mounting: 35 mm DIN rail
  • Rated Coil Voltage: AC24V/AC 220V
  • Frequency: 50/60Hz

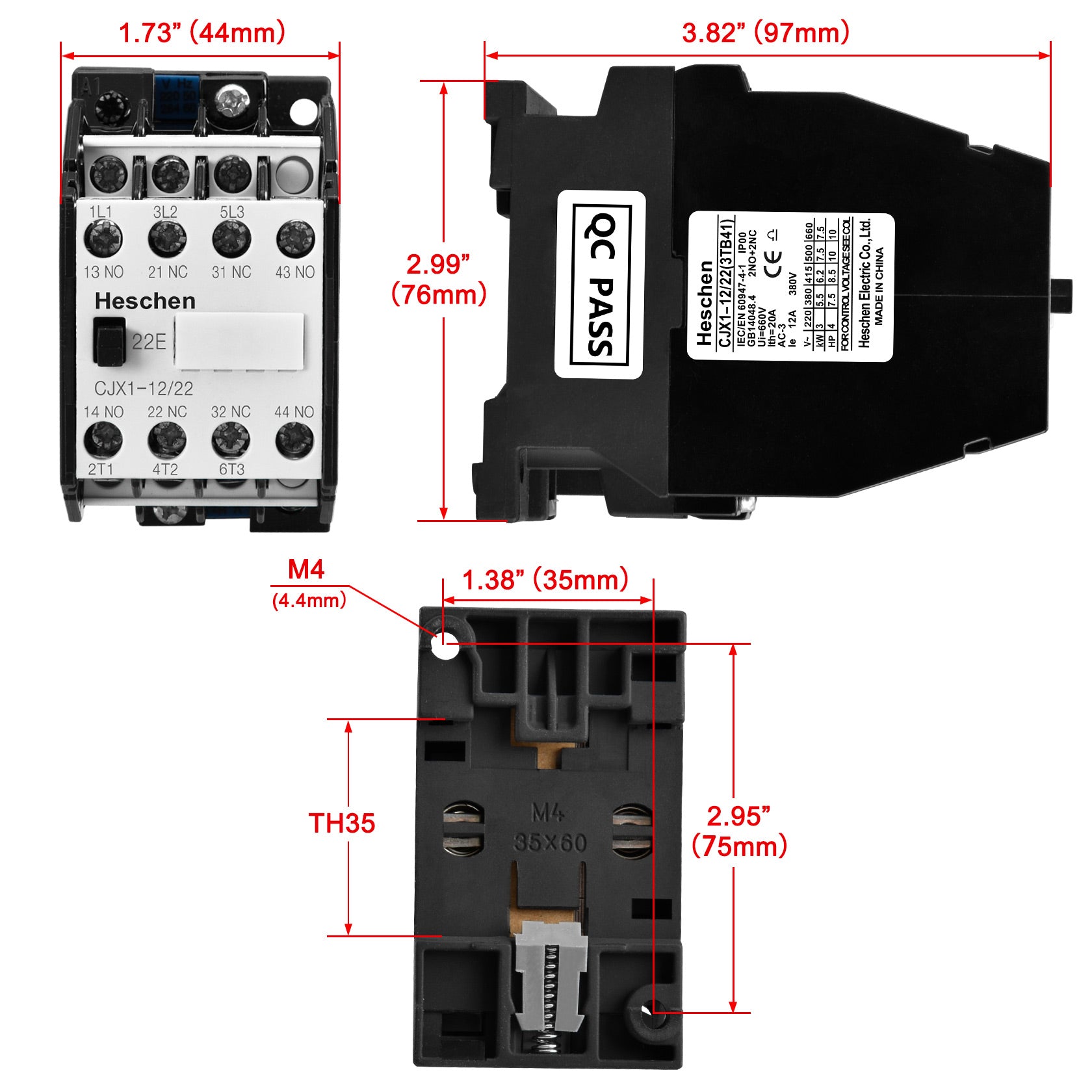

  • Total Size(Approx): 100 x 75 x 45mm/4" x 3" x 1.7"(L*W*H)
  • Package Content: 1 x AC Contactor

 Widely use for long-distance connecting and breaking circuit , frequent start and control AC electric motors. 380V AC rated insulation voltage, 3 pole 2NO+2NC.




Description
  • Product Name: AC Contactor
  • Type: CJX1-12/22;
  • Rail Mounting: 35 mm DIN rail
  • Rated Coil Voltage: AC24V/AC 220V
  • Frequency: 50/60Hz
  • Total Size(Approx): 100 x 75 x 45mm/4" x 3" x 1.7"(L*W*H)
  • Package Content: 1 x AC Contactor

 Widely use for long-distance connecting and breaking circuit , frequent start and control AC electric motors. 380V AC rated insulation voltage, 3 pole 2NO+2NC.
