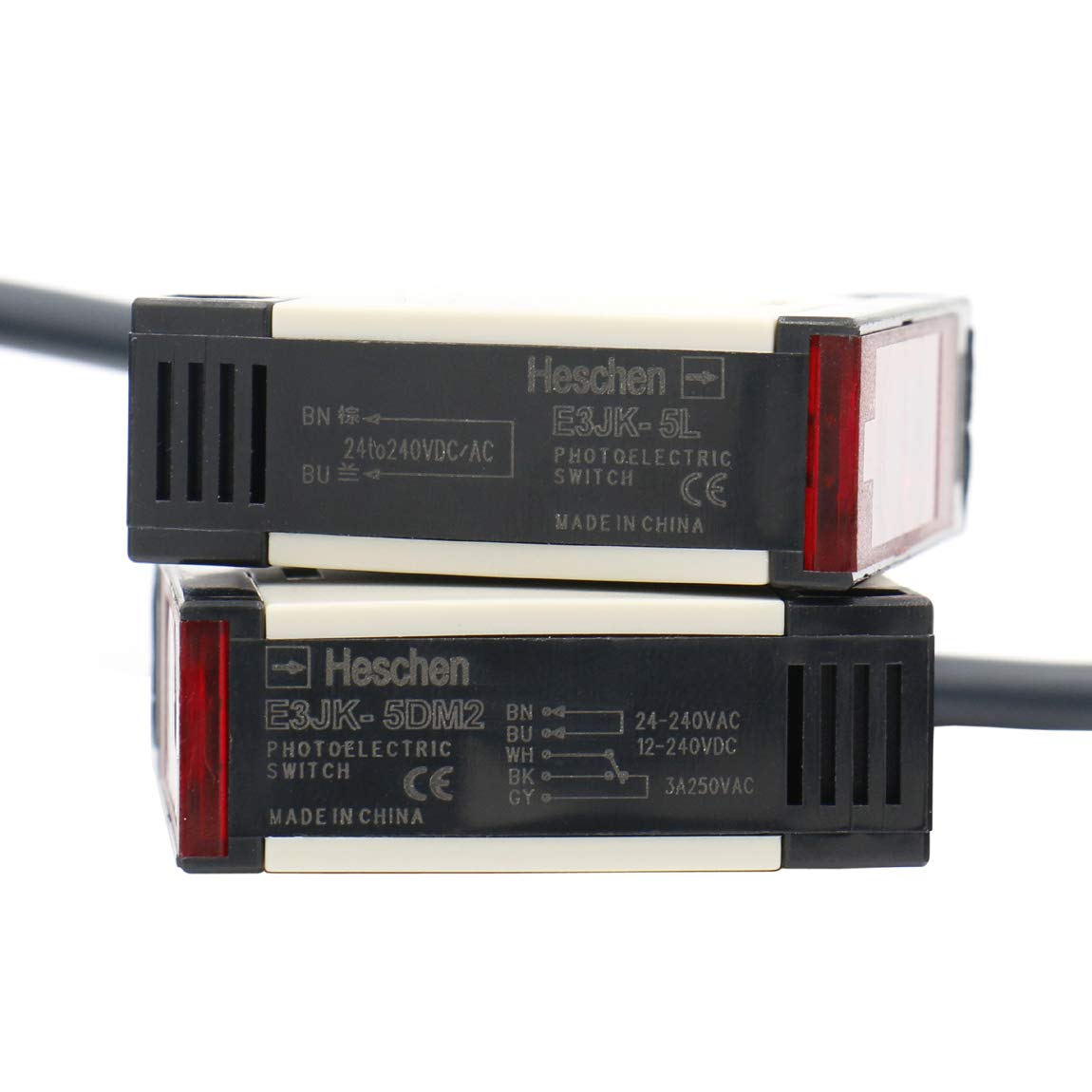

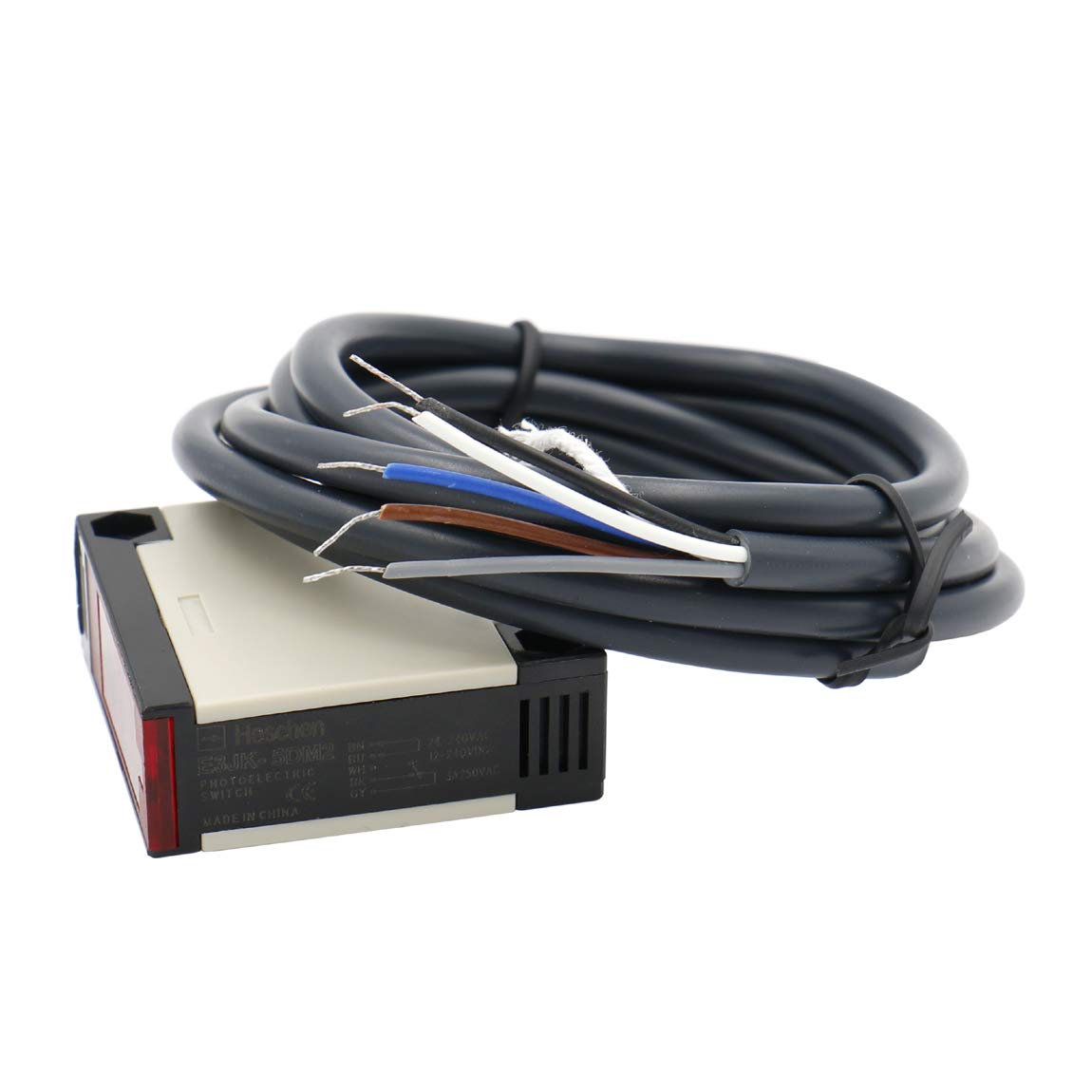

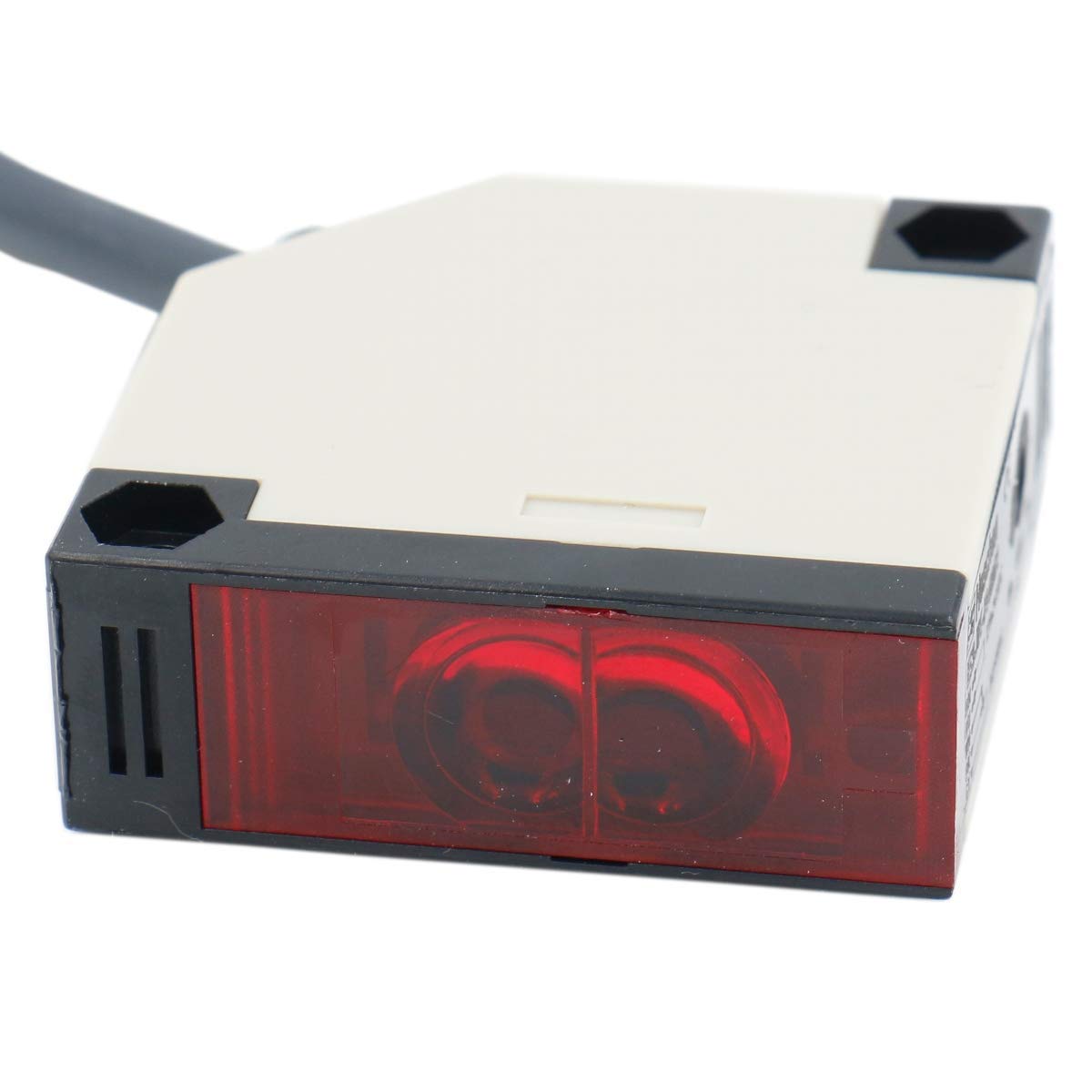

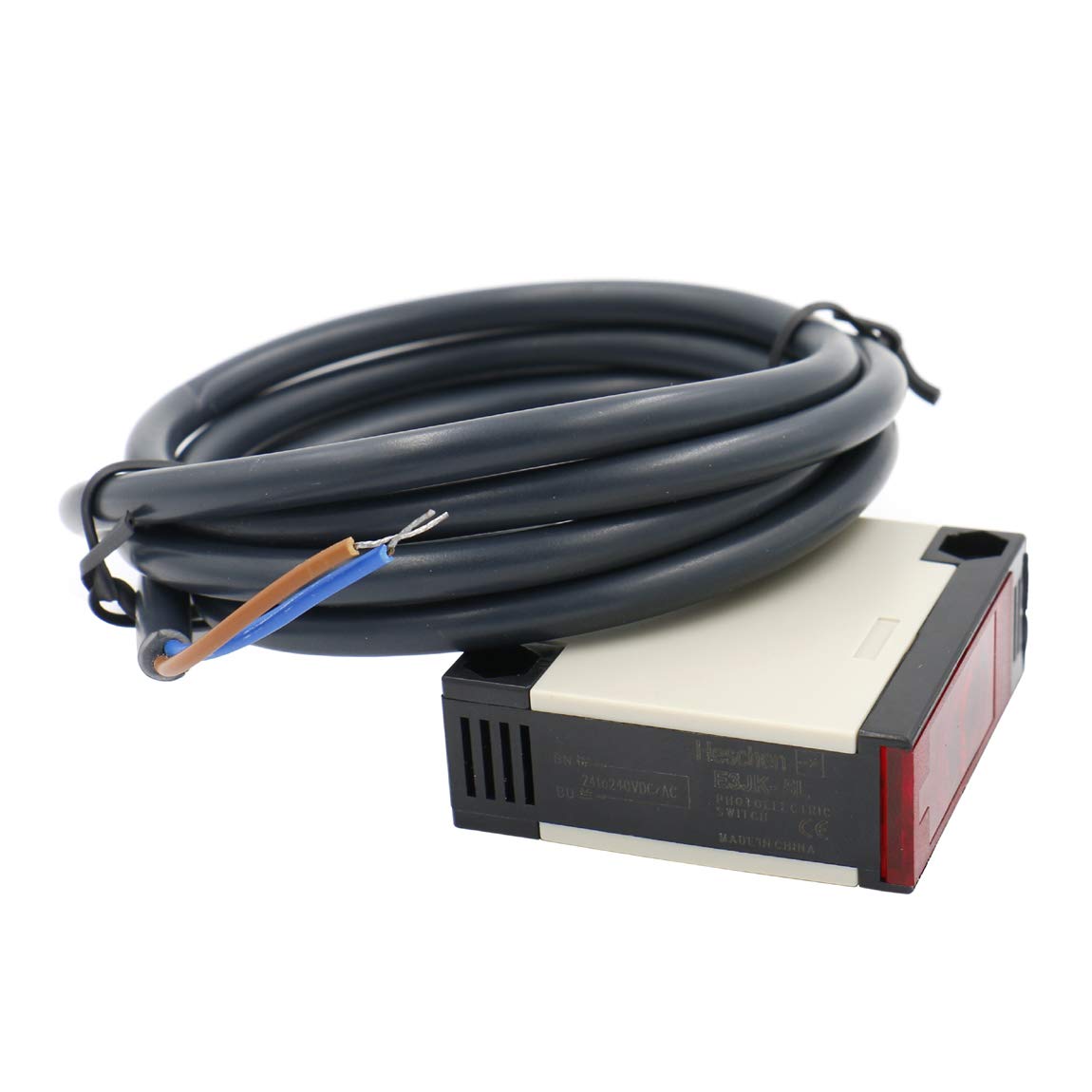

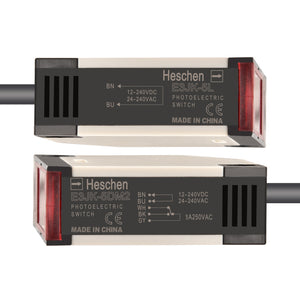

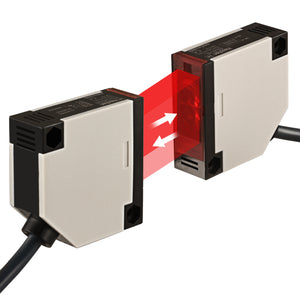

Heschen Photoelectric Switch E3JK-5DM2-5L 24-240 VAC/12-240 VDC Bijection Type Detection Distance 5m


  • €22,89
    Unit price per
Shipping calculated at checkout.

  • supply voltage: 24-240VAC/12-240VDC, Output: 3A 250VAC

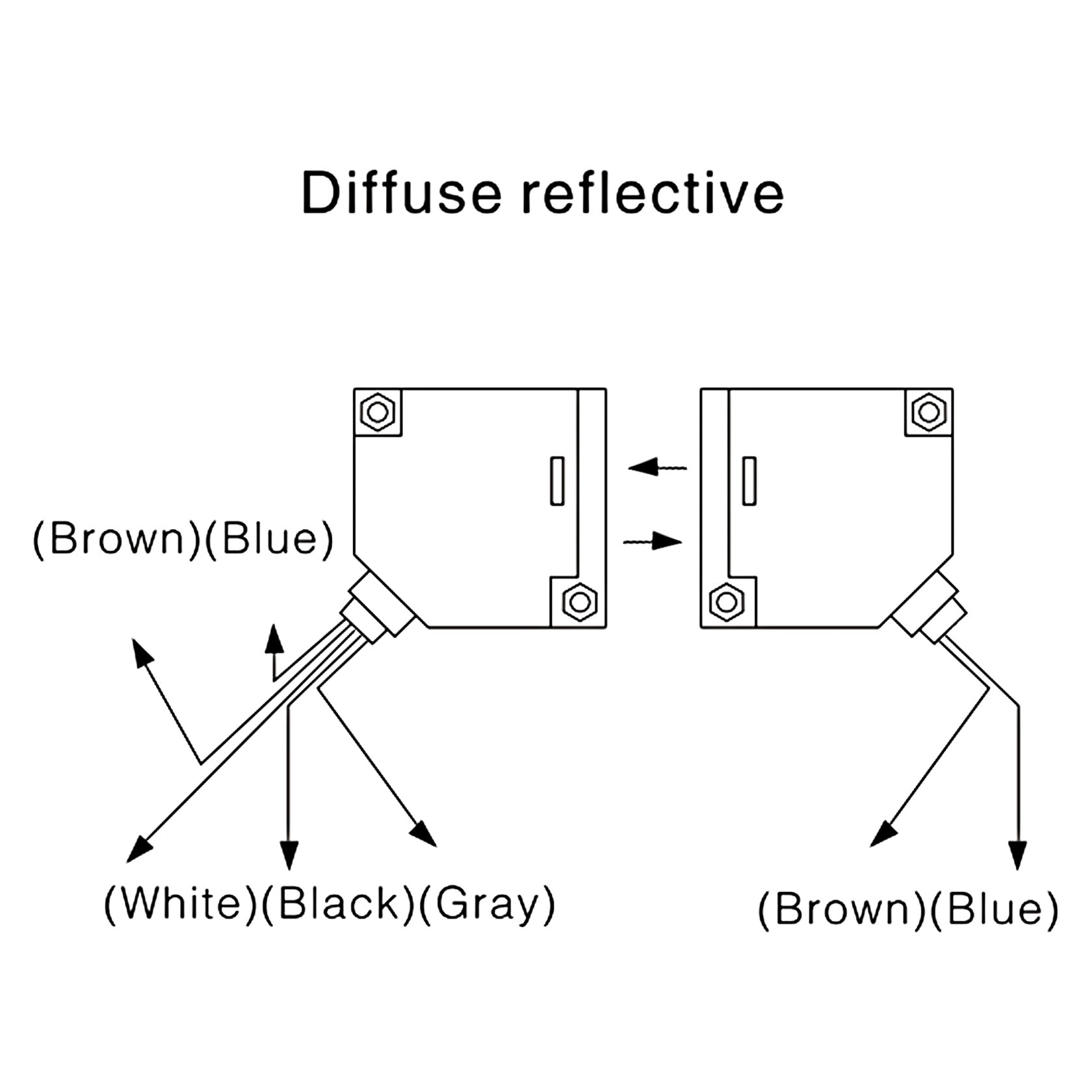

  • Detection method: bijection type
  • Relay output: DC non-illuminate
  • Detection target: Opaque object
  • Detection range: 5m
  • respnose time: 30ms
  • Light source: Infrared light 660nm
  • Impulsion and vibration are allowed: B<30g,T<11ms, f<55Hz, a<1mm
  • Insulation impedance: 50Mohm above between charging part and housing
  • Withstand voltage: AC1000V 50/60Hz 1min between charging part and housing
  • protection structure: IP65
  • Material: Housing: Nickel plated brass(ABS) Detection surface(lens): PMMA
