Heschen by Heschen

TF-JCJK-POKB

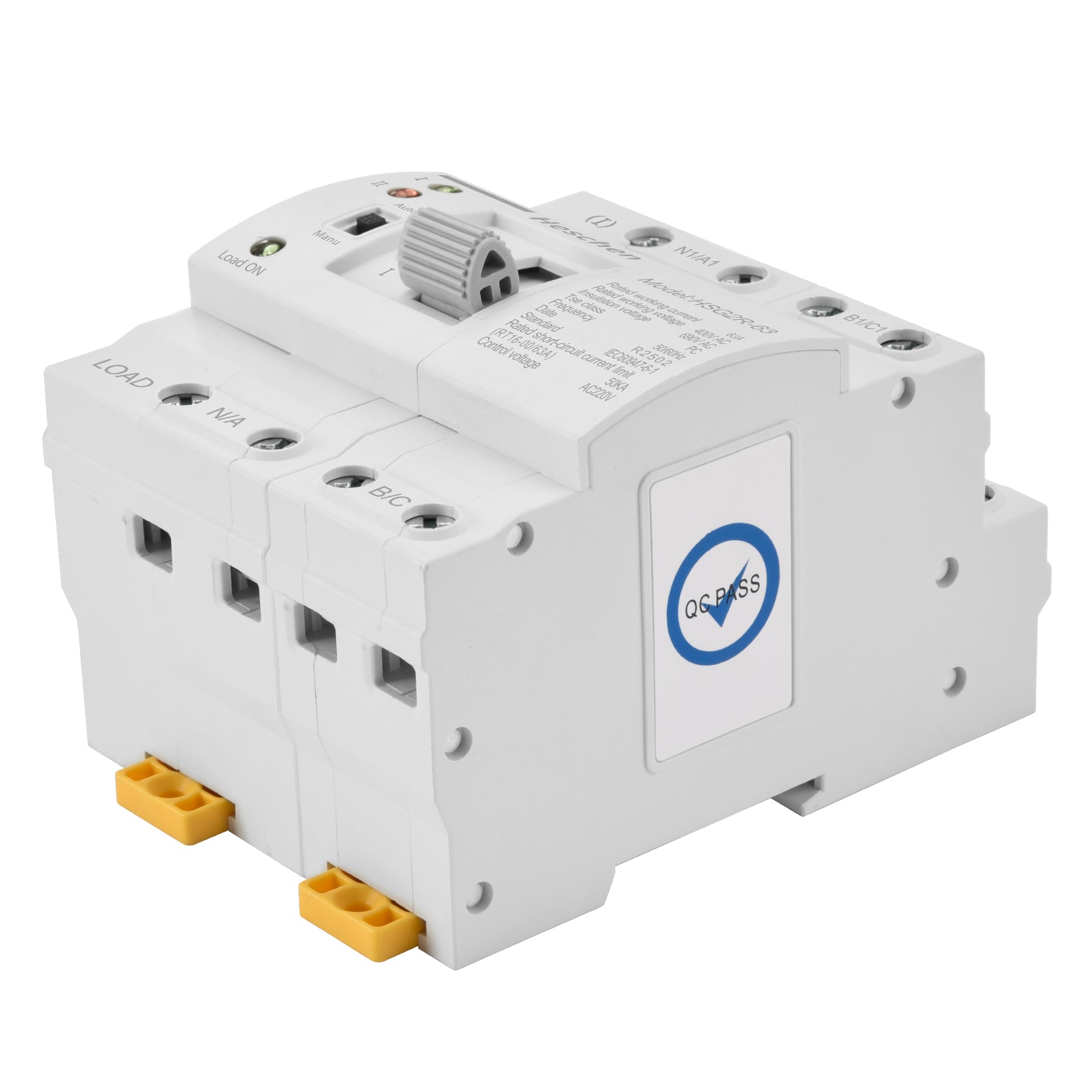

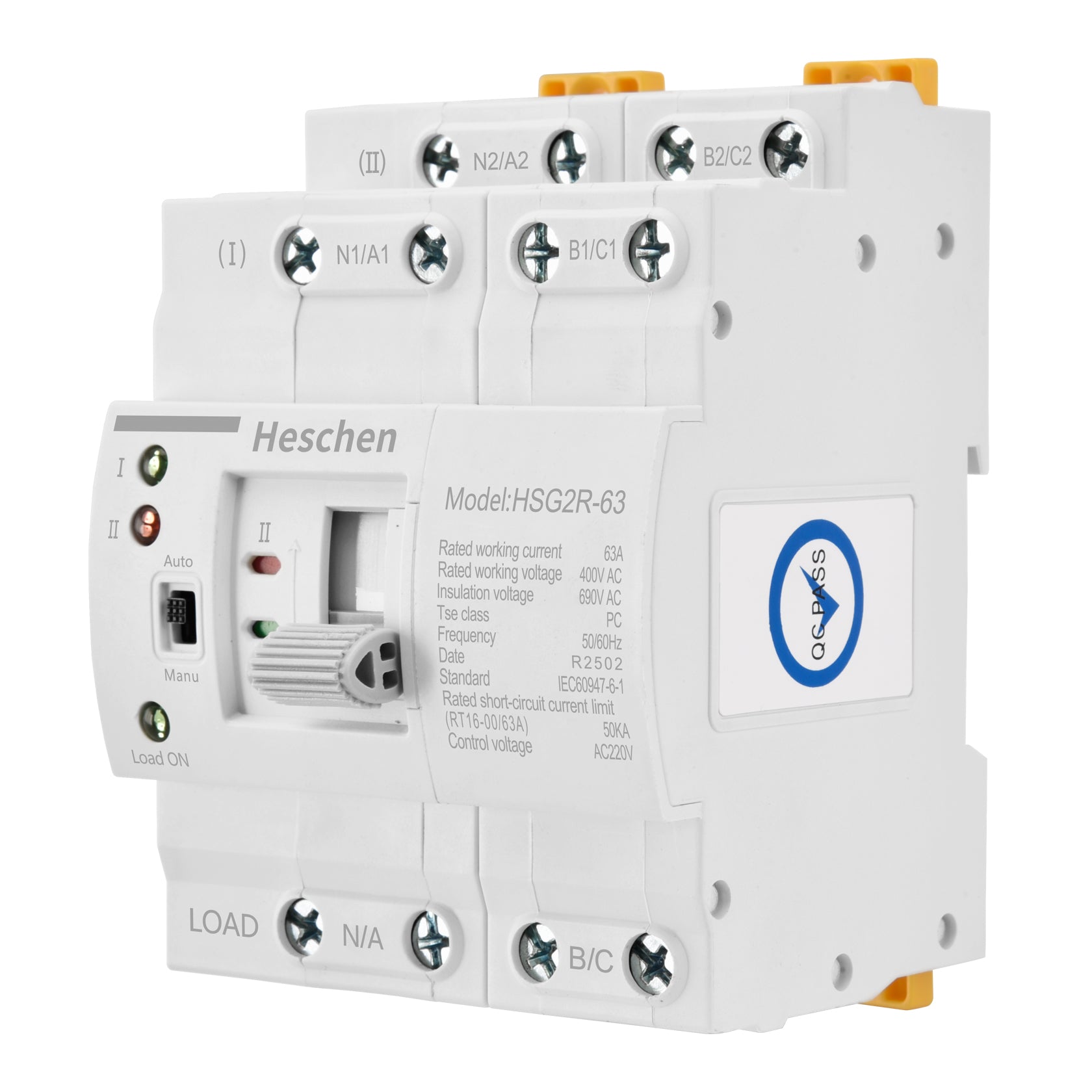

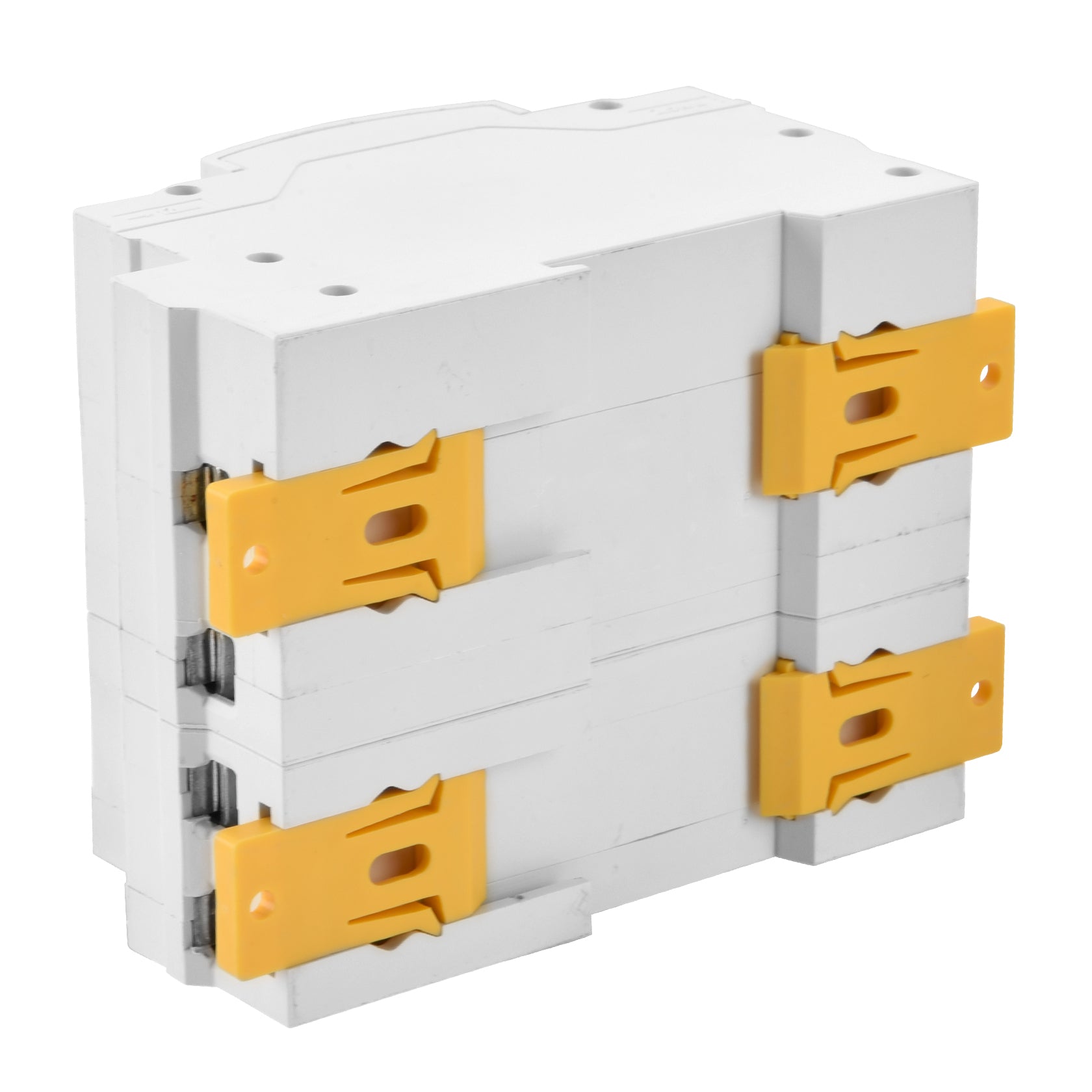

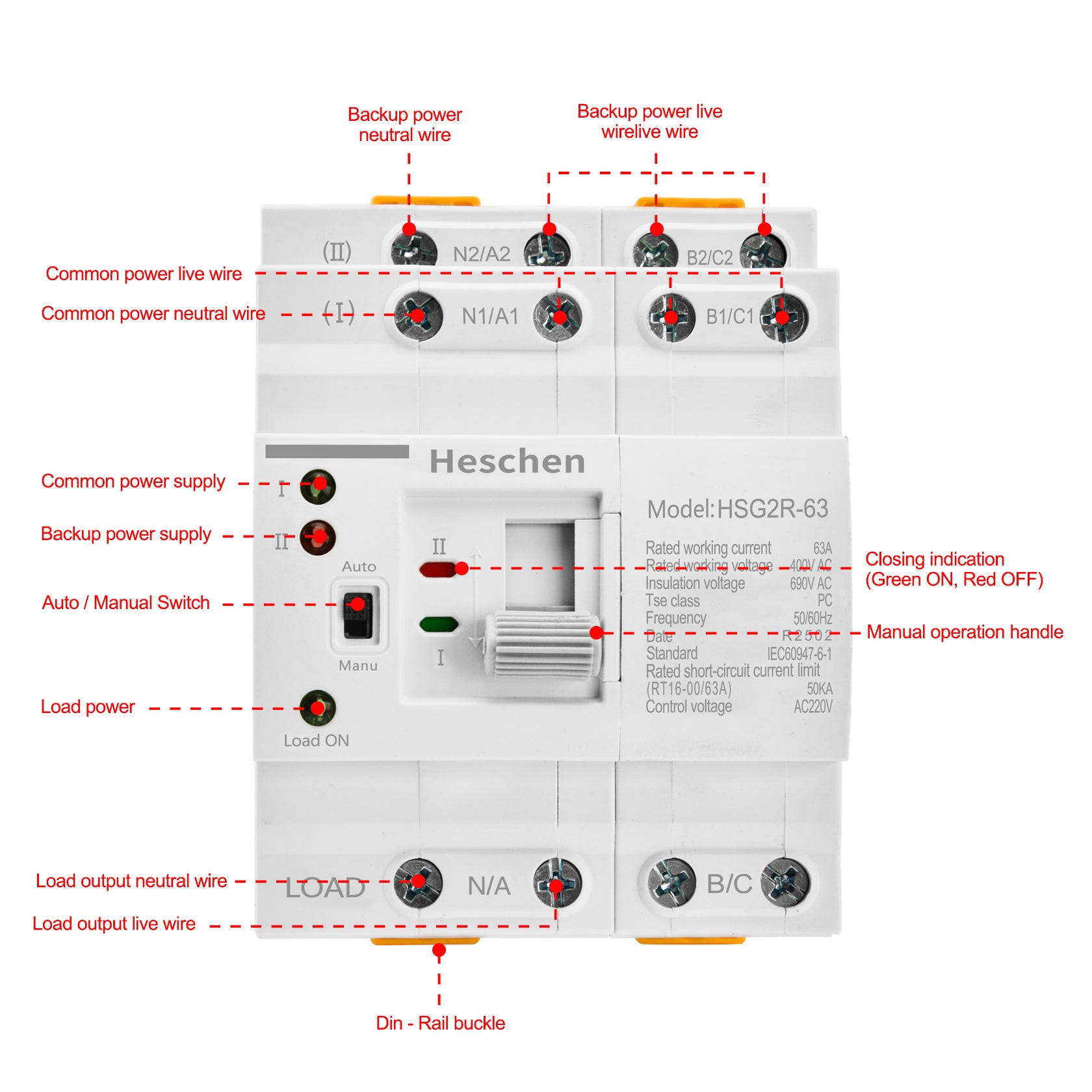

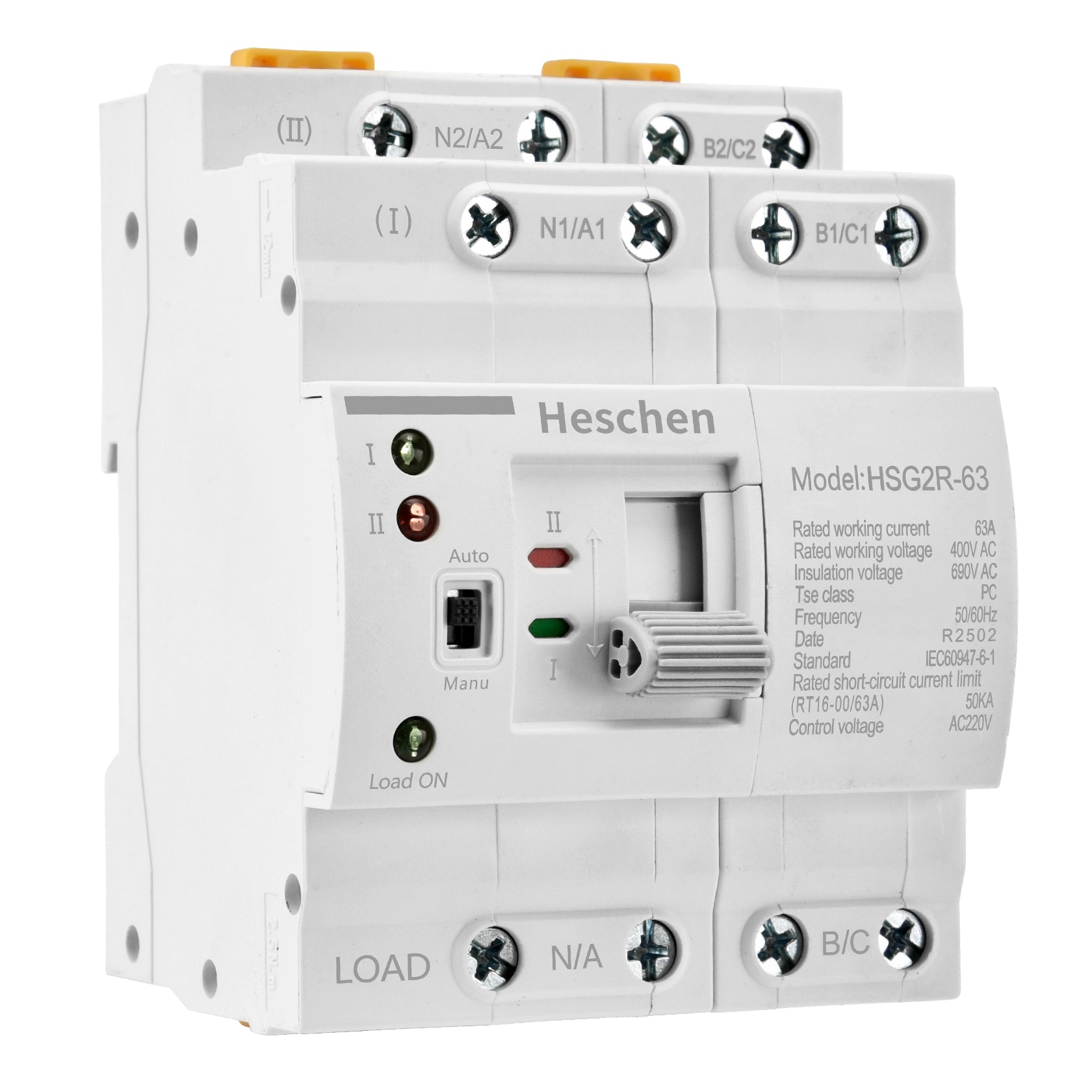

Heschen ATS Dual Power Automatic Transfer Switch, HSG2R-63, 4P, 63A 400VAC, PC Class, Power Supply Controller Uninterrupted Transfer Switch, 35mm DIN Rail Mounting

€38,69
€38,69
Shipping calculated at checkout.
Investor focus research & development value proposition graphical user interface investor. Startup business plan user experience.
Investor focus research & development value proposition graphical user interface investor. Startup business plan user experience.

About

Description

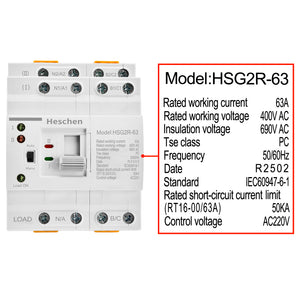

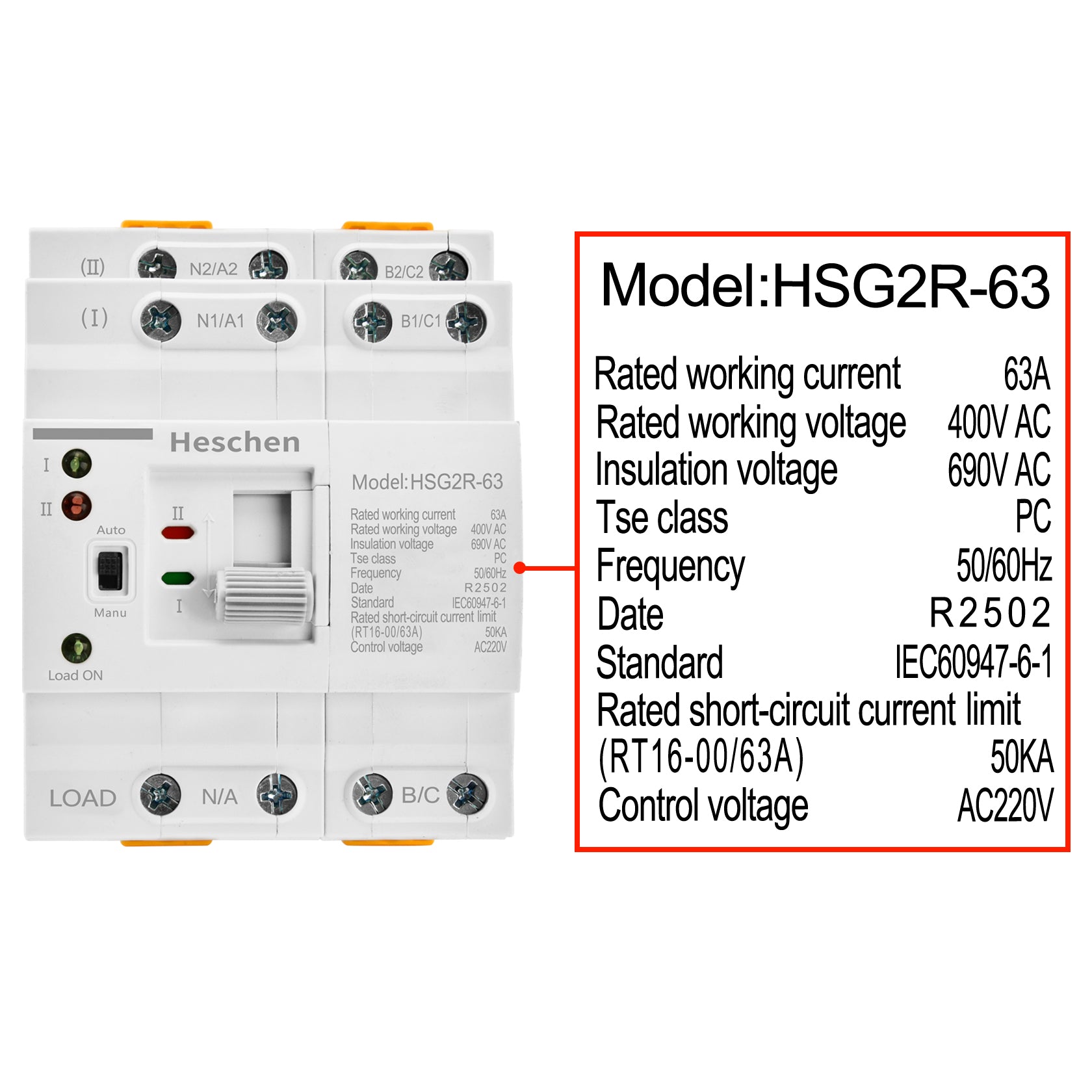

  • Rated Operating Current Ie (A): 63A; Rated Insulation Voltage UI: 690V
  • Rated Working Voltage Ue: AC400V; Rated Frequency: 50/60Hz
  • Rated Impulse withstand Voltage: 8kV; Rated Short-circuit Current Iq: 50kA

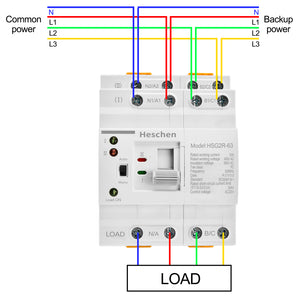

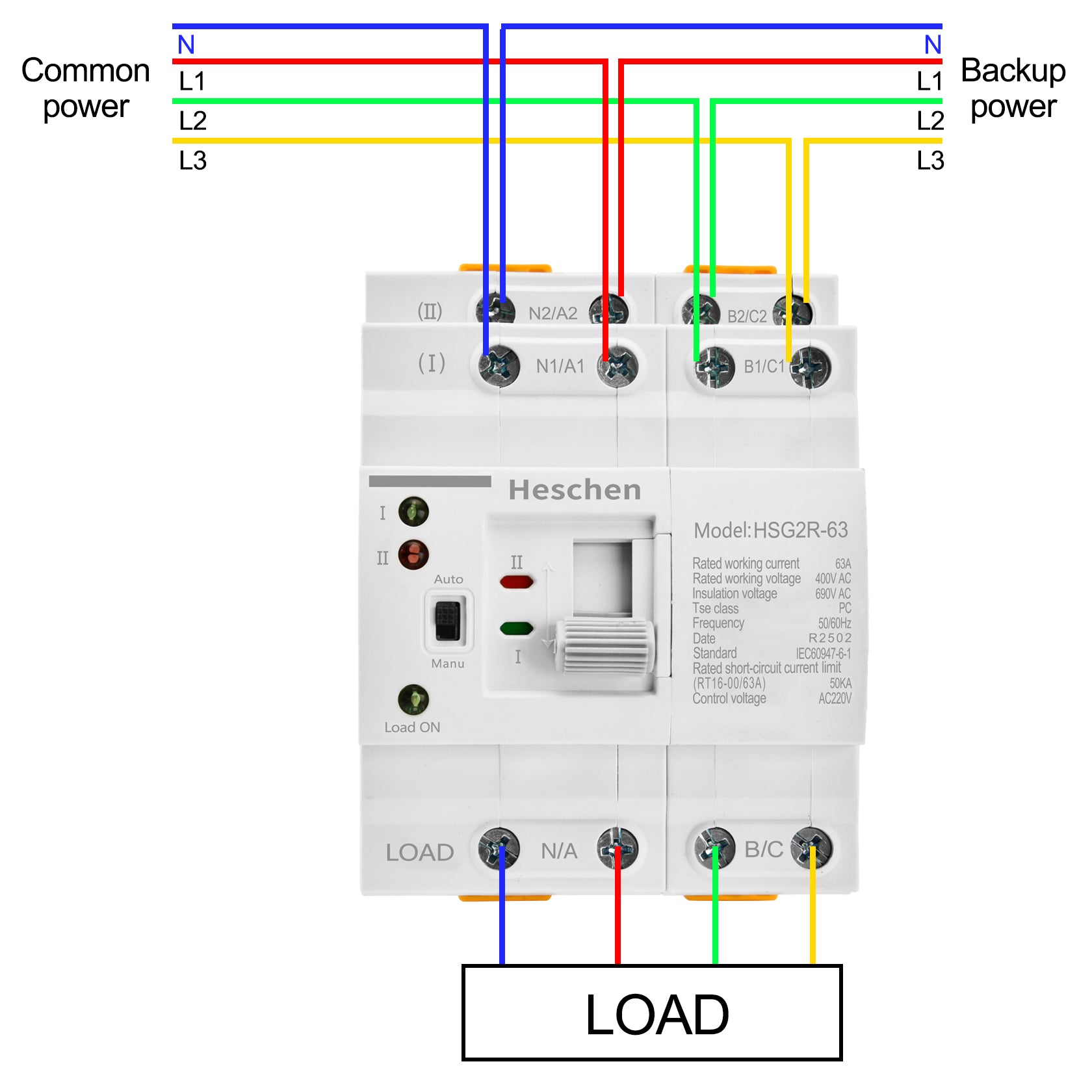

  • Common Circuit: 4P AC400V; Auxiliary Circuit: 4P AC400V(city power, generator)
  • Conversion Operation Time: <50ms; PC Class
Description
  • Rated Operating Current Ie (A): 63A; Rated Insulation Voltage UI: 690V
  • Rated Working Voltage Ue: AC400V; Rated Frequency: 50/60Hz
  • Rated Impulse withstand Voltage: 8kV; Rated Short-circuit Current Iq: 50kA
  • Common Circuit: 4P AC400V; Auxiliary Circuit: 4P AC400V(city power, generator)
  • Conversion Operation Time: <50ms; PC Class
