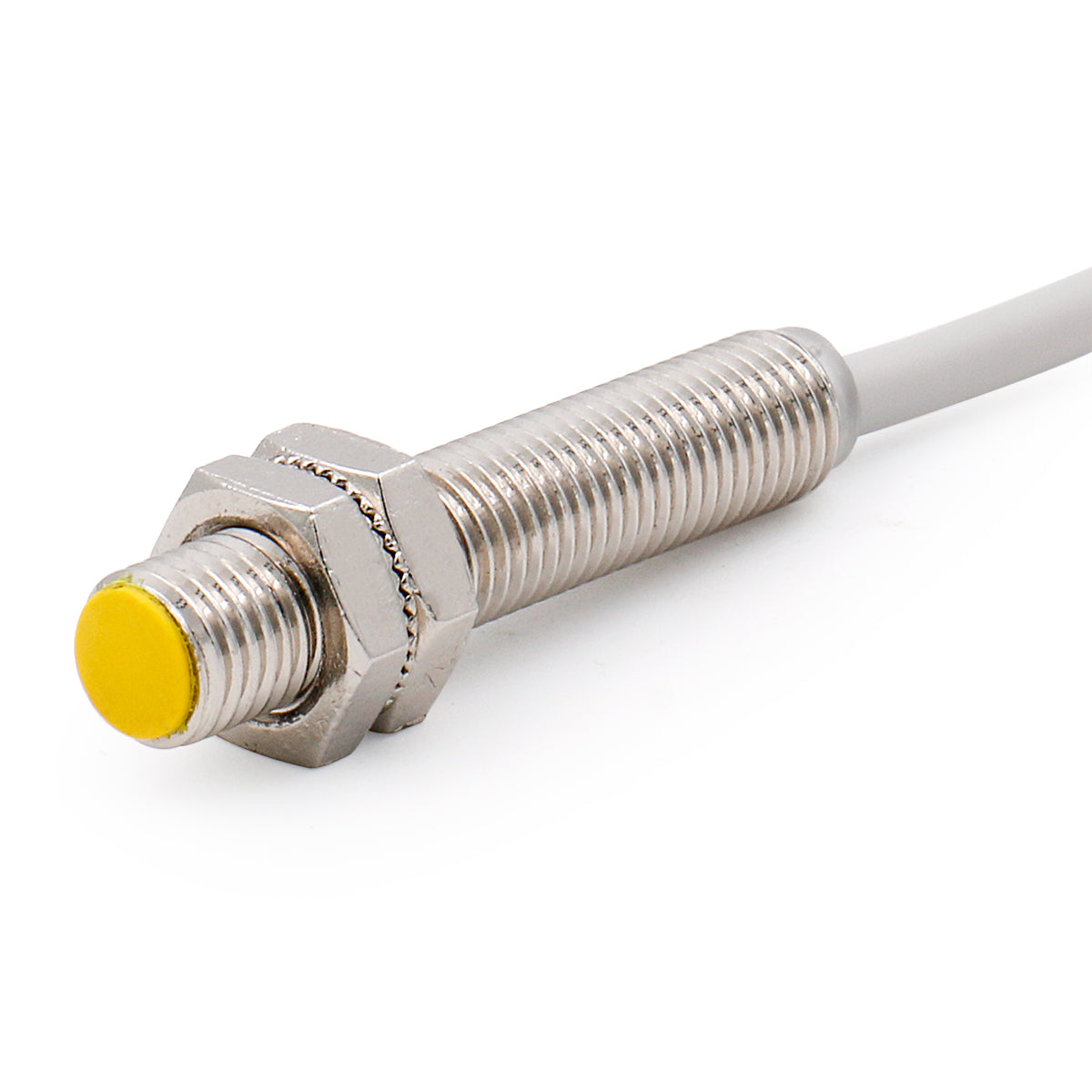

Heschen 1.5mm Embedded Inductive Sensor Switch Bi1.5-M8-RD4X Cylindrical Type DC 10-30V 2 Wire NC(Normally Closed) CE

Heschen

Shipping calculated at checkout.

Product type: inductive sensor

Installation method: embedded

Switching function: Normally Closed(NC)

Detection distance(mm): 1.5mm

Assured operating distance(mm): 0-1.2mm

Installation: flush

Output polarity: DC

Reduction factor rAl: 0.39

Reduction factor rCu: 0.35

Reduction factor r304: 0.75

Reduction factor rBrass: 0.49

Output type: 2-wire

Operating voltage: 10…30 V

Switching frequency: 0…500 Hz

Hysteresis: typ. 5%

Reverse polarity protection: reverse polarity protected

Short-circuit protection: pulsing

Voltage drop: ≤ 3V

Operating current: 0…200 mA

Off-state current: 0…0.5 mA typ. 0.1µA at 25℃

No-load supply current: ≤15 mA

Switching state indicator: LED, yellow

Ambient temperature: -25 … 70℃(-13…158℉)

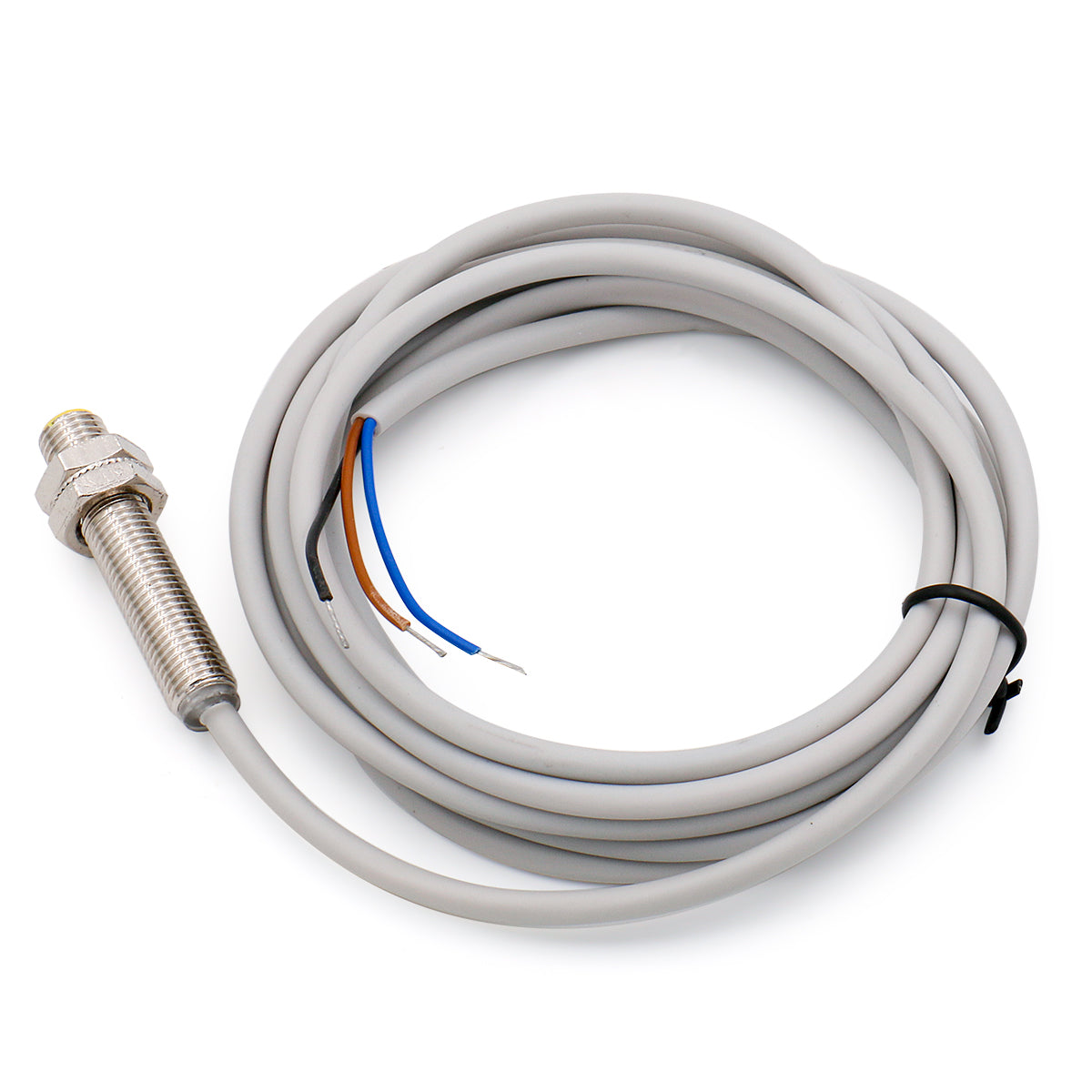

Connection type: cable PVC, 2m

Core cross-section：0.14mm²

Housing material: brass, nickel-plated

Sensing face: PBT

Protection level: IP67
