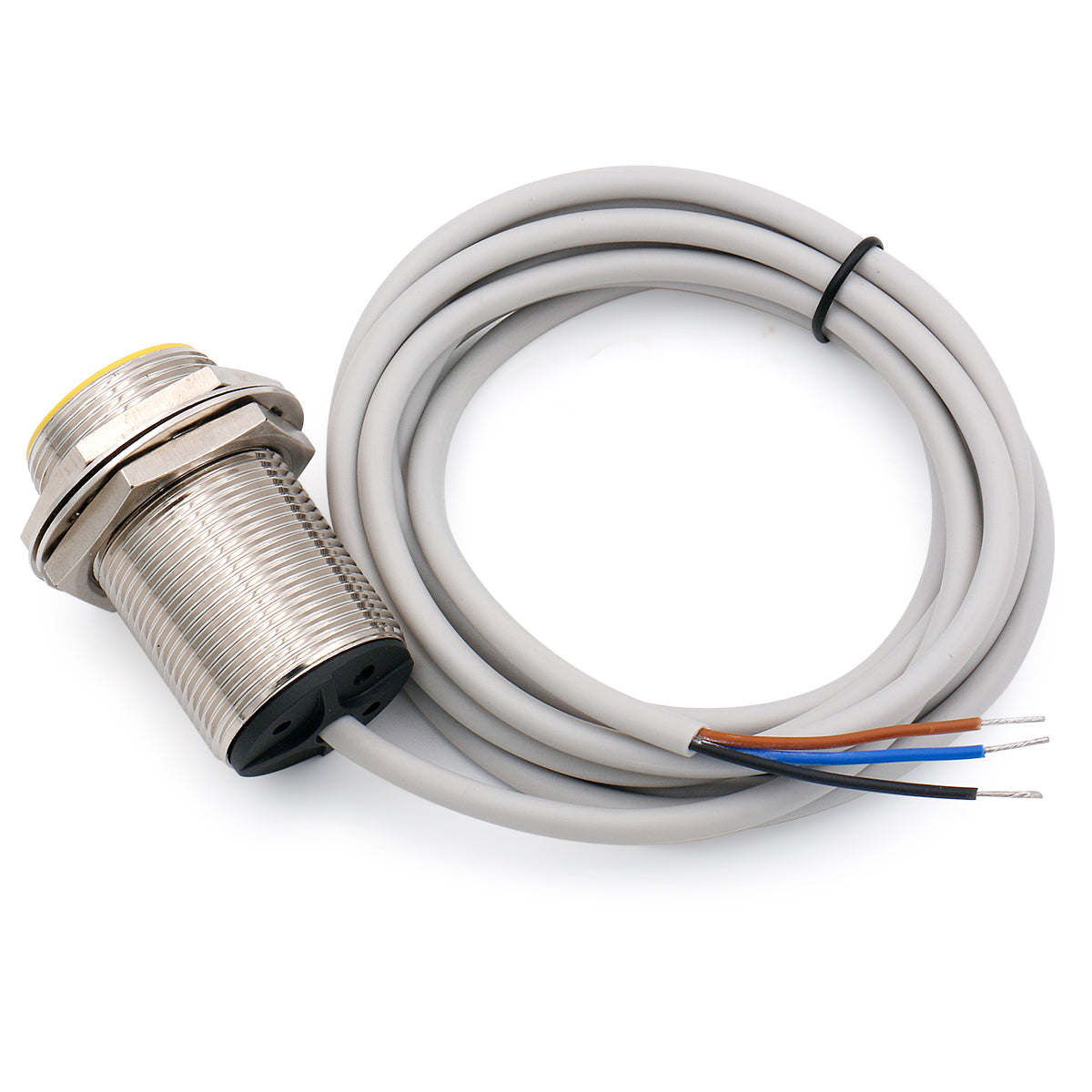

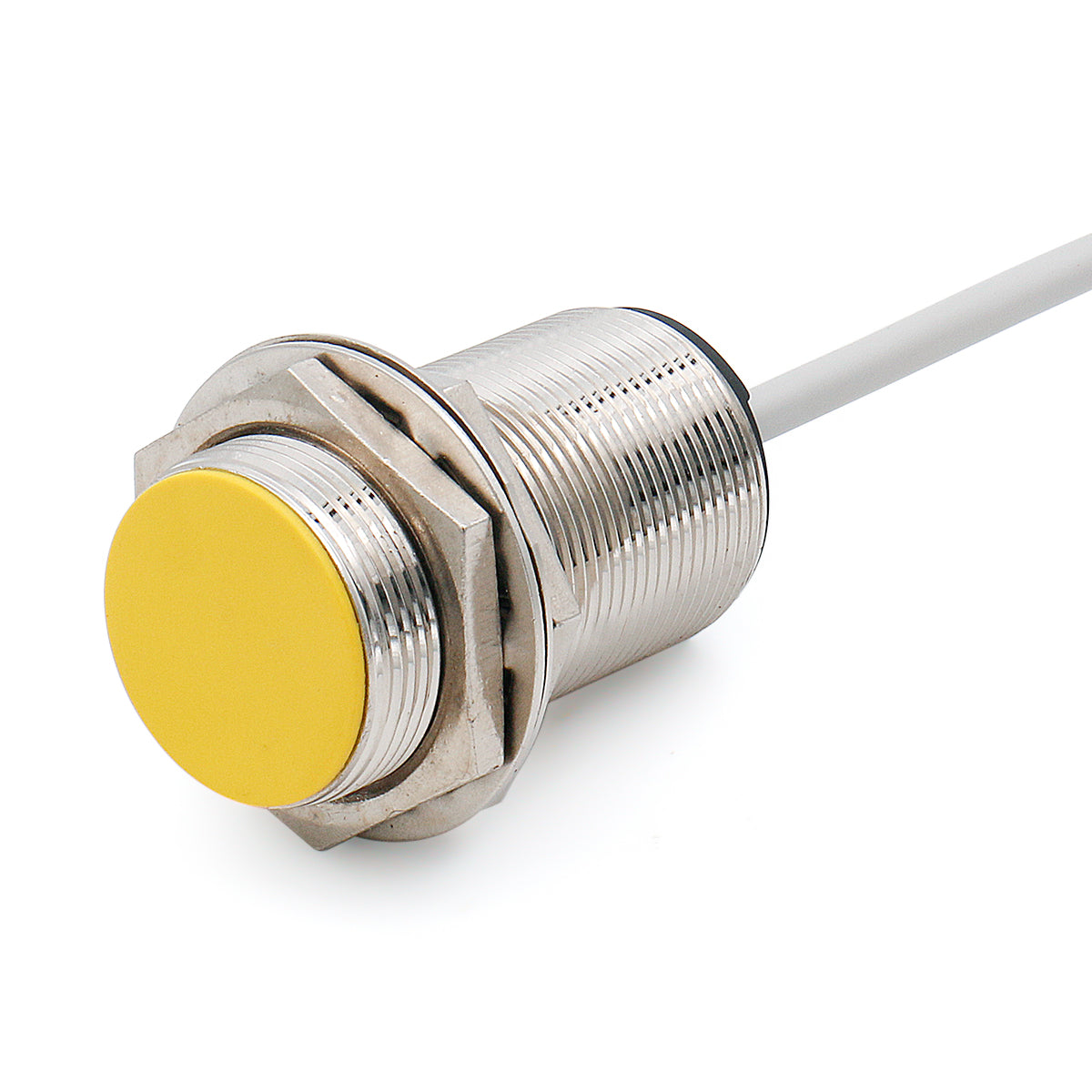

Heschen 10mm Embedded Inductive Sensor Switch Bi10-M30-AZ3X Cylindrical Type AC 90-250V 2 Wire NO(Normally Open) CE

Heschen

  • €10,99
    Unit price per
Shipping calculated at checkout.


  • Product type: inductive sensor
  • Installation method: embedded
  • Switching function: Normally Open (NO)
  • Detection distance(mm): 10mm
  • Assured operating distance(mm): 0-8mm
  • Installation: flush
  • Output polarity: AC
  • Reduction factor rAl: 0.39
  • Reduction factor rCu: 0.35
  • Reduction factor r304: 0.75
  • Reduction factor rBrass: 0.49
  • Output type: 3-wire
  • Operating voltage: 90…250 V
  • Switching frequency: 25 Hz
  • Hysteresis: typ. 5%
  • Reverse polarity protection: reverse polarity protected
  • Short-circuit protection: pulsing
  • Operating current: 0…200 mA
  • Off-state current: 0…0.5 mA typ. 0.1µA at 25
  • No-load supply current: 15 mA
  • Switching state indicator: LED, yellow
  • Ambient temperature: -25 … 70(-13…158)
  • Connection type: cable PVC, 2m
  • Core cross-section0.14mm²
  • Housing material: brass, nickel-plated
  • Sensing face: PBT
  • Protection level: IP67
