Description
- Contact Configuration: SPST-NO
- Coil Voltage: 12 VDC
- Contact rating: 16A, 250VAC; 16A, 30VDC
- Release time: 5ms
- Mechanical durability 20000000 cycles
- Operating temperature -40°C--70°C
- Terminal pitch: 5mm
- Coil current: 43.6mA

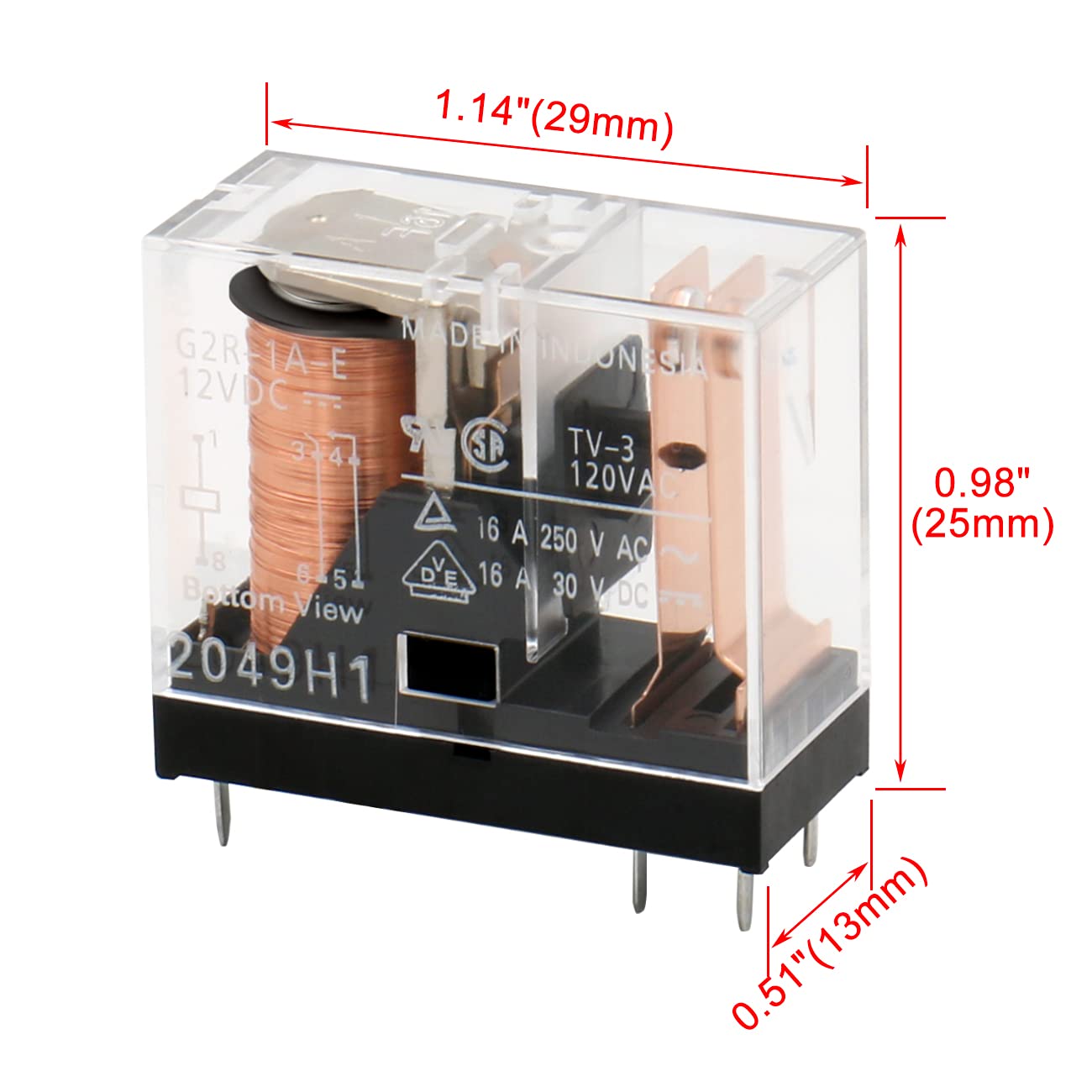

- Body dimensions: 29 x 13 x 25.5mm
- Approvals & Standards: CSA, IEC, UL, VDE
Description
- Contact Configuration: SPST-NO
- Coil Voltage: 12 VDC
- Contact rating: 16A, 250VAC; 16A, 30VDC
- Release time: 5ms
- Mechanical durability 20000000 cycles
- Operating temperature -40°C--70°C
- Terminal pitch: 5mm
- Coil current: 43.6mA
- Body dimensions: 29 x 13 x 25.5mm
- Approvals & Standards: CSA, IEC, UL, VDE
Heschen
by
Heschen
SKU:E0-74LL-W33R

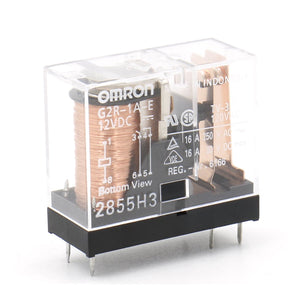

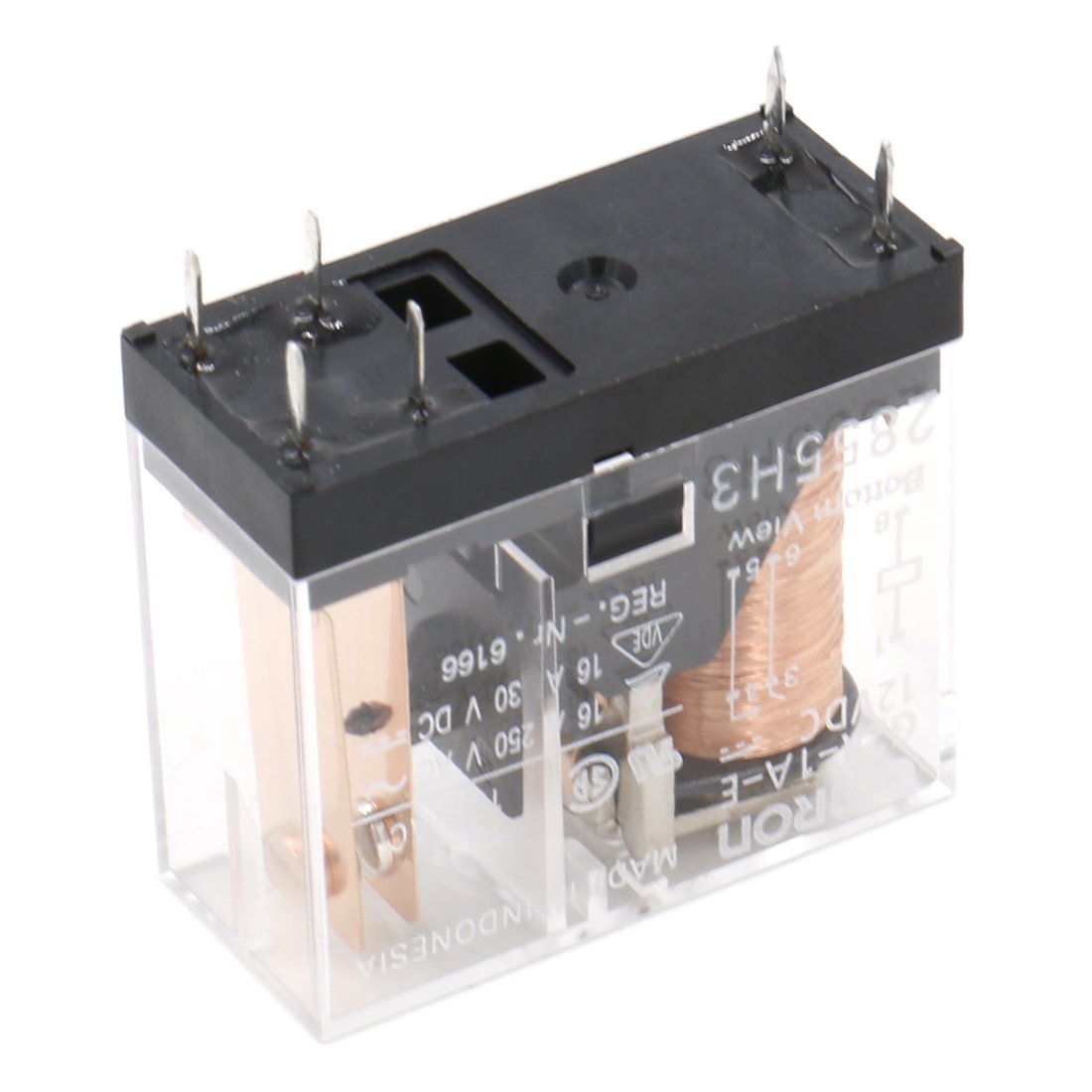

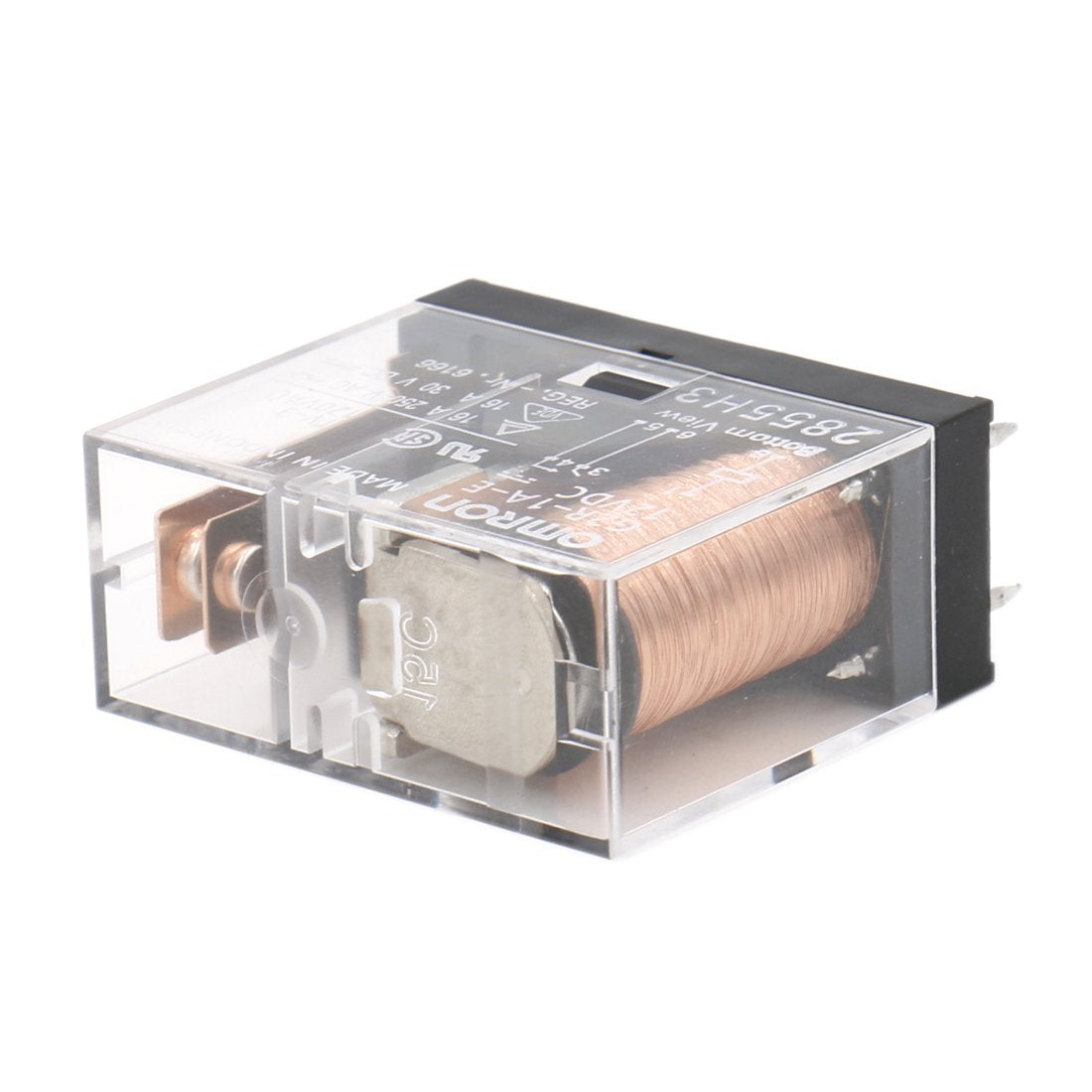

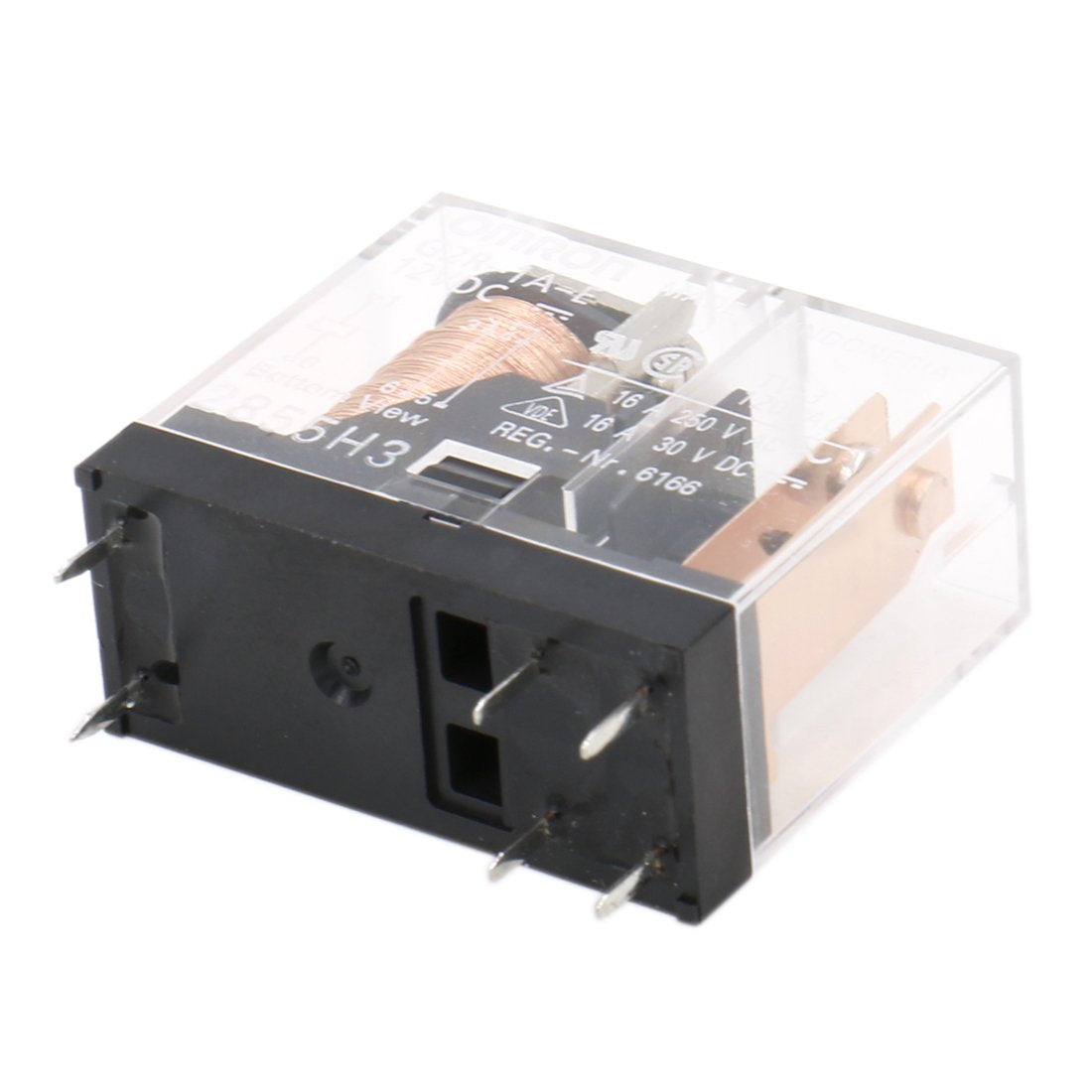

Heschen Relay electromagnetic G2R-1A-E 12VDC SPST-NO 16A/250VAC Mounting PCB 6 pin
- Regular price
- €5,99
- Sale price
- €5,99
- Regular price
-
Shipping calculated at checkout.
