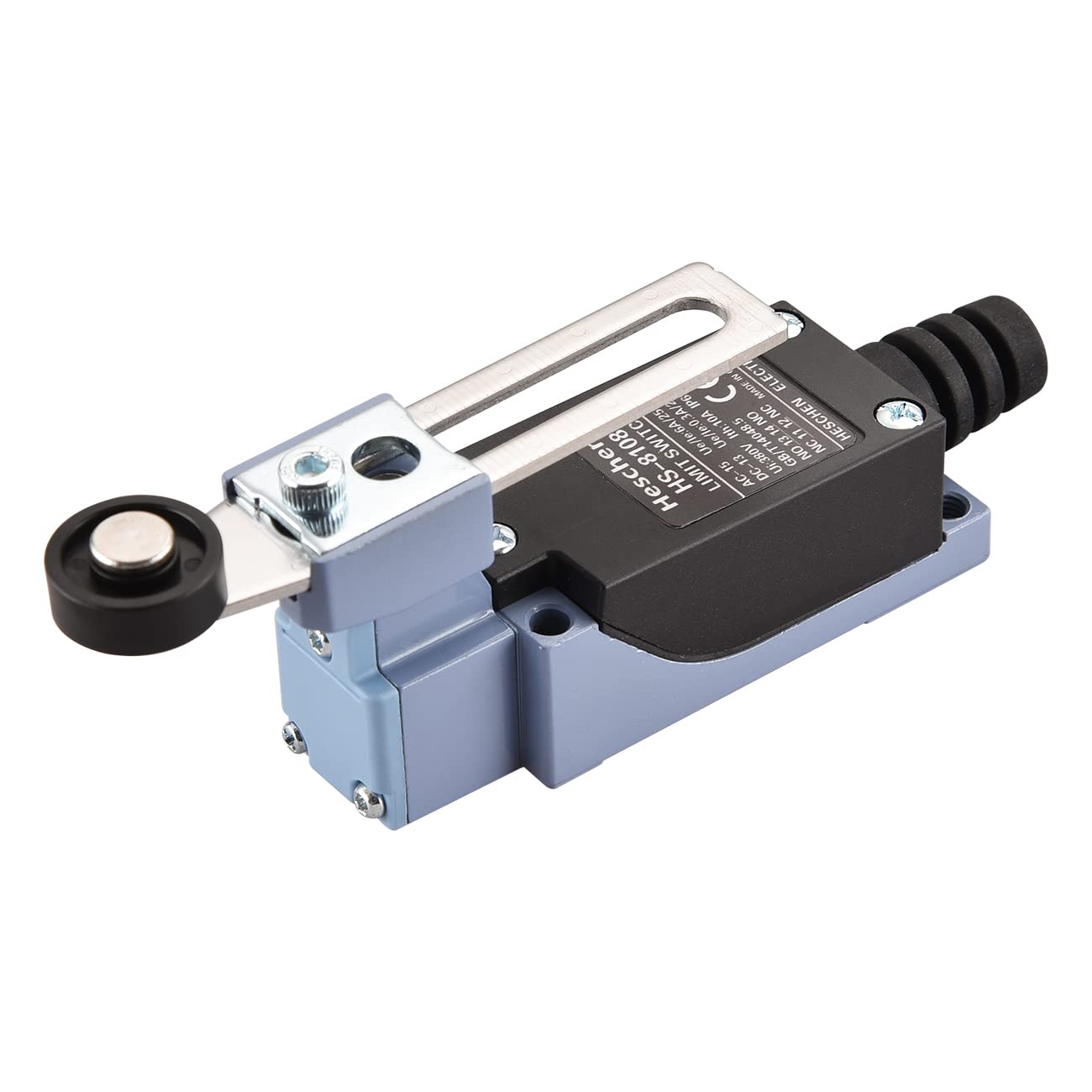

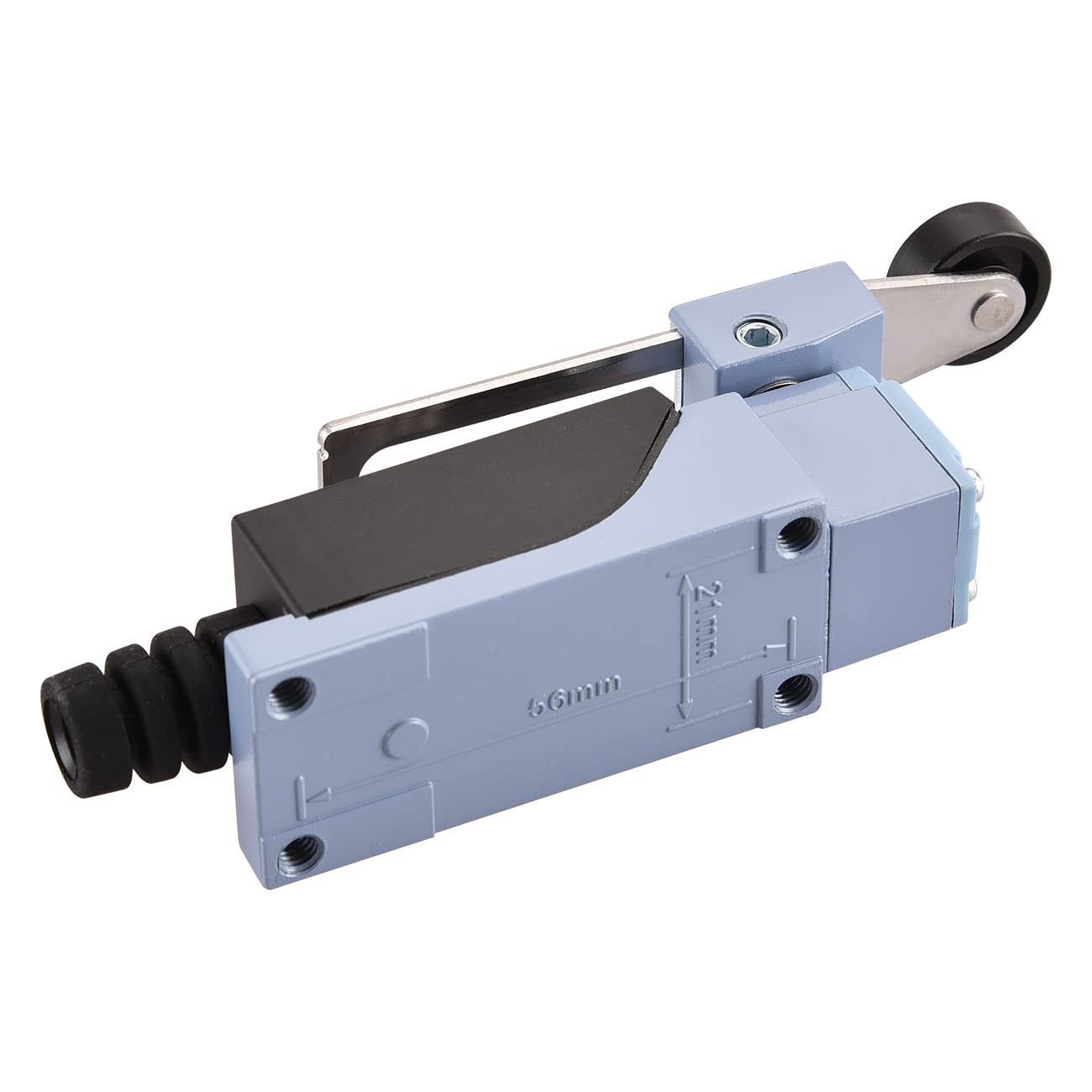

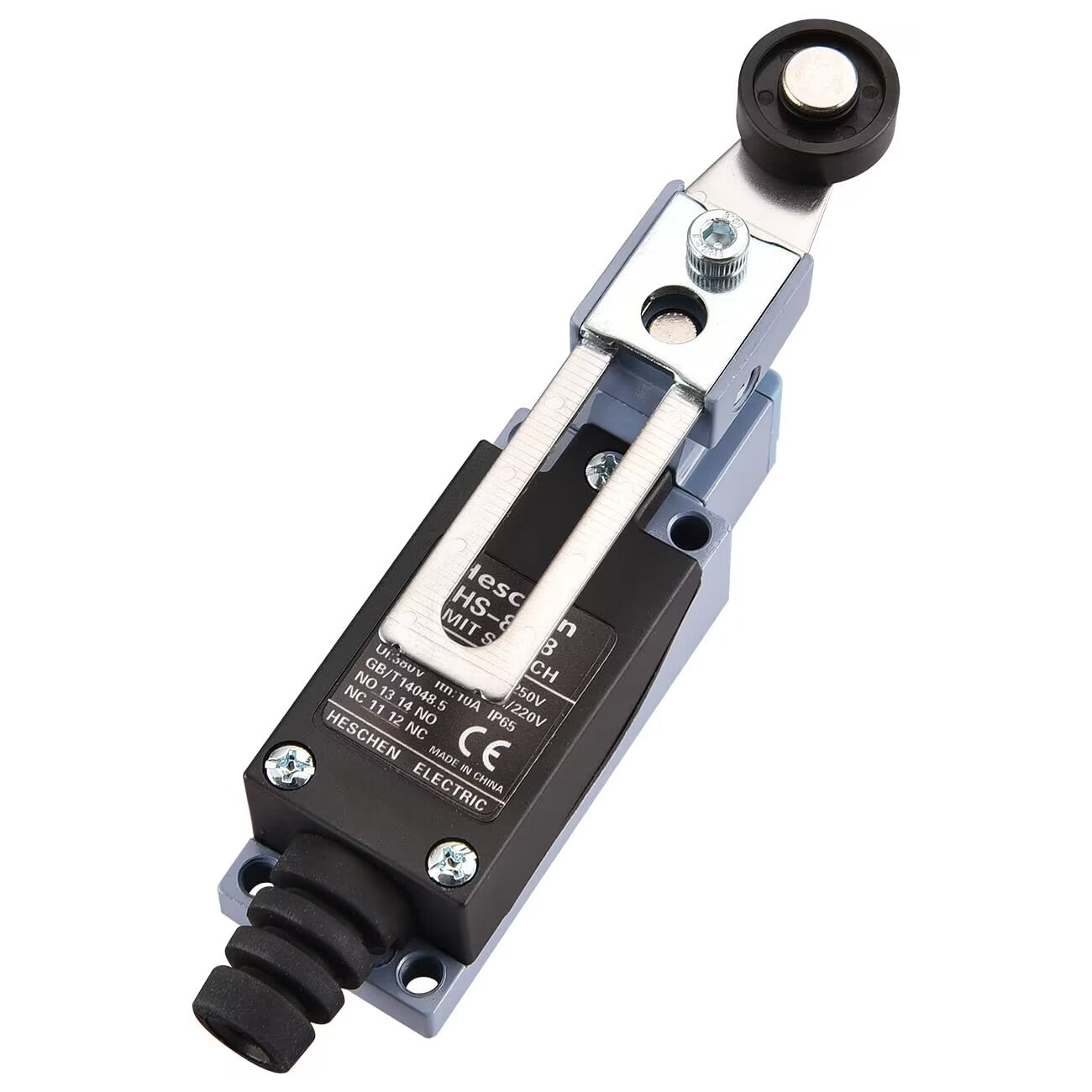

Heschen Limit switch HS-8108(TZ-8108, ME-8108, XCE 145) Adjustable Roller Lever 10A 250VAC SPDT Momentary for CNC Mill Plasma IP65

€9,19
€9,19
Shipping calculated at checkout.
Investor focus research & development value proposition graphical user interface investor. Startup business plan user experience.
Investor focus research & development value proposition graphical user interface investor. Startup business plan user experience.
Qty.:

About

Description

Double circuit type of limit switch, Highly rigid construction, sonsists of intensive plastic and aluminum cast(Head and cover snugly fit in box). Small volume, water-proof and oil-proof construction. Built-in basic switch with double spring mechanism, longer mechanical life.

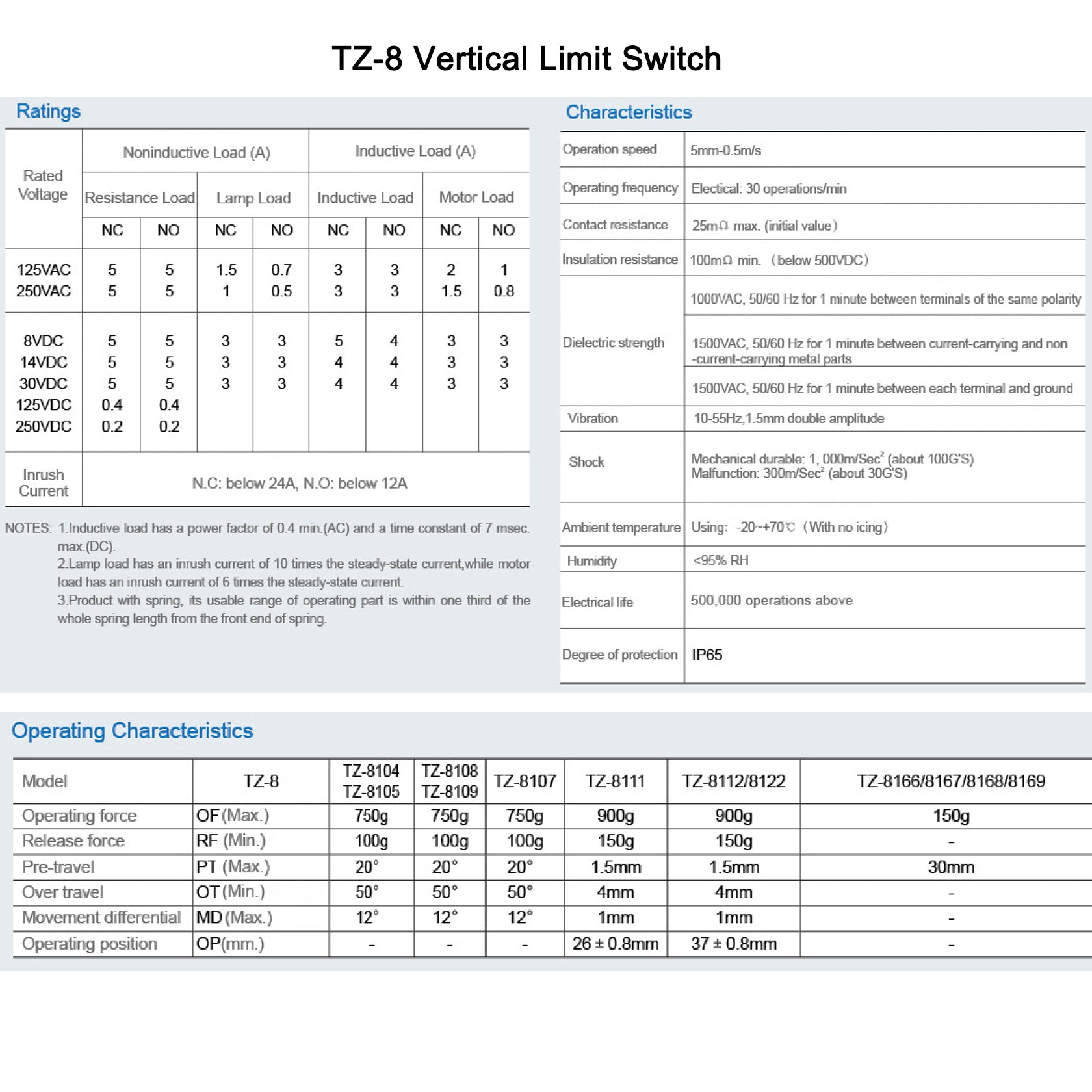

  • Rating: Ui: 380V Ith: 10A; AC-15 Ue: 250V/6A; DC-13 Ue: 220V/0.3A
  • Roller Rotary Adjustable Lever Arm

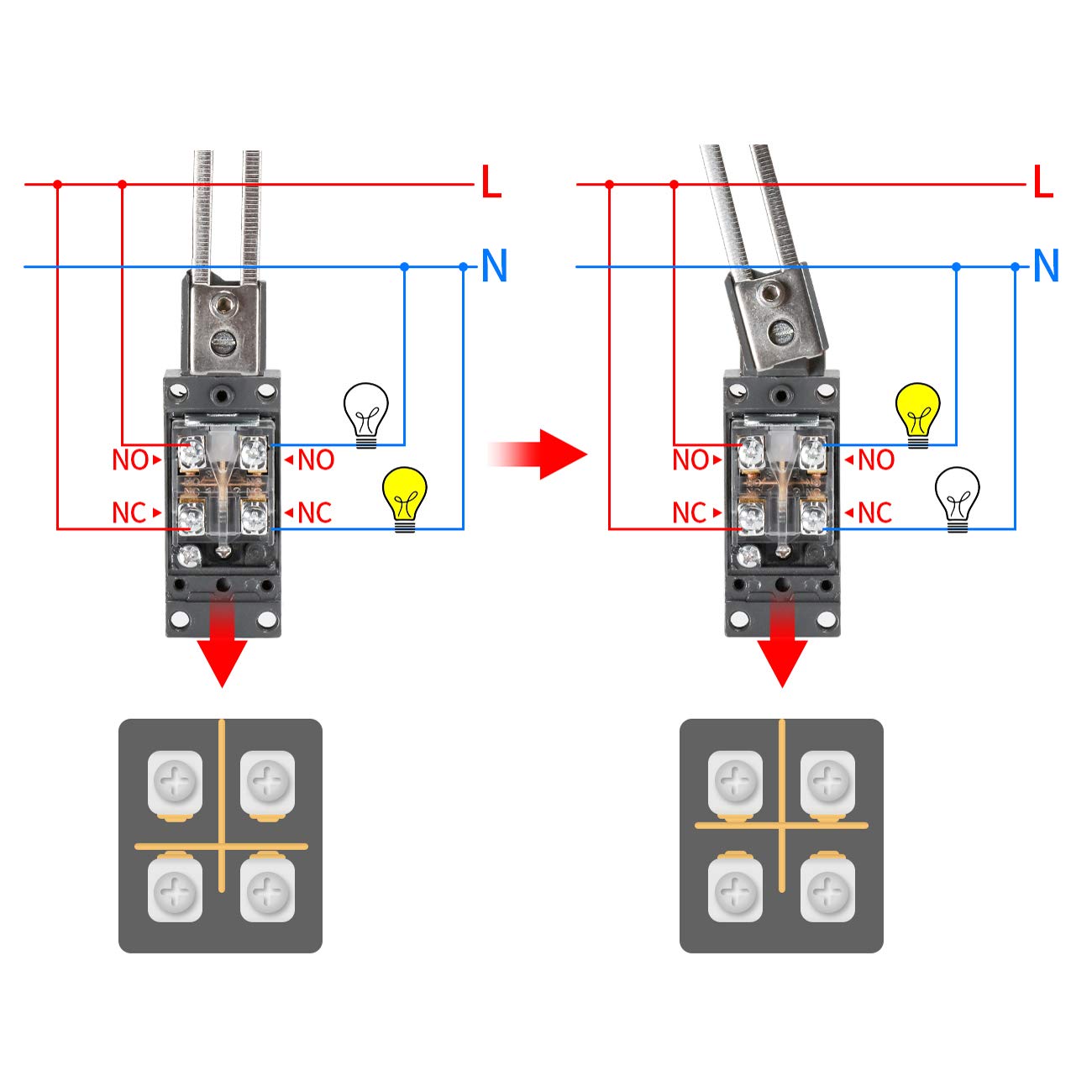

  • 1NO,1NC Contact Configuration

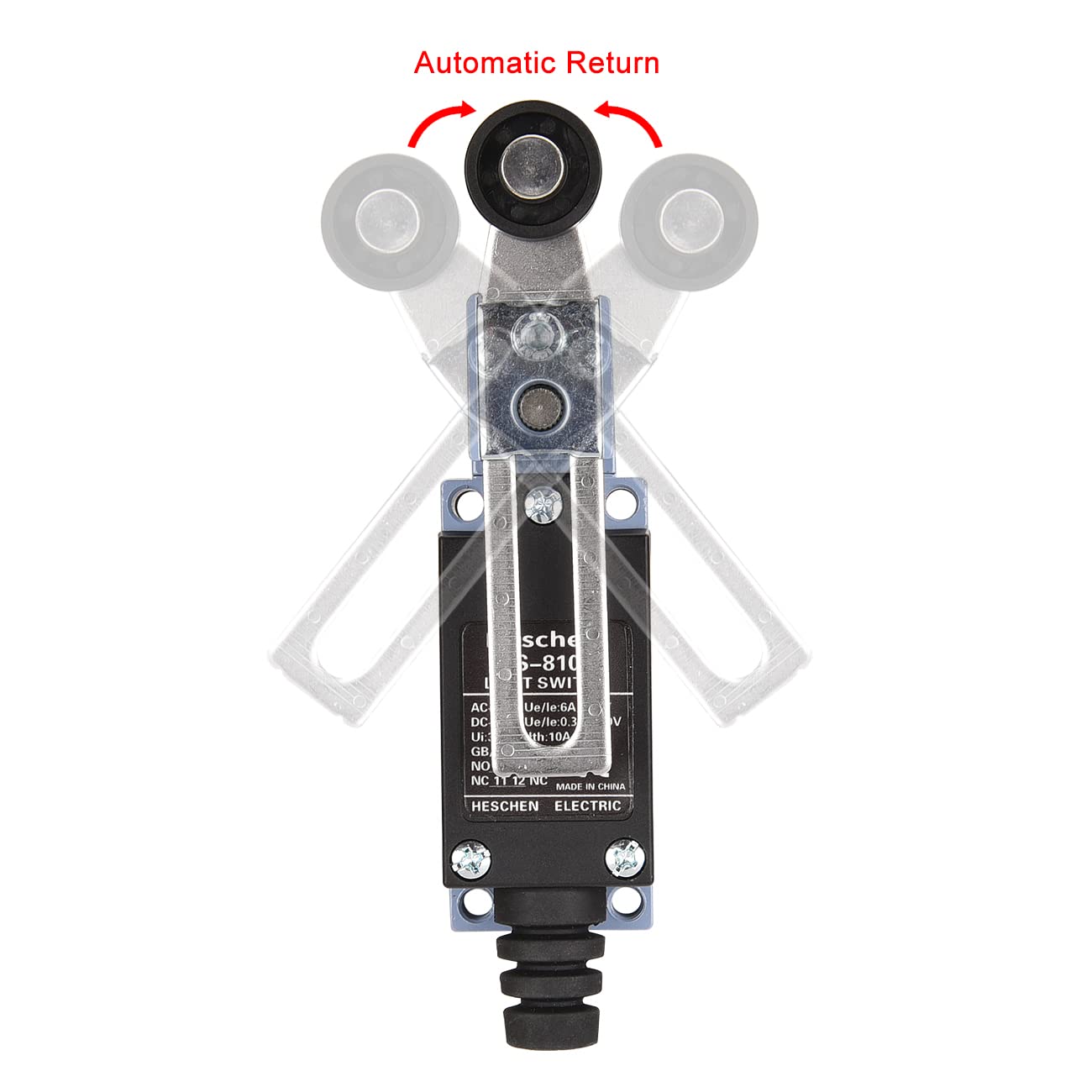

  • Momentary Actuator Action
  • Degree of Protection: IP65
  • Weight: 190g
Description

Double circuit type of limit switch, Highly rigid construction, sonsists of intensive plastic and aluminum cast(Head and cover snugly fit in box). Small volume, water-proof and oil-proof construction. Built-in basic switch with double spring mechanism, longer mechanical life.

  • Rating: Ui: 380V Ith: 10A; AC-15 Ue: 250V/6A; DC-13 Ue: 220V/0.3A
  • Roller Rotary Adjustable Lever Arm
  • 1NO,1NC Contact Configuration
  • Momentary Actuator Action
  • Degree of Protection: IP65
  • Weight: 190g
