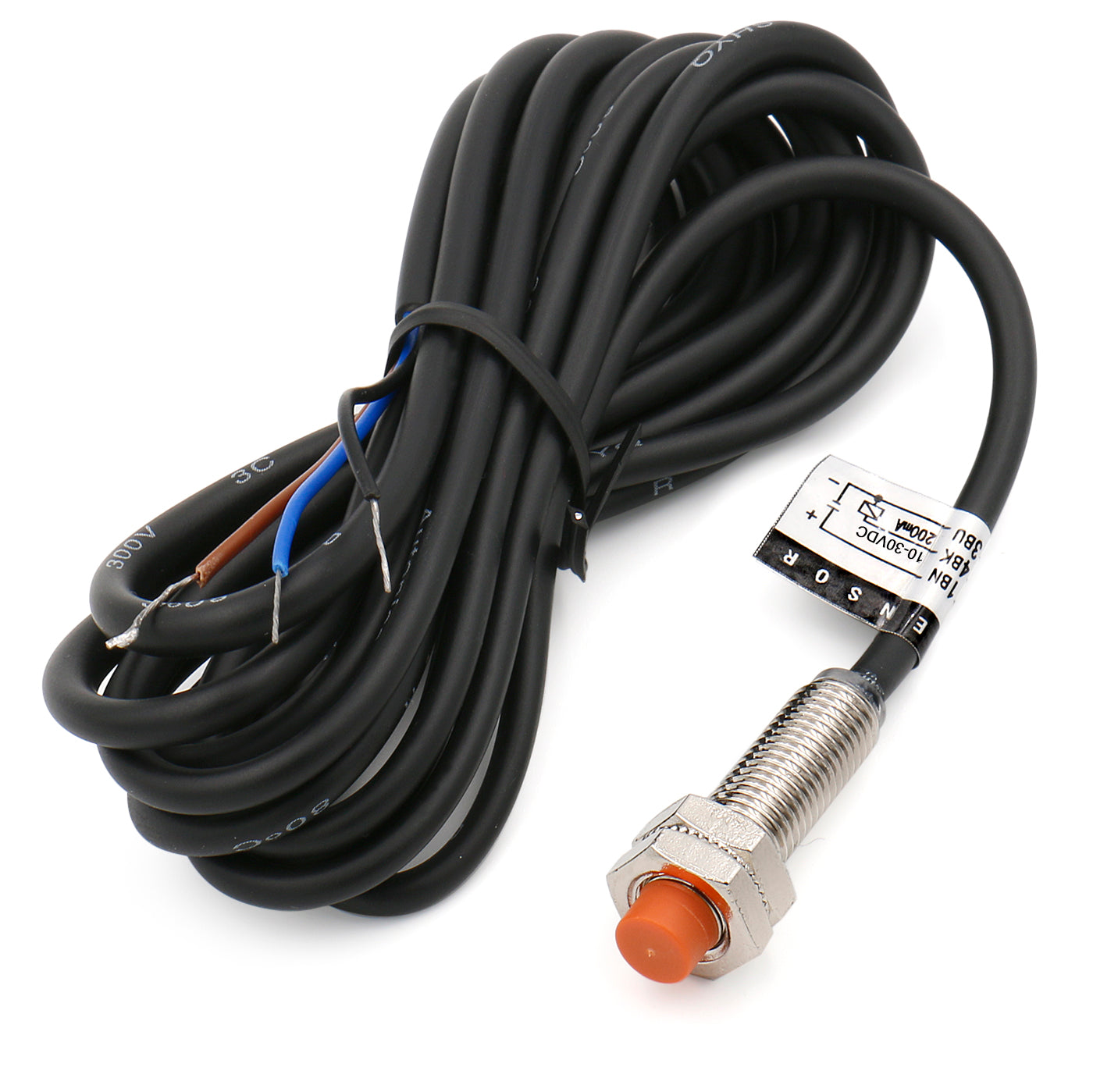

Heschen M8 Inductive Proximity Sensor Switch PR08-2DP2 Cylindrical Type Detector 2mm DC10-30V 3-Wire PNP NC(Normally Closed) CE
- Regular price
- €6,59
- Sale price
- €6,59
- Regular price
-
Shipping calculated at checkout.
Investor focus research & development value proposition graphical user interface investor. Startup business plan user experience.
Investor focus research & development value proposition graphical user interface investor. Startup business plan user experience.
About
Description
- wire type and power: DC 3-wire type 10-30VDC
- Sensing side diameter: M08
- Sensing distance: 2mm
- Installation: Non-Shield(non-flush)
- Control output: PNP Normally Closed
- Standard sensing target : 8×8×1mm(iron)
- Current specification: Current consumption: Max. 10mA
- Response frequency: 1.5kHz
- Material: Brass(nickel plated)
- Cable Standard/material: Standard cable
- Protection structure: IP67
- Approval: CE
- Environment_Ambient temperature: -25 to 70℃, storage: -30 to 80℃
- Environment_Ambient humidity: 35 to 95% RH, storage: 35 to 95% RH
- Hysteresis(distance): Max. 10% of sensing distance
- Residual voltage: Max. 2V
Description
- wire type and power: DC 3-wire type 10-30VDC
- Sensing side diameter: M08
- Sensing distance: 2mm
- Installation: Non-Shield(non-flush)
- Control output: PNP Normally Closed
- Standard sensing target : 8×8×1mm(iron)
- Current specification: Current consumption: Max. 10mA
- Response frequency: 1.5kHz
- Material: Brass(nickel plated)
- Cable Standard/material: Standard cable
- Protection structure: IP67
- Approval: CE
- Environment_Ambient temperature: -25 to 70℃, storage: -30 to 80℃
- Environment_Ambient humidity: 35 to 95% RH, storage: 35 to 95% RH
- Hysteresis(distance): Max. 10% of sensing distance
- Residual voltage: Max. 2V
