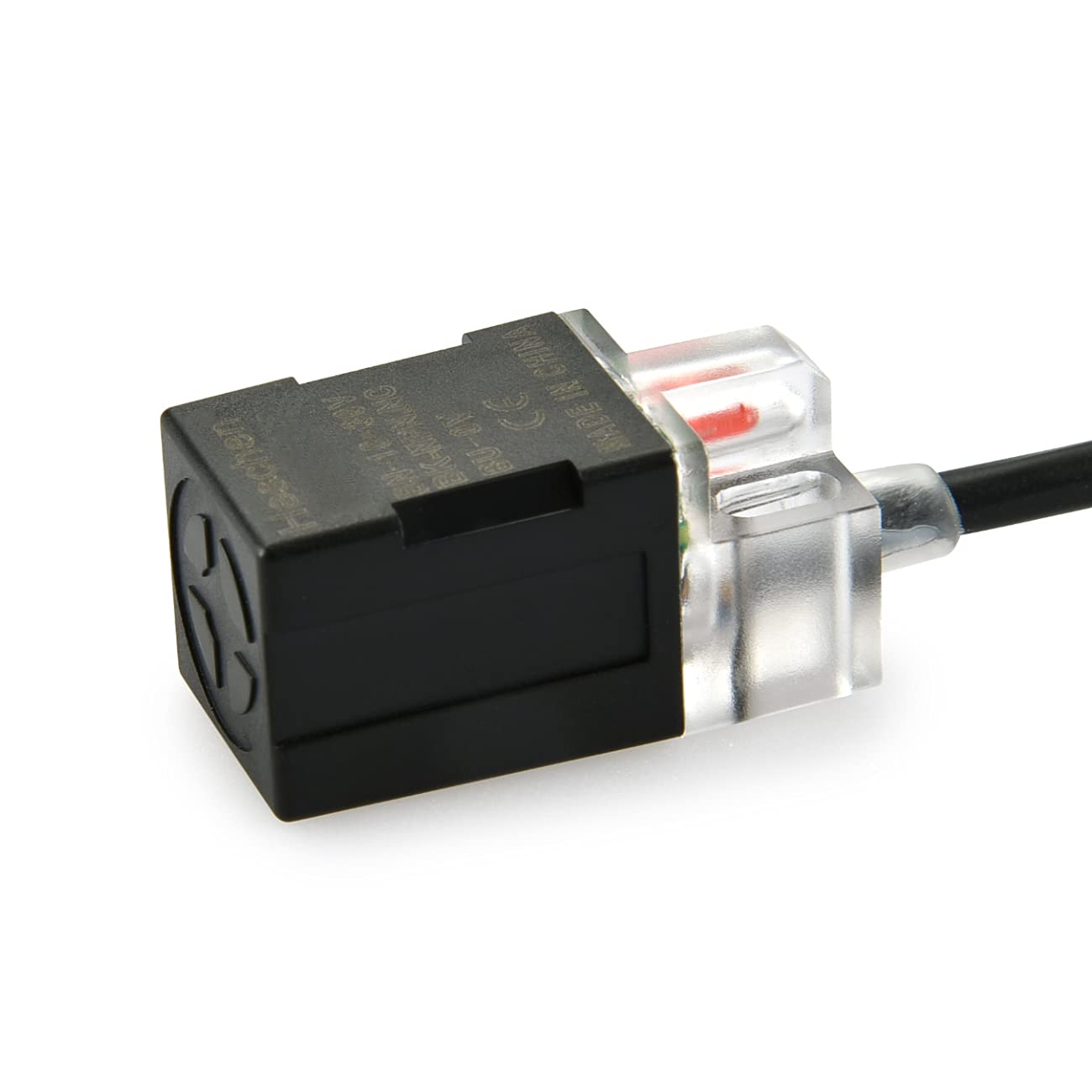

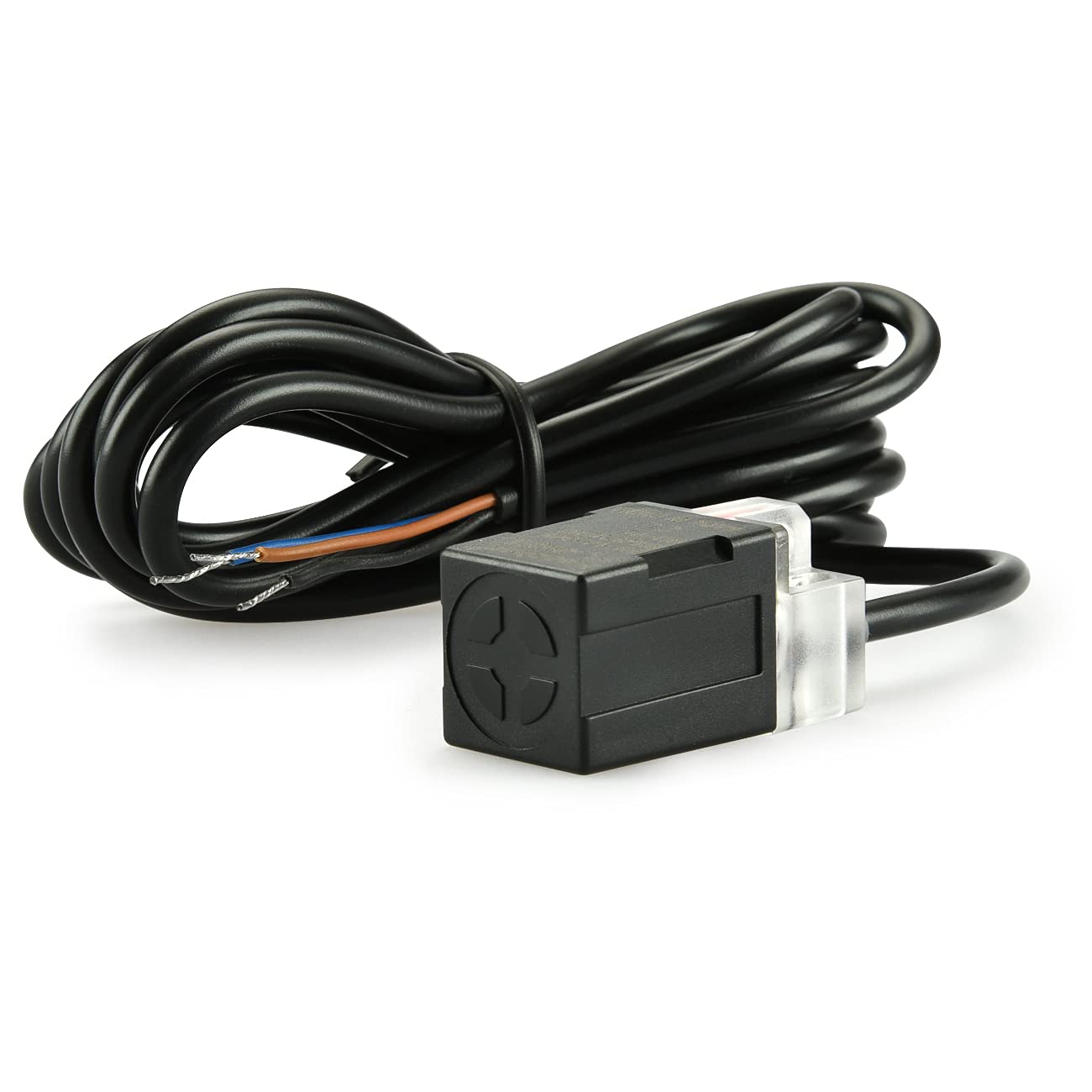

Heschen Square Inductive Proximity Sensor Switch Non-Shield Type PL-05N Detector Distance 5mm 10-30VDC 200mA NPN Normally Open(NO) 3 Wire Pack of 2
Heschen Square Inductive Proximity Sensor Switch Non-Shield Type PL-05N Detector Distance 5mm 10-30VDC 200mA NPN Normally Open(NO) 3 Wire Pack of 2
Heschen Square Inductive Proximity Sensor Switch Non-Shield Type PL-05N Detector Distance 5mm 10-30VDC 200mA NPN Normally Open(NO) 3 Wire Pack of 2

Heschen Square Inductive Proximity Sensor Switch Non-Shield Type PL-05N Detector Distance 5mm 10-30VDC 200mA NPN Normally Open(NO) 3 Wire Pack of 2

Heschen

Shipping calculated at checkout.

Detect Object: Magnetic Metal(the detection distance decreases when it is non-magnetic metal) ; Detection distance 5mm; Set distance 0-4mm ; Power: DC10-30V ; Temperature range -25 -+60℃; Isolation Resistance >50MΩ; Material ABS; Dimension: 17X17X35mm;;Mounting Way: Non-shield type;CE certified.

  • Detection distance: 5mm±10%
  • Supply Voltage: DC 10-30V; Output Current: 200mA
  • Type: NPN, NO(Normally Open)
  • Installation: Non-Shield(non-flush)

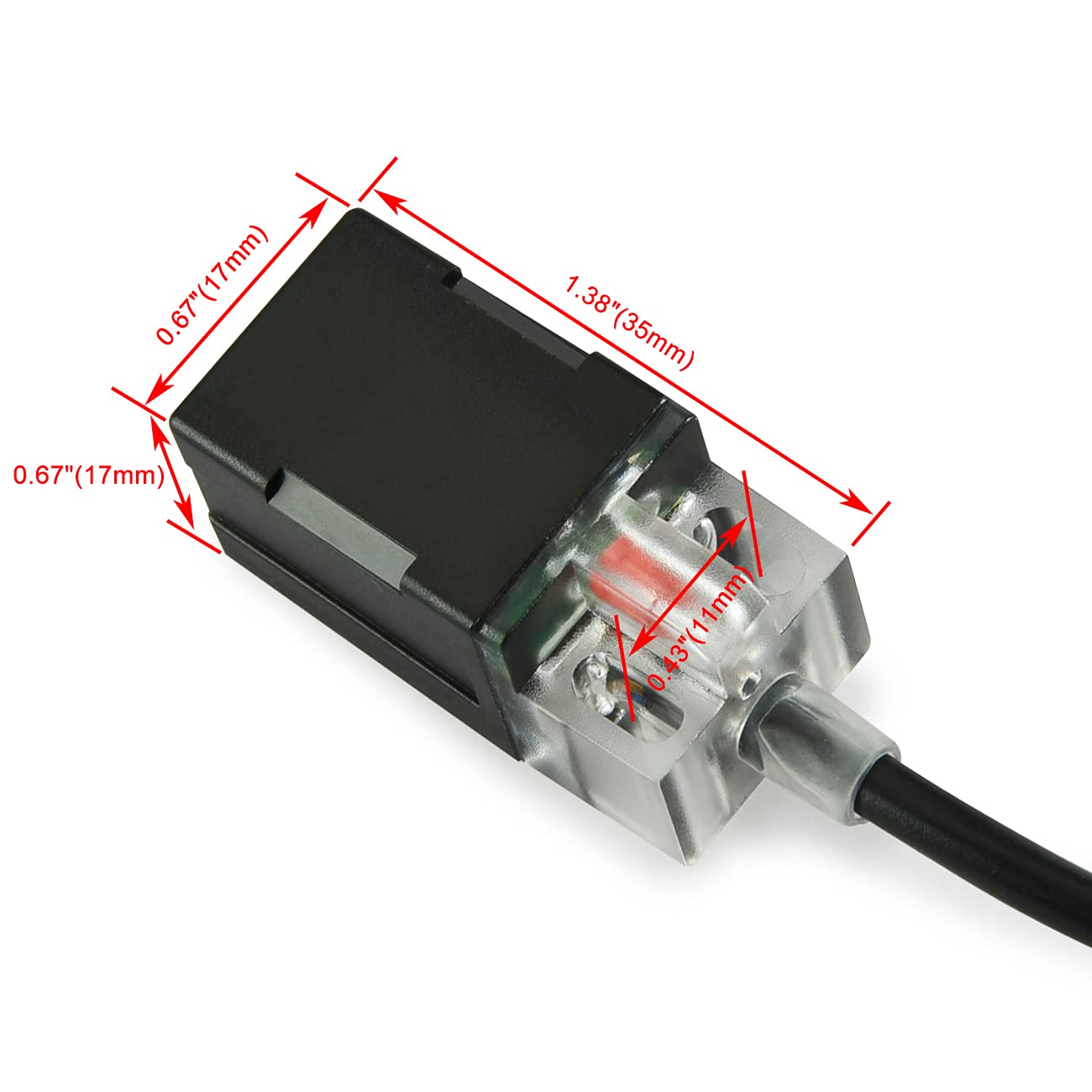

  • Dimension: 17×17×35mm
  • Package Content: 2 PCS
