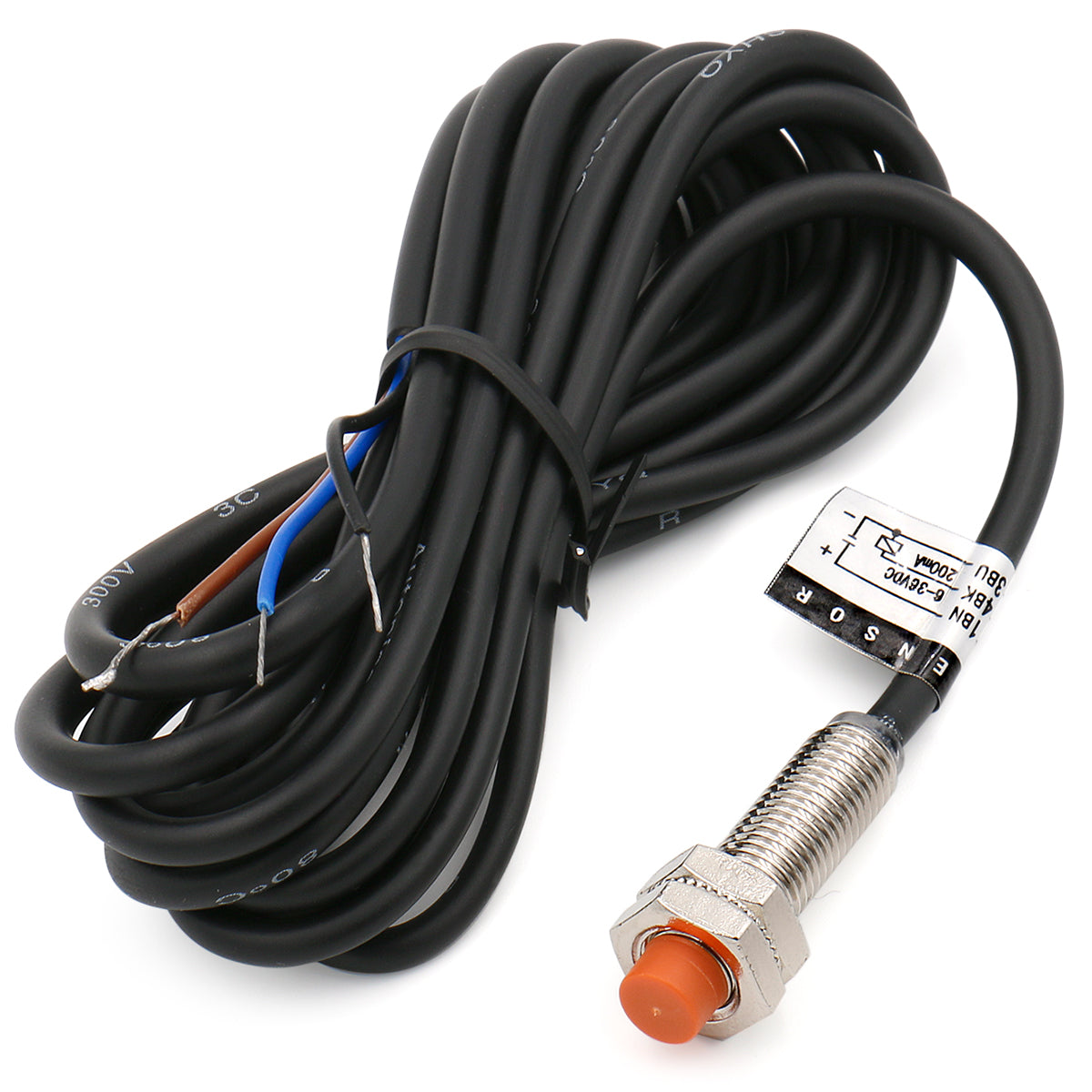

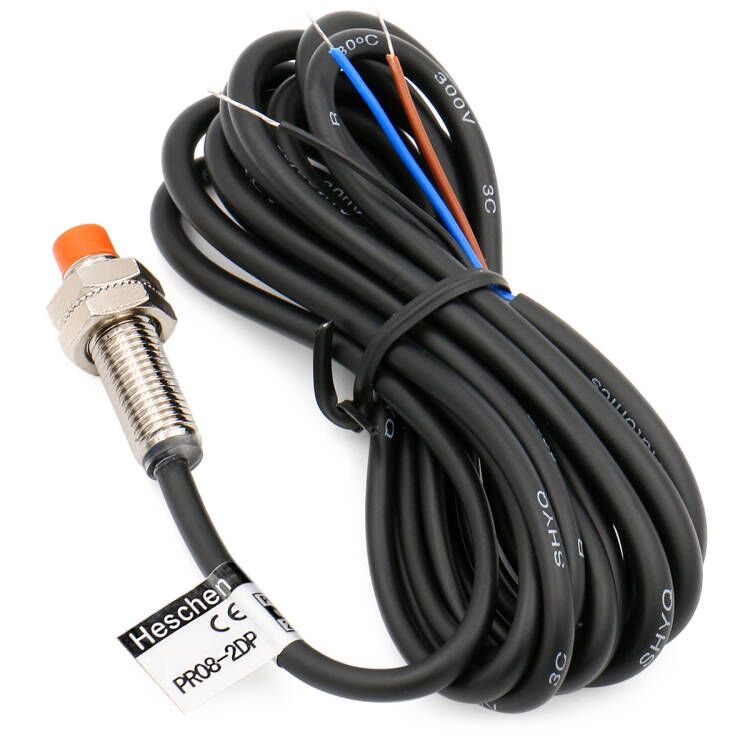

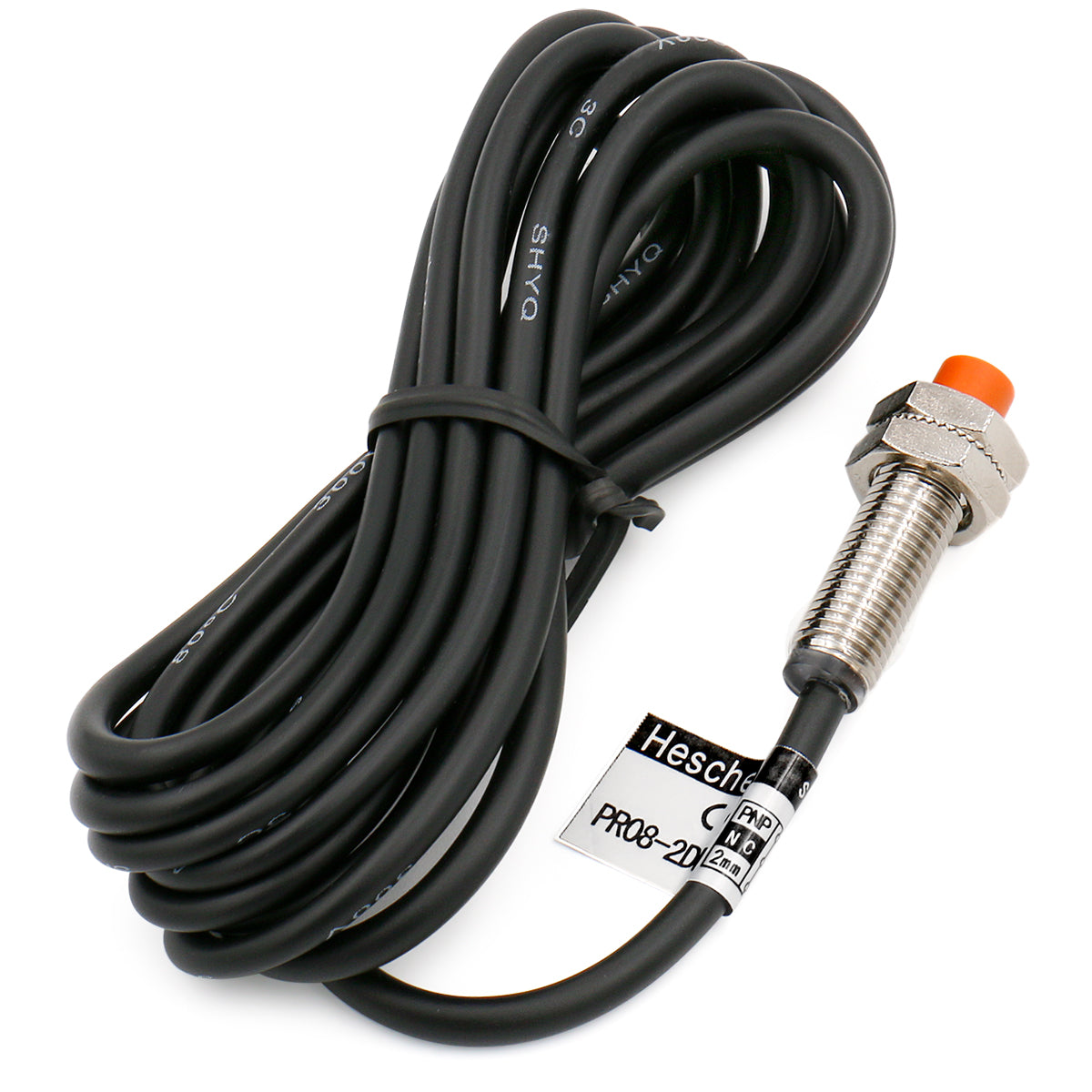

Heschen Inductive Proximity Sensor PR08-2DP Cylindrical Type DC 12-24V 3-Wire PNP NO(Normally Open) CE
Heschen Inductive Proximity Sensor PR08-2DP Cylindrical Type DC 12-24V 3-Wire PNP NO(Normally Open) CE
Heschen Inductive Proximity Sensor PR08-2DP Cylindrical Type DC 12-24V 3-Wire PNP NO(Normally Open) CE
Heschen Inductive Proximity Sensor PR08-2DP Cylindrical Type DC 12-24V 3-Wire PNP NO(Normally Open) CE

Heschen Inductive Proximity Sensor PR08-2DP Cylindrical Type DC 12-24V 3-Wire PNP NO(Normally Open) CE

Heschen

Shipping calculated at checkout.
  • wire type and power: DC 3-wire type 12-24VDC

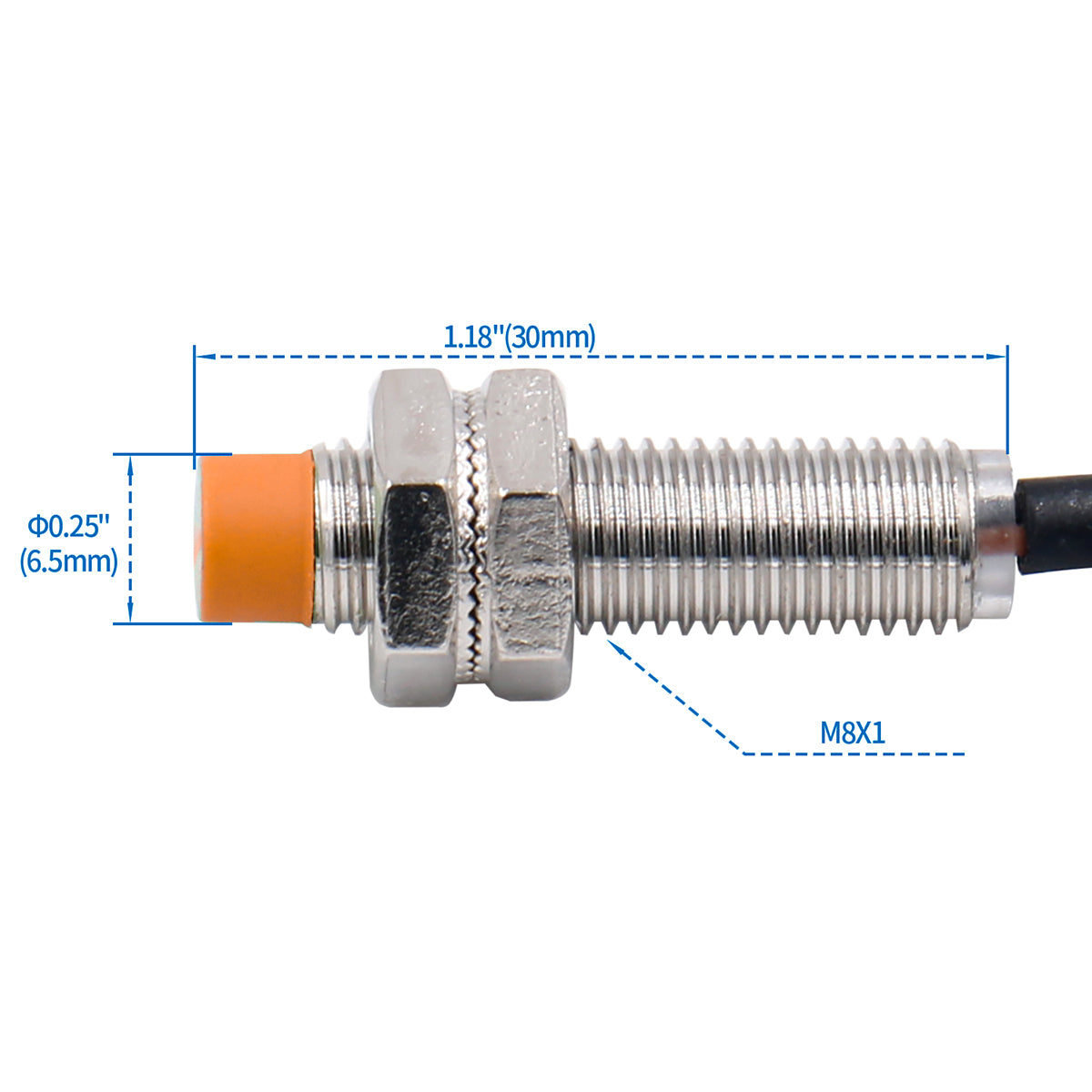

  • Sensing side diameter: M08
  • Sensing distance: 2mm
  • Installation: Non-Shield(non-flush)
  • Control output: PNP Normally Open
  • Standard sensing target : 8×8×1mm(iron)
  • Current specification: Current consumption: Max. 10mA
  • Response frequency: 1.5kHz
  • Material: Brass(nickel plated)
  • Cable Standard/material: Standard cable
  • Protection structure: IP67
  • Approval: CE
  • Environment_Ambient temperature: -25 to 70℃, storage: -30 to 80℃
  • Environment_Ambient humidity: 35 to 95% RH, storage: 35 to 95% RH
  • Hysteresis(distance): Max. 10% of sensing distance
  • Residual voltage: Max. 2V
