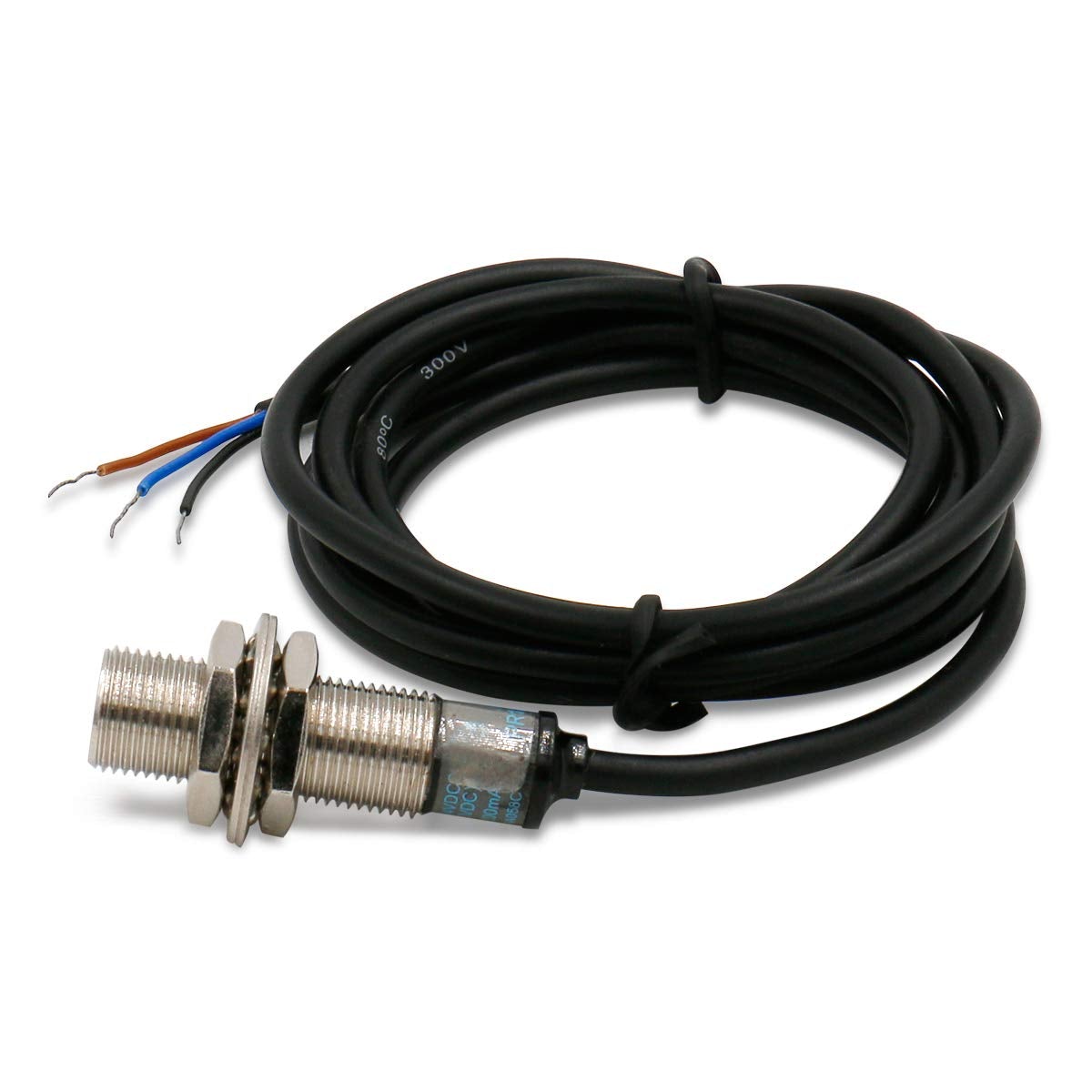

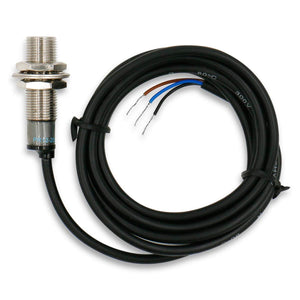

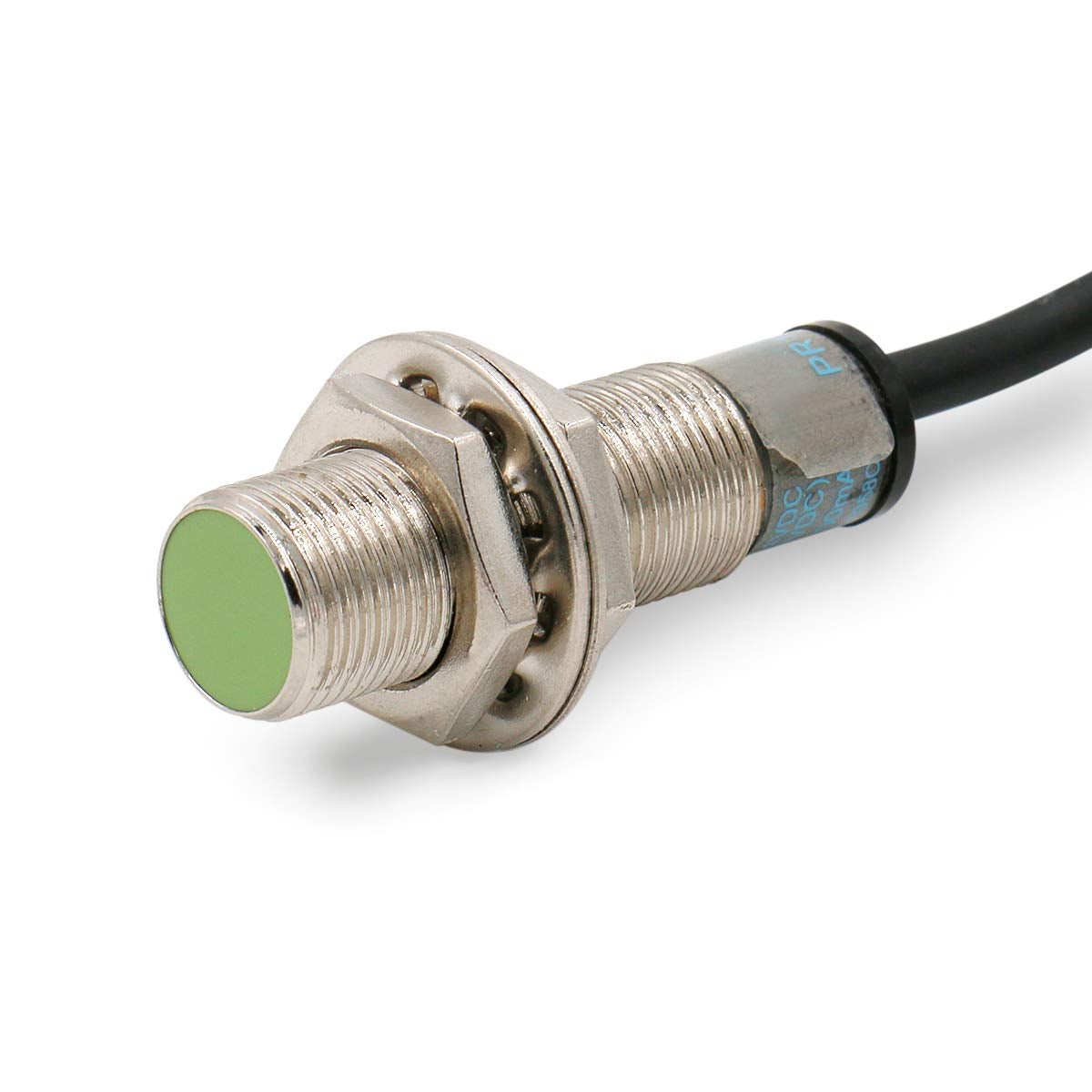

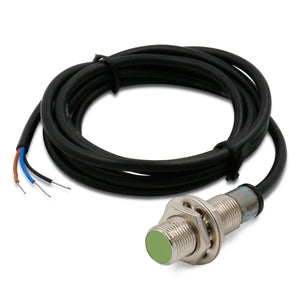

Heschen Inductive Proximity Sensor PR12-2DN2 Cylindrical Type DC 12-24V 3 Wire NPN NC(Normally Closed) CE

Heschen

  • €6,79
    Unit price per
Shipping calculated at checkout.


  • wire type and power: DC 2-wire type 12-24VDC
  • Sensing side diameter: M12
  • Sensing distance: 2mm
  • Installation: Shield(flush)
  • Control output: NPN Normally Closed
  • Standard sensing target : 12×12×1mm(iron)
  • Current specification: Current consumption: Max. 10mA
  • Response frequency: 1.5kHz
  • Material: Brass(nickel plated)
  • Cable Standard/material: Standard cable
  • Protection structure: IP67
  • Environment_Ambient temperature: -25 to 70℃, storage: -30 to 80℃
  • Environment_Ambient humidity: 35 to 95% RH, storage: 35 to 95% RH
  • Hysteresis(distance): Max. 10% of sensing distance
  • Residual voltage: Max. 2V
  • Approval: CE
