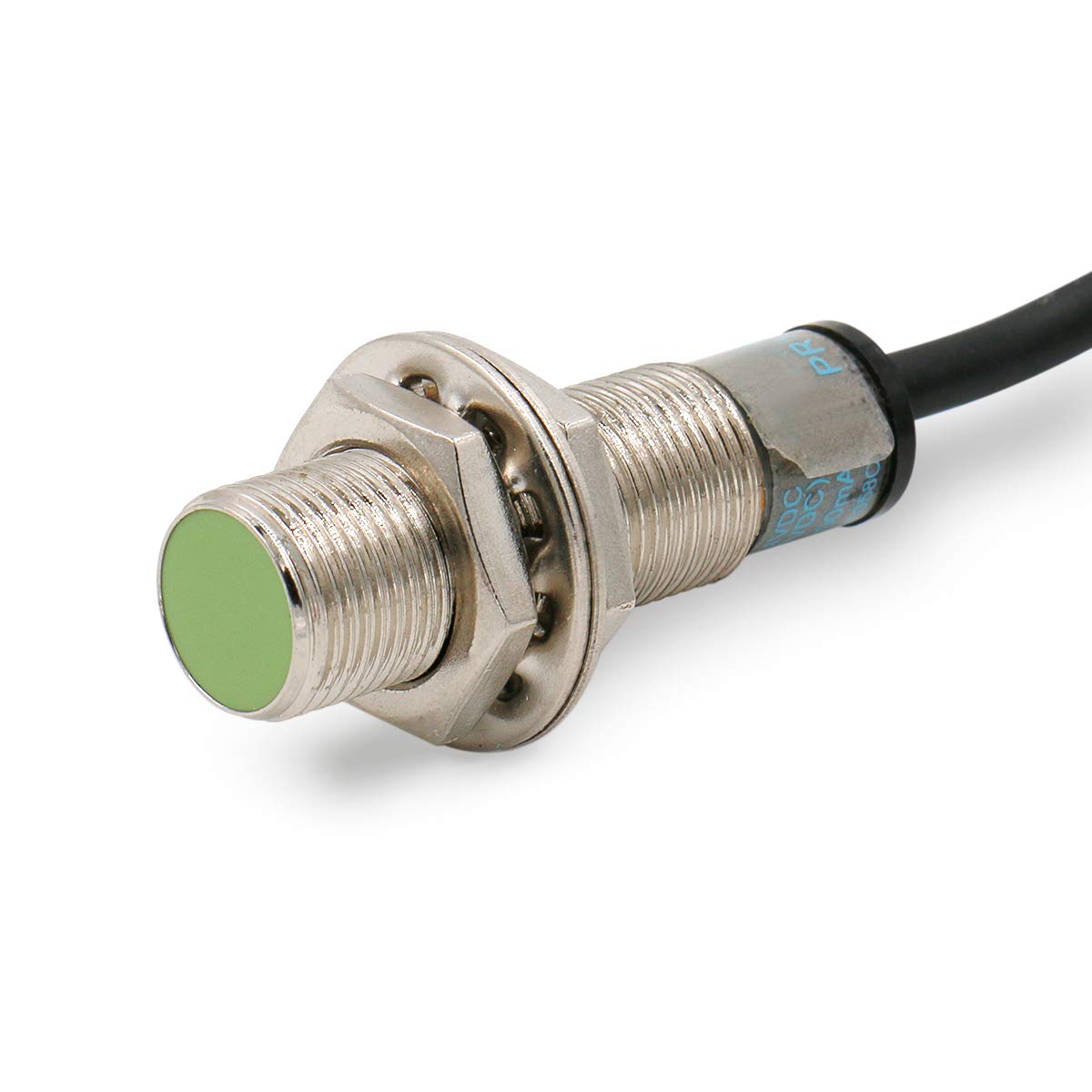

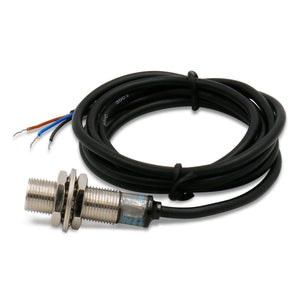

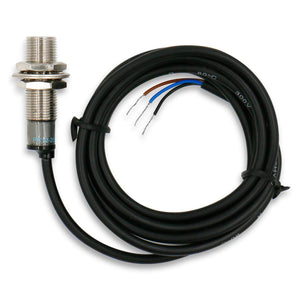

Heschen Inductive Proximity Sensor PR12-2DP Cylindrical Type DC 12-24V 3 Wire PNP NO(Normally Open) CE
- wire type and power: DC 2-wire type 12-24VDC
- Sensing side diameter: M12
- Sensing distance: 2mm
- Installation: Shield(flush)
- Control output: PNP Normally Open
- Standard sensing target : 12×12×1mm(iron)
- Current specification: Current consumption: Max. 10mA
- Response frequency: 1.5kHz
- Material: Brass(nickel plated)
- Cable Standard/material: Standard cable
- Protection structure: IP67
- Environment_Ambient temperature: -25 to 70℃, storage: -30 to 80℃
- Environment_Ambient humidity: 35 to 95% RH, storage: 35 to 95% RH
- Hysteresis(distance): Max. 10% of sensing distance
- Residual voltage: Max. 2V
- Approval: CE
