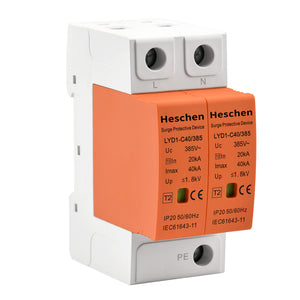

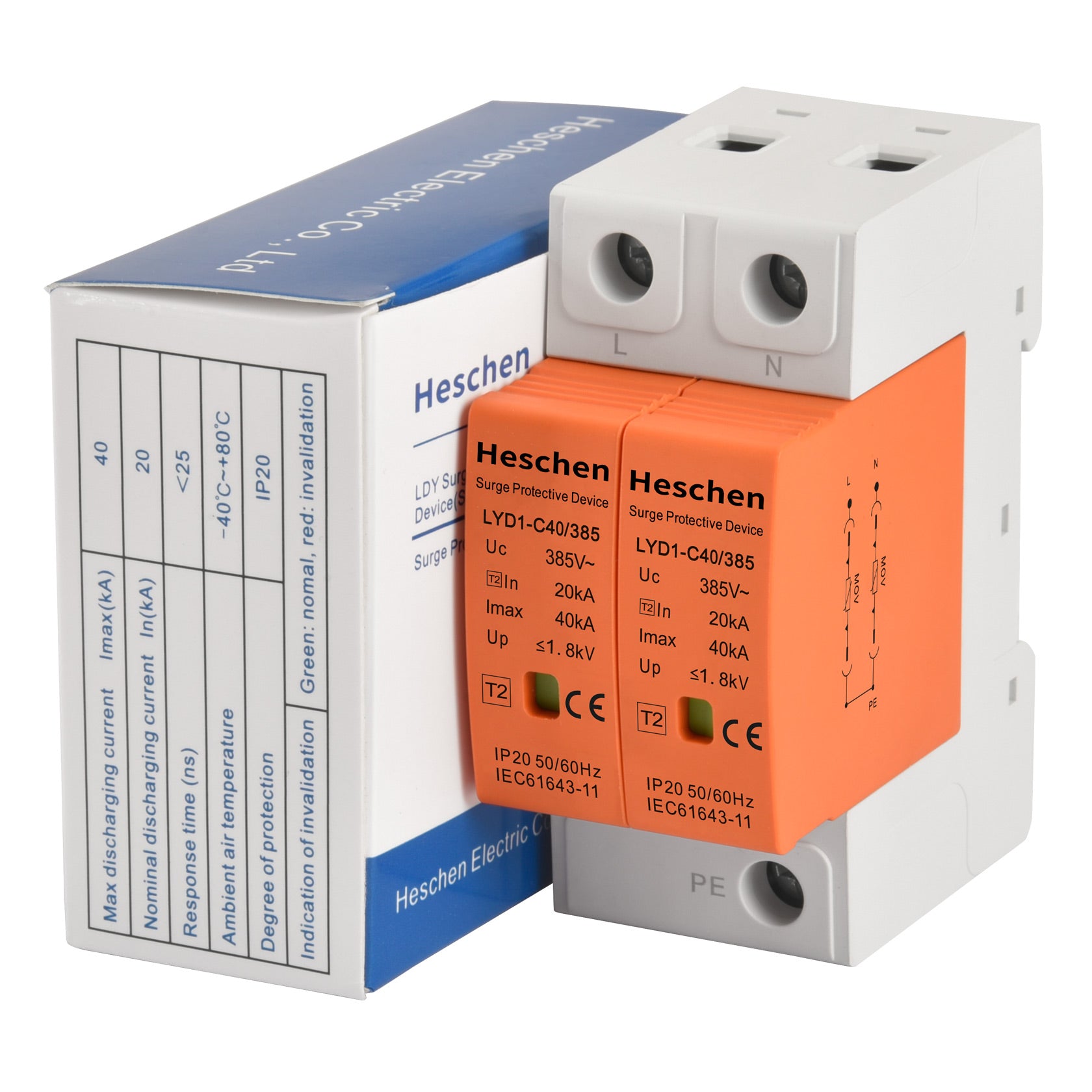

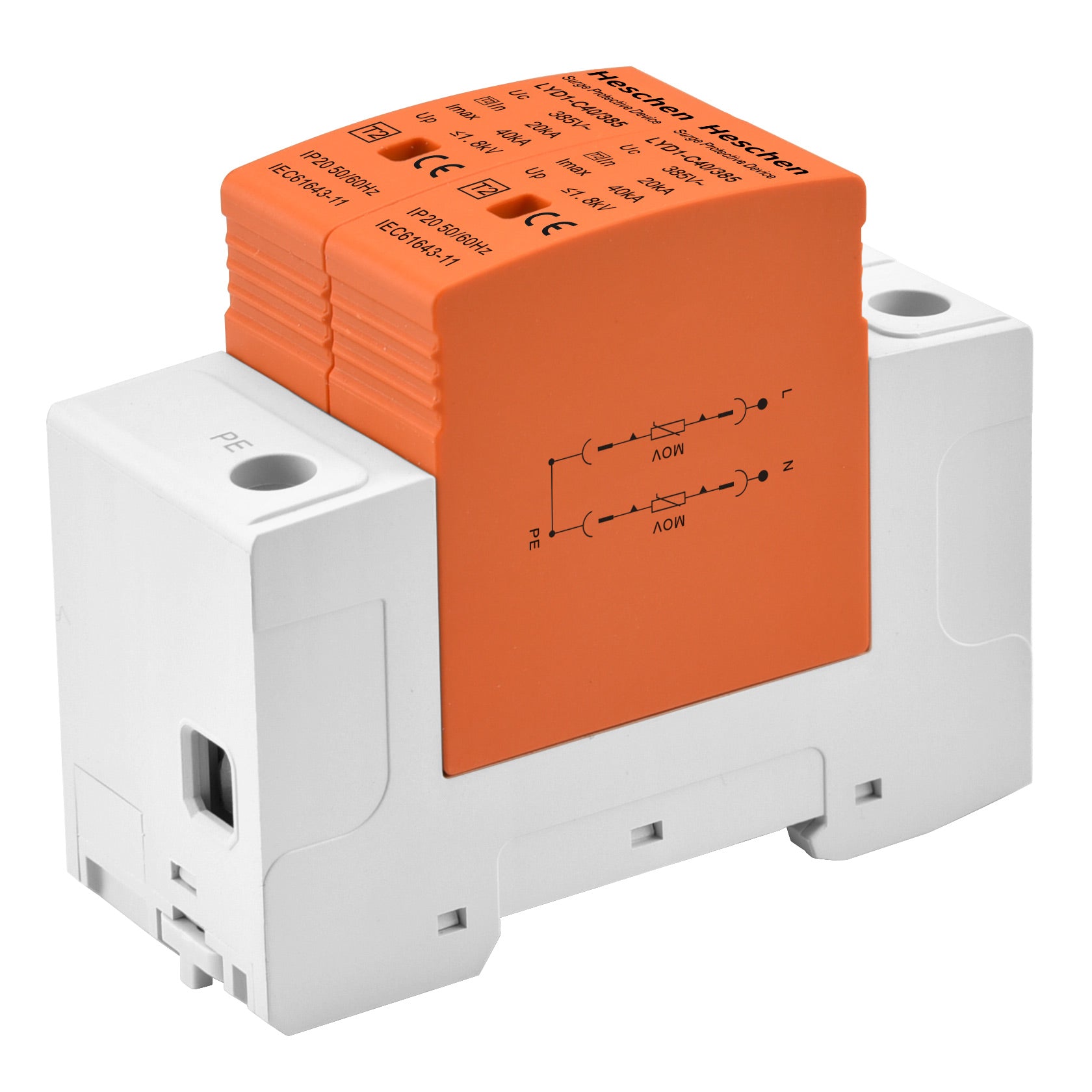

Heschen Surge Protective Device, LYD1-C40/385, 2P 385V 20KA, Fire-Proof, Low-Voltage Arrester, 35mm DIN Rail Mounting
Heschen Surge Protective Device, LYD1-C40/385, 2P 385V 20KA, Fire-Proof, Low-Voltage Arrester, 35mm DIN Rail Mounting
Heschen Surge Protective Device, LYD1-C40/385, 2P 385V 20KA, Fire-Proof, Low-Voltage Arrester, 35mm DIN Rail Mounting
Heschen Surge Protective Device, LYD1-C40/385, 2P 385V 20KA, Fire-Proof, Low-Voltage Arrester, 35mm DIN Rail Mounting
Heschen Surge Protective Device, LYD1-C40/385, 2P 385V 20KA, Fire-Proof, Low-Voltage Arrester, 35mm DIN Rail Mounting

Heschen Surge Protective Device, LYD1-C40/385, 2P 385V 20KA, Fire-Proof, Low-Voltage Arrester, 35mm DIN Rail Mounting

Heschen

Shipping calculated at checkout.

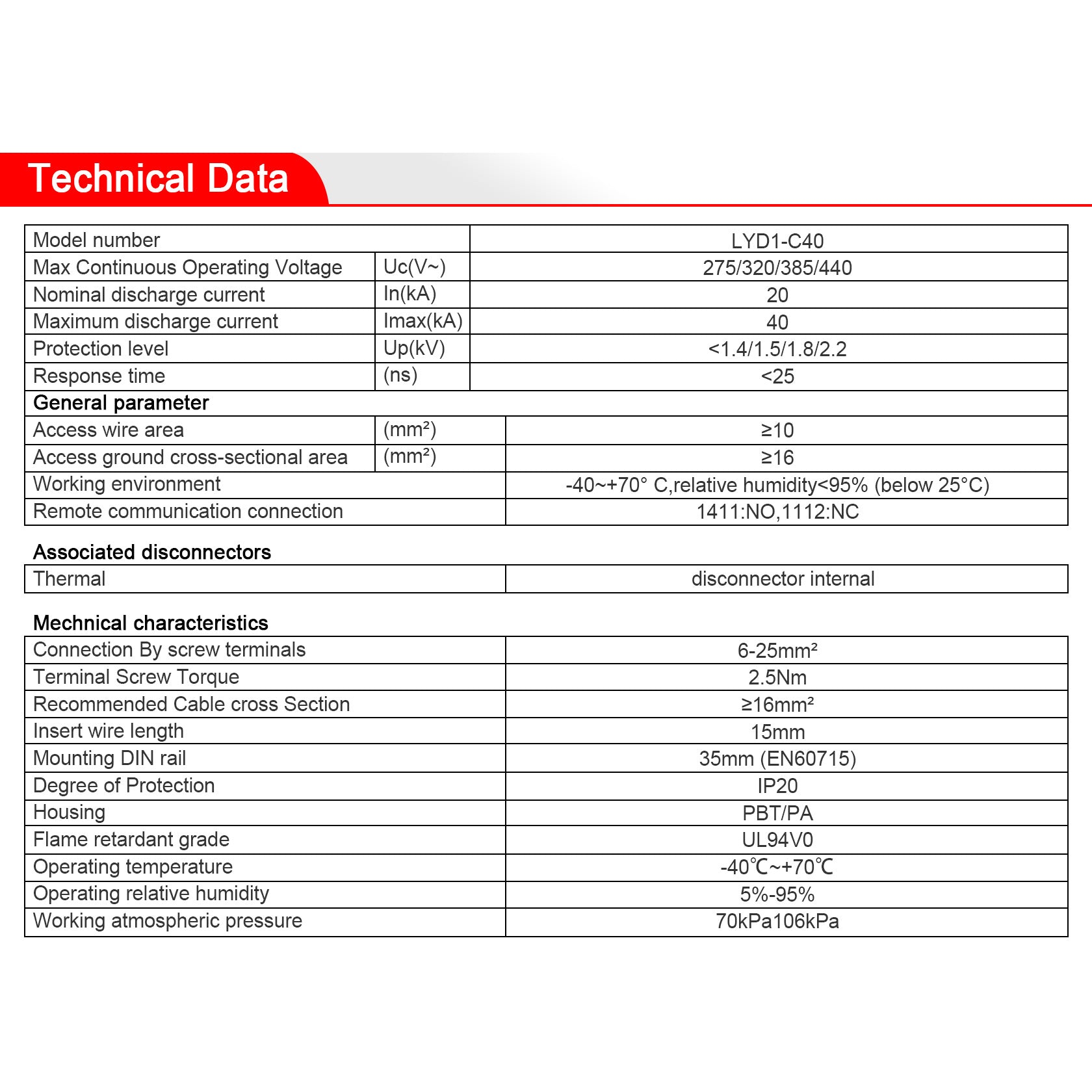

  • Max Continuous Operating Voltage (Uc~)：385VAC
  • Voltage Protective Level (Up): ≤1.8kV
  • Nominal Discharging Current (In): 20KA
  • Max Discharging Current: 40kA
  • Response Time: <25ns, IP 20, 50/60Hz
