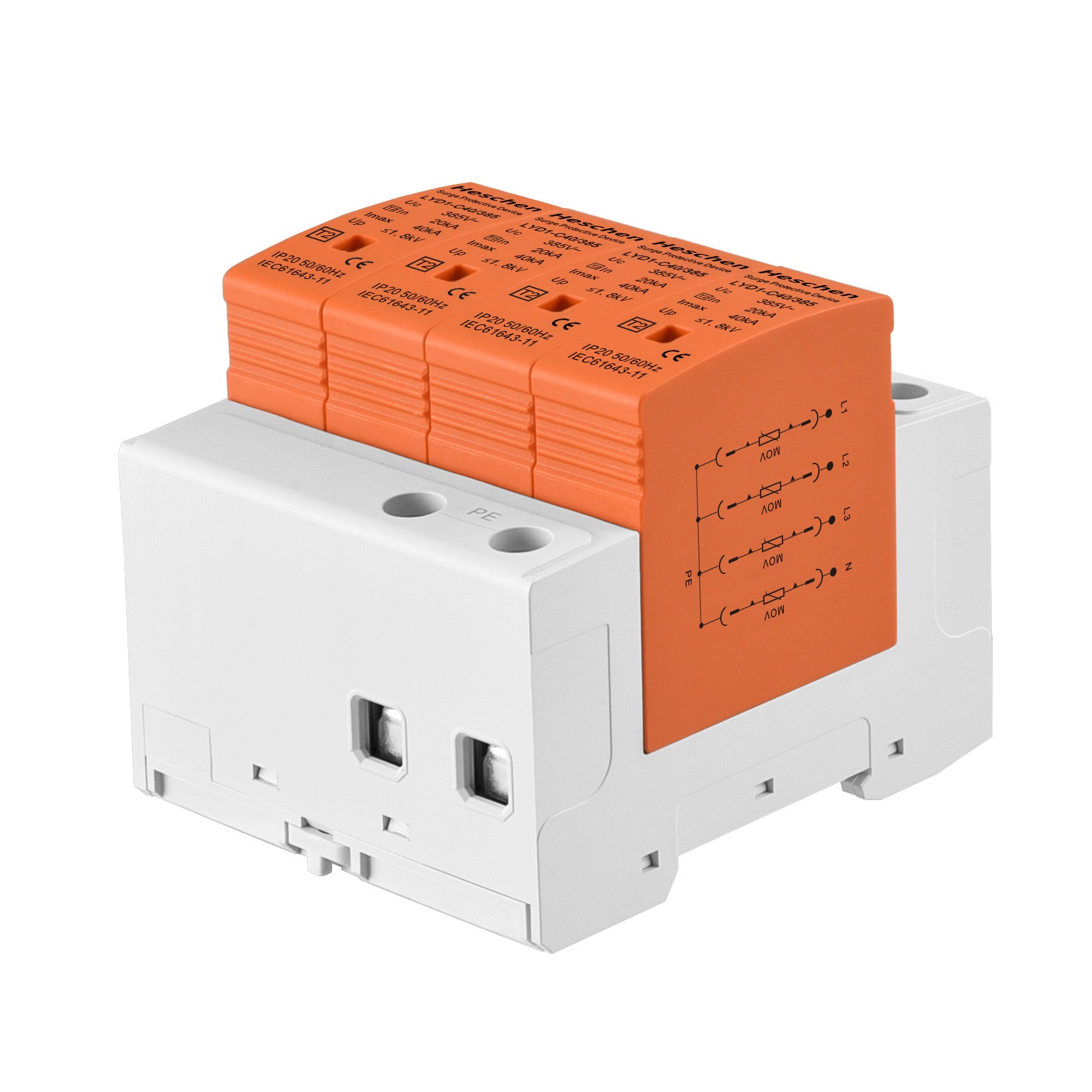

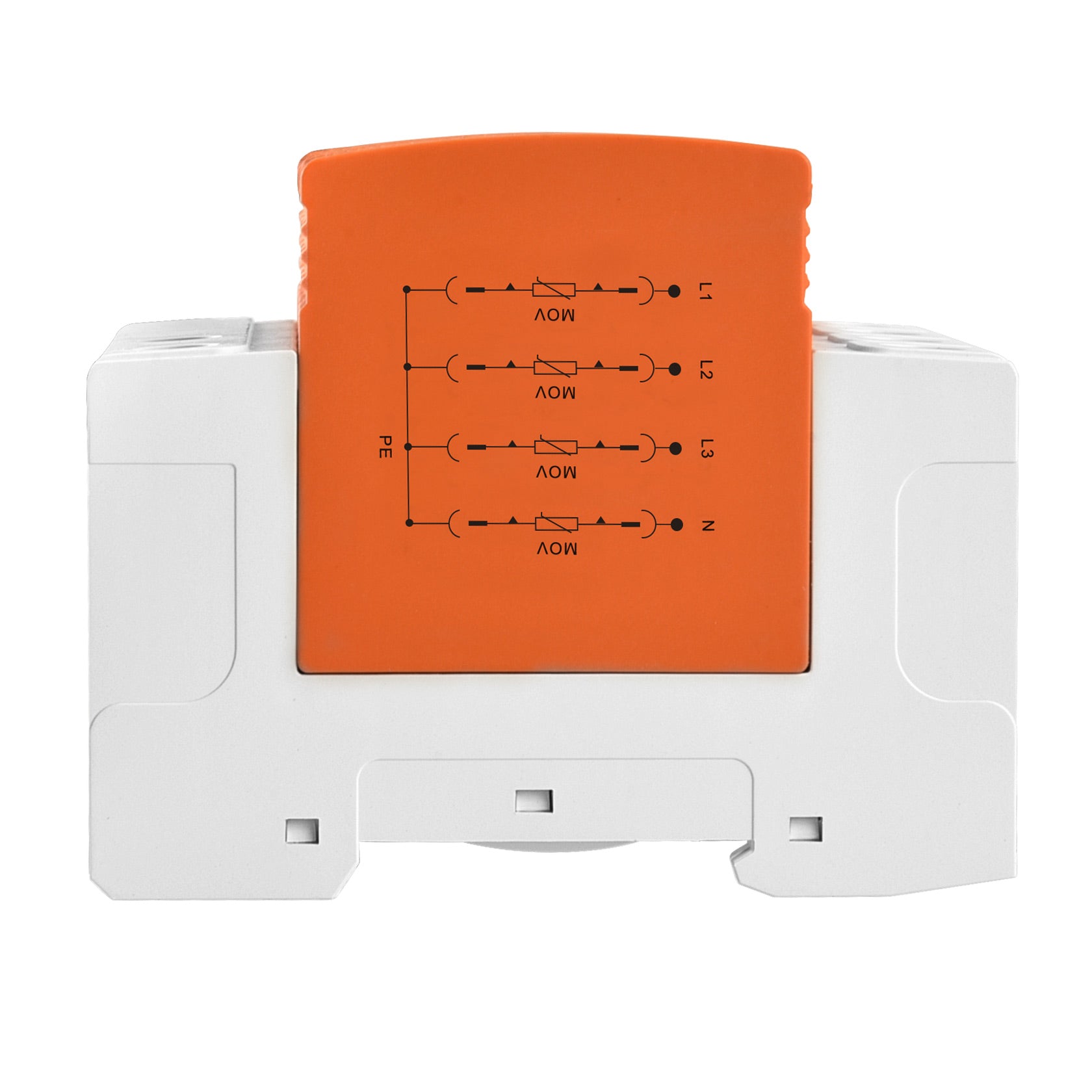

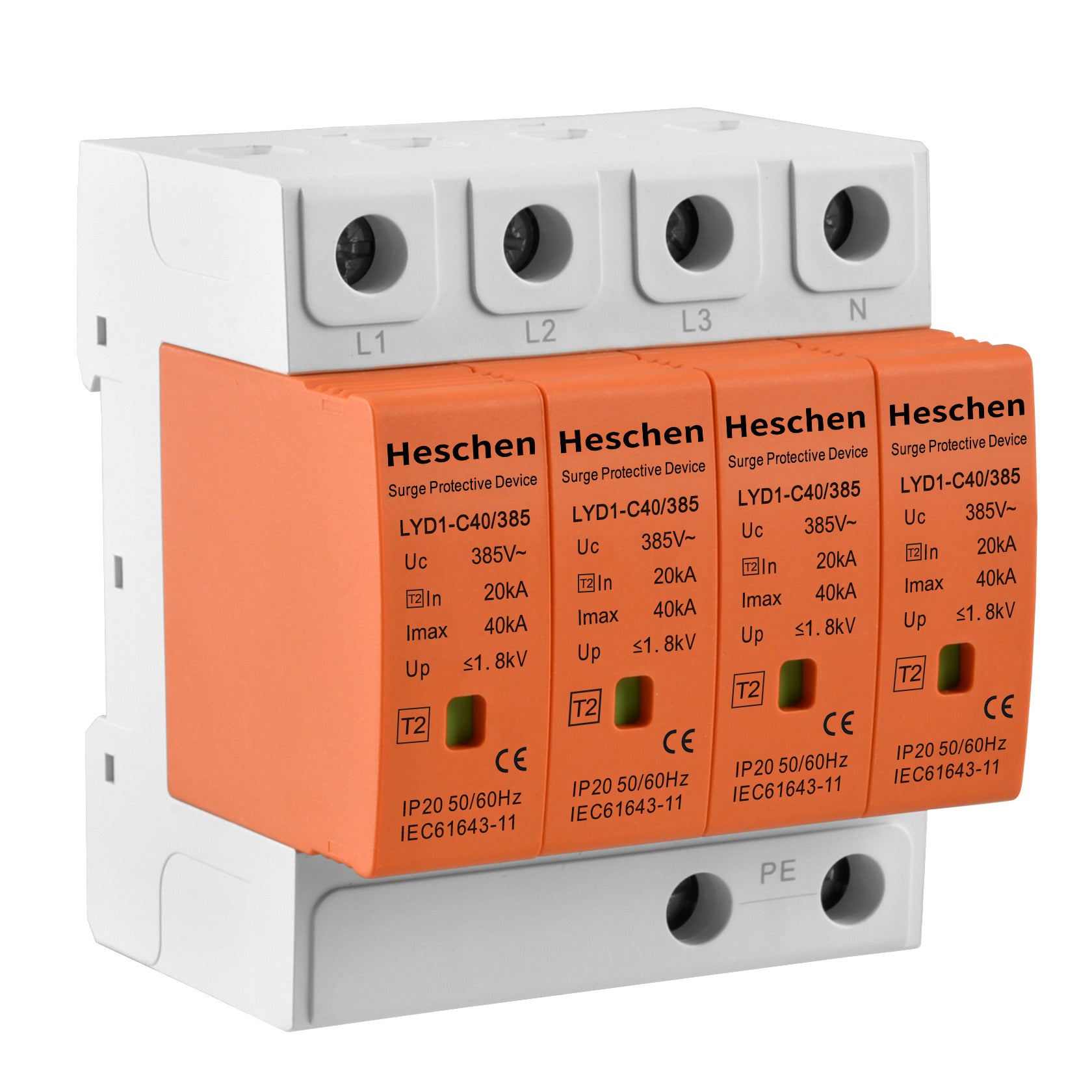

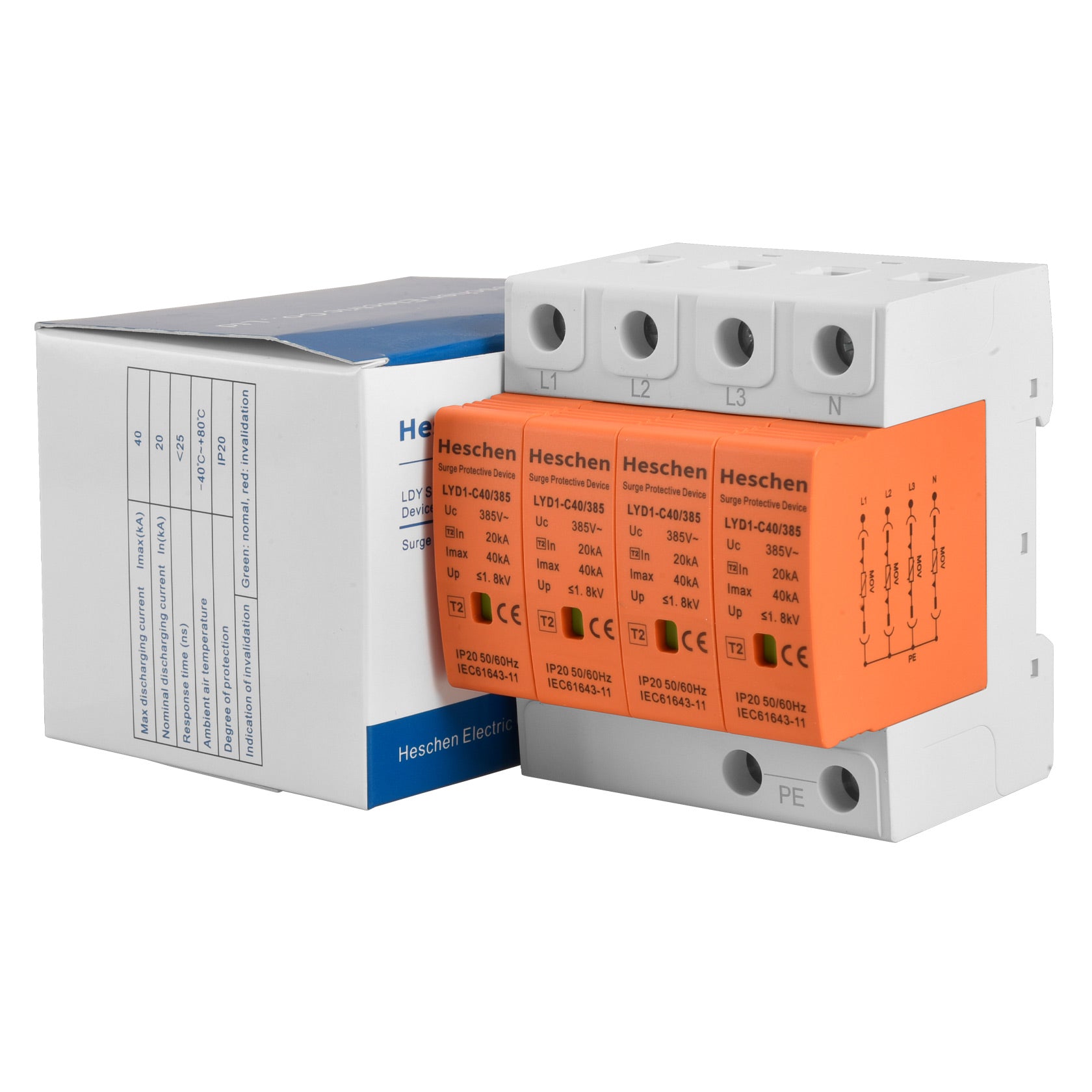

Heschen Surge Protective Device, LYD1-C40/385, 4P 385V 20KA, Fire-Proof, Low-Voltage Arrester, 35mm DIN Rail Mounting
Heschen Surge Protective Device, LYD1-C40/385, 4P 385V 20KA, Fire-Proof, Low-Voltage Arrester, 35mm DIN Rail Mounting
Heschen Surge Protective Device, LYD1-C40/385, 4P 385V 20KA, Fire-Proof, Low-Voltage Arrester, 35mm DIN Rail Mounting
Heschen Surge Protective Device, LYD1-C40/385, 4P 385V 20KA, Fire-Proof, Low-Voltage Arrester, 35mm DIN Rail Mounting
Heschen Surge Protective Device, LYD1-C40/385, 4P 385V 20KA, Fire-Proof, Low-Voltage Arrester, 35mm DIN Rail Mounting
Heschen Surge Protective Device, LYD1-C40/385, 4P 385V 20KA, Fire-Proof, Low-Voltage Arrester, 35mm DIN Rail Mounting

Heschen Surge Protective Device, LYD1-C40/385, 4P 385V 20KA, Fire-Proof, Low-Voltage Arrester, 35mm DIN Rail Mounting

Heschen

Shipping calculated at checkout.

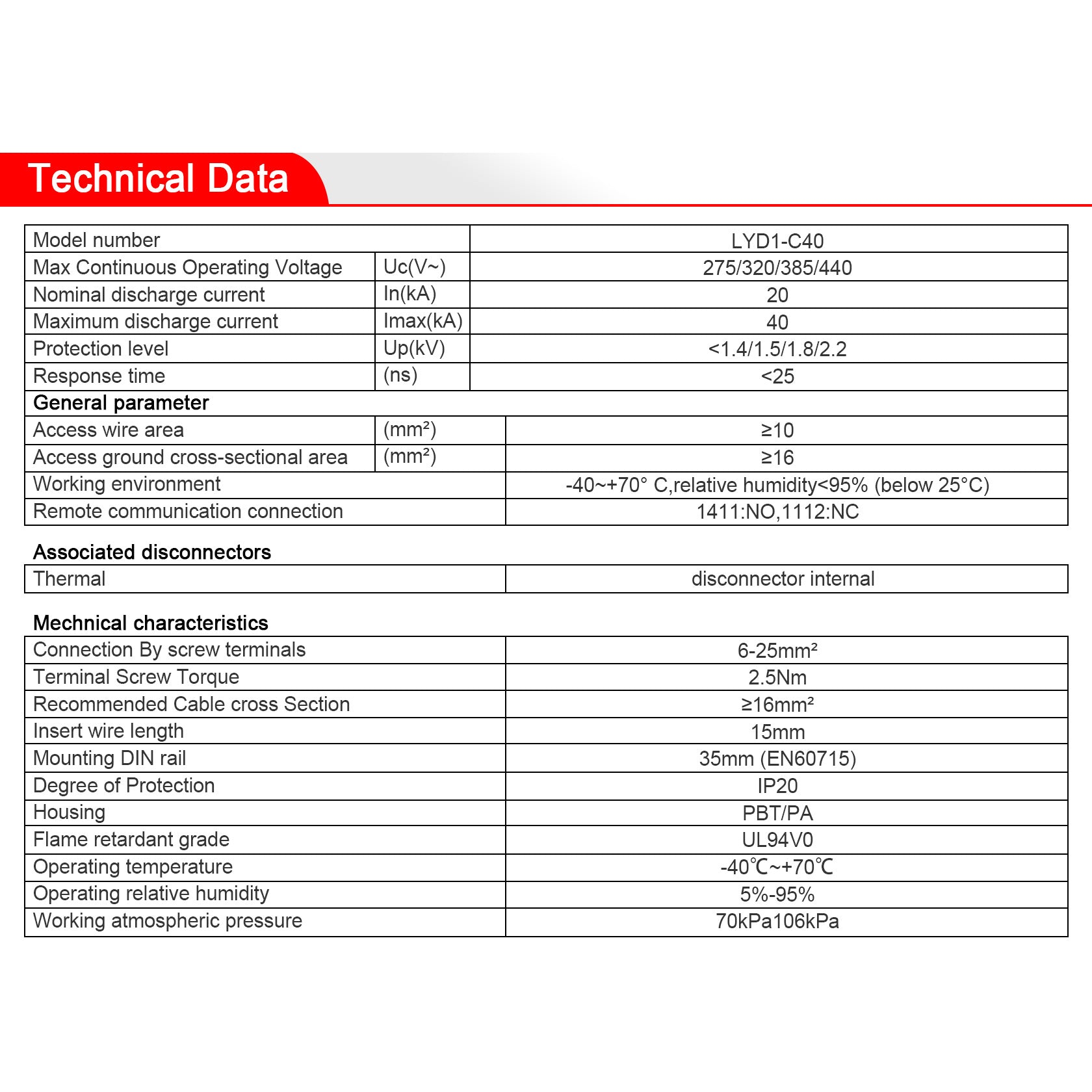

  • Max Continuous Operating Voltage：385VAC
  • Voltage Protective Level: 1.8kV
  • Max Discharging Current: 40kA
  • Norminal Discharge current: 20kA
  • Response Time: <25ns, IP 20, 50/60Hz
  • Weight: 400g
