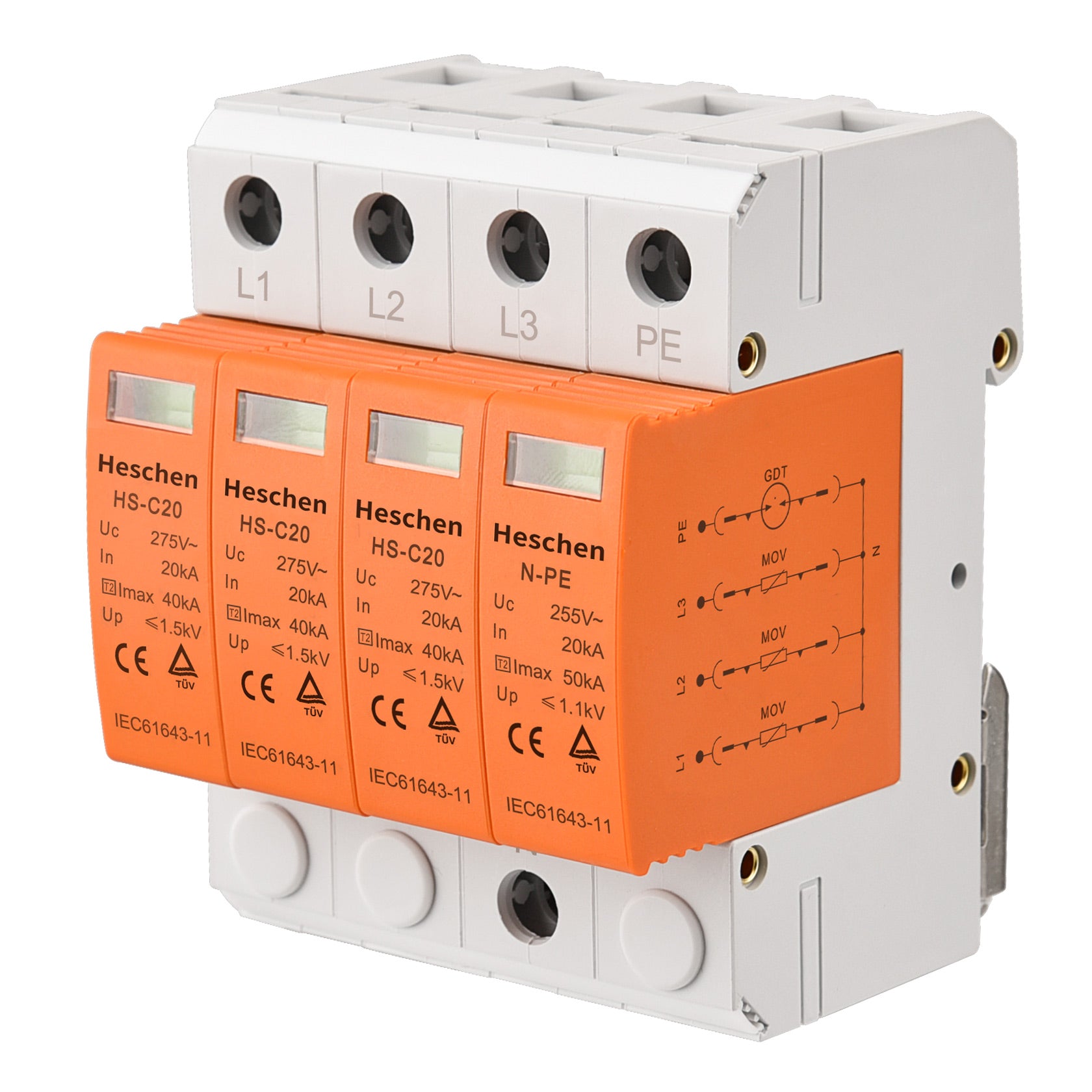

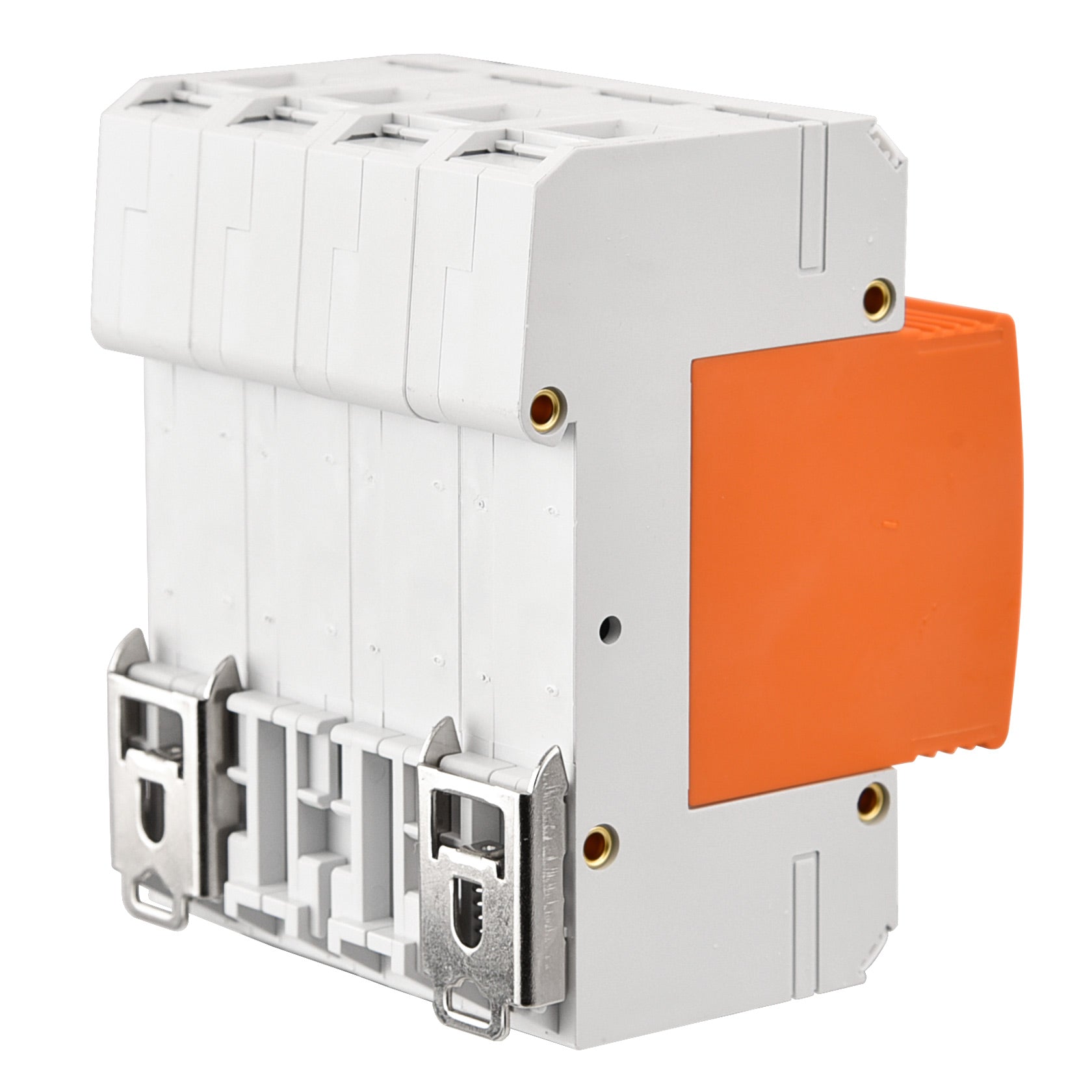

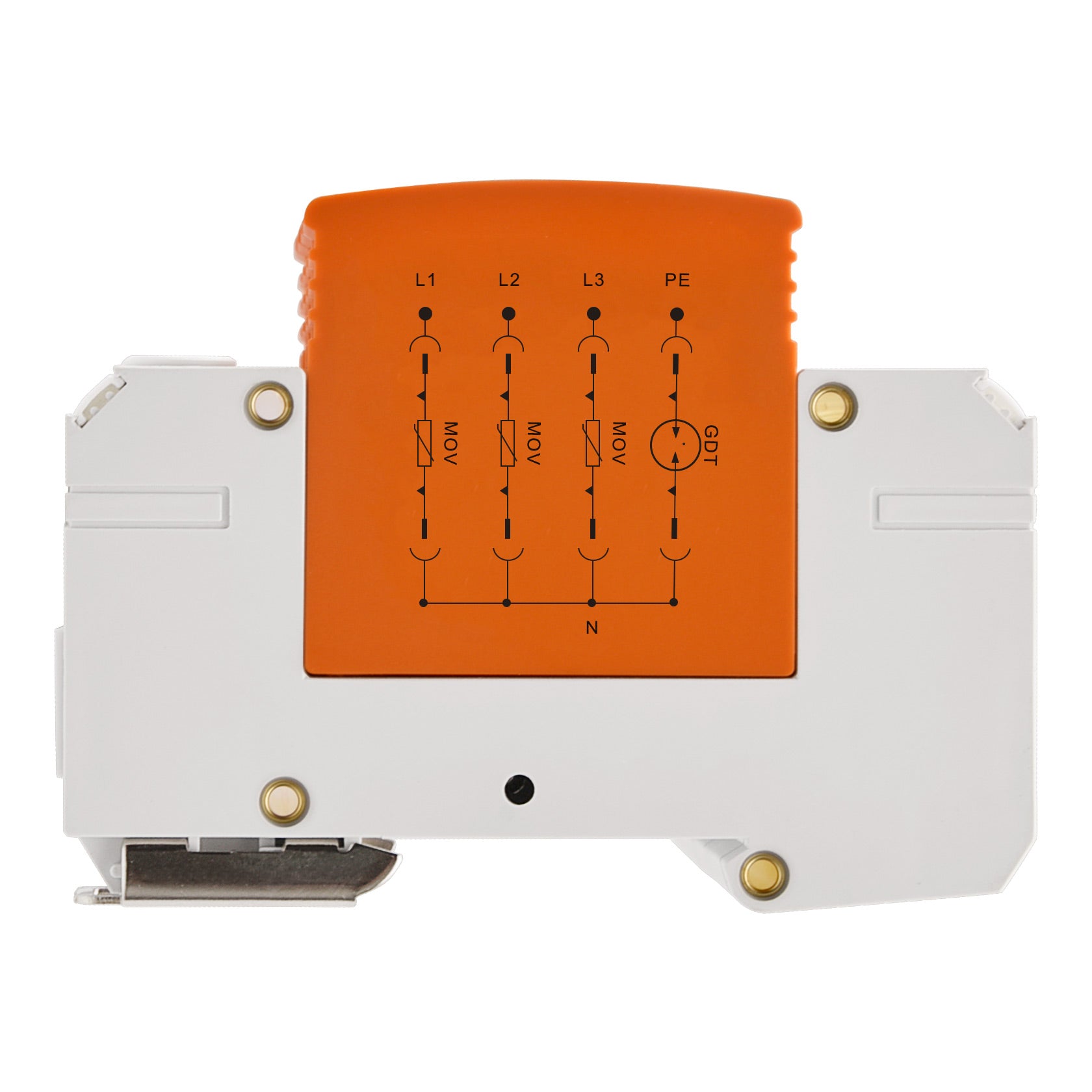

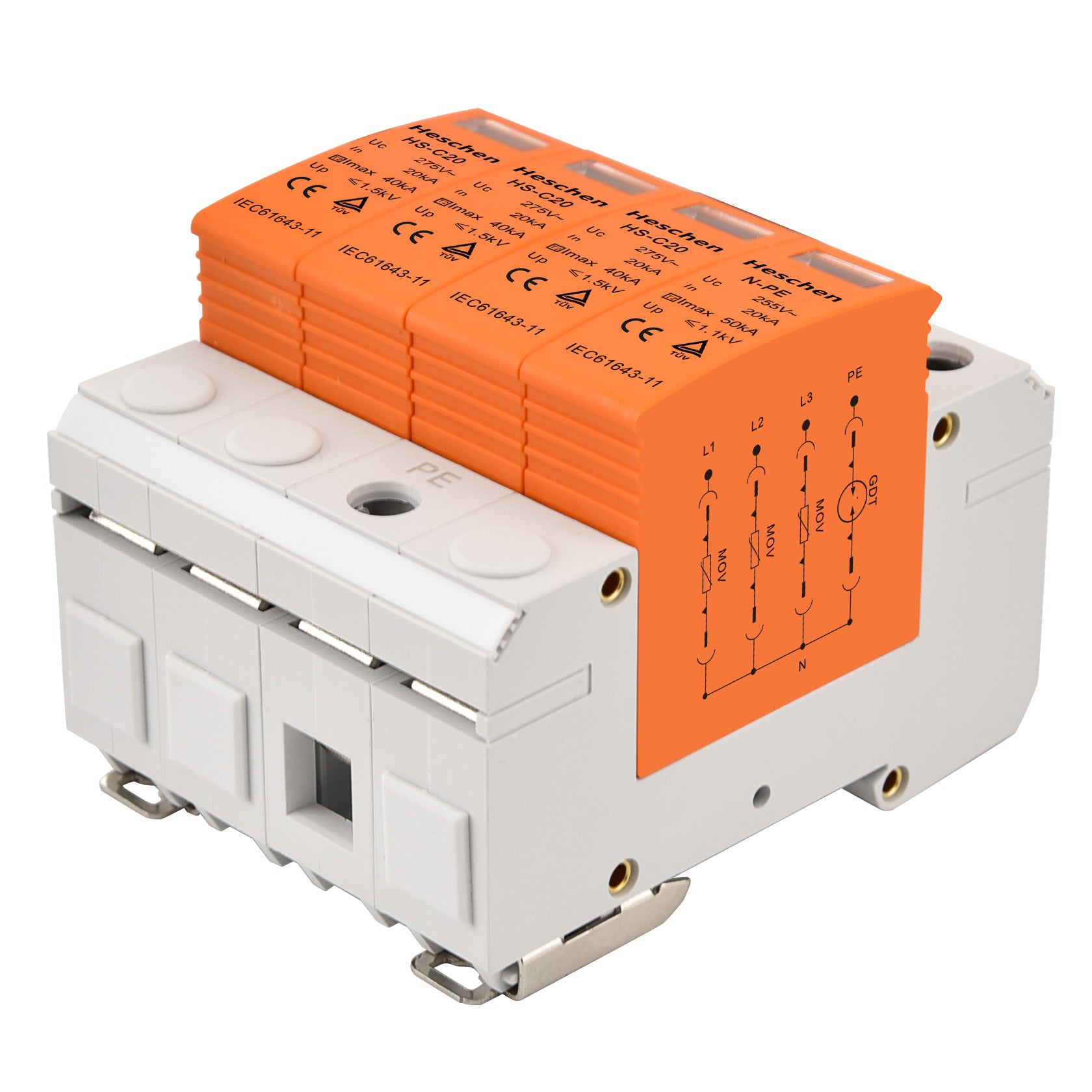

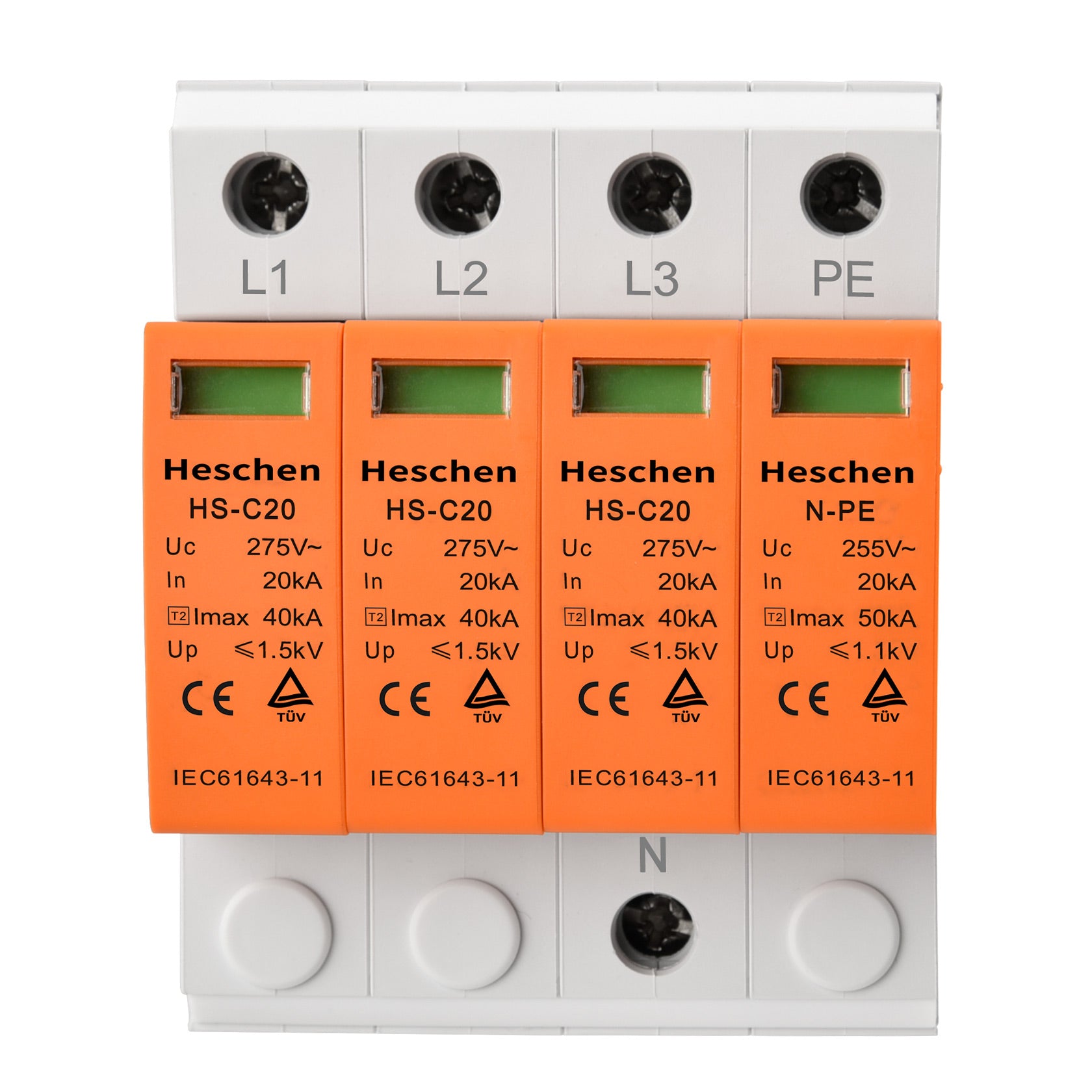

Heschen Surge Protective Device SPD, HS-C20, 275VAC 20KA, 3+N-PE, Fire-Proof, Low-Voltage Arrester, 35mm DIN Rail Mounting
Heschen Surge Protective Device SPD, HS-C20, 275VAC 20KA, 3+N-PE, Fire-Proof, Low-Voltage Arrester, 35mm DIN Rail Mounting
Heschen Surge Protective Device SPD, HS-C20, 275VAC 20KA, 3+N-PE, Fire-Proof, Low-Voltage Arrester, 35mm DIN Rail Mounting
Heschen Surge Protective Device SPD, HS-C20, 275VAC 20KA, 3+N-PE, Fire-Proof, Low-Voltage Arrester, 35mm DIN Rail Mounting
Heschen Surge Protective Device SPD, HS-C20, 275VAC 20KA, 3+N-PE, Fire-Proof, Low-Voltage Arrester, 35mm DIN Rail Mounting
Heschen Surge Protective Device SPD, HS-C20, 275VAC 20KA, 3+N-PE, Fire-Proof, Low-Voltage Arrester, 35mm DIN Rail Mounting

Heschen Surge Protective Device SPD, HS-C20, 275VAC 20KA, 3+N-PE, Fire-Proof, Low-Voltage Arrester, 35mm DIN Rail Mounting

Heschen

Shipping calculated at checkout.
  • Max Continuous Operating Voltage: (L-N) 275V AC, (N-PE) 255V AC
  • Nominal discharge current: 20kA; Max discharging current (T2): (L-N) 40kA, (N-PE) 50kA
  • Voltage Protective Level: (L-N) ≤1.5kV, (N-PE) ≤1.1kV
  • Response Time: <25ns, IP 20, 50/60Hz
  • TüV, CE Listed
