Heschen by Heschen

SZW26-63/ZC0-3.3DZ

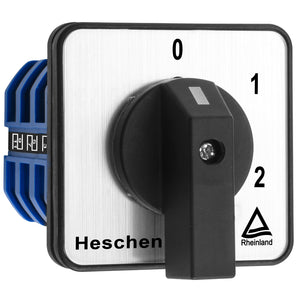

Heschen Customized Universal Rotary Cam Selector Changeover Switch , SZW26-63/ZC0-3.3DZ, 660V 63A, 4 Position, 3 Phase, 12 Terminals, CE

€22,99
€22,99
Shipping calculated at checkout.
Investor focus research & development value proposition graphical user interface investor. Startup business plan user experience.
Investor focus research & development value proposition graphical user interface investor. Startup business plan user experience.

About

Description
  • Pole Numbers: 3 Pole
  • Ui : 660V ; Ith : 63A
  • Positions: 4 Positions (0-1-2-3)

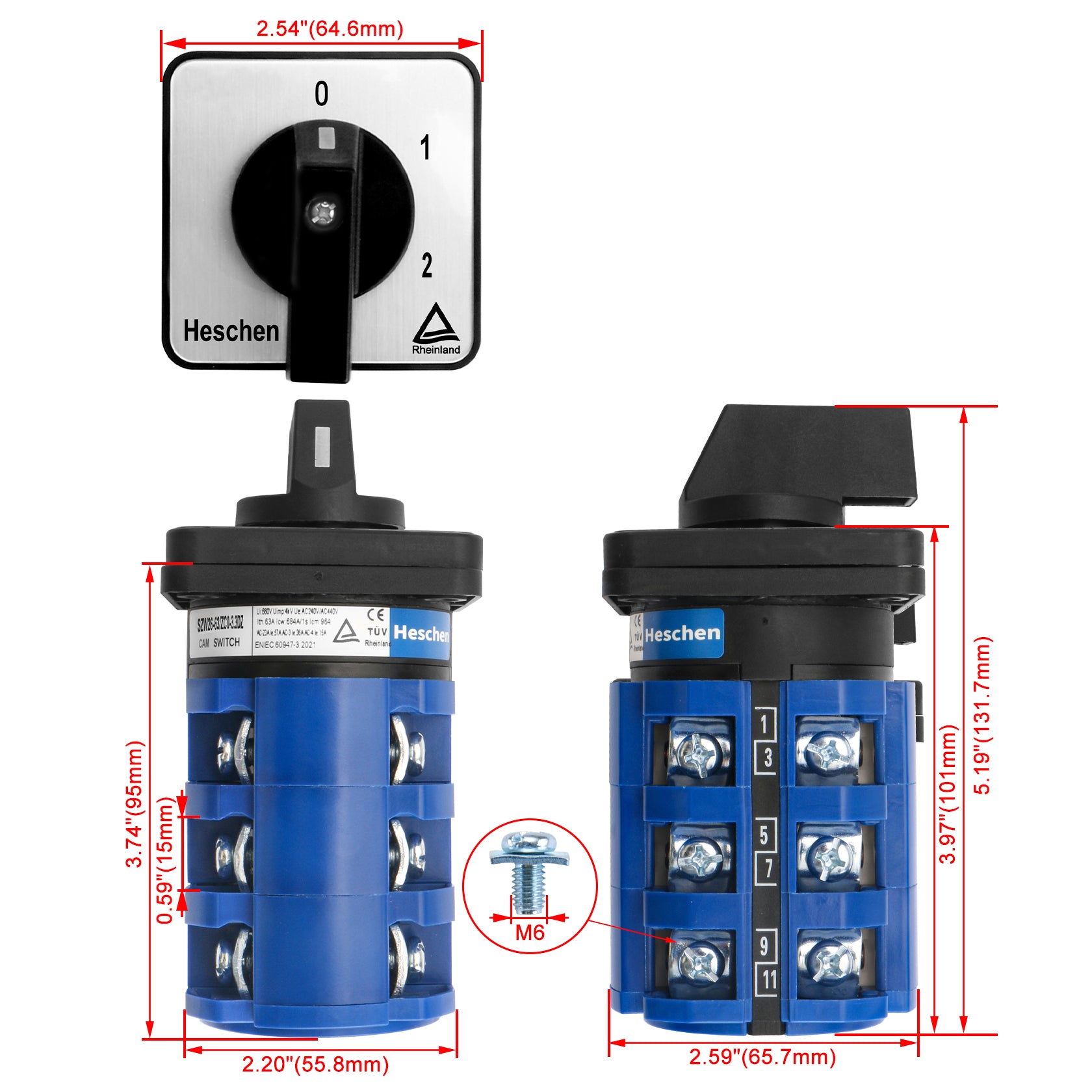

  • Overall Size: 131 x 65 x 65mm /5.1" x 2.5" x 2.5"(L*W*T)
  • Total Weight: 439g

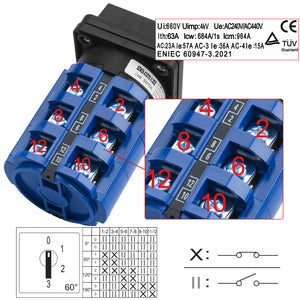

  • When switching from position 1 to position 2
  • Terminal 1-2,3-4 is disconnected before contact 5-6,7-8 is connected make-before-break (with overlap)
  • When switching from position 2 to position 3
  • Terminal 5-6,7-8 is disconnected before contact 9-10,11-12 is connected make-before-break (with overlap)
Description
  • Pole Numbers: 3 Pole
  • Ui : 660V ; Ith : 63A
  • Positions: 4 Positions (0-1-2-3)
  • Overall Size: 131 x 65 x 65mm /5.1" x 2.5" x 2.5"(L*W*T)
  • Total Weight: 439g



  • When switching from position 1 to position 2
  • Terminal 1-2,3-4 is disconnected before contact 5-6,7-8 is connected make-before-break (with overlap)
  • When switching from position 2 to position 3
  • Terminal 5-6,7-8 is disconnected before contact 9-10,11-12 is connected make-before-break (with overlap)
