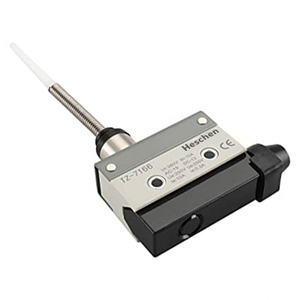

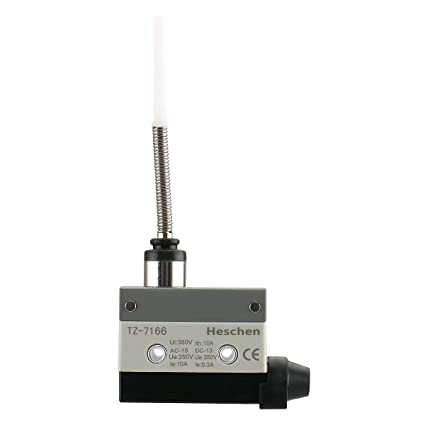

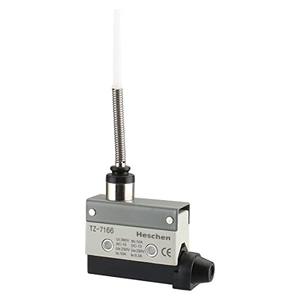

Heschen Limit Switch Flexible Rod Momentary Type SPDT 1NC+1NO AC DC 380V 10A Micro Switch TZ-7166


  • €6,24
    Unit price per
Shipping calculated at checkout.

  • Product Name: Horizontal Limit Switch ; Model: TZ-7166;

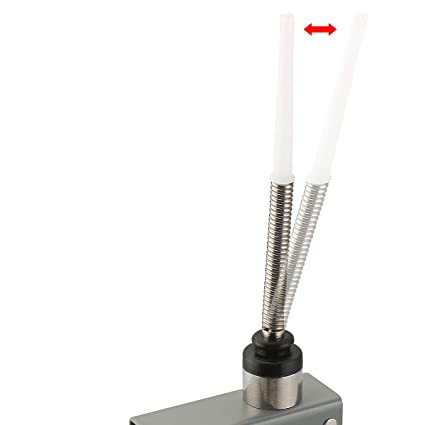

  • Action Type: Momentary; Actuator Type: Flexible rod;

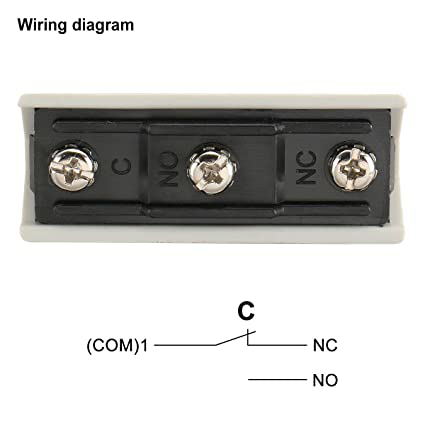

  • Contact Type: SPDT 1NO+1NC; Terminal Style: Screw*3;
  • Rating: Ui: 380V Ith:10A; AC-15 Ue: 250V Ie: 10A; DC-13 Ue: 250V Ie: 0.3A;

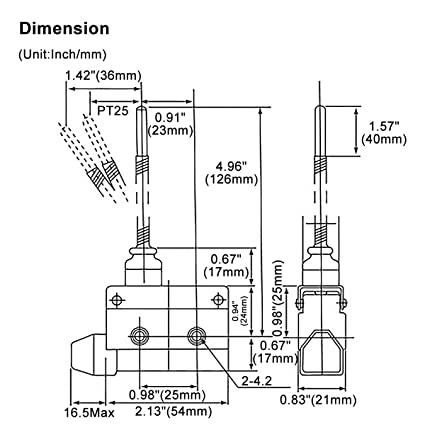

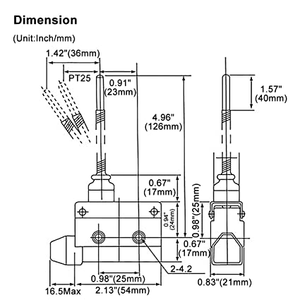

  • Overall Size: 71 x 21 x 42mm / 2.83" x 0.8" x 1.65" (L*W*H);
  • Fixing Holes Dia.: 4mm/0.16''; Distance for holes:25.4mm/10'';
  • Degree of Protection: IP65; Weight: 85g;
  • More quantity more discount, send an Email to get a quotation
