Heschen M18 Inductive Proximity Sensor Switch Non-shield Type LJ18A3-8-Z/AX Detector 8mm 10-30VDC 200mA NPN Normally Closed(NC) 3 Wire

Heschen

  • €6,79
    Unit price per
Shipping calculated at checkout.

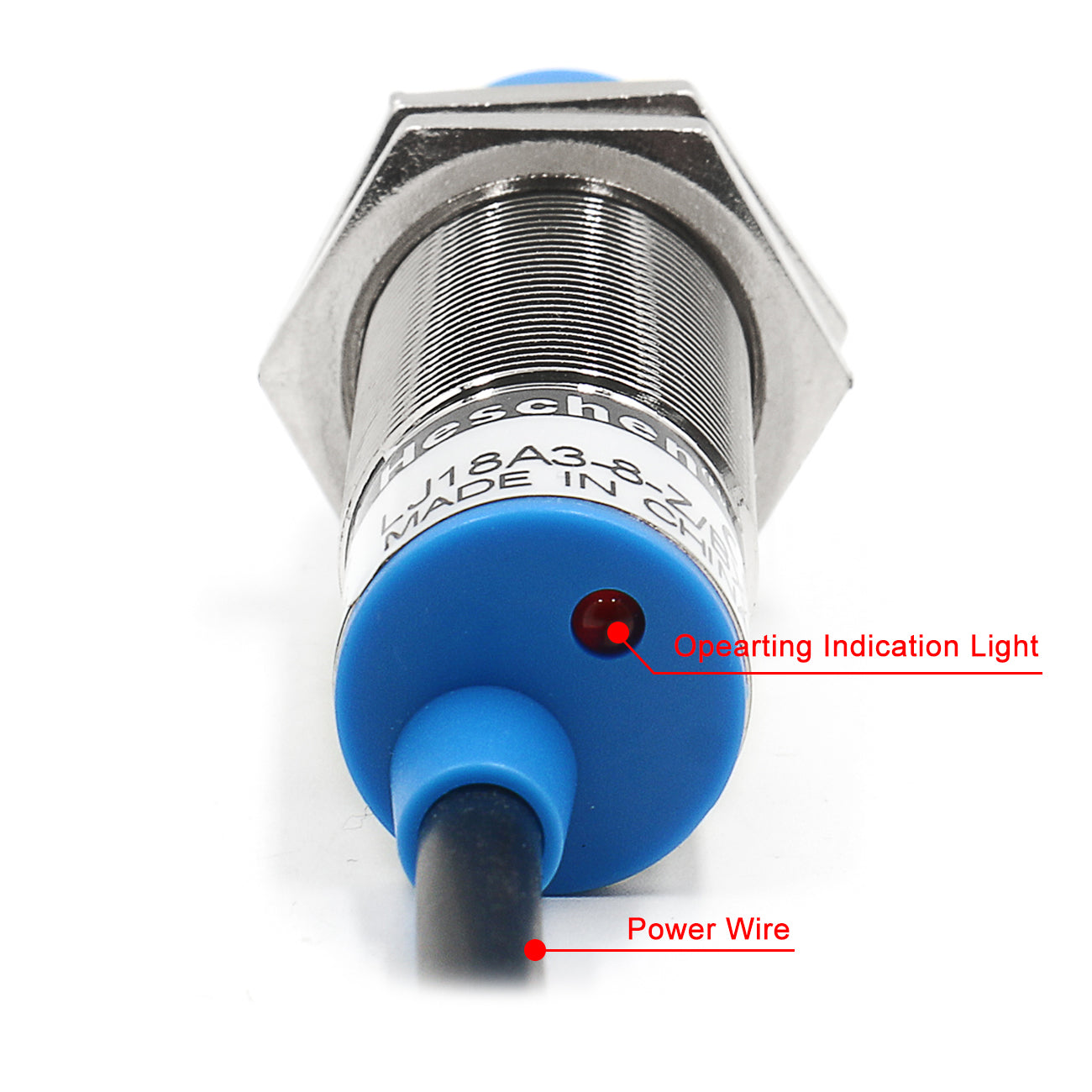

Power supply reversal connection protection; short-circuit protection, can directly connect with PLC. Used in common places with medium enviroment resistance. Red LED indicates that it's available to detect the sensor operation state. Economic and simple operation. Widely used, can be substitution of min-type switch and limit switch.

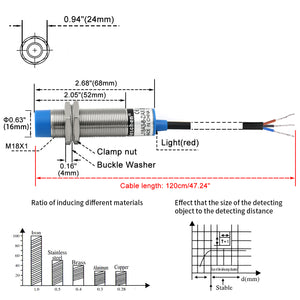

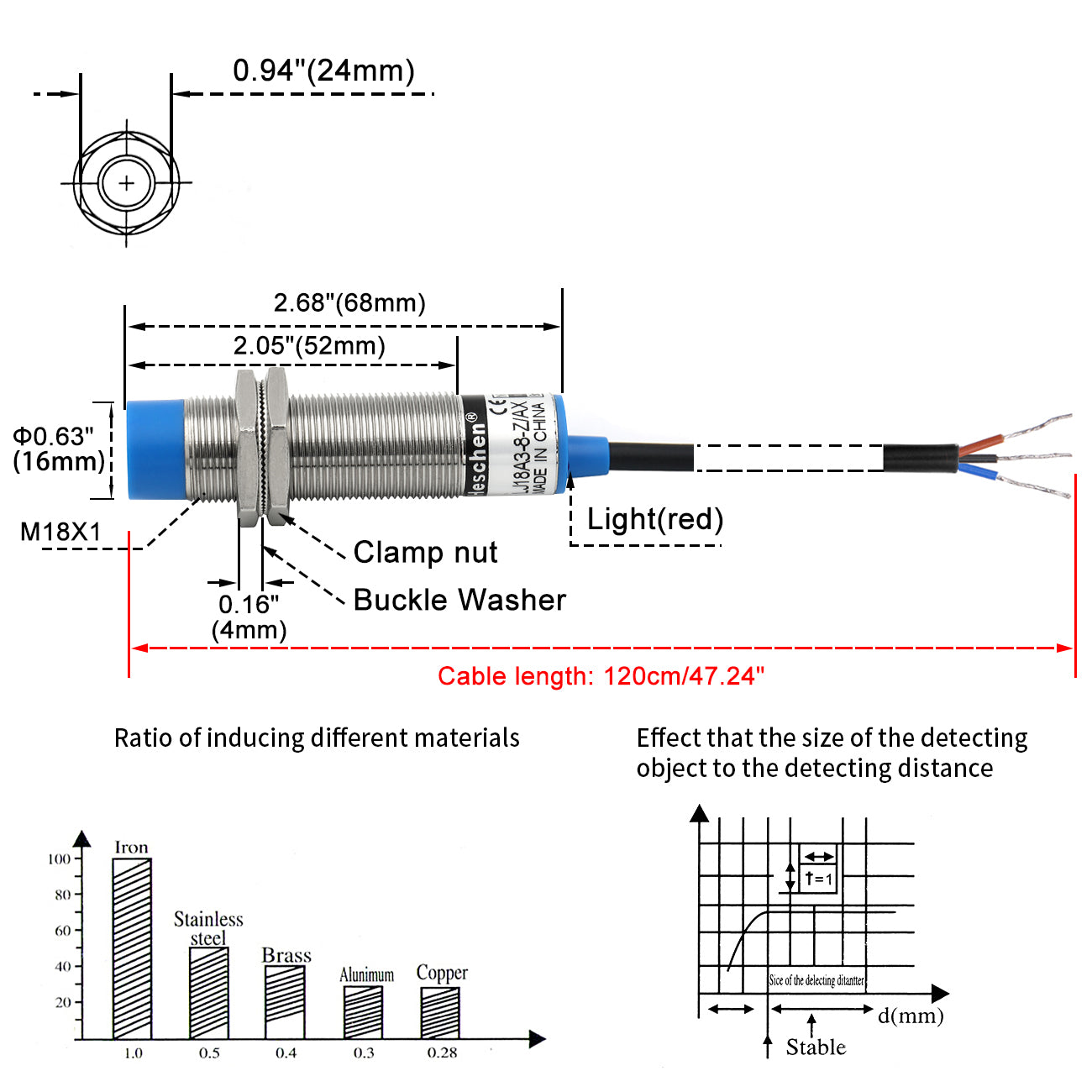

  • Mounting Hole Diameter: 18mm;
  • Cable Length: 120cm/48"
  • Detecting Distance: 8mm±10%;
  • Set Distance: 0-7mm

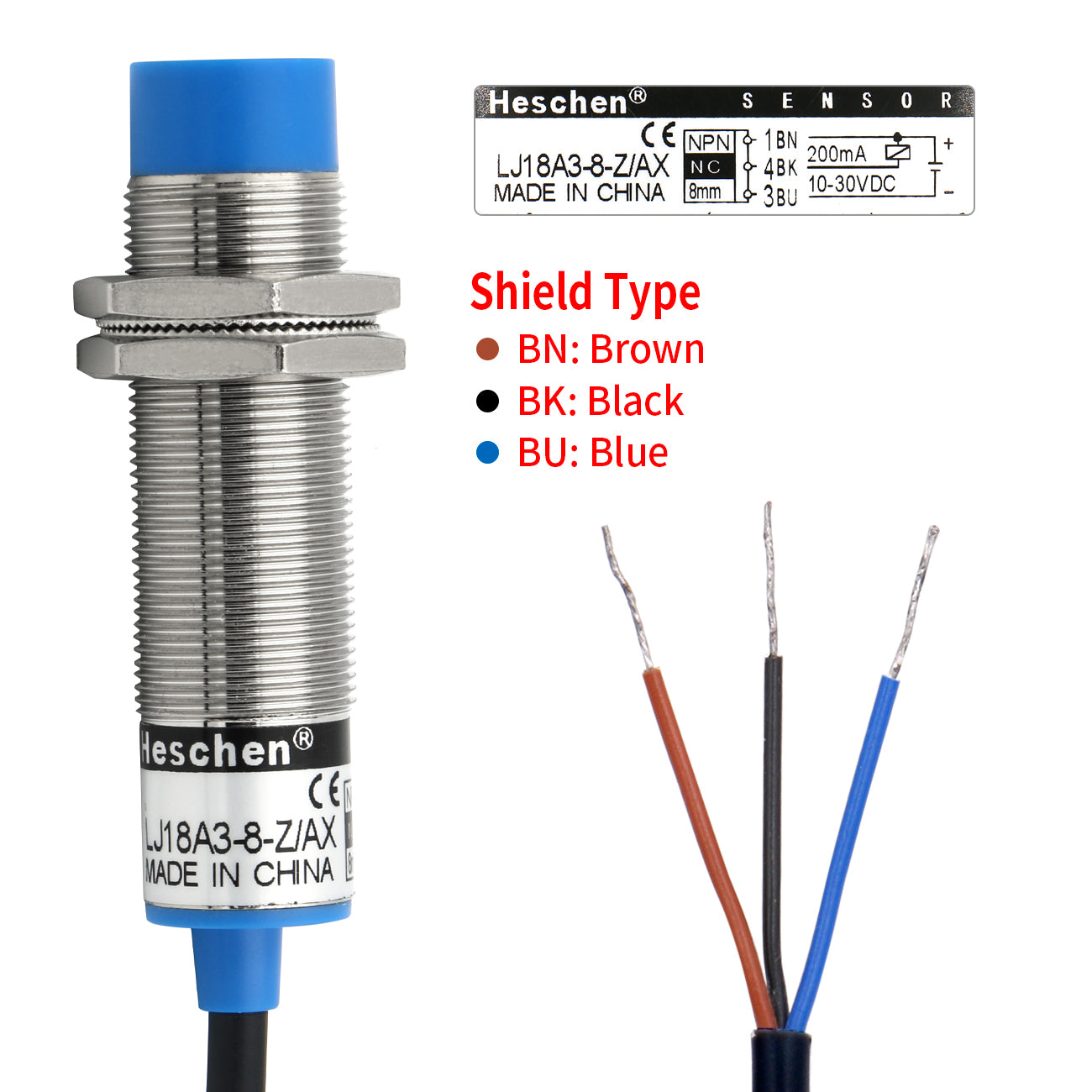

  • Output Type: NPN Normally Closed(NC); Non-shield Type
  • Current Output: 200mA;
  • Working Voltage: 10-30 VDC
  • Detect Object: Magnetic Metal
  • IP 67 protection
  • For large quantity, we will give more discount
