Interruttore sensore di prossimità induttivo M18 LJ18A3-8-Z/BX

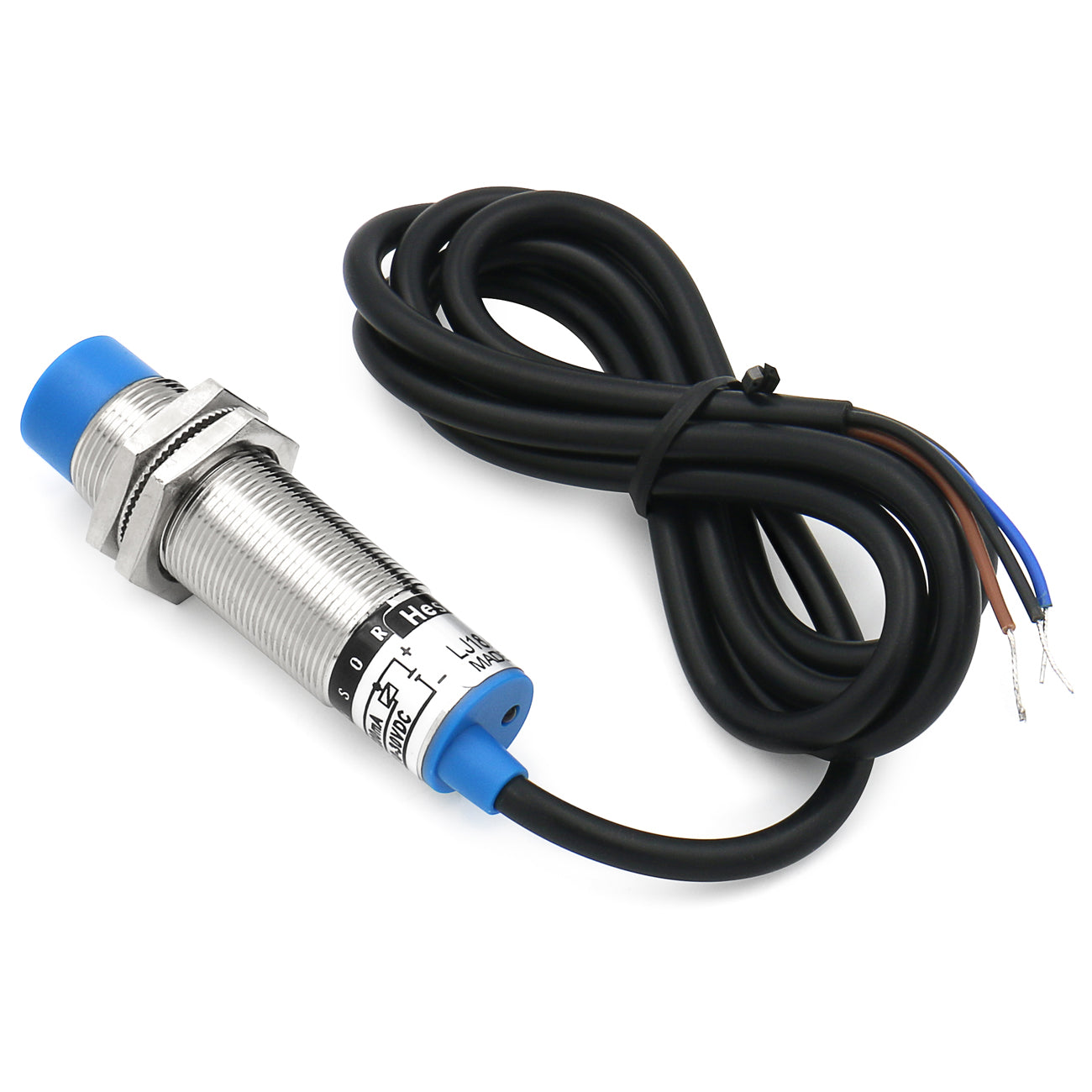

Heschen M18 Inductive Proximity Sensor Switch Non-shield Type LJ18A3-8-Z/BY Detector 8mm 10-30VDC 200mA PNP Normally Open(NO) 3 Wire

Heschen

€6,79
Unit price per

Shipping calculated at checkout.

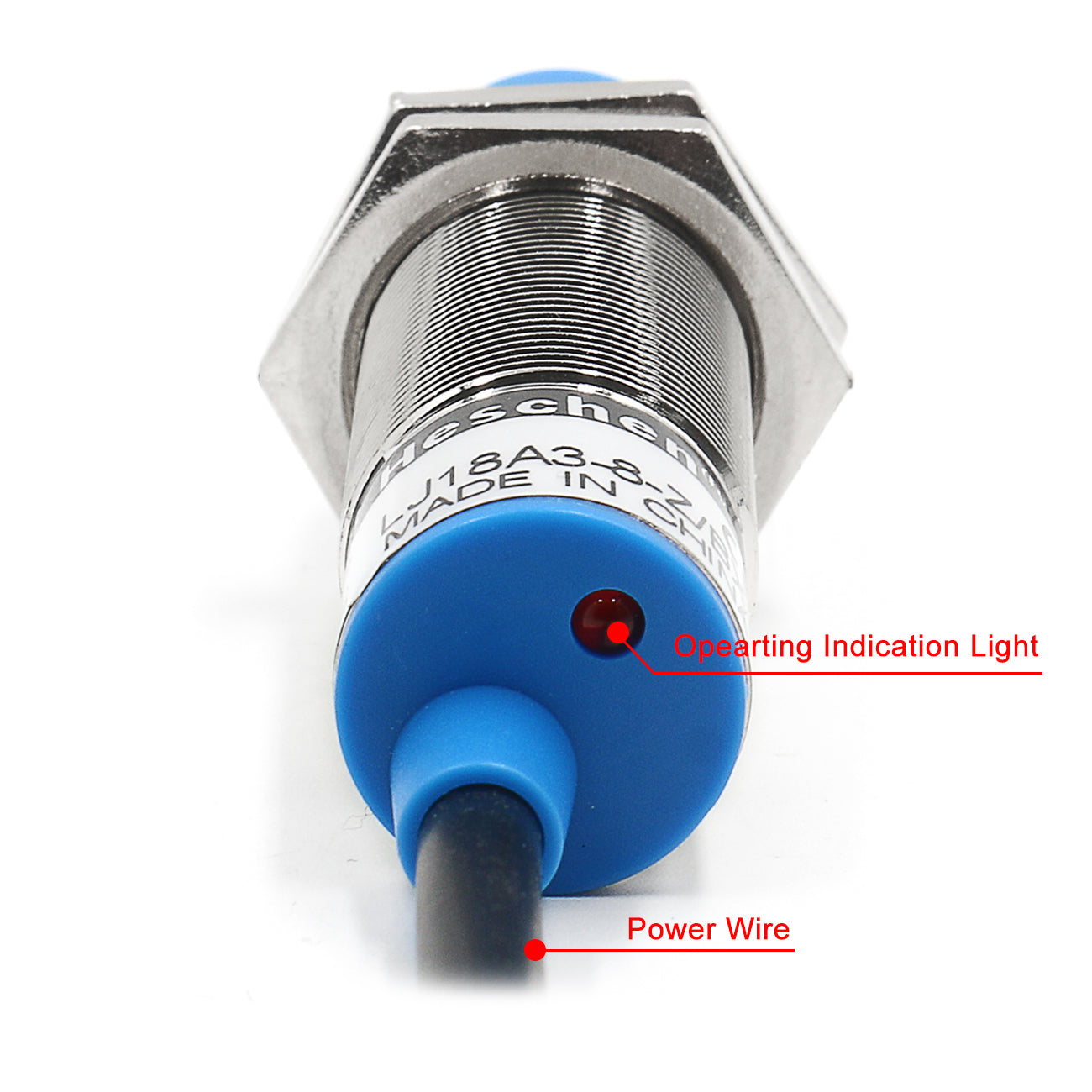

Power supply reversal connection protection; short-circuit protection, can directly connect with PLC. Used in common places with medium enviroment resistance. Red LED indicates that it's available to detect the sensor operation state. Economic and simple operation. Widely used, can be substitution of min-type switch and limit switch.

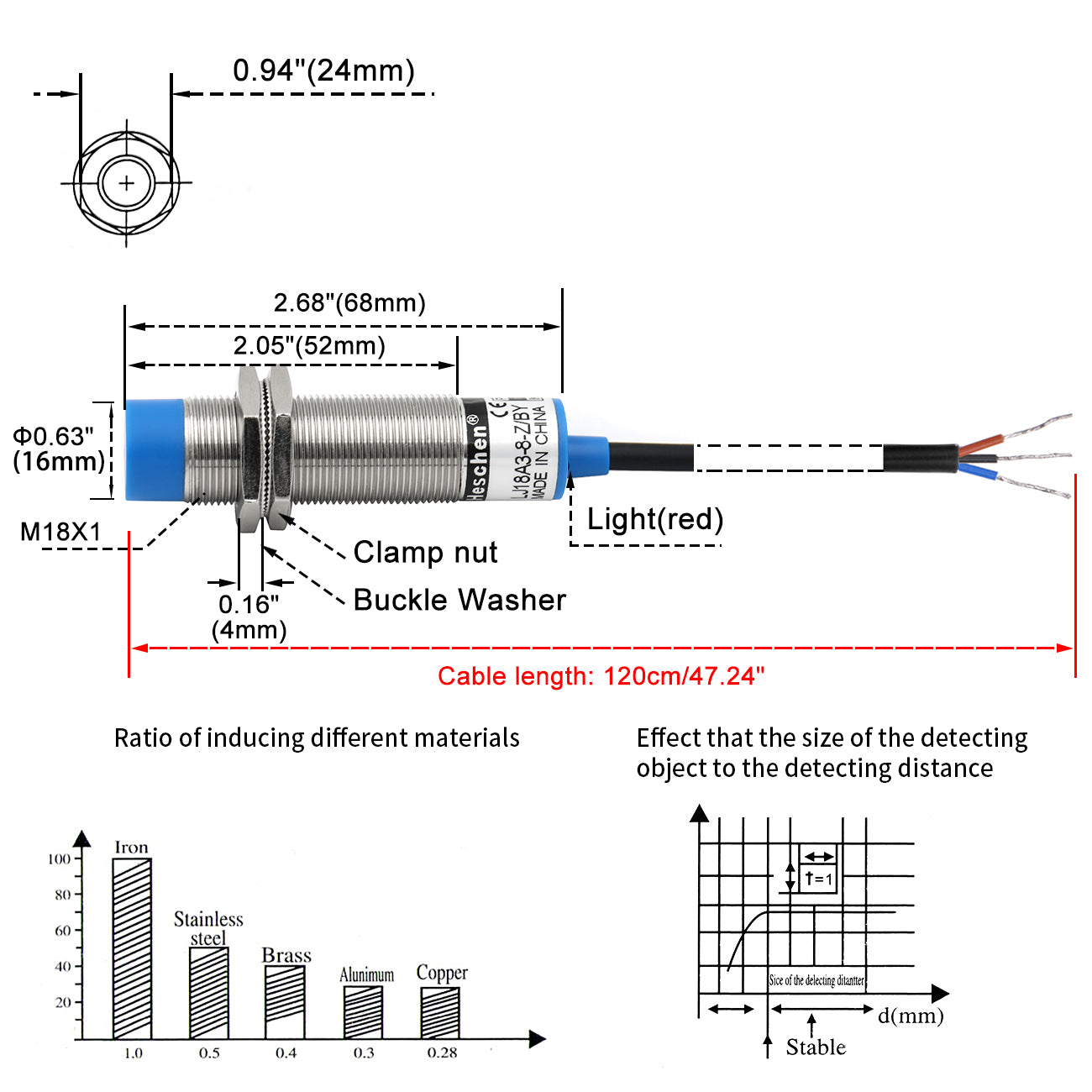

Mounting Hole Diameter: 18mm;
Cable Length: 120cm/48"
Detecting Distance: 8mm±10%;
Set Distance: 0-7mm

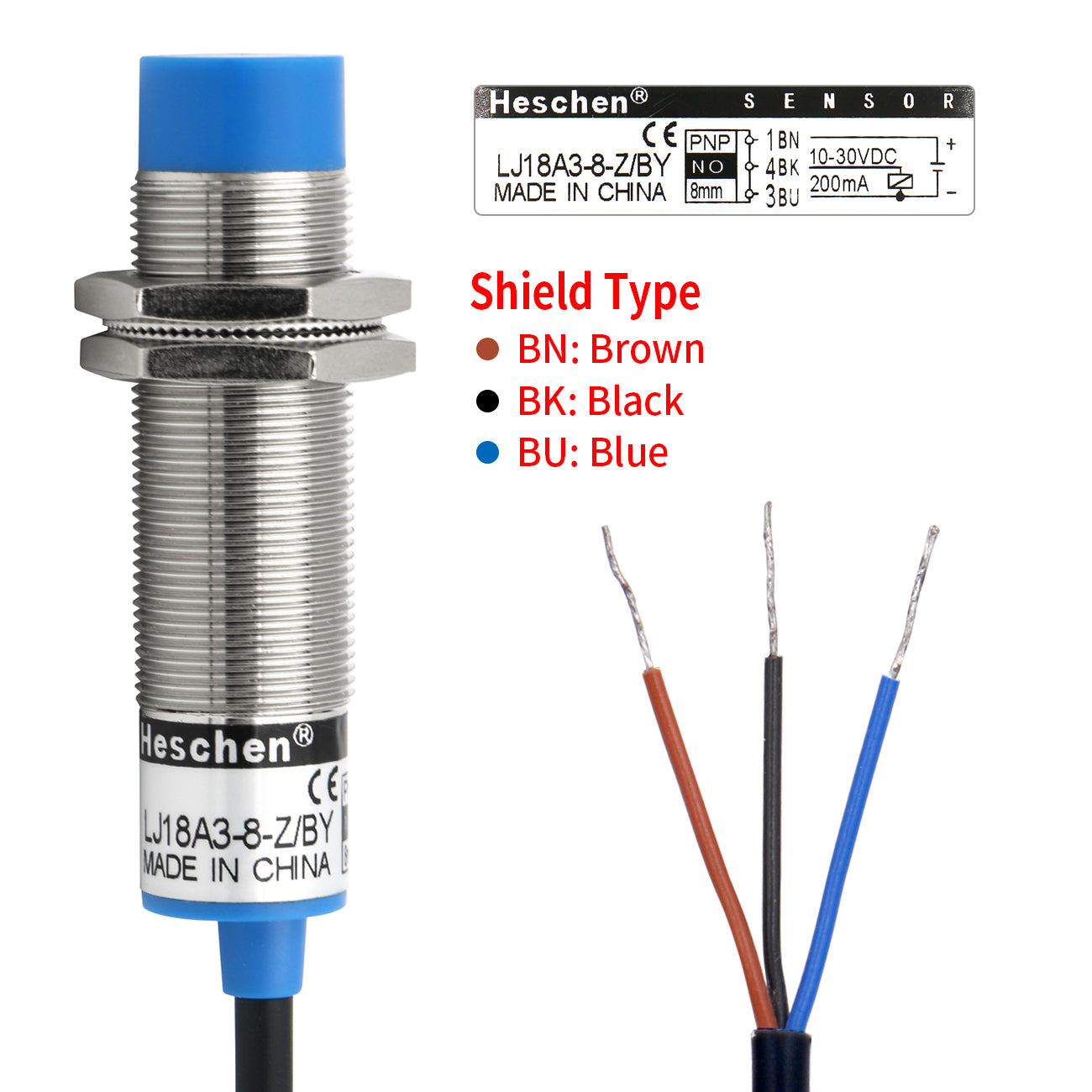

Output Type: PNP Normally Open(NO); Non-shield Type
Current Output: 200mA;
Working Voltage: 10-30 VDC
Detect Object: Magnetic Metal
IP 67 protection
For large quantity, we will give more discount

We Also Recommend

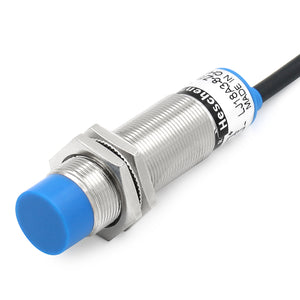

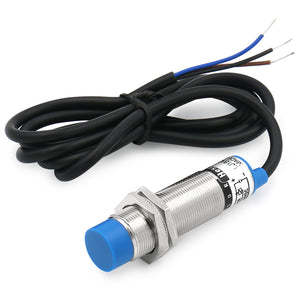

M18 Inductive Proximity Sensor Switch LJ18A3-8-Z/BX
