Heschen by Heschen

LJ5A3-1.5-Z/BY

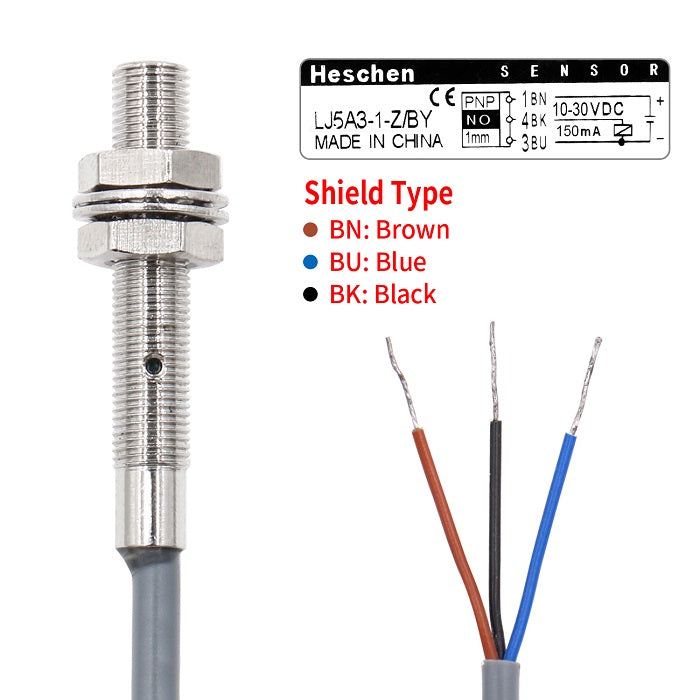

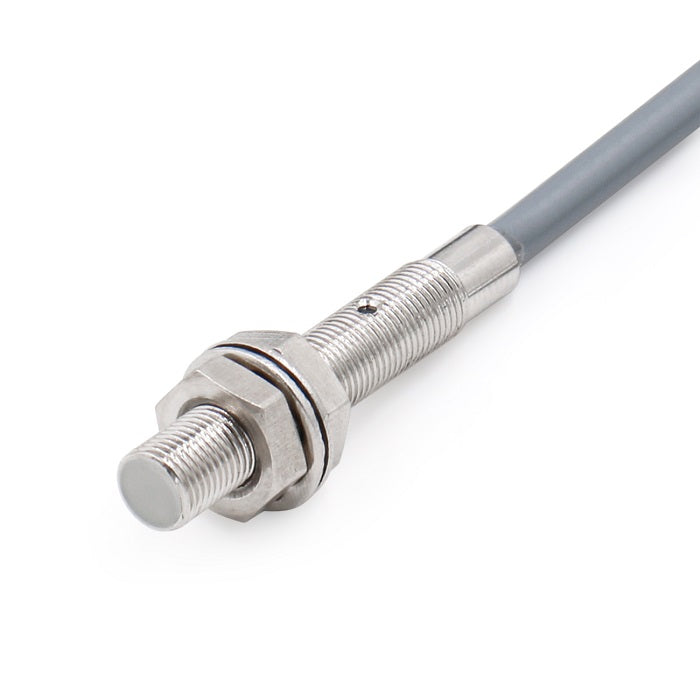

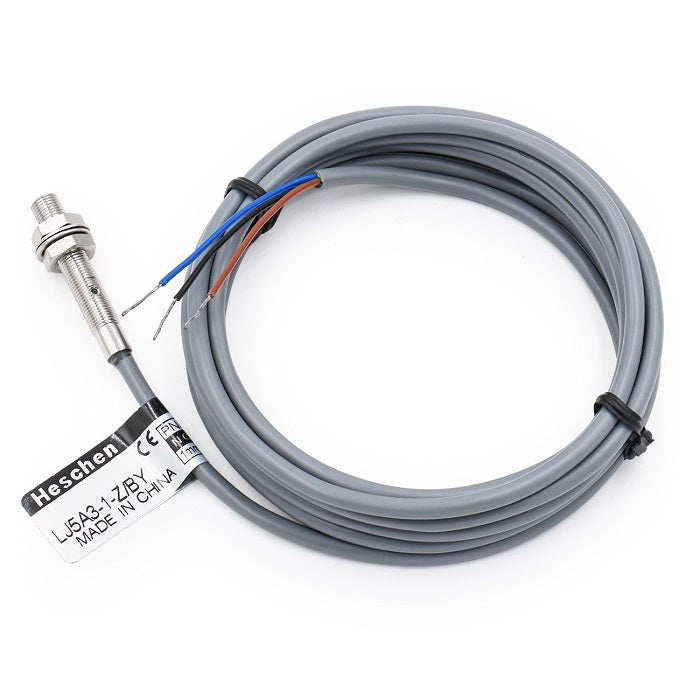

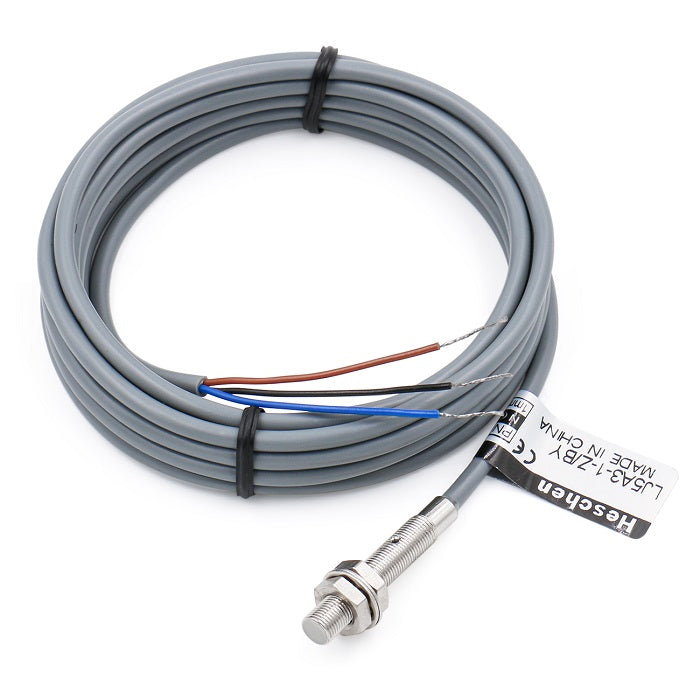

Heschen M5 Inductive Proximity Sensor Switch Non-Shield Type LJ5A3-1.5-Z/BY Detector 1.5mm 10-30VDC 150mA PNP Normally Open(NO) 3 Wire

€8,89
€8,89
Shipping calculated at checkout.
Investor focus research & development value proposition graphical user interface investor. Startup business plan user experience.
Investor focus research & development value proposition graphical user interface investor. Startup business plan user experience.

About

Description

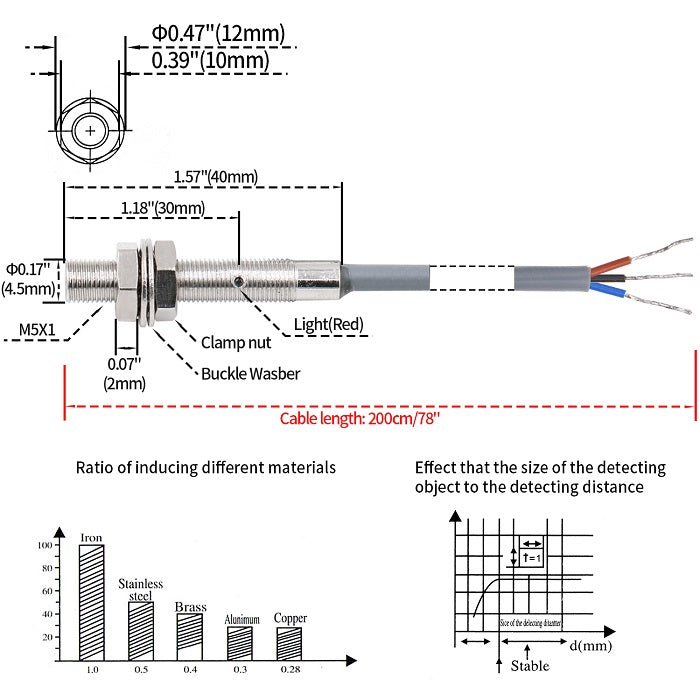

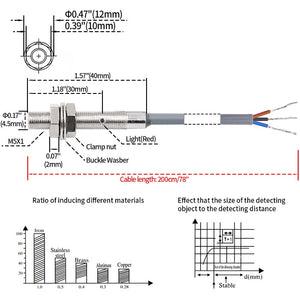

  • Mounting Hole Diameter: 5mm; Cable length: 200cm/78"
  • Detecting Distance: 1.5mm±10%; Set distance: 0-1.2mm
  • Output Type: PNP NO(Normally Open); Non-Shield(non-flush)
  • Current Output: 150mA; Working Voltage: 10-30 VDC
  • Detect Object: Magnetic metal
Description
  • Mounting Hole Diameter: 5mm; Cable length: 200cm/78"
  • Detecting Distance: 1.5mm±10%; Set distance: 0-1.2mm
  • Output Type: PNP NO(Normally Open); Non-Shield(non-flush)
  • Current Output: 150mA; Working Voltage: 10-30 VDC
  • Detect Object: Magnetic metal
