Inductive Proximity Sensor Switch Normally Open
Schalter für induktiven Näherungssensor normalerweise geöffnet
Interruttore del sensore di prossimità induttivo normalmente aperto
Commutateur de capteur de proximité inductif normalement ouvert
Inductive Proximity Sensor Switch Normally Open

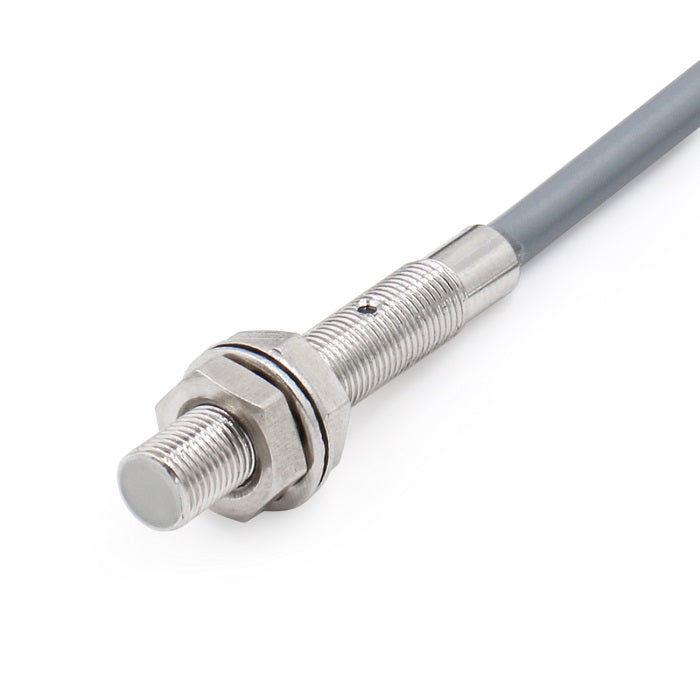

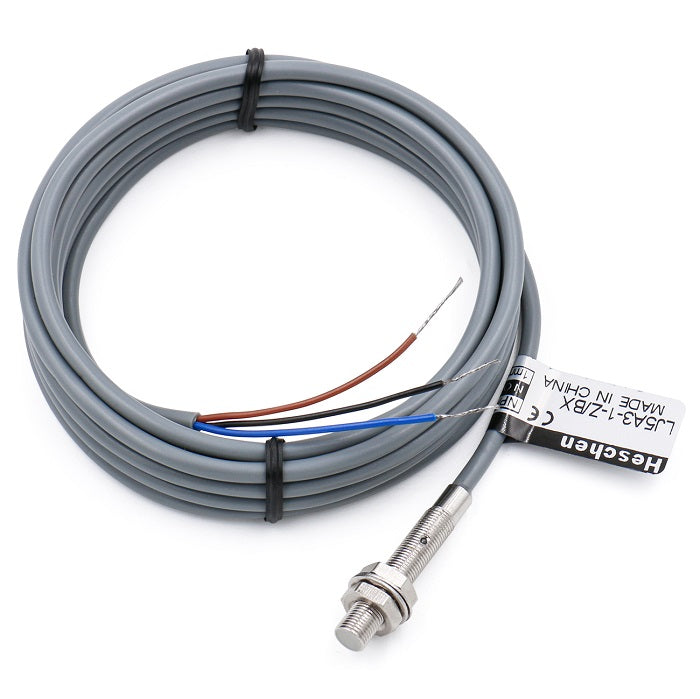

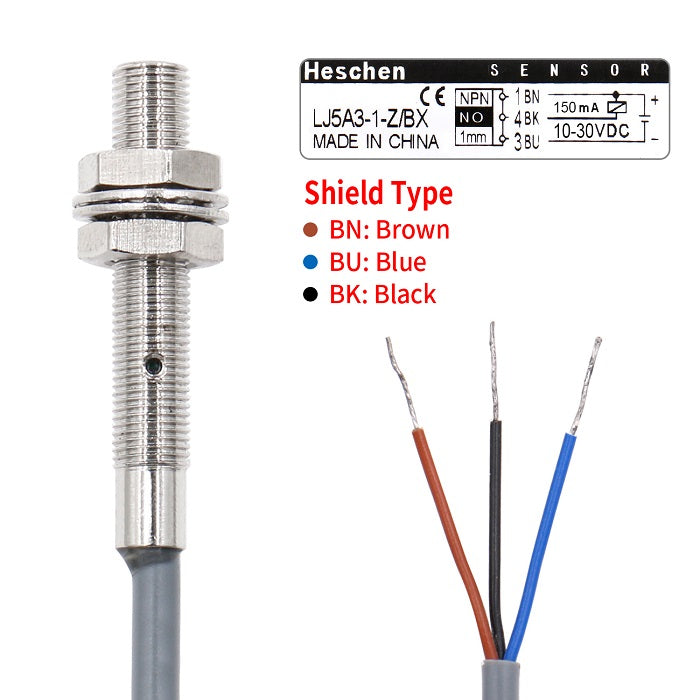

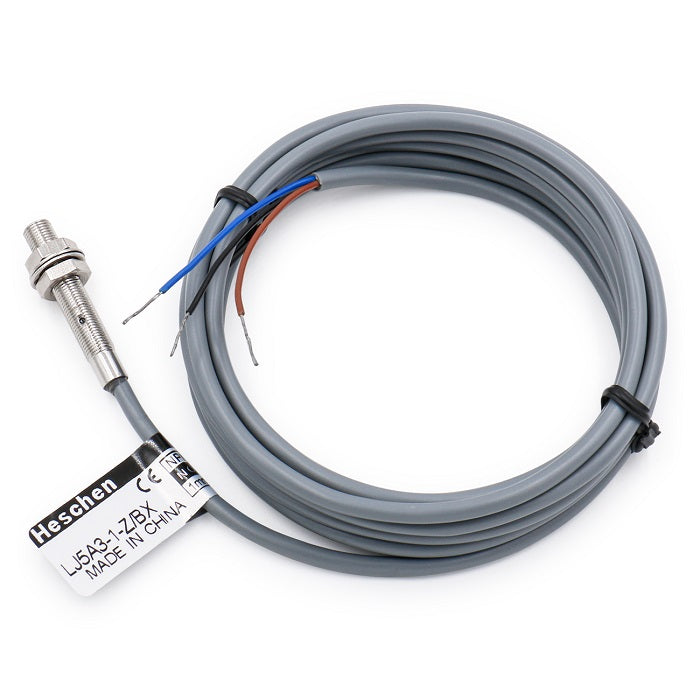

Heschen M5 Inductive Proximity Sensor Switch Shield Type LJ5A3-1-Z/BX Detector 1mm 10-30VDC 150mA NPN Normally Open(NO) 3 Wire

Heschen

Shipping calculated at checkout.

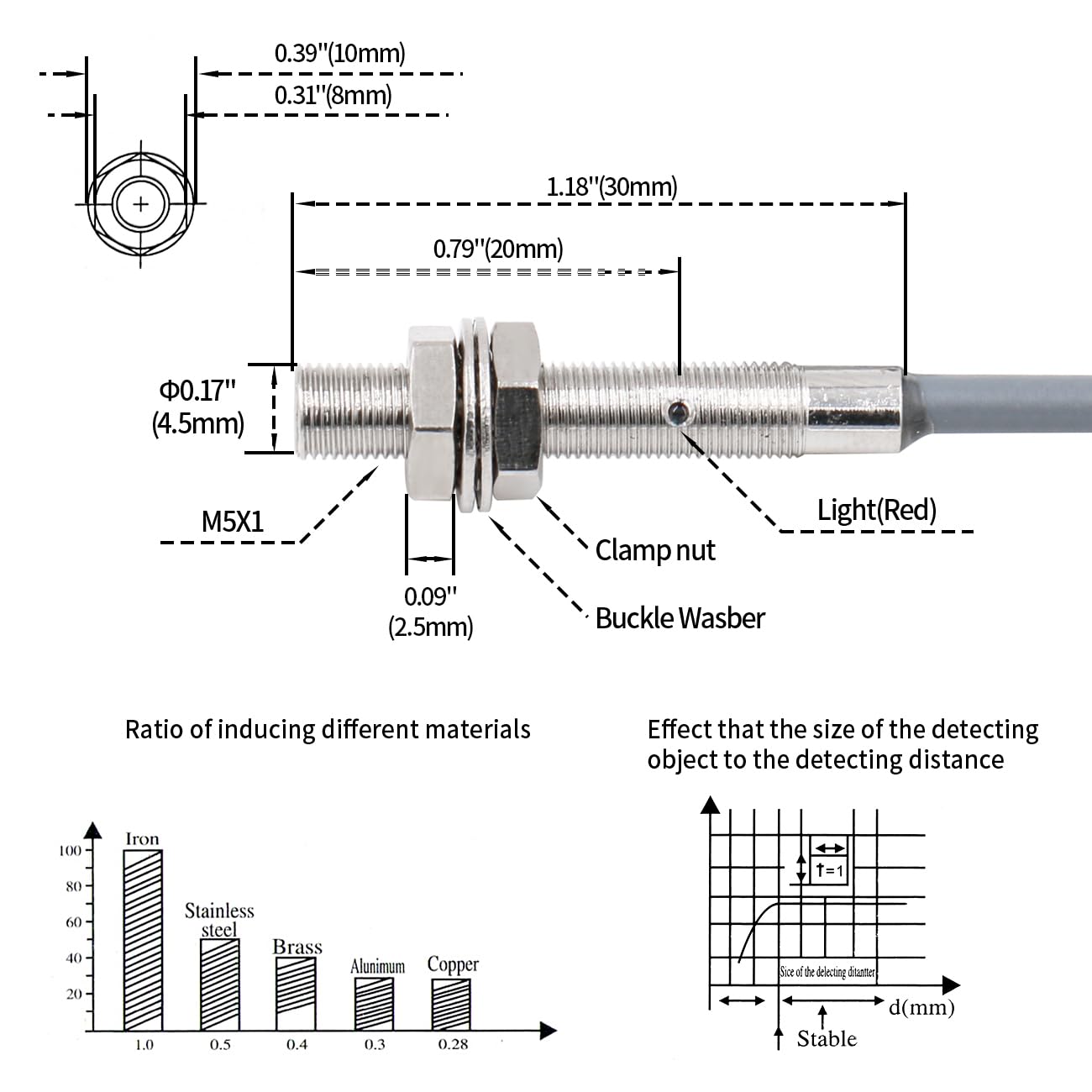

  • Mounting Hole Diameter: 5mm;
  • Cable length: 200cm/78"
  • Detecting Distance: 1mm±10%;
  • Set distance: 0-0.7mm
  • Output Type: PNP NC(Normally Closed), Shield Type
  • Current Output: 150mA;
  • Working Voltage: 10-30 VDC
  • Detect Object: Magnetic metal
