Description

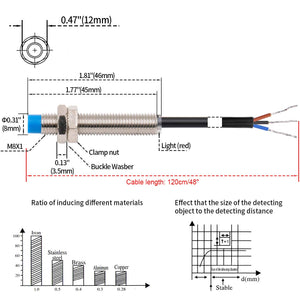

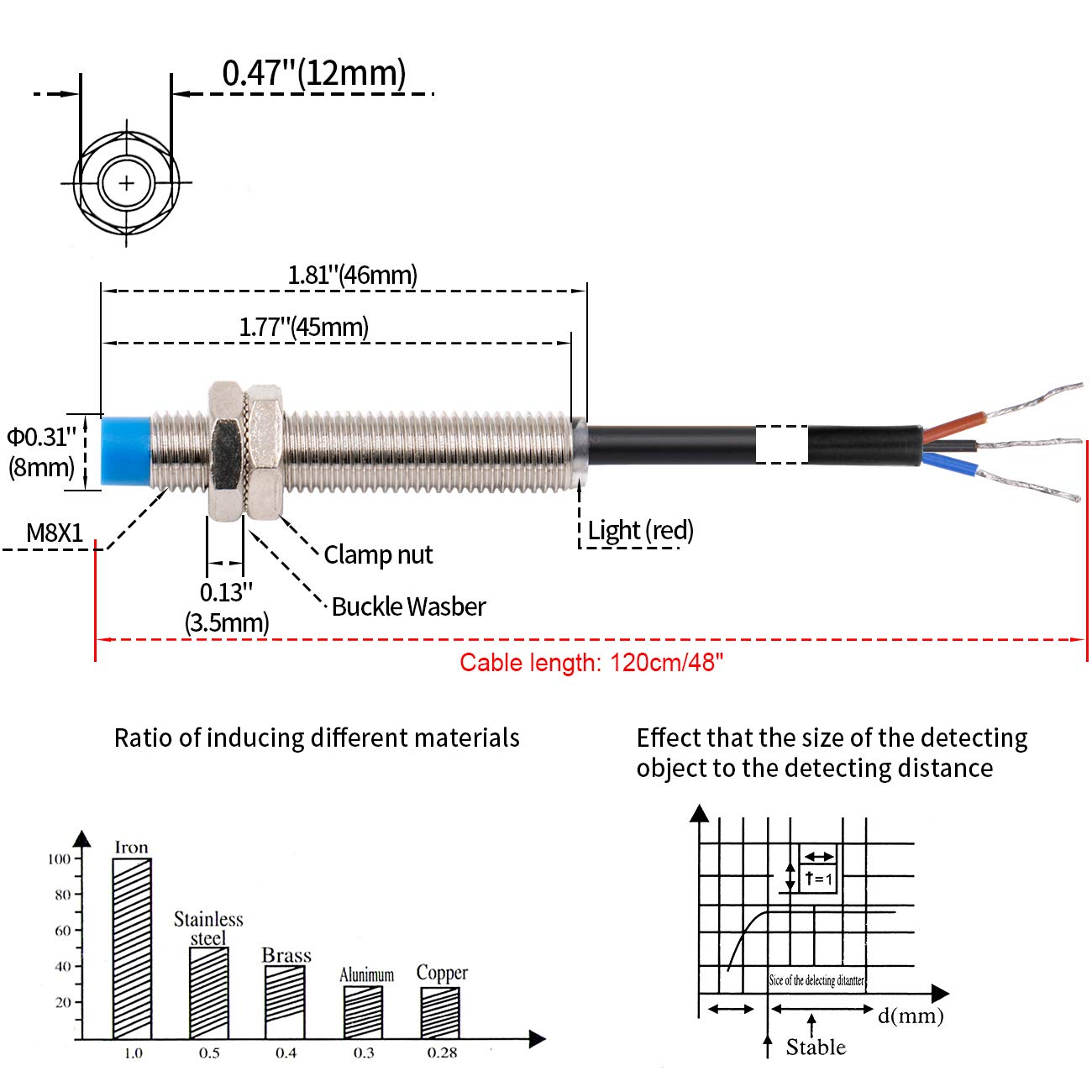

  • Mounting Hole Diameter: 8mm;
  • Cable length: 120cm/48"
  • Detecting Distance: 2mm±10%;
  • Set distance: 0-1.6mm
  • Output Type: NPN Normally Closed(NC);
  • Non-Shield(non-flush)
  • Current Output: 200mA;
  • Working Voltage: 10-30 VDC
  • Detect Object: Magnetic Metal
Description
  • Mounting Hole Diameter: 8mm;
  • Cable length: 120cm/48"
  • Detecting Distance: 2mm±10%;
  • Set distance: 0-1.6mm
  • Output Type: NPN Normally Closed(NC);
  • Non-Shield(non-flush)
  • Current Output: 200mA;
  • Working Voltage: 10-30 VDC
  • Detect Object: Magnetic Metal
Heschen by Heschen

WV-S42Y-KKZ6

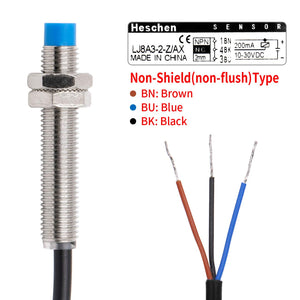

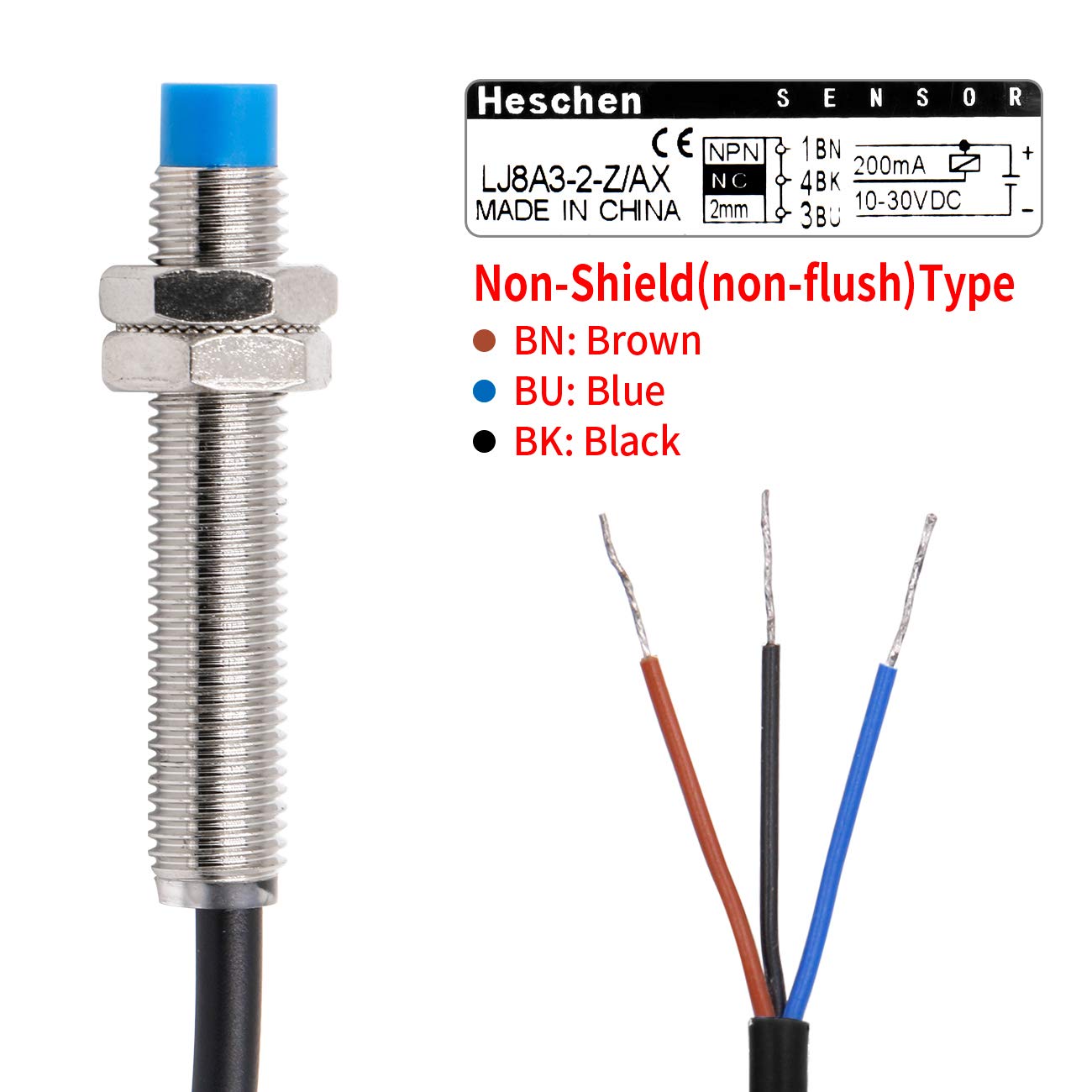

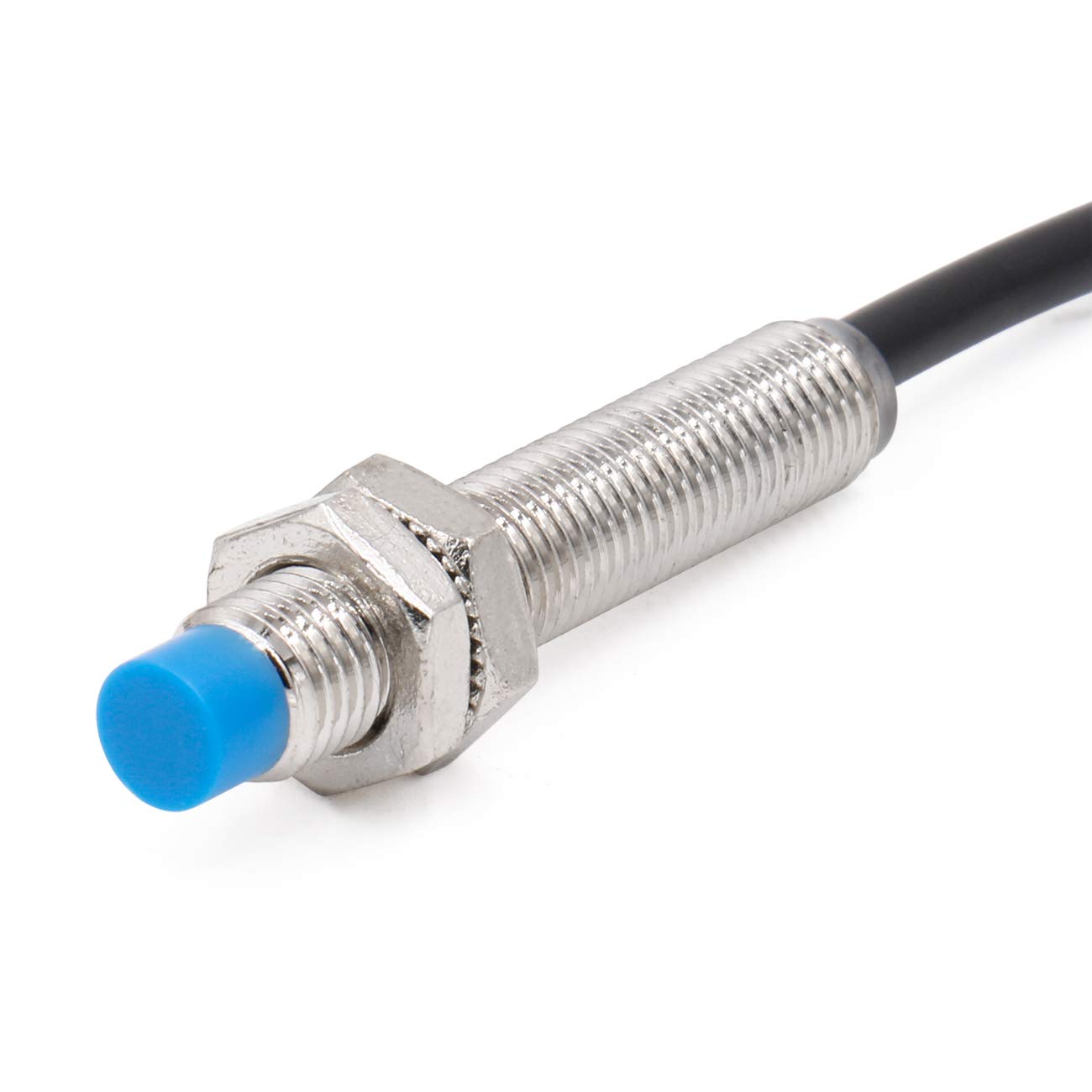

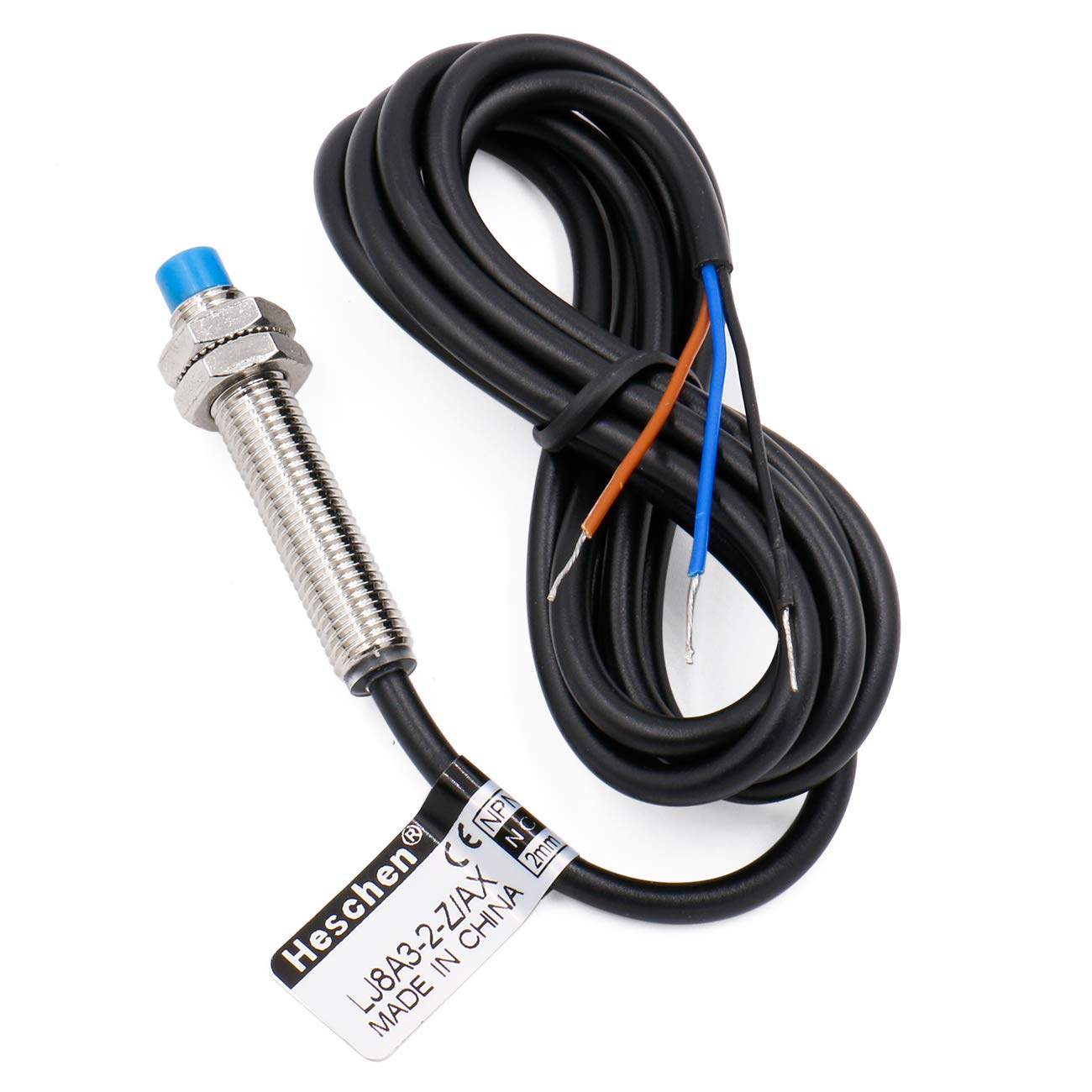

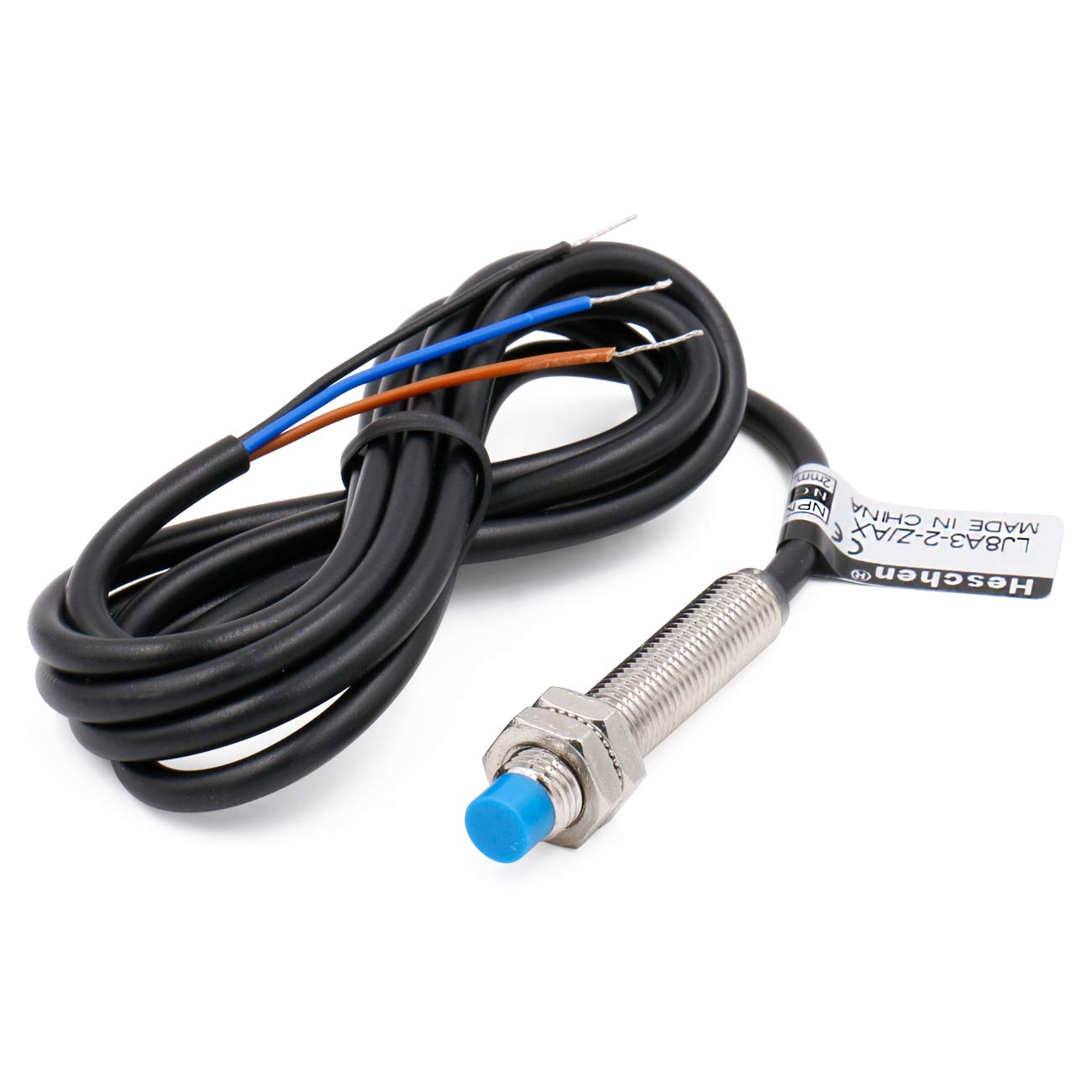

Heschen M8 Inductive Proximity Sensor Switch Non-Embeddable Type LJ8A3-2-Z/AX Detector 2mm 10-30VDC 200mA NPN Normally Closed(NC) 3 Wire

€5,99
€5,99
Shipping calculated at checkout.
