capacitiveproximitysensorswitch M12 2mm

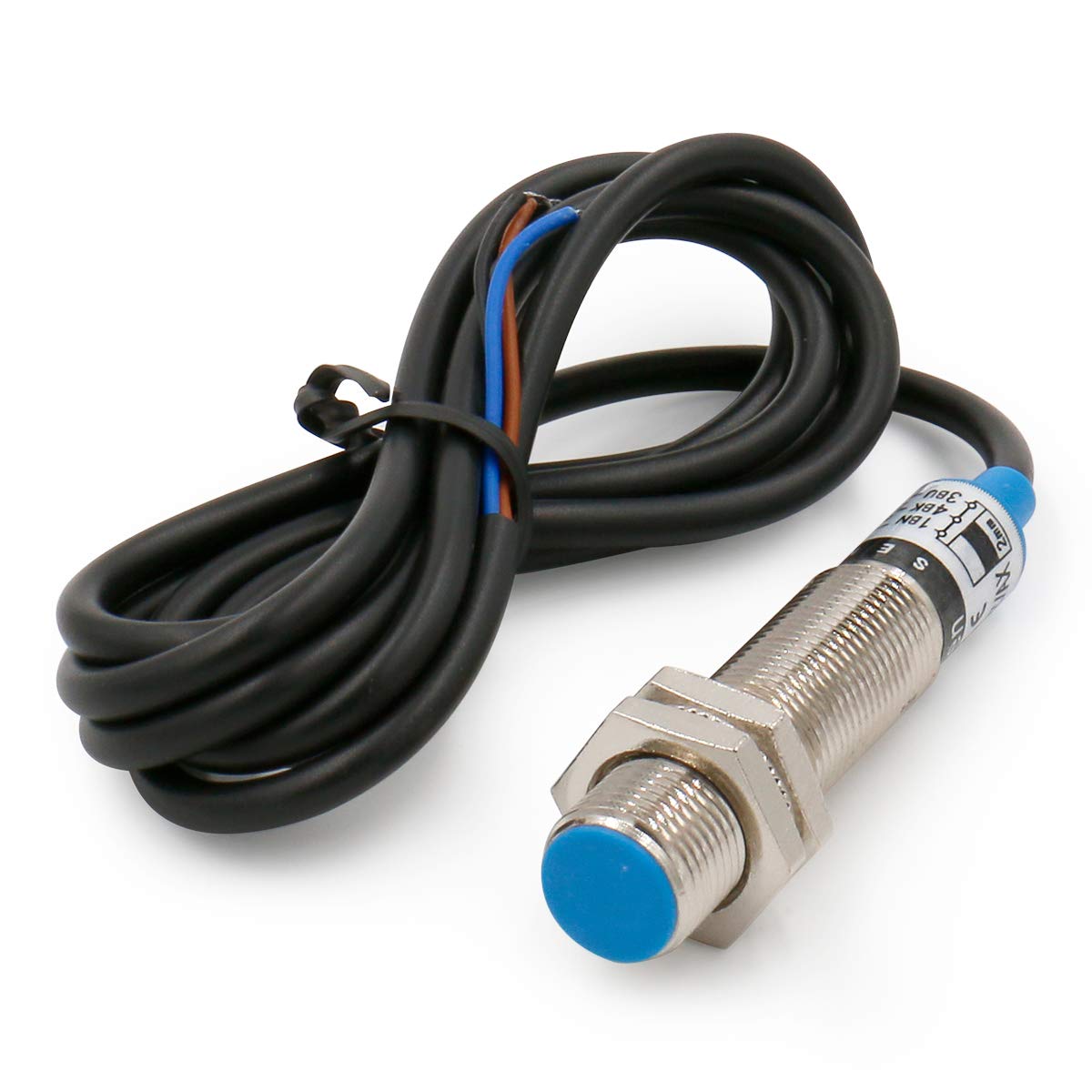

M12 Capacitive Proximity Sensor Switch Shield Type LJC12A3-2-Z/AX Detector 1-2mm 10-30VDC 200mA NPN Normally Closed(NC) 3 Wires


  • €11,89
    Unit price per
Shipping calculated at checkout.

Power supply reversal connection protection; short-circuit protection, can directly connect with PLC. Used in common places with medium enviroment resistance. Red LED indicates that it's available to detect the sensor operation state. Economic and simple operation. Widely used, can be substitution of min-type switch and limit switch.

  • Mounting Hole Diameter: 12mm
  • Detecting Distance: 2mm±10%; Set Distance: 0-1.7mm
  • Output Type: NPN NC(Normally Closed); Screen Shield Type
  • Current Output: 200mA; Working Voltage: 10-30 VDC
  • Detect Object: Can detect any dielectric
