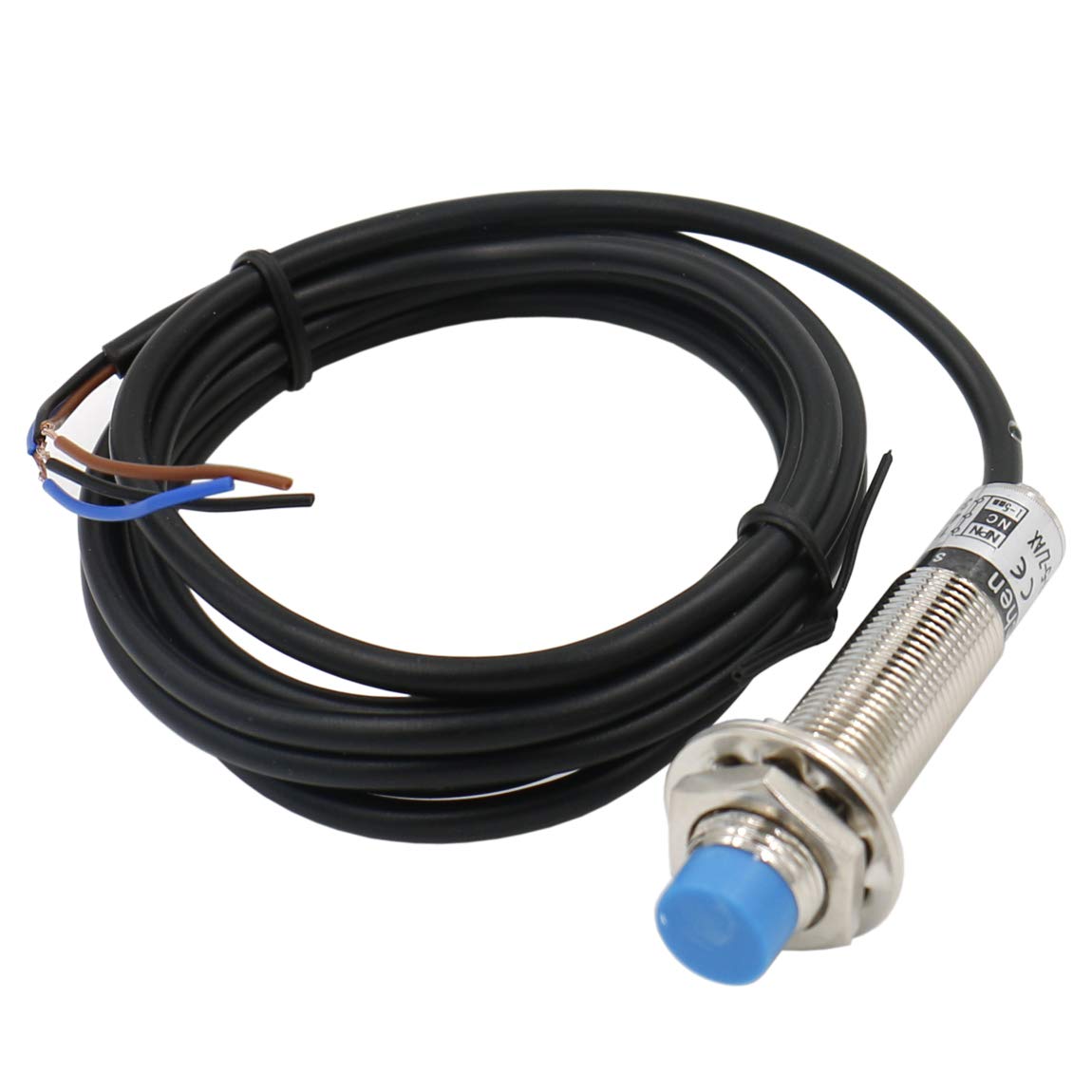

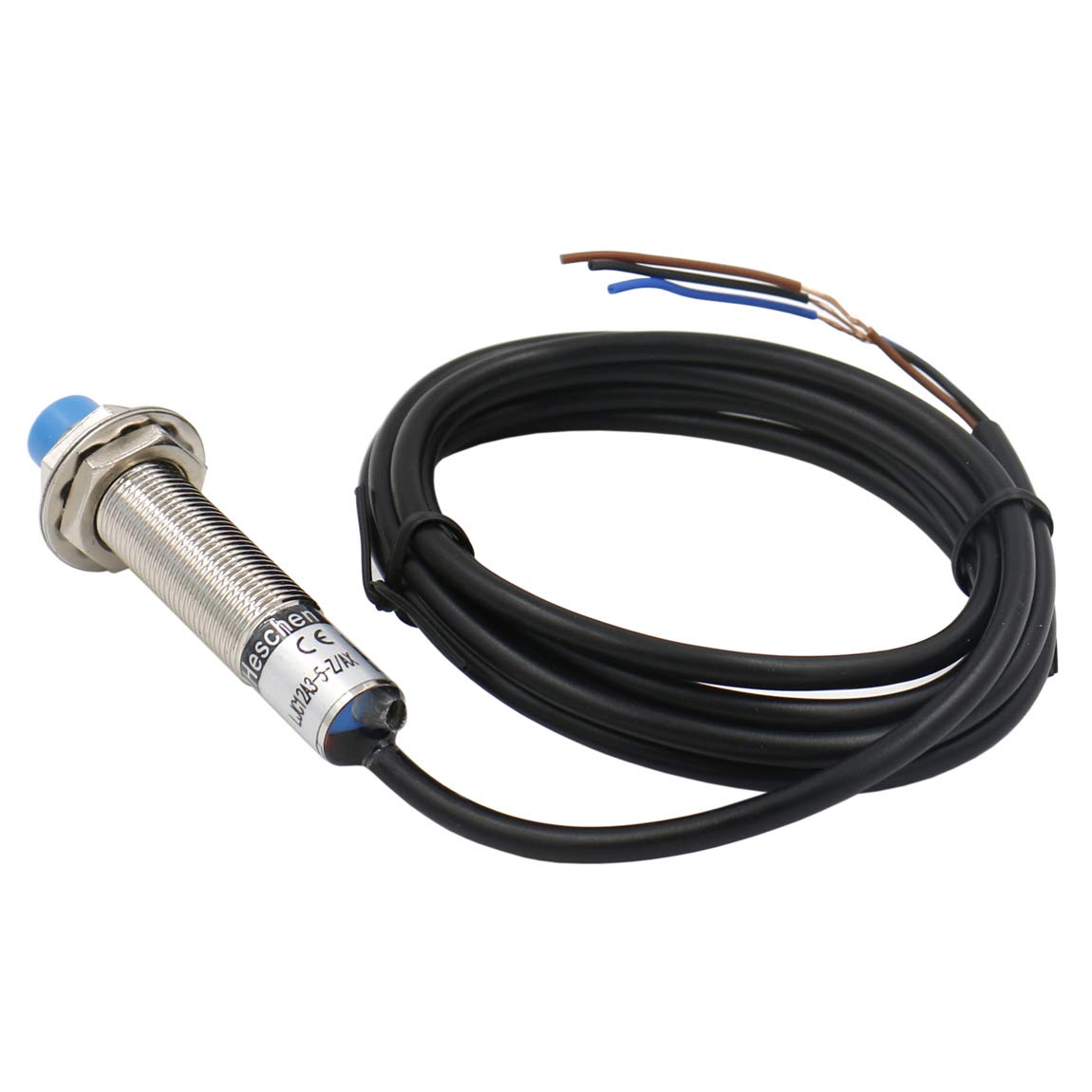

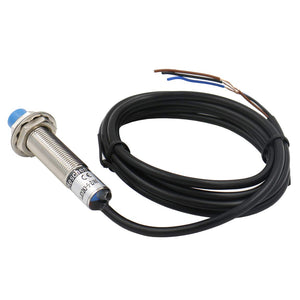

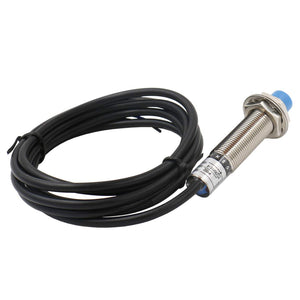

Heschen Capacitive Proximity Sensor Switch LJC12A3-5-Z/AX Detector 1-5mm 10-30 VDC 200mA NPN Normally Closed(NC) 3 wire

Heschen Capacitive Proximity Sensor Switch LJC12A3-5-Z/AX Detector 1-5mm 10-30 VDC 200mA NPN Normally Closed(NC) 3 wire

Heschen

Shipping calculated at checkout.

The LJC12A3 capacitive proximity sensor switch used widely in automatic control industry for detecting, controlling, and noncontact switching. It will send a signal when close to the plastic, glass, metal etc.

  • mounting hole diameter: 12mm

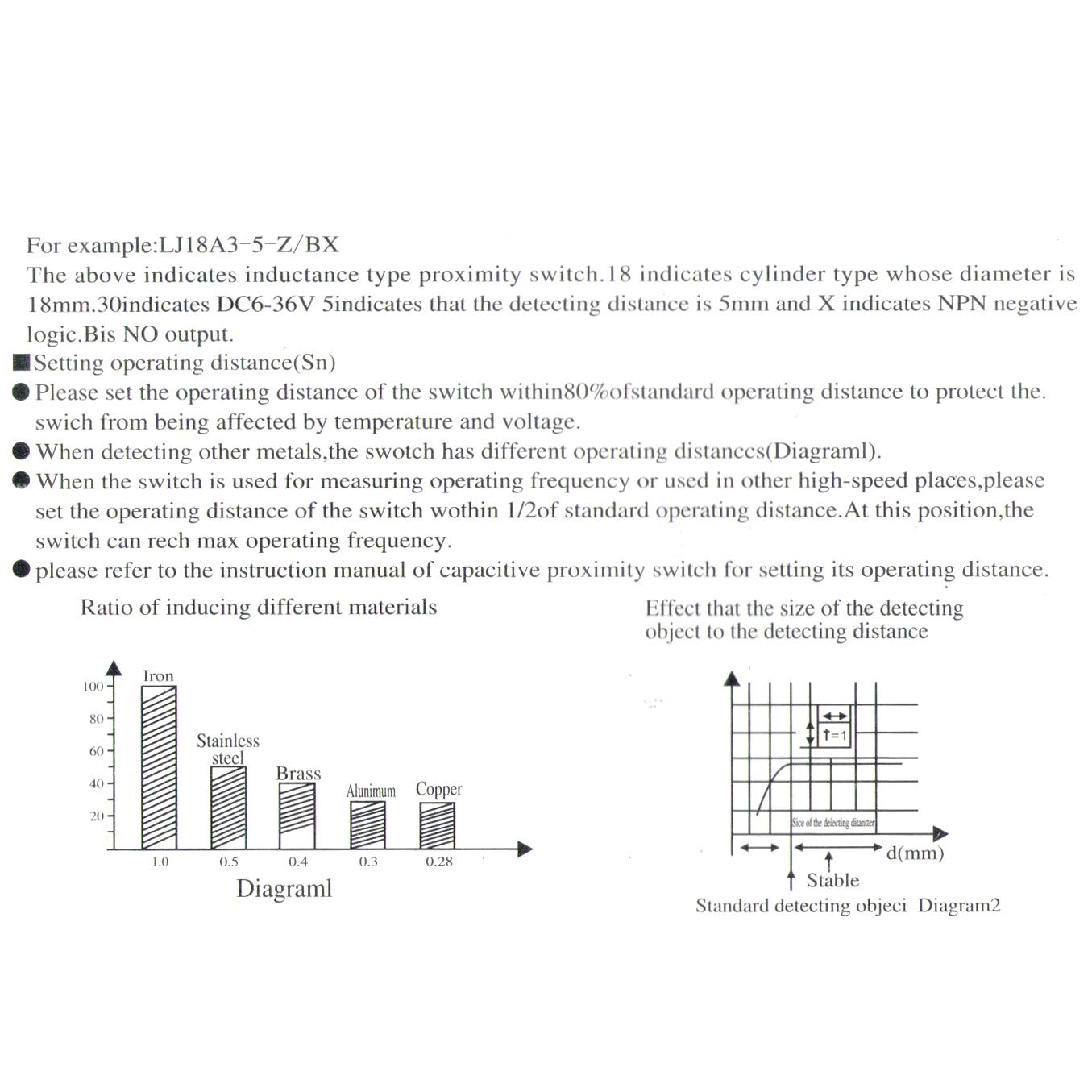

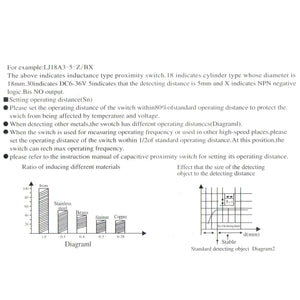

  • detecting distance: 5mm
  • working voltage: 10-30 VDC, current output: 200mA

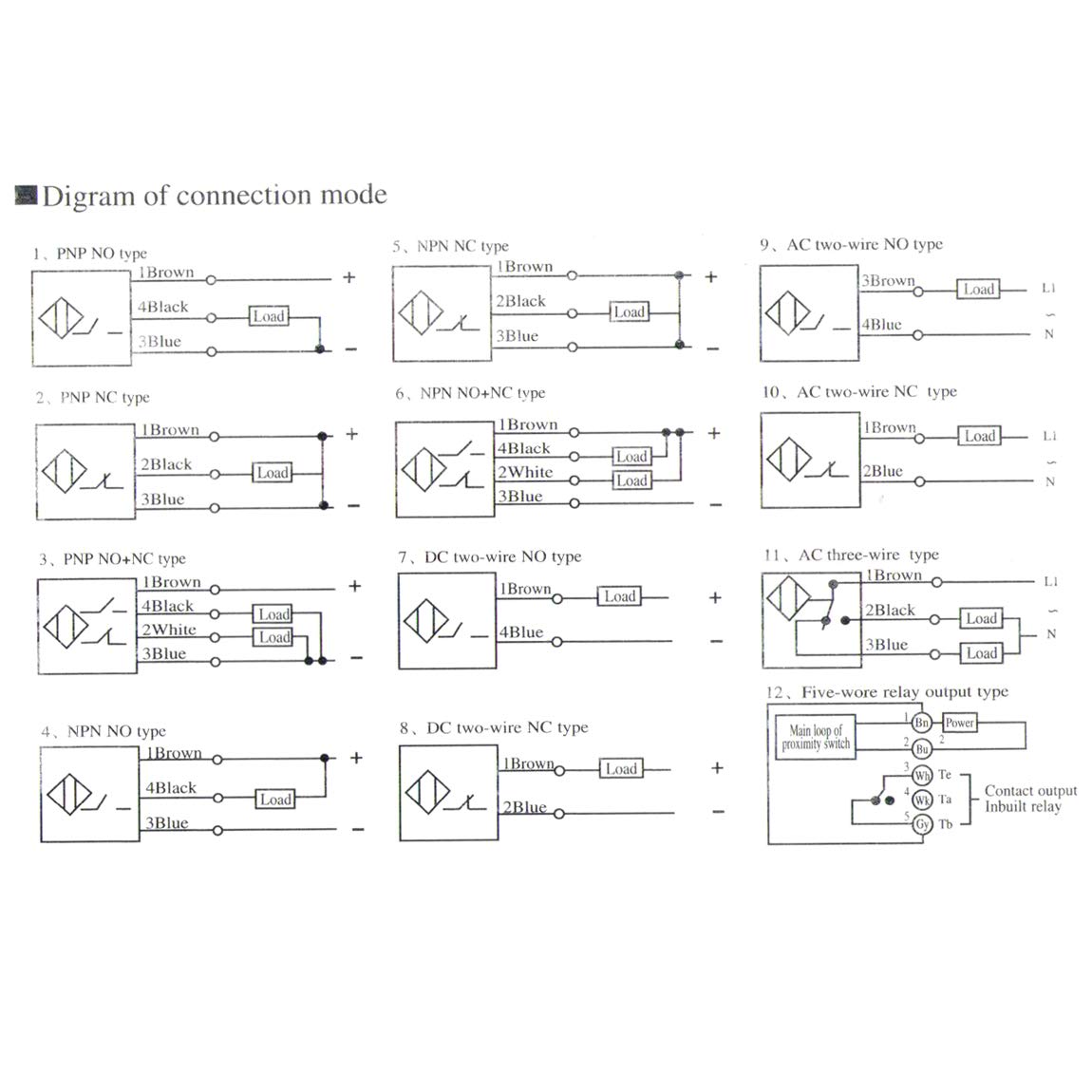

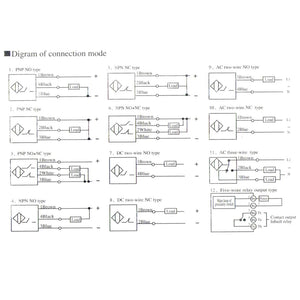

  • output type: NPN NC(Normally Closed)
  • cable length: 124cm/49.2"
