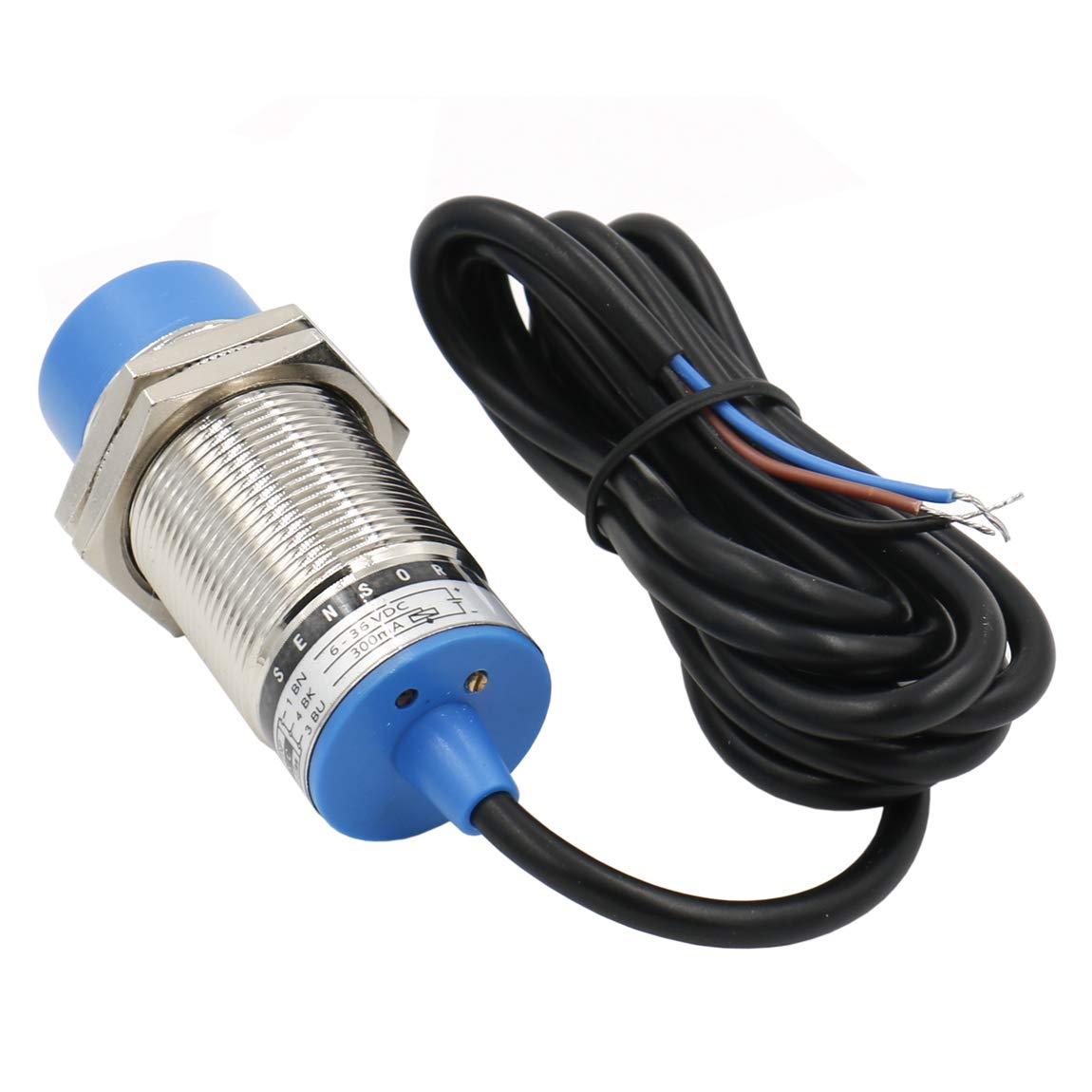

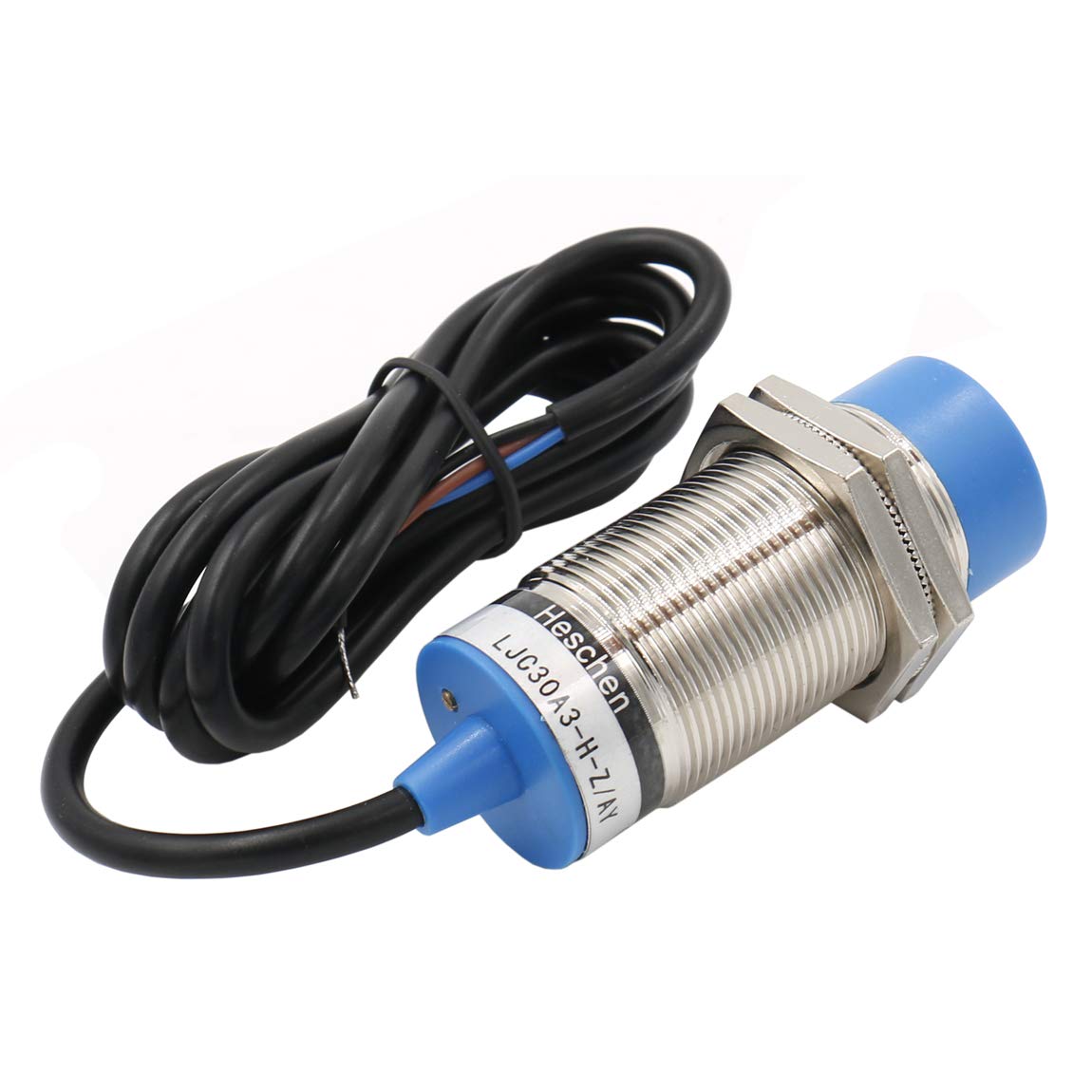

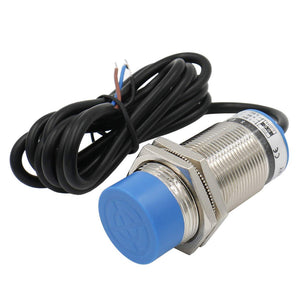

Capacitive Proximity Sensor Switch Normally Closed(NC)
Kapazitiver Näherungssensorschalter normalerweise geschlossen (NC)
Commutateur de capteur de proximité capacitif normalement fermé (NC)
Interruptor de sensor de proximidad capacitivo normalmente cerrado (NC)
capacitive proximity sensor switch LJC30A3-H-Z/AY detector 1-15mm 6-36 VDC 300mA PNP normally closed(NC) 3 wire

Capacitive Proximity Sensor Switch LJC30A3-H-Z/AY Detector 1-15mm 10-30 VDC 200mA PNP normally closed(NC) 3 wire

Heschen

Shipping calculated at checkout.
  • Mounting hole diameter: 30mm
  • Detecting distance: 1-15mm
  • Working voltage: 10-30 VDC
  • Current output: 200mA
  • Output type: PNP NC(Normally Closed)
  • Cable length: 120cm/49"
  • Detection Object:Can detect any dielectric
