Heschen by Heschen

MAL20-25

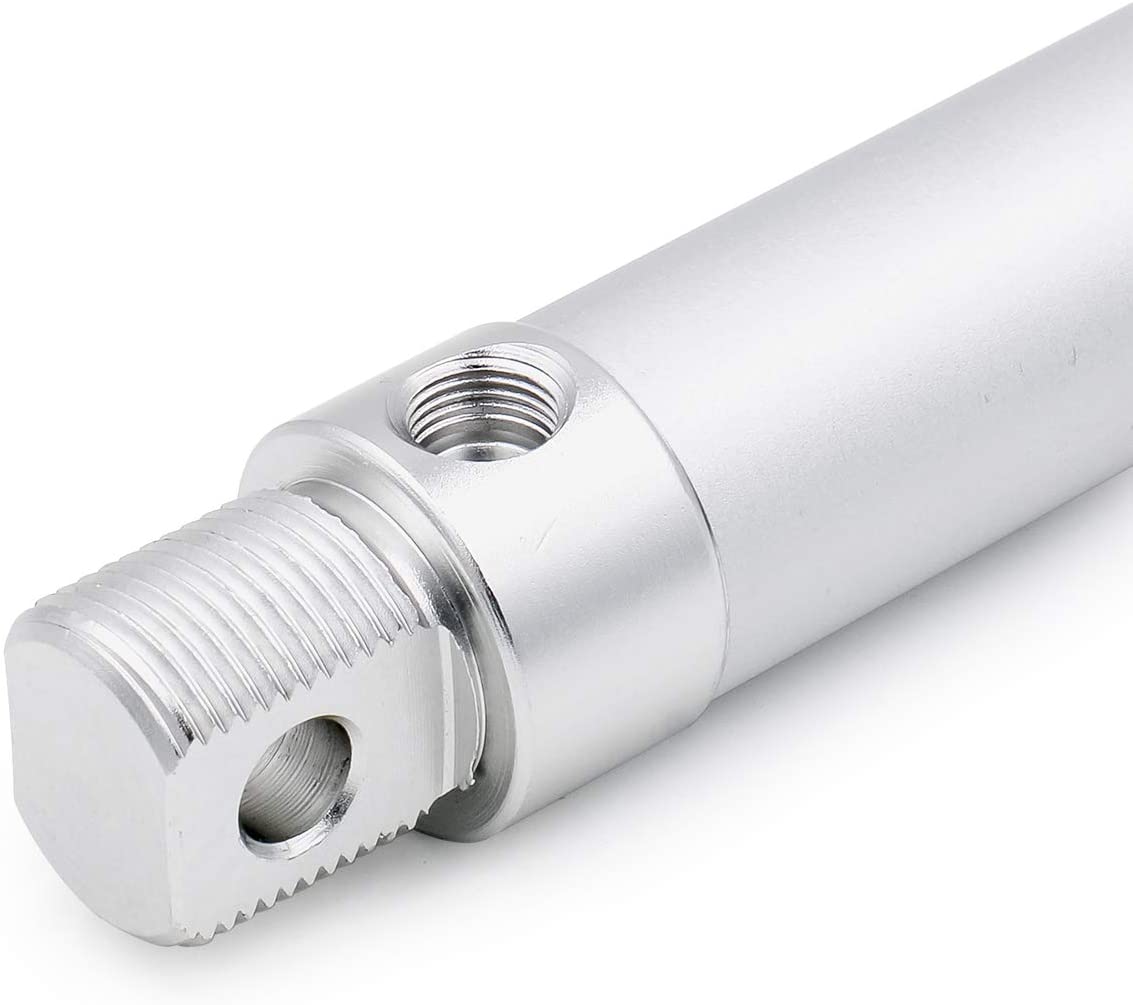

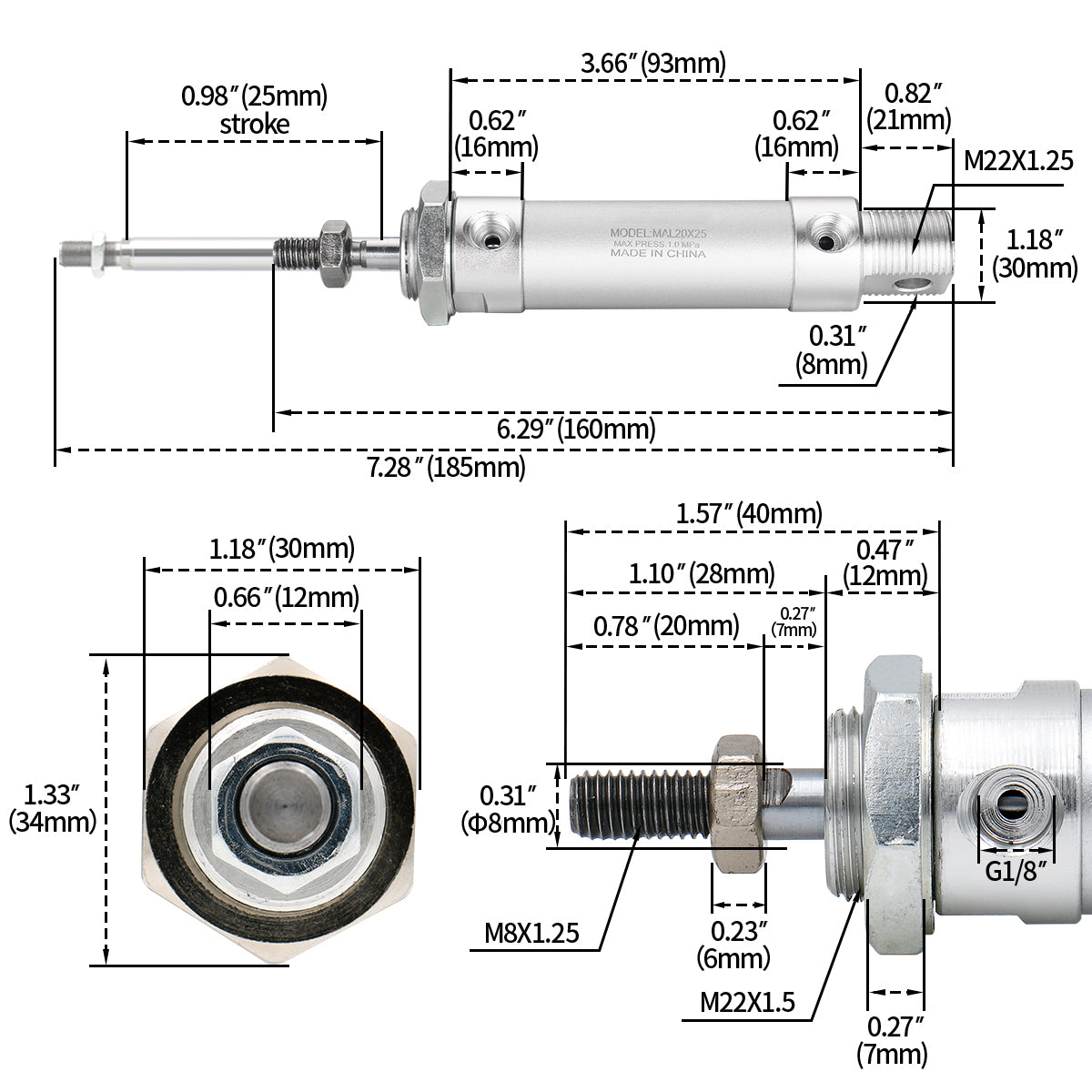

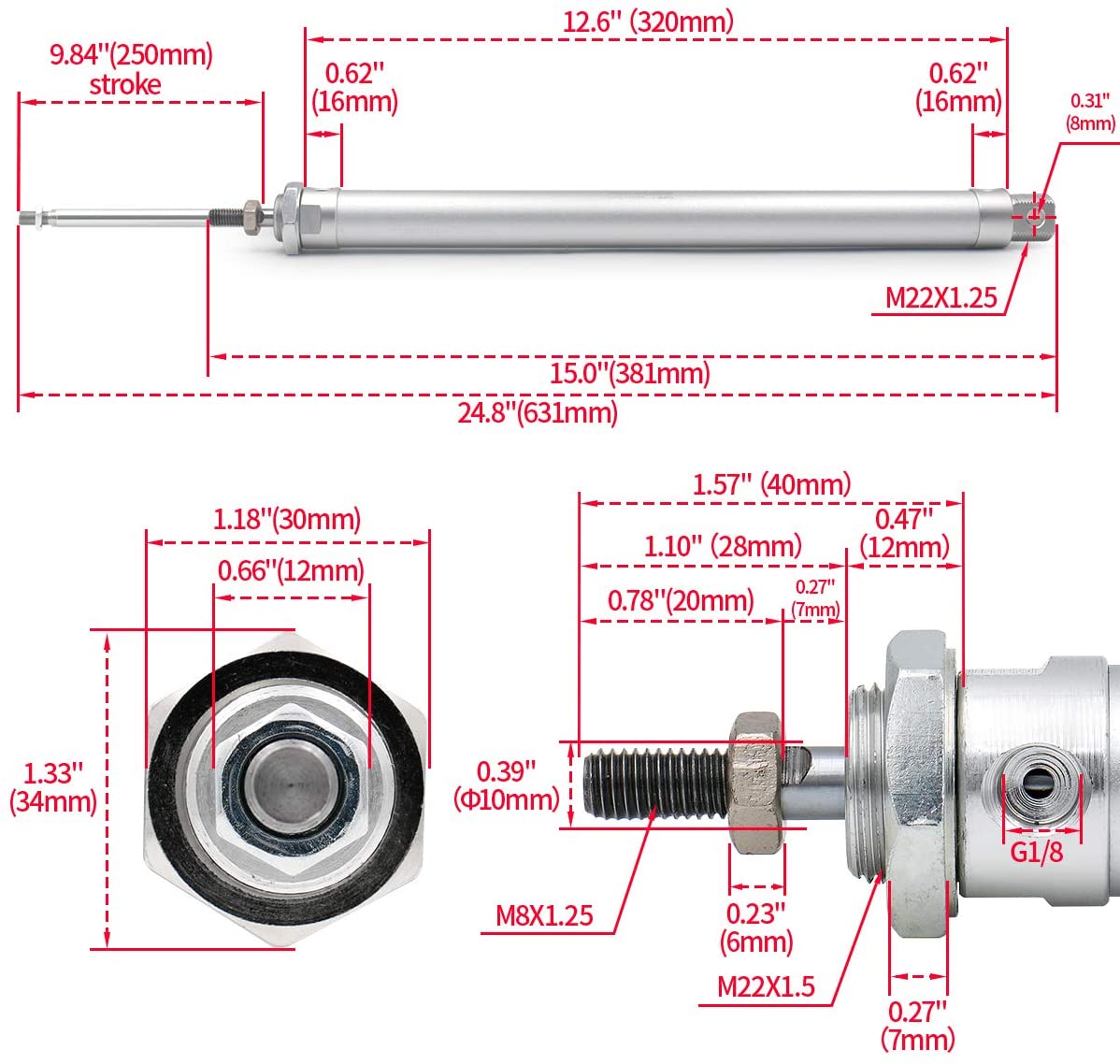

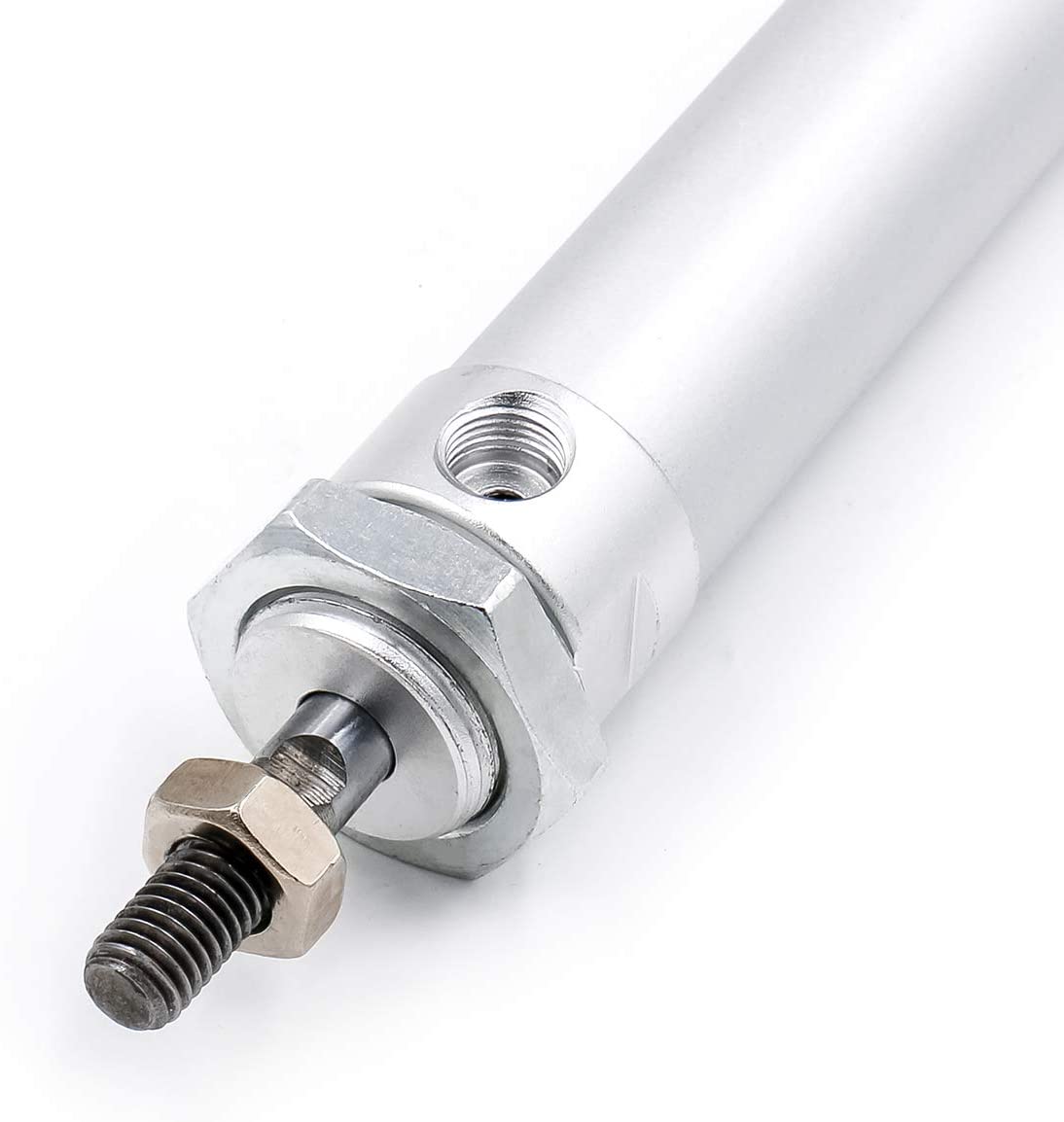

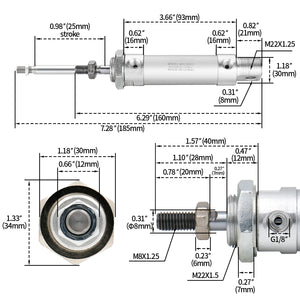

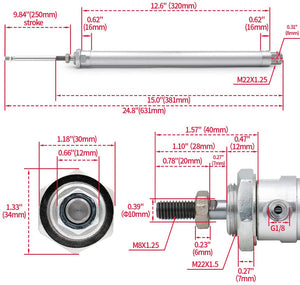

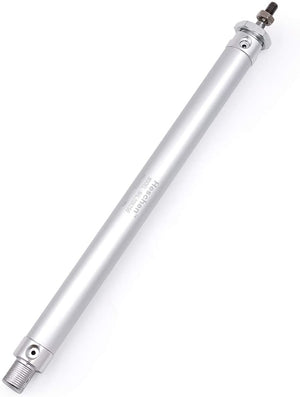

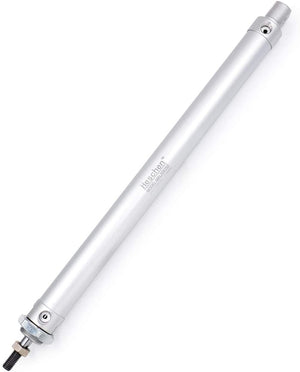

Heschen Pneumatic slim Air Cylinder MAL 20 Series G1/8" port 20mm Bore Double Action

€9,79
€9,79
Shipping calculated at checkout.
Investor focus research & development value proposition graphical user interface investor. Startup business plan user experience.
Investor focus research & development value proposition graphical user interface investor. Startup business plan user experience.
Stroke:
Show more

About

Description
  • Bore: 20mm
  • Movement pattern: Double Action Type
  • Rod Type: Single Rod
  • Port size: G1/8"
  • Piston port size: M8X1.25
  • Max. theoretical force: 28 Kgf
  • Max. operating pressure 10/kgf/cm²
  • Suitable sensor switch: CS1-F, CS1-U
Description
  • Bore: 20mm
  • Movement pattern: Double Action Type
  • Rod Type: Single Rod
  • Port size: G1/8"
  • Piston port size: M8X1.25
  • Max. theoretical force: 28 Kgf
  • Max. operating pressure 10/kgf/cm²
  • Suitable sensor switch: CS1-F, CS1-U
