Heschen by Heschen

HS-SC100-25

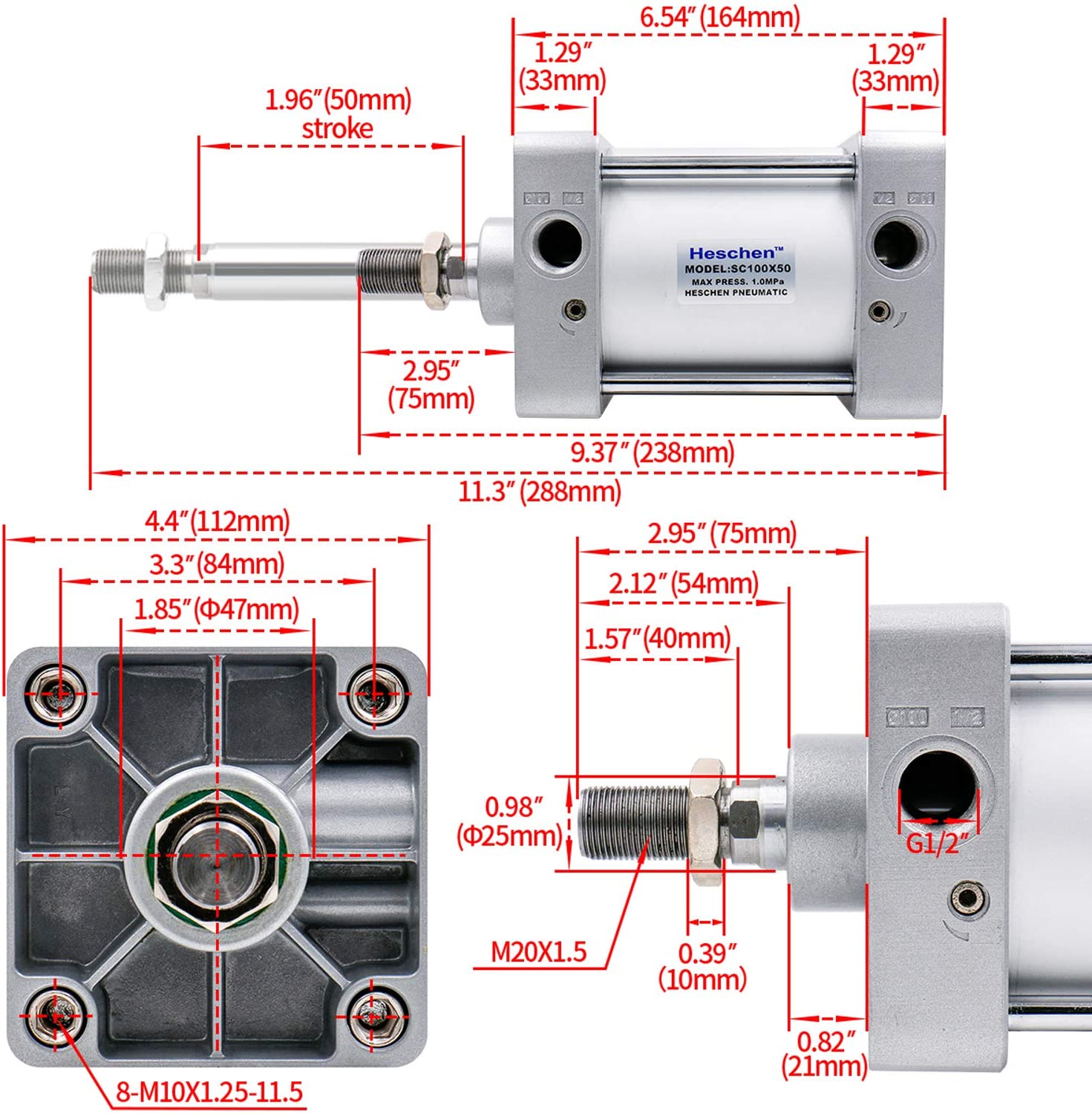

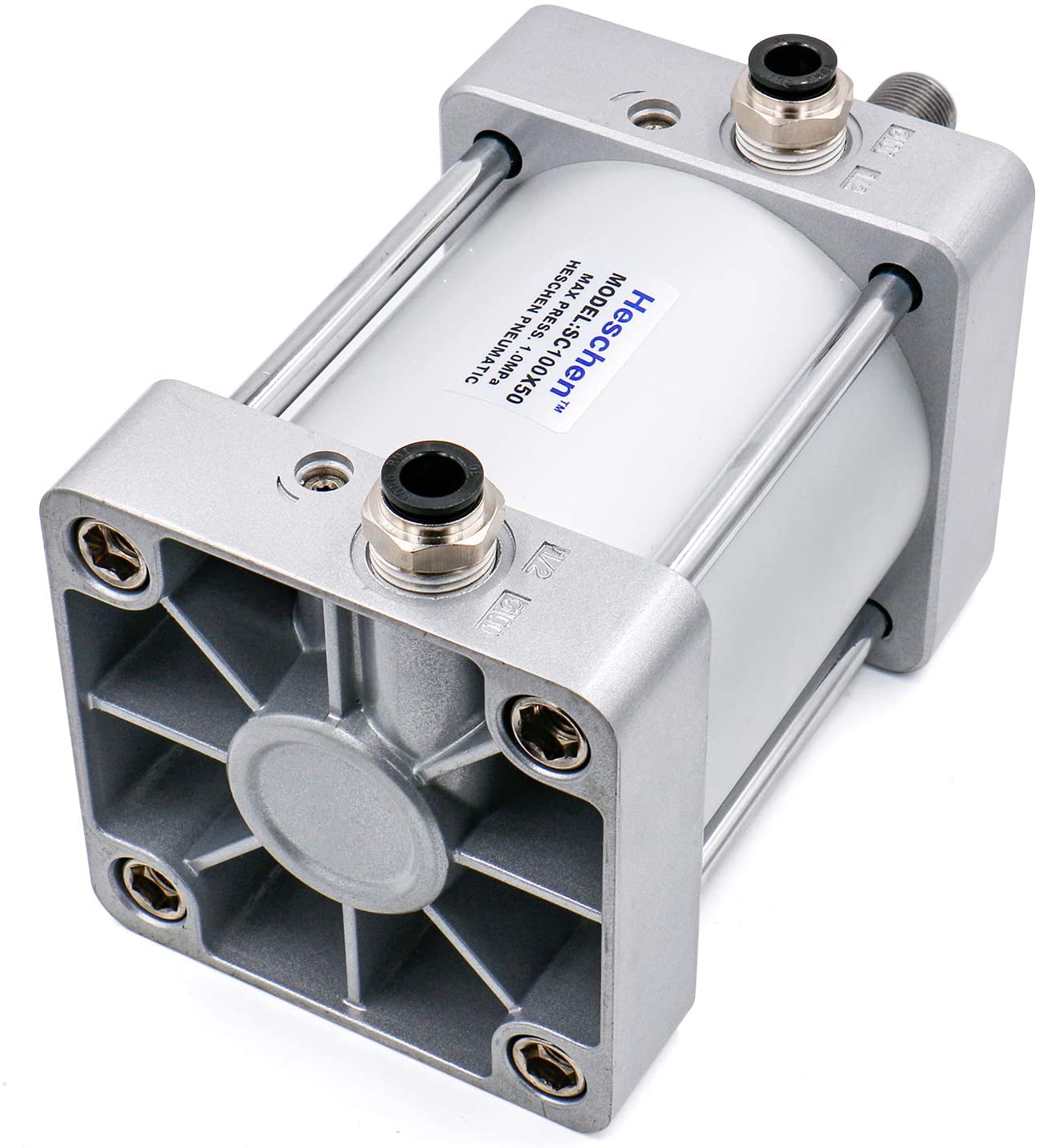

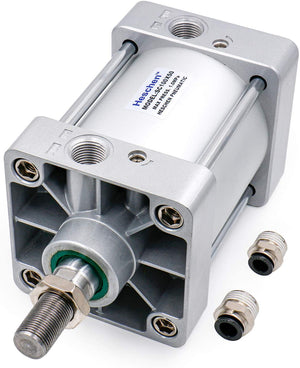

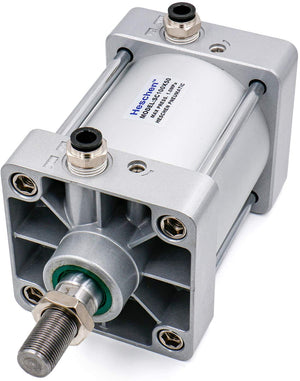

Heschen Pneumatic Air Cylinder SC 100 Series PT 1/2 Port 100mm(4") Bore Screwed Piston Rod Dual Action with 2 Fittings

€59,19
€59,19
Shipping calculated at checkout.
Investor focus research & development value proposition graphical user interface investor. Startup business plan user experience.
Investor focus research & development value proposition graphical user interface investor. Startup business plan user experience.
Stroke:
Show more

About

Description
  • Bore: 100mm(4")
  • Action Type: Double Acting
  • Rod Type: Single Rod
  • Port size: PT1/2
  • Piston port size: M20x1.5
  • Max. theoretical force: 700Kgf
  • Max. operating pressure 10/kgf/cm²

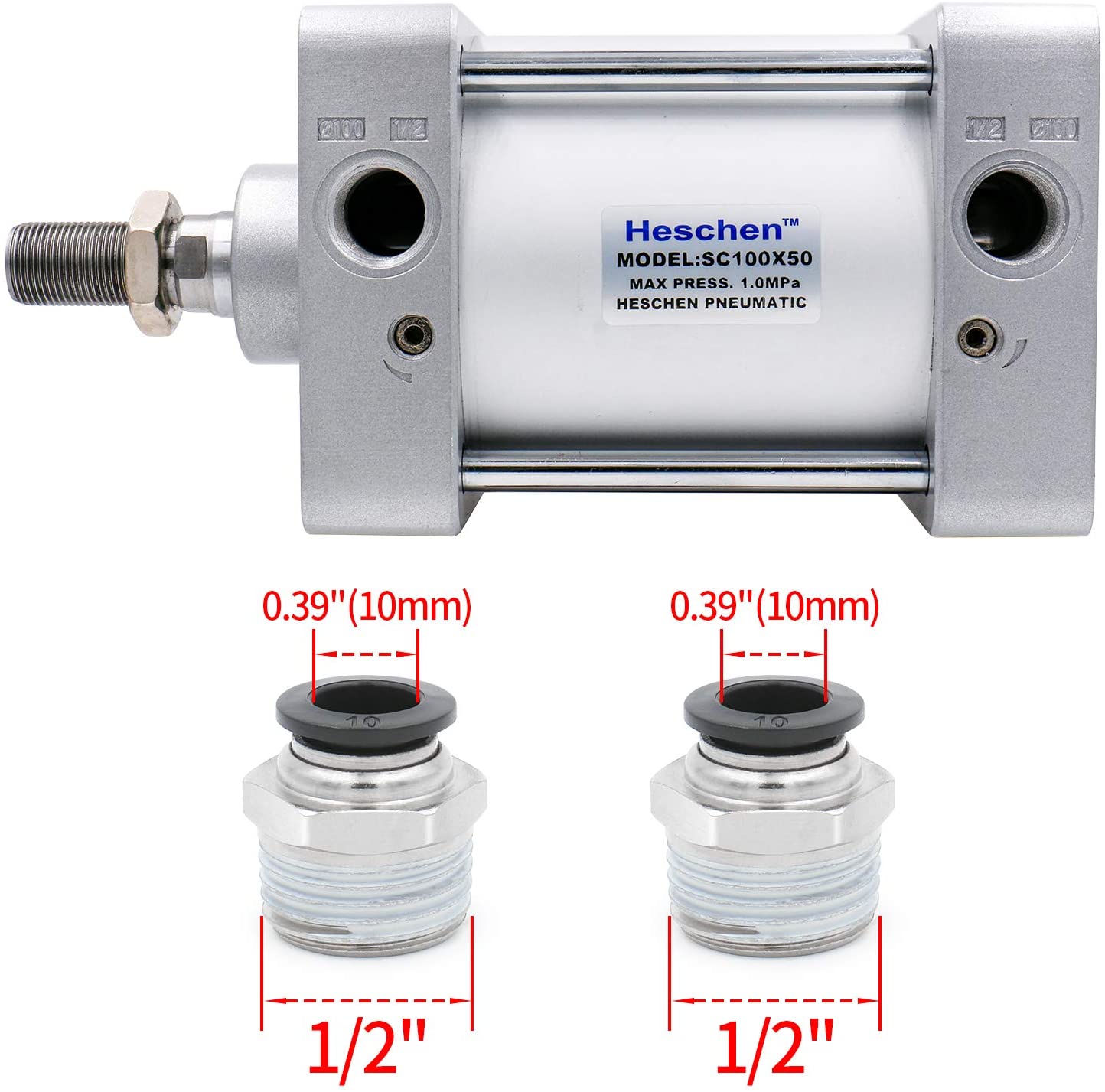

  • Fitting size: PC10-04(PT 1/2, Tube 10mm)
The Air cylinder is a mechanical devices which utilize the power of compressed gas to produce a force in a reciprocating linear motion.
Description
  • Bore: 100mm(4")
  • Action Type: Double Acting
  • Rod Type: Single Rod
  • Port size: PT1/2
  • Piston port size: M20x1.5
  • Max. theoretical force: 700Kgf
  • Max. operating pressure 10/kgf/cm²
  • Fitting size: PC10-04(PT 1/2, Tube 10mm)
The Air cylinder is a mechanical devices which utilize the power of compressed gas to produce a force in a reciprocating linear motion.
