Description

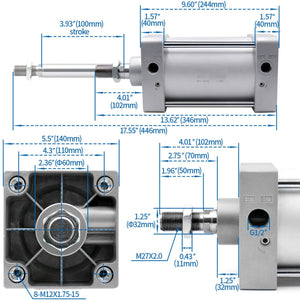

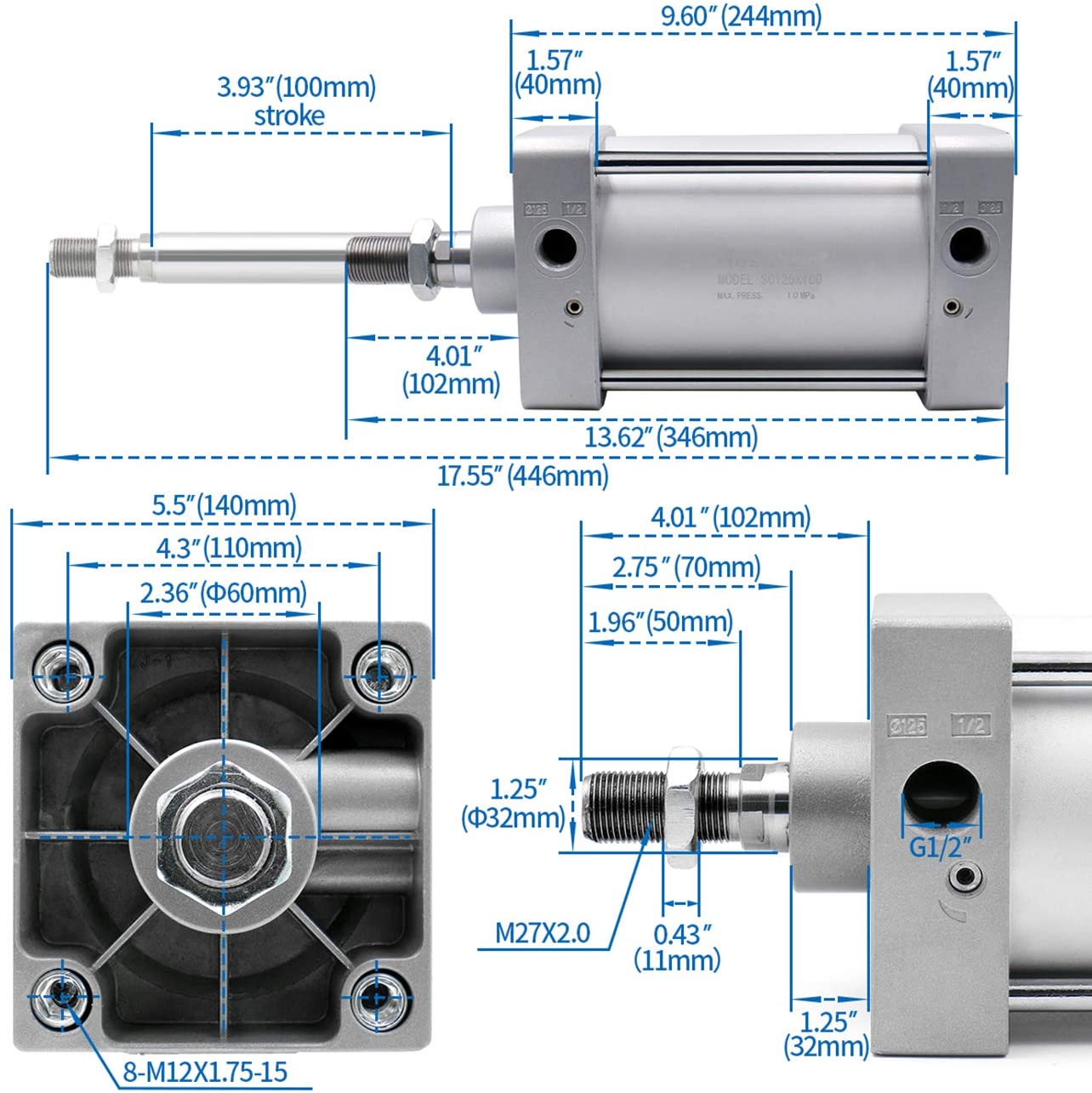

  • Bore: 125mm(5")
  • Action Type: Double Acting
  • Rod Type: Single Rod
  • Port size: PT1/2
  • Piston port size: M27x2
  • Max. theoretical force: 1050Kgf
  • Max. operating pressure 10/kgf/cm²
  • Fitting size: PC12-04(PT 1/2, Tube 12mm)
The Air cylinder is a mechanical devices which utilize the power of compressed gas to produce a force in a reciprocating linear motion.
Description
  • Bore: 125mm(5")
  • Action Type: Double Acting
  • Rod Type: Single Rod
  • Port size: PT1/2
  • Piston port size: M27x2
  • Max. theoretical force: 1050Kgf
  • Max. operating pressure 10/kgf/cm²
  • Fitting size: PC12-04(PT 1/2, Tube 12mm)
The Air cylinder is a mechanical devices which utilize the power of compressed gas to produce a force in a reciprocating linear motion.
Heschen by Heschen

HS-SC125-25

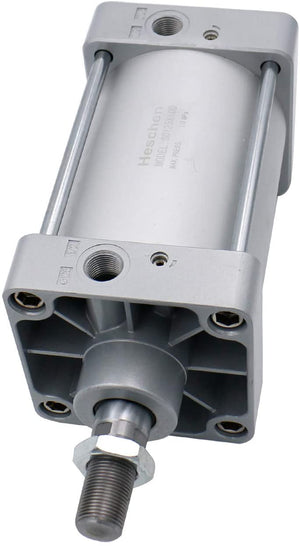

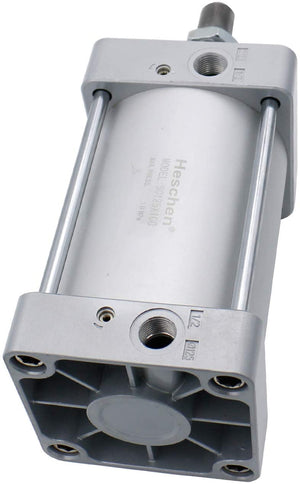

Heschen Pneumatic Air Cylinder SC 125 Series PT 1/2 Port 125mm(5") Bore Screwed Piston Rod Dual Action with 2 Fittings

€86,79
€86,79
Shipping calculated at checkout.
Investor focus research & development value proposition graphical user interface investor. Startup business plan user experience.
Investor focus research & development value proposition graphical user interface investor. Startup business plan user experience.
Stroke:
Show more
