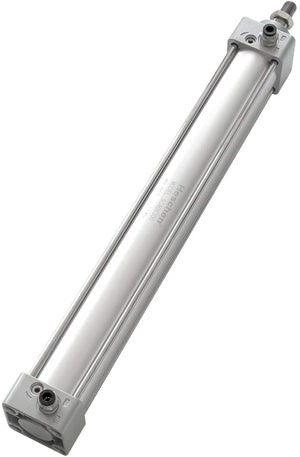

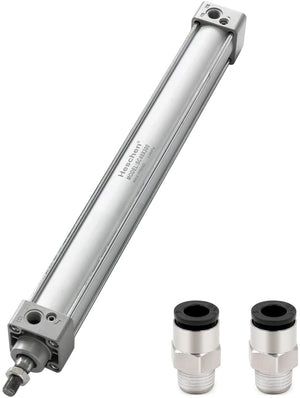

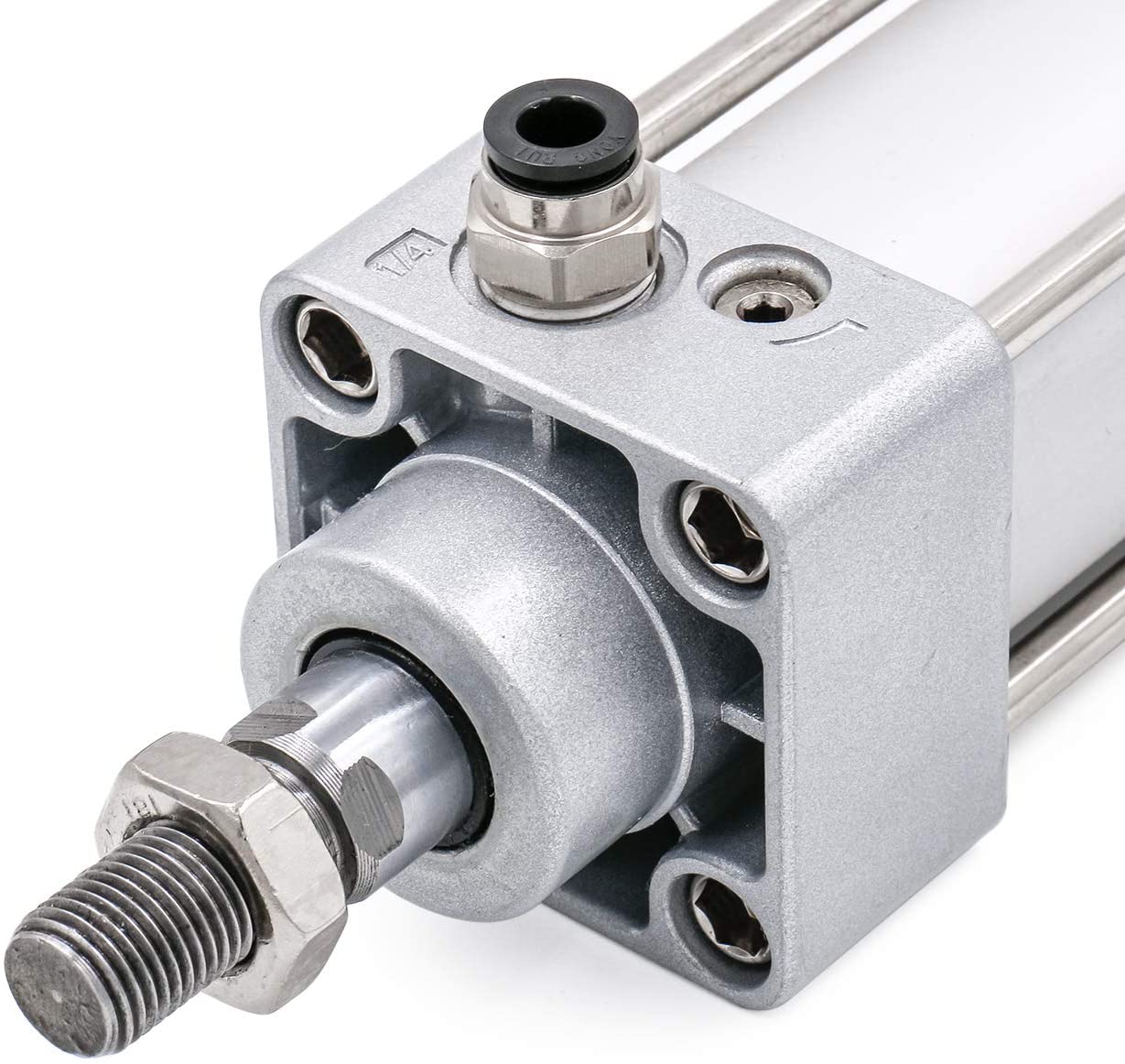

Heschen Pneumatic Air Cylinder SC 40 Series PT 1/4 Port 40mm(1-5/8") Bore Screwed Piston Rod Dual Action with 2 Fittings

Heschen Pneumatic Air Cylinder SC 40 Series PT 1/4 Port 40mm(1-5/8") Bore Screwed Piston Rod Dual Action with 2 Fittings

Heschen

€21,79
Unit price per

Shipping calculated at checkout.

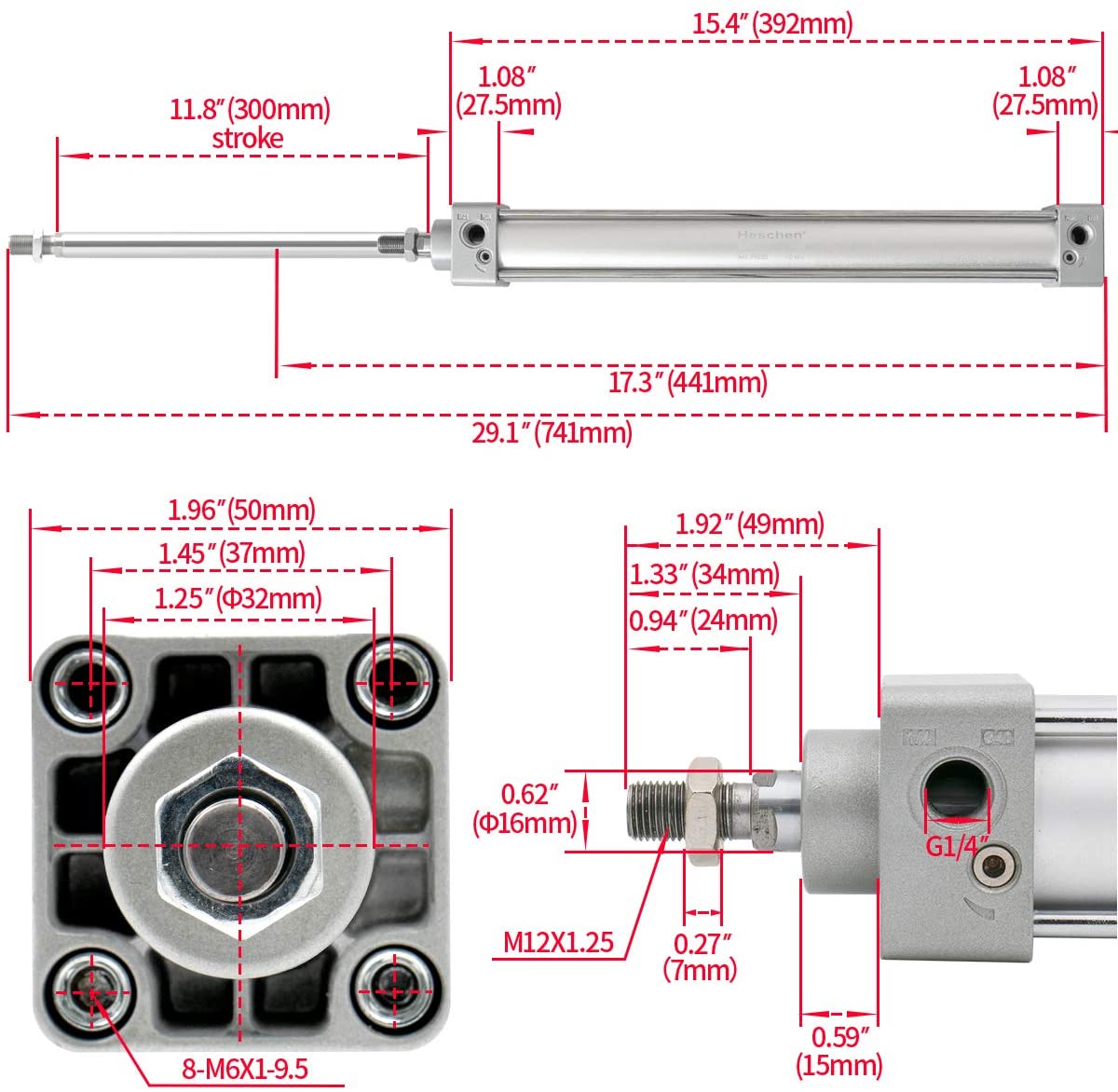

Bore: 40mm (1 5/8")
Action Type: Double Acting
Rod Type: Single Rod
Port size: PT1/4
Piston port size: M12x1.25
Max. theoretical force: 110Kgf
Max. operating pressure: 10/kgf/cm²

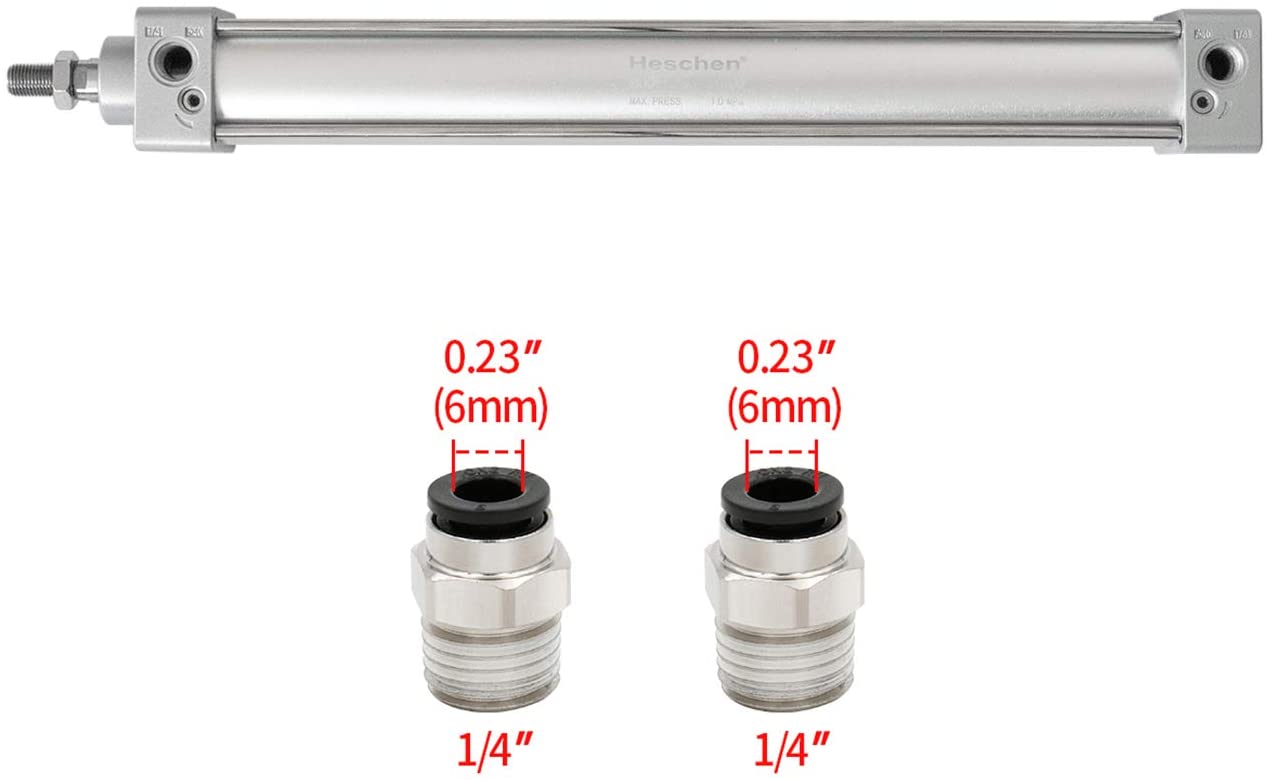

Fitting size: PC6-02(PT 1/4, Tube 6mm)

The Air cylinder is a mechanical devices which utilize the power of compressed gas to produce a force in a reciprocating linear motion.
