About

Description
  • Actuator: Long Roller Lever(Plastic Roller)
  • Ith: 20A, 250VAC
  • Contact Type: SPDT 1NO 1NC
  • Terminal Specifications: 3/16"(4.8mm)
  • le: 15A/7.5A lth: 20A; Ue: 125/250VAC
  • Operating frequency: Mechanical: 240 operations/min, Electrical 20 operations/min
  • Insulation resistance: 100mOhm above(@ 500VDC)
  • Contact resistance: 15mOhm max.(initial value)
  • Vibration: 10 to 55Hz, 1.5mm pairs swing
  • Shock Durable: 1,000m/S², Misoperation: 300m/S²
  • Mechanical Life: 10,000,000
  • Package Content: 10 PCS
    Description
    • Actuator: Long Roller Lever(Plastic Roller)
    • Ith: 20A, 250VAC
    • Contact Type: SPDT 1NO 1NC
    • Terminal Specifications: 3/16"(4.8mm)
    • le: 15A/7.5A lth: 20A; Ue: 125/250VAC
    • Operating frequency: Mechanical: 240 operations/min, Electrical 20 operations/min
    • Insulation resistance: 100mOhm above(@ 500VDC)
    • Contact resistance: 15mOhm max.(initial value)
    • Vibration: 10 to 55Hz, 1.5mm pairs swing
    • Shock Durable: 1,000m/S², Misoperation: 300m/S²
    • Mechanical Life: 10,000,000
    • Package Content: 10 PCS
      Heschen by Heschen

      XA-V9NC-JUQG

      5

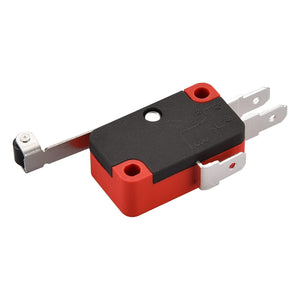

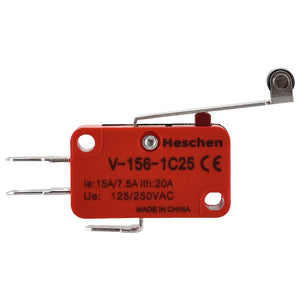

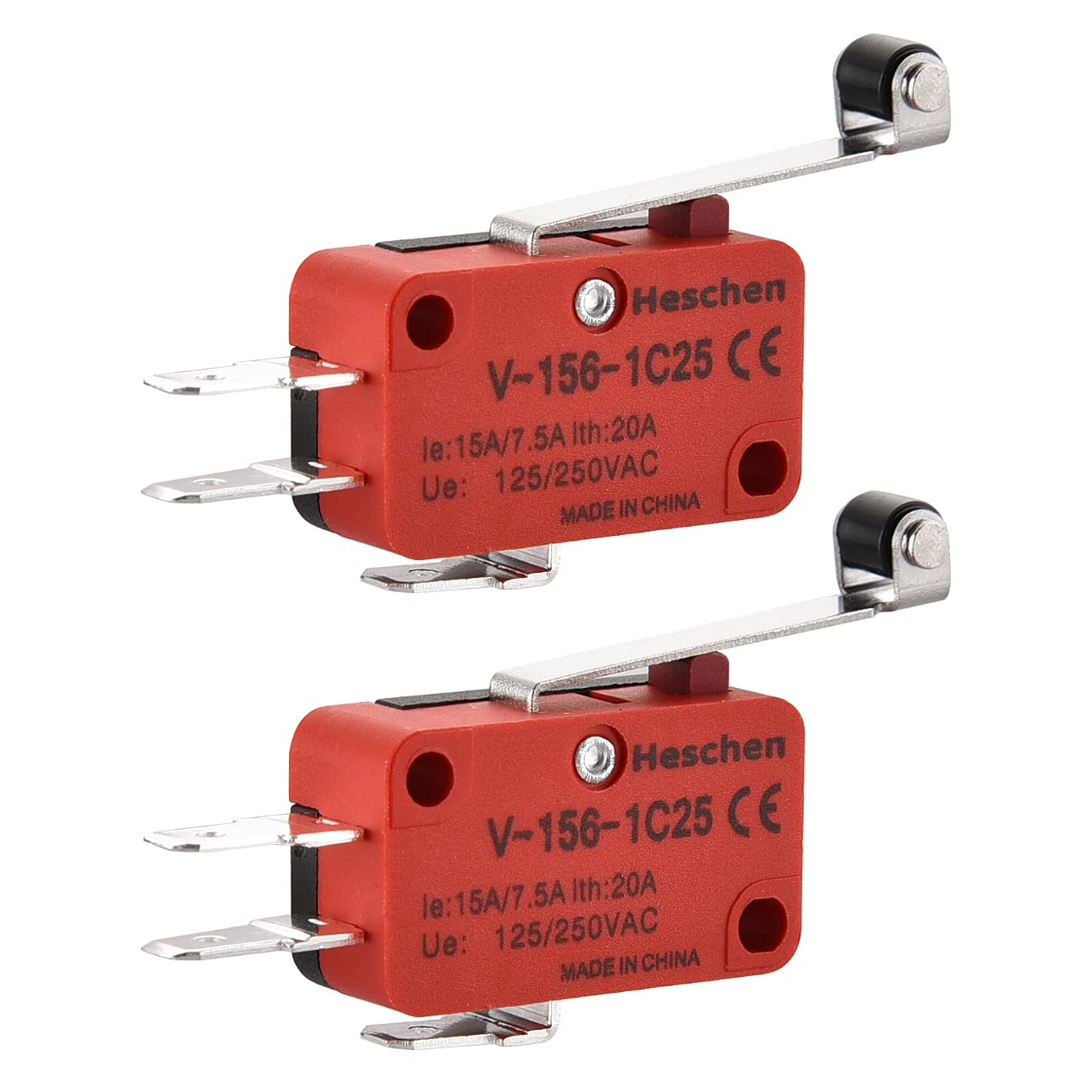

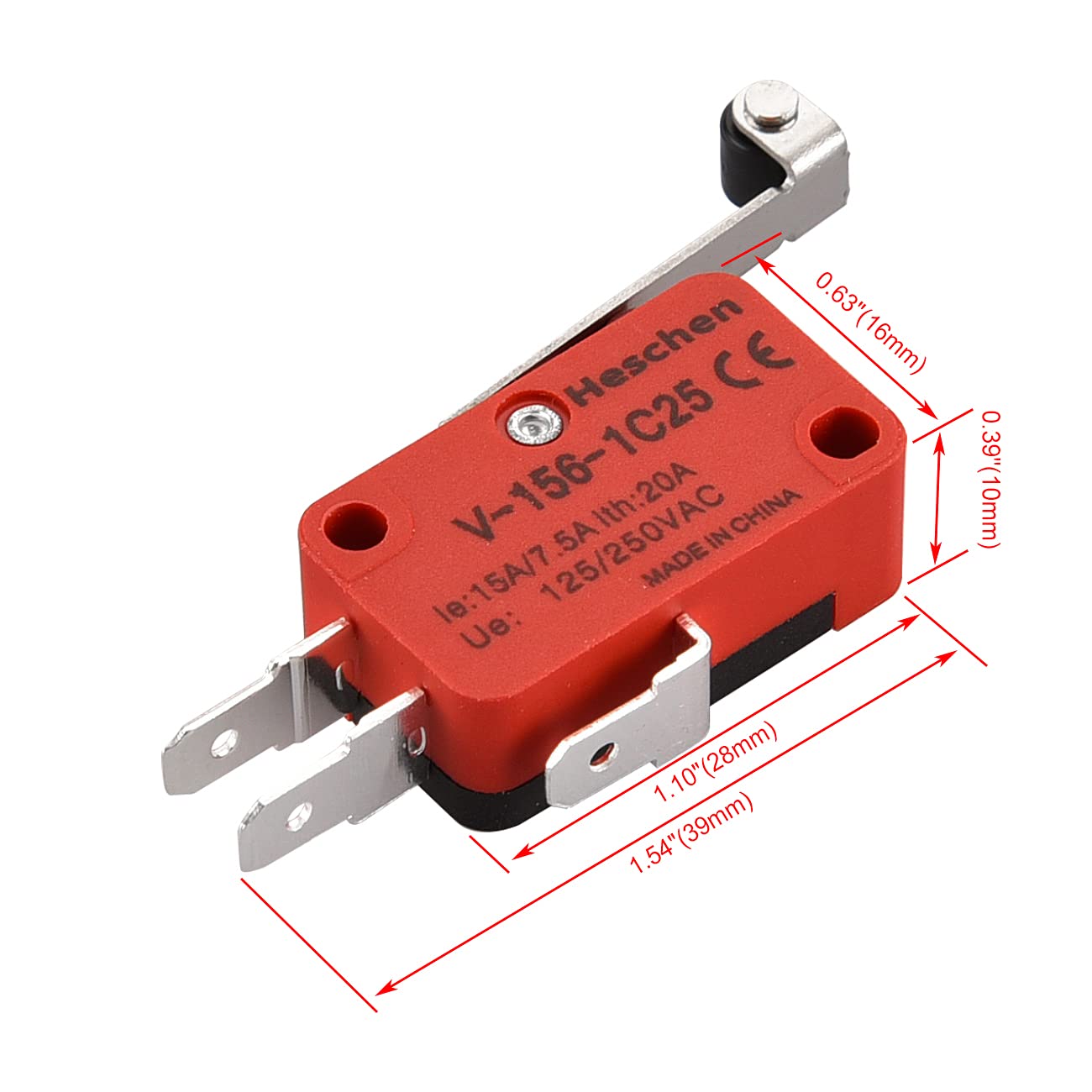

      Heschen Micro Switch V-156-1C25 SPDT Long Roller Lever 20A 250VAC 10 Pack

      €10,99
      €10,99
      Shipping calculated at checkout.
