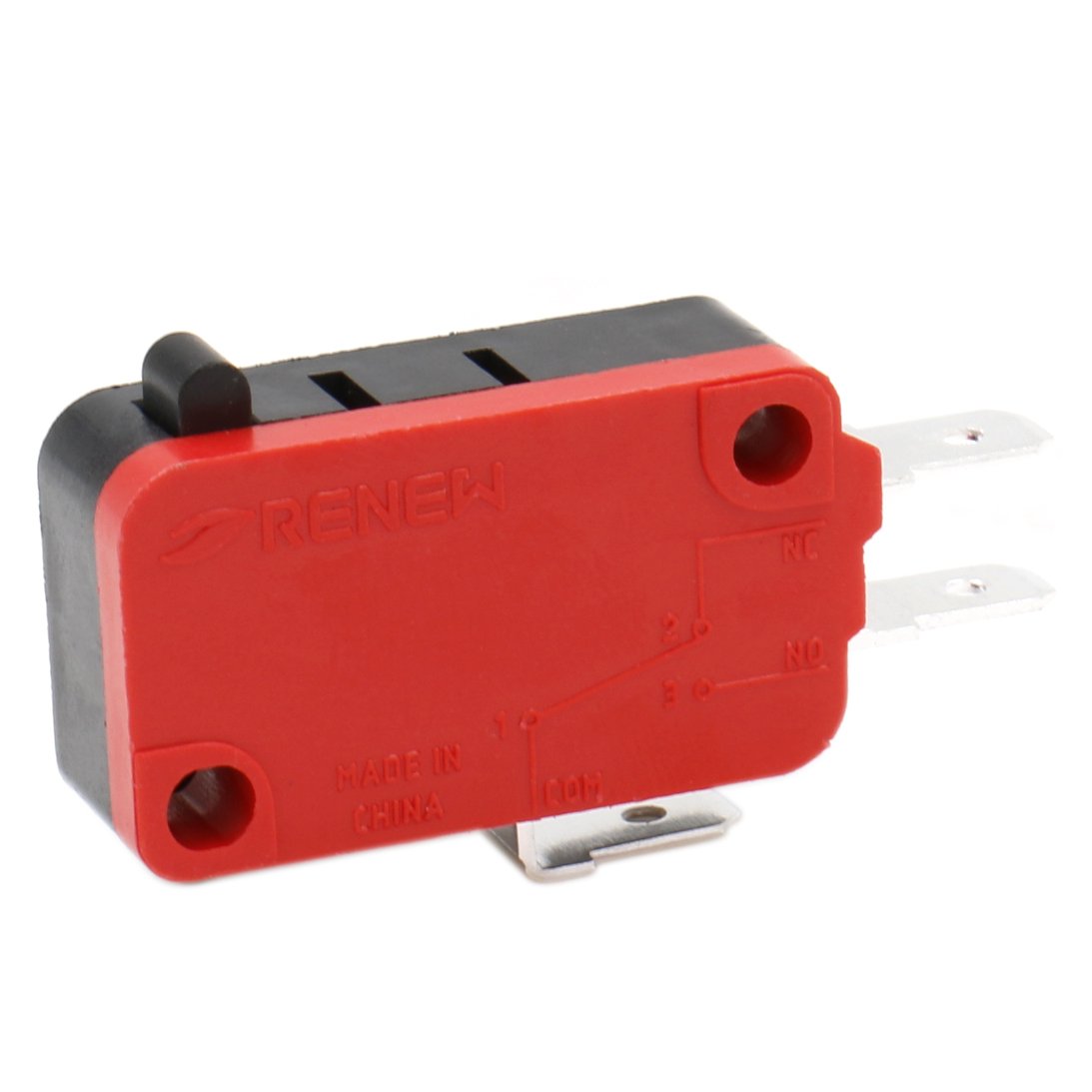

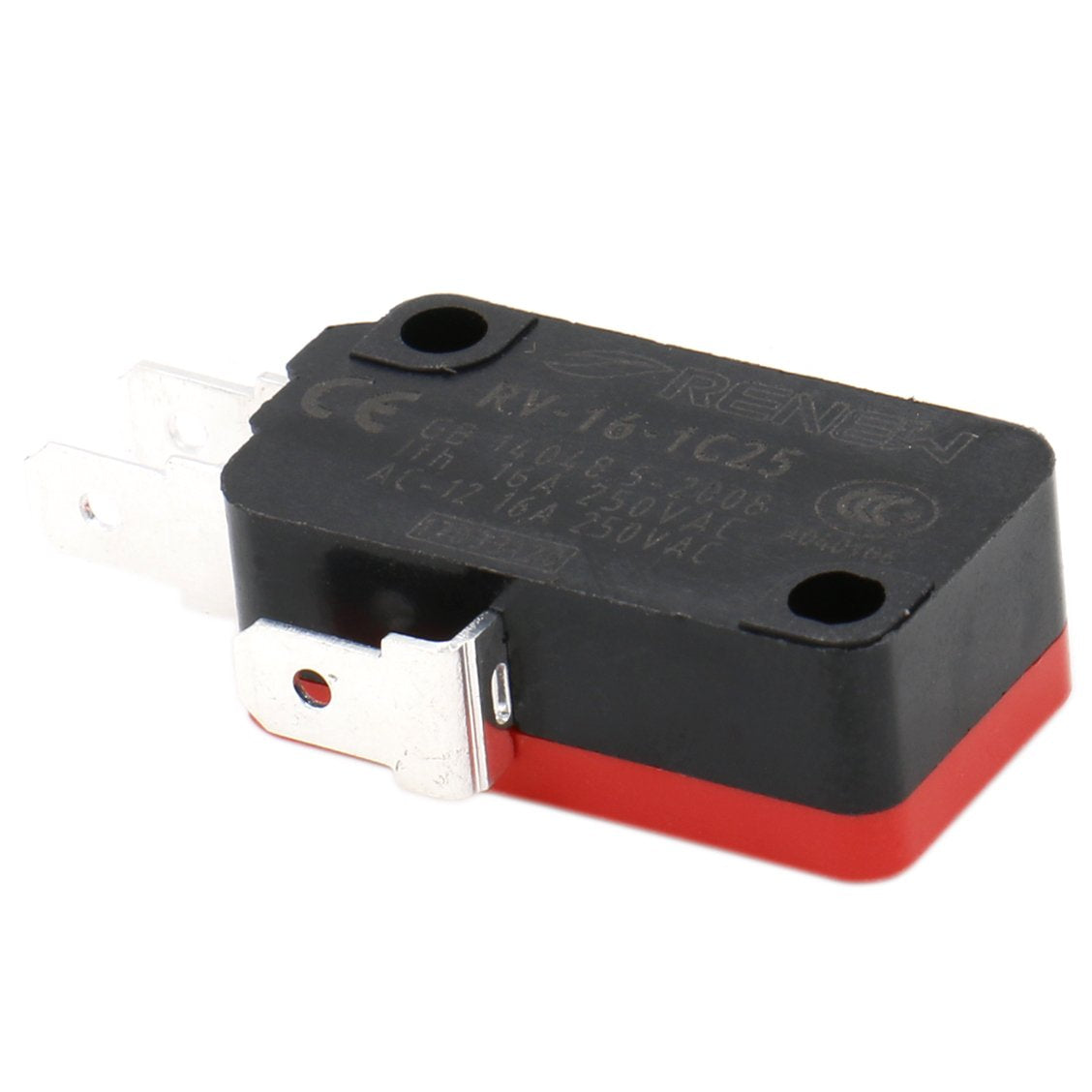

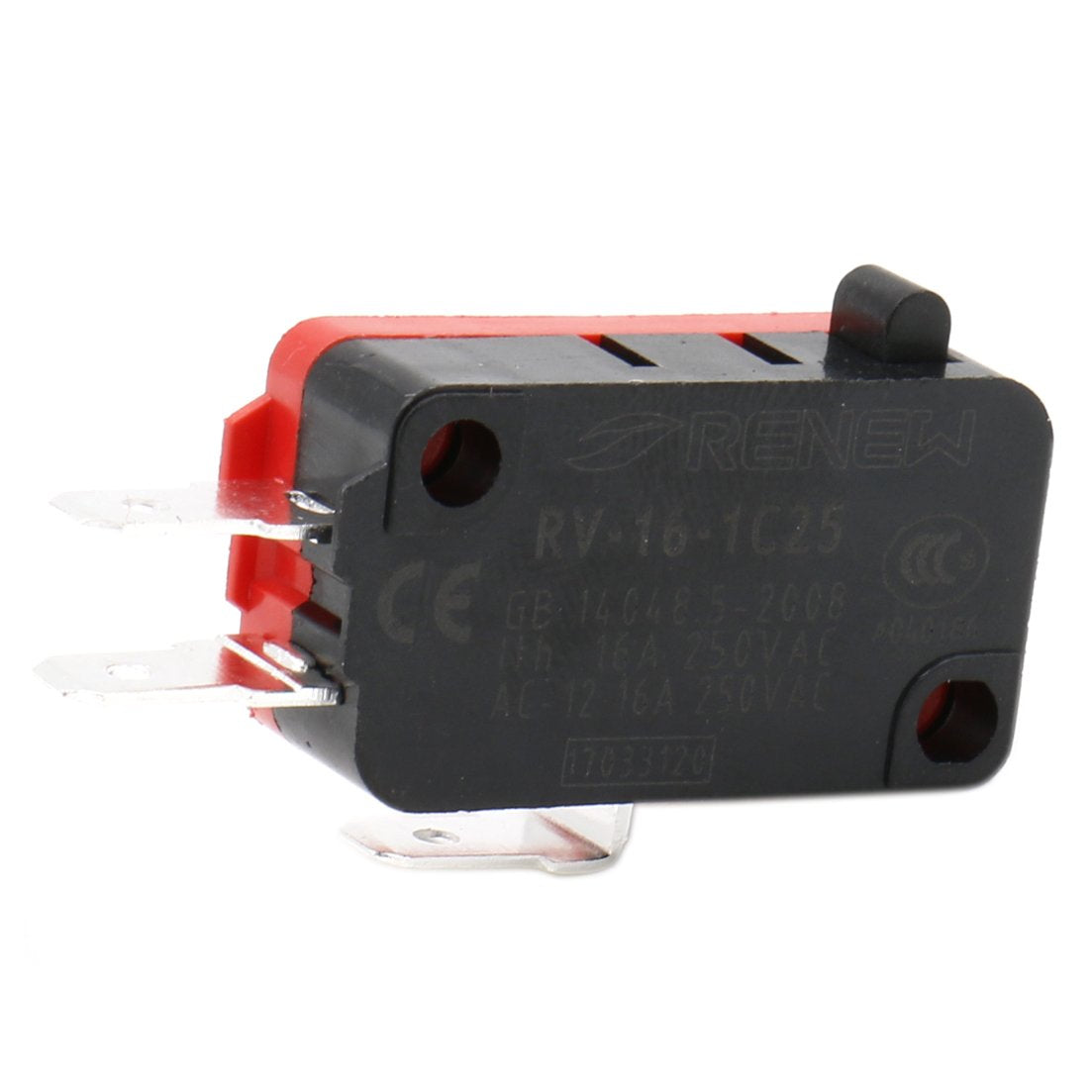

Heschen Micro switch V-16-1C25 SPDT Pin Button type 16A 250VAC 10 PCS
Heschen Micro switch V-16-1C25 SPDT Pin Button type 16A 250VAC 10 PCS
Heschen Micro switch V-16-1C25 SPDT Pin Button type 16A 250VAC 10 PCS

Heschen Micro switch V-16-1C25 SPDT Pin Button type 16A 250VAC 10 PCS

Heschen

Shipping calculated at checkout.
  • Actuator: Button type
  • Ith: 16A, 250VAC
  • Contact Type: SPDT 1NO 1NC
  • Terminal Specifications: 3/16"(4.8mm)
  • Operation speed: 0.1mm-1m/s
  • Operating frequency: Mechanical: 240 operations/min, Electrical 20 operations/min
  • Insulation resistance: 100mOhm above(@ 500VDC)
  • Contact resistance: 15mOhm max.(initial value)
  • Vibration: 10 to 55Hz, 1.5mm pairs swing
  • Shock Durable: 1,000m/S², Misoperation: 300m/S²
  • Mechanical Life: 10,000,000
  • Package Content: 10 PCS
