Heschen von Heschen

SKU:4V210-06-12V

5.0

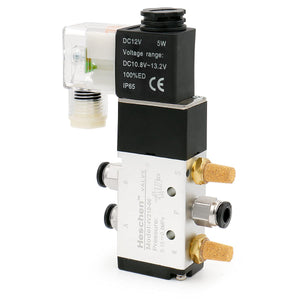

Heschen Electrical Pneumatic Solenoid Valve 4V210-06 12V/24V/110V/220V PT1/8 5 Way 2 Position Single Coil Pilot-Operated Electric CE with Fittings and Muffler

Der Versand wird an der Kasse berechnet.

Investor focus research & development value proposition graphical user interface investor. Startup business plan user experience.

Voltage:

12VDC 24VDC 110VAC 220VAC

Qty.:

1 piece 16 pcs

Produktvarianten:

Anzahl:

Description

Product Name: 2 Position 5 Way Solenoid Valve

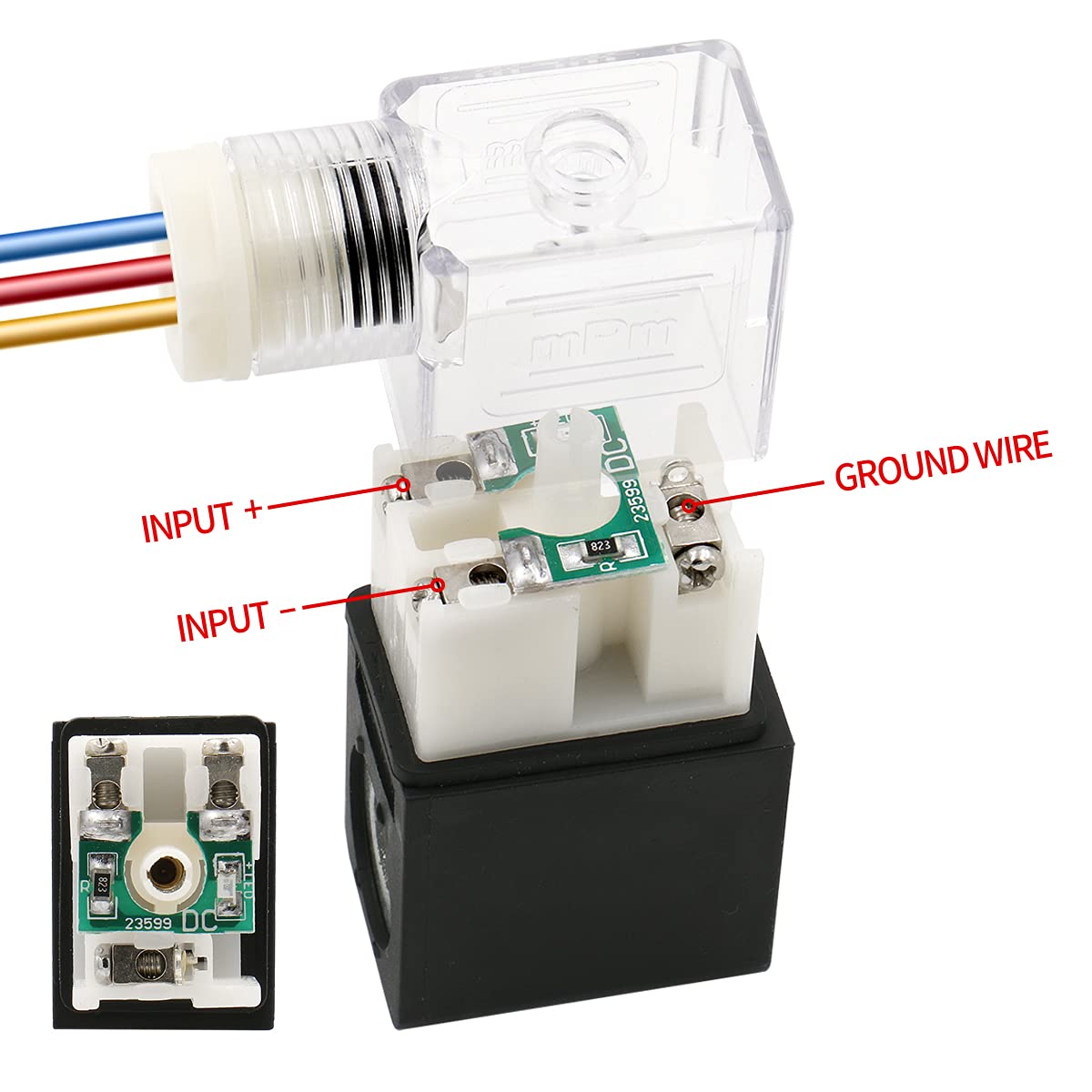

Coil Voltage: DC12V/DC24V/AC110V/AC220V

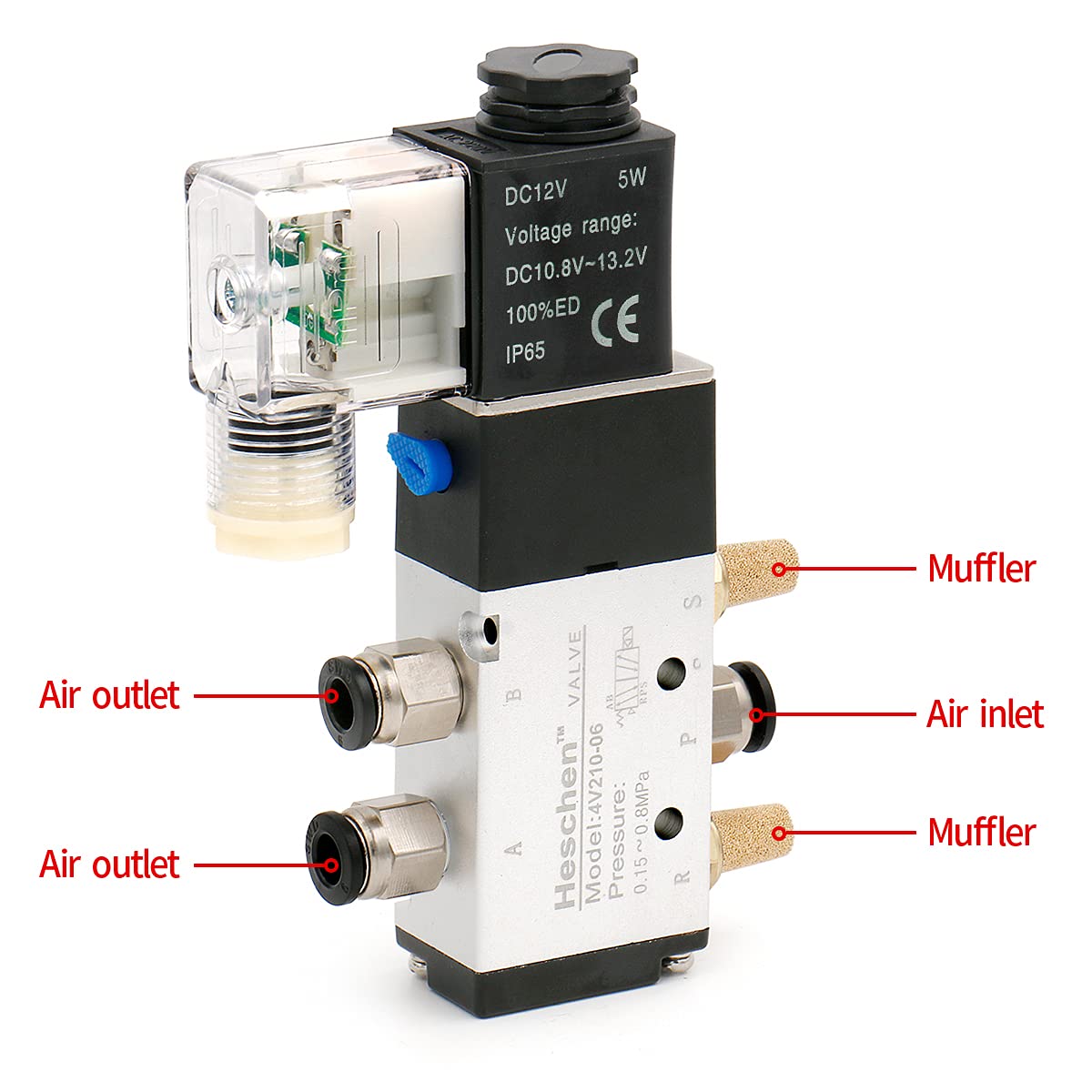

Port Size: Air Inlet (P)=1/8"PT; Air Outlet(A B)=1/8"PT; Air Exhaust(R S)=1/8"PT
Pressure Range: 25-116PSI (0-0.8MPa); CV valve: 0.56

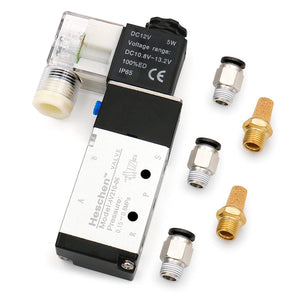

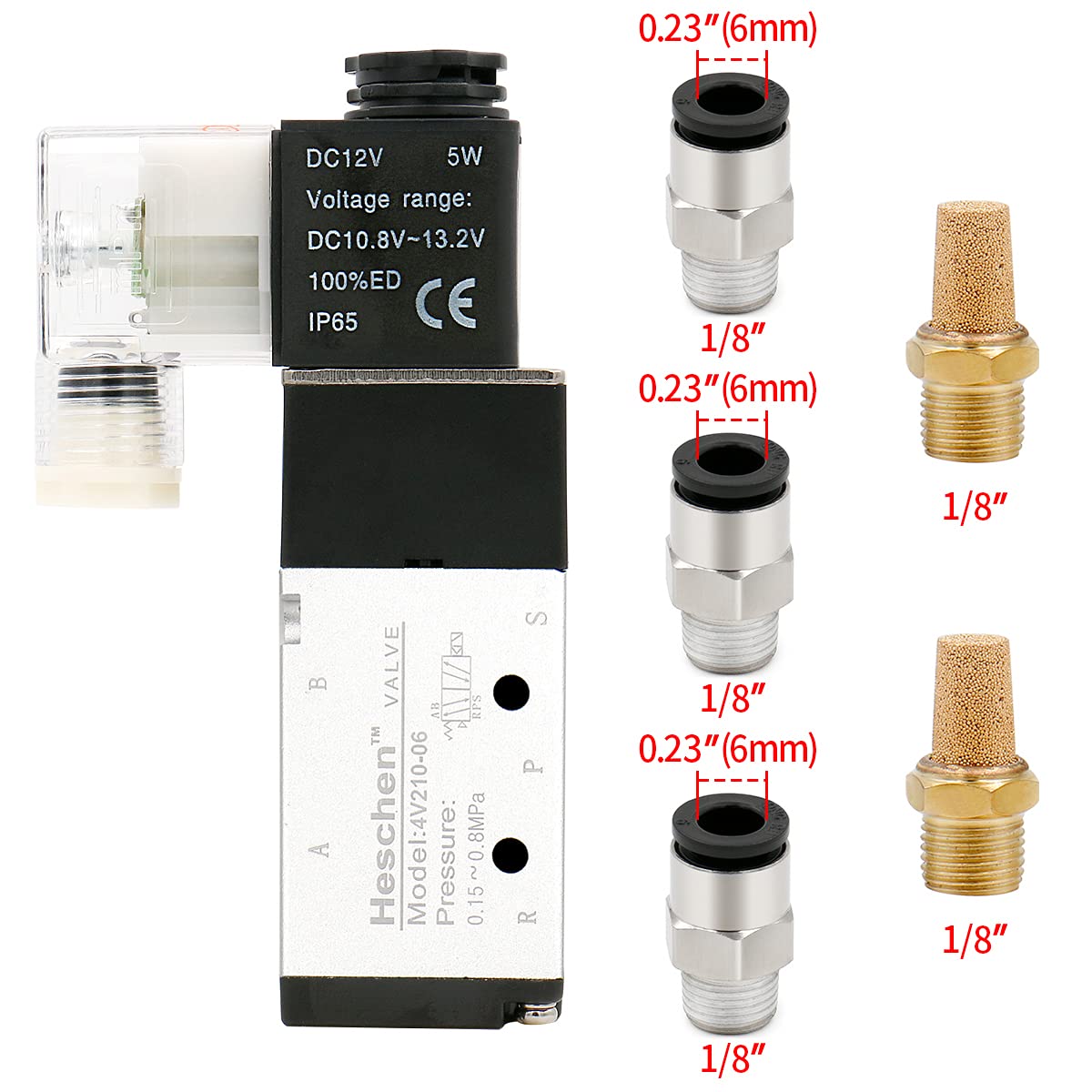

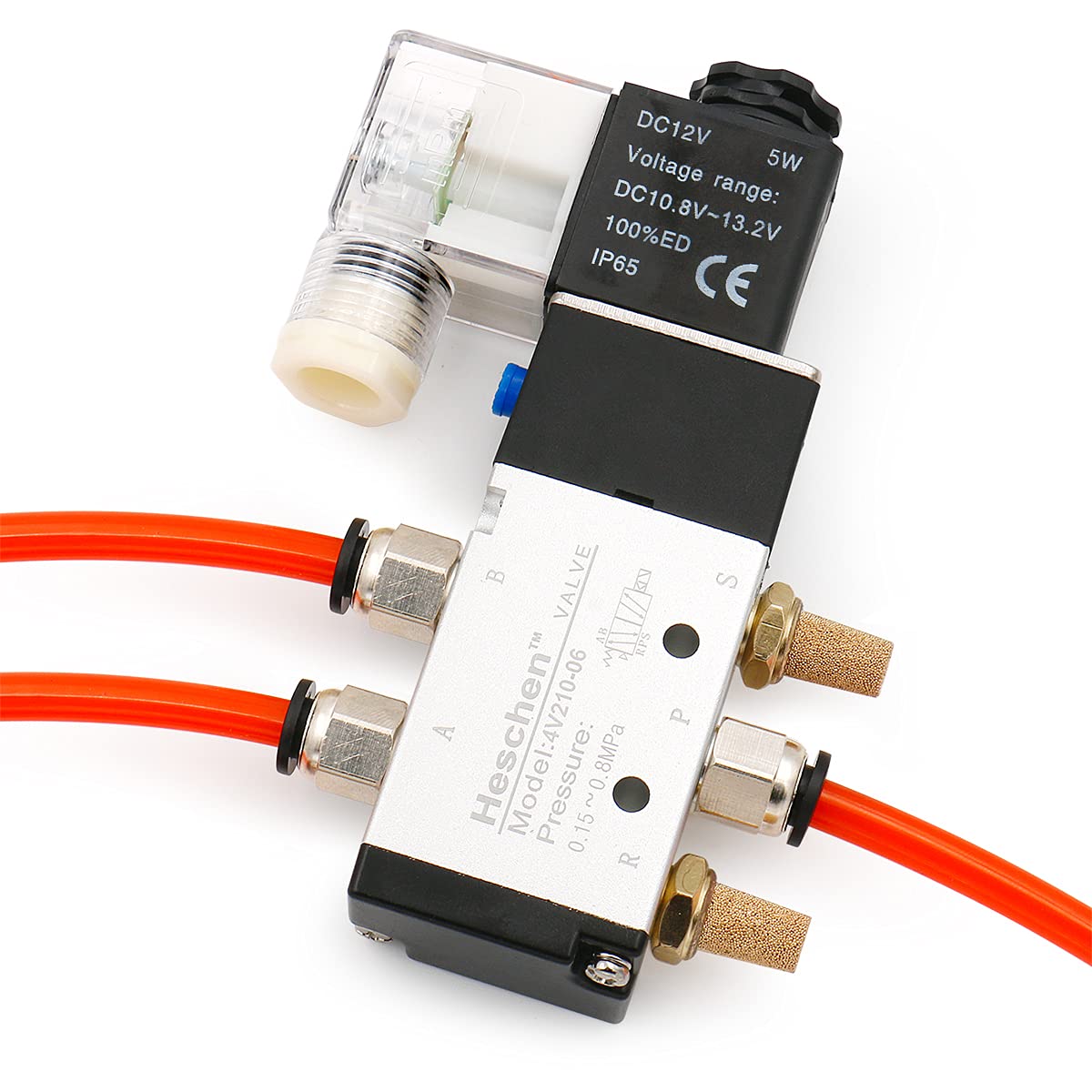

We provide connect fittings and muffler, you don't need to buy again, just insert 1/4 "or 6mm tubes.

Description

Product Name: 2 Position 5 Way Solenoid Valve
Coil Voltage: DC12V/DC24V/AC110V/AC220V
Port Size: Air Inlet (P)=1/8"PT; Air Outlet(A B)=1/8"PT; Air Exhaust(R S)=1/8"PT
Pressure Range: 25-116PSI (0-0.8MPa); CV valve: 0.56
We provide connect fittings and muffler, you don't need to buy again, just insert 1/4 "or 6mm tubes.
