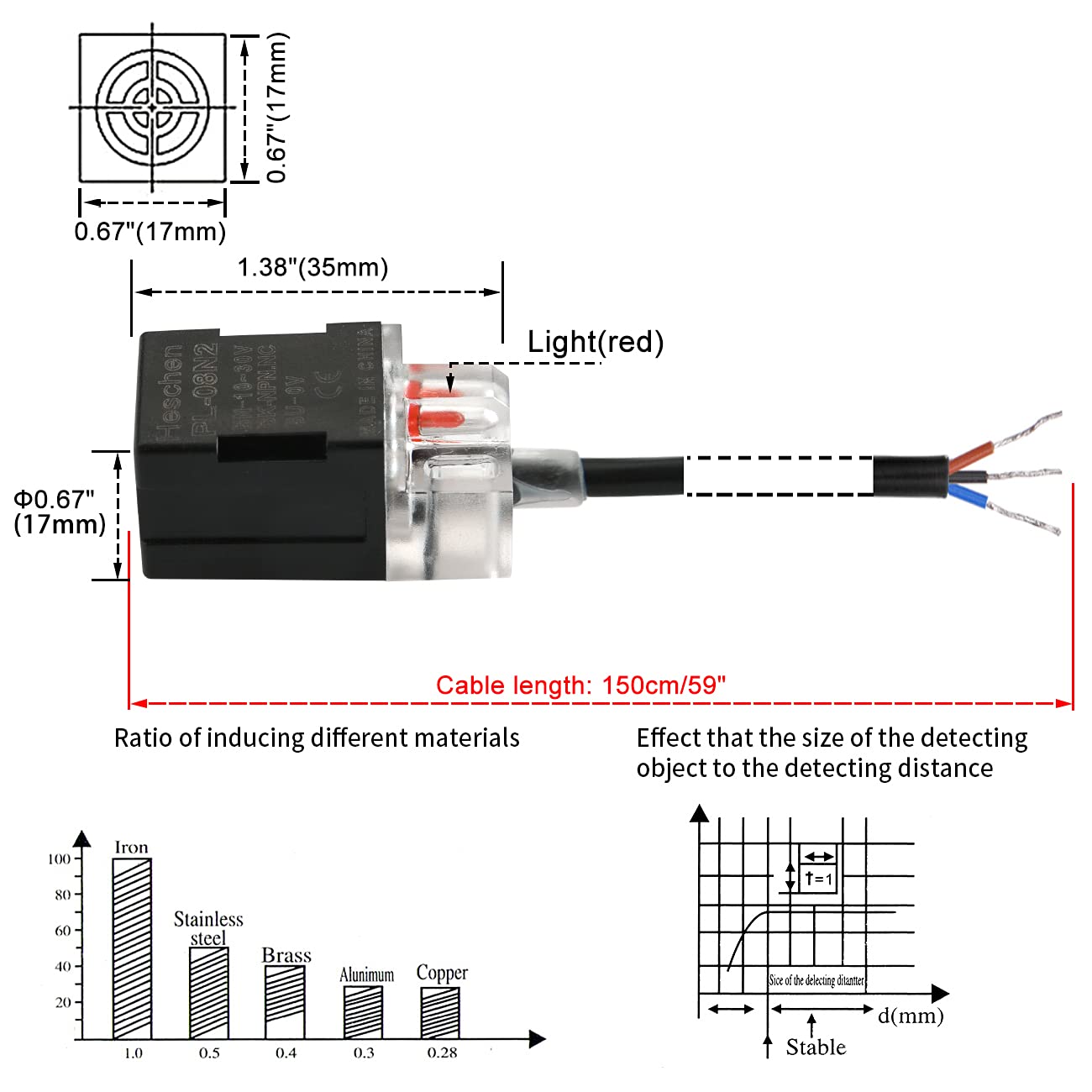

Detect Object: Magnetic Metal(the detection distance decreases when it is non-magnetic metal);Detection distance 8mm;Set distance 0-7mm;Power: DC10-30V;Temperature range -25 -+60℃;Isolation Resistance >50MΩ;Material ABS;Dimension: 17X17X35mm;Mounting Way: Non-shield type;CE certified.

  • Detection distance: 8mm±10%
  • Supply Voltage: DC 10-30V; Output Current: 200mA

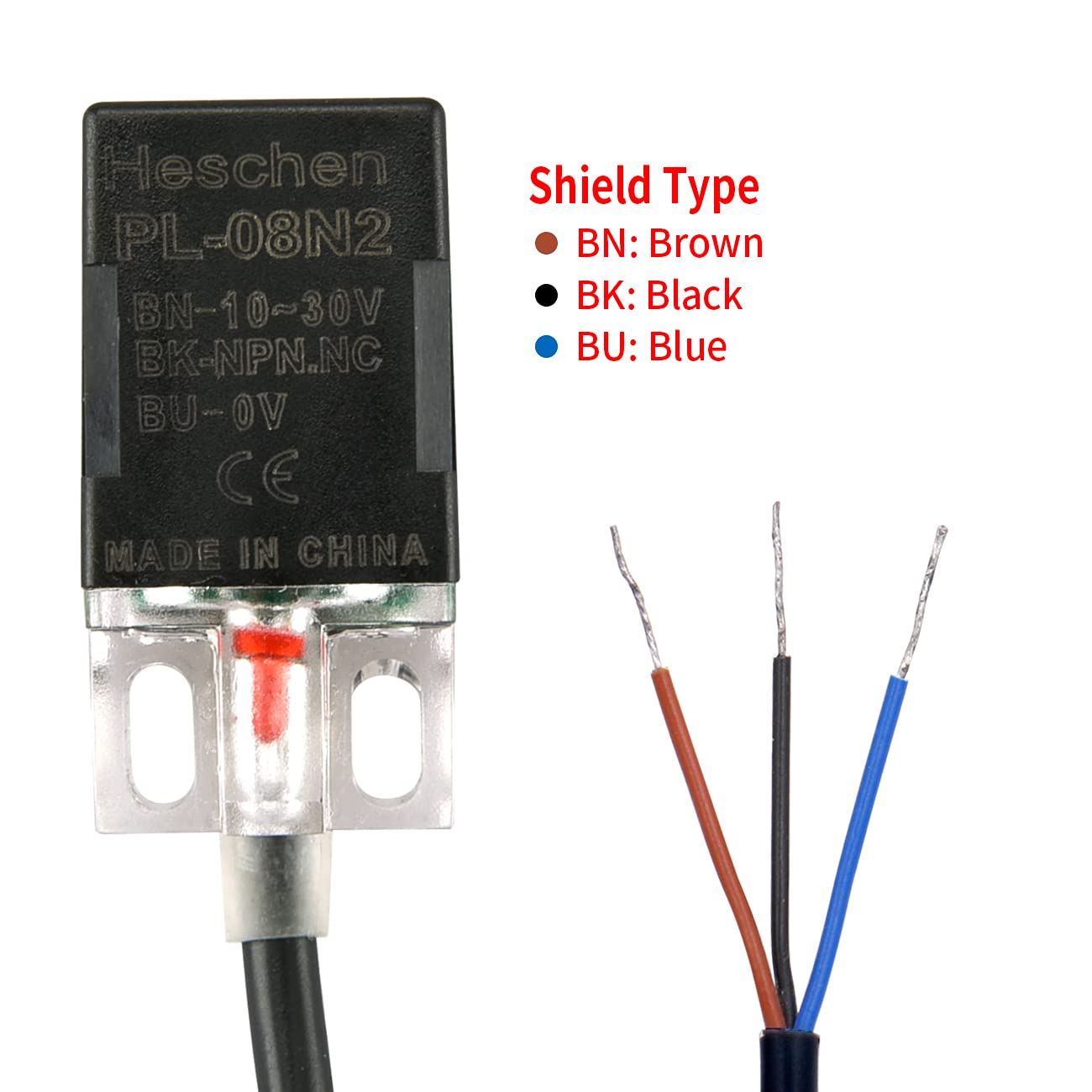

  • Type: NPN, NC(Normally Closed)
  • Installation: Non-Shield(non-flush)
  • Dimension: 17×17×35mm
Description

Detect Object: Magnetic Metal(the detection distance decreases when it is non-magnetic metal);Detection distance 8mm;Set distance 0-7mm;Power: DC10-30V;Temperature range -25 -+60℃;Isolation Resistance >50MΩ;Material ABS;Dimension: 17X17X35mm;Mounting Way: Non-shield type;CE certified.

  • Detection distance: 8mm±10%
  • Supply Voltage: DC 10-30V; Output Current: 200mA
  • Type: NPN, NC(Normally Closed)
  • Installation: Non-Shield(non-flush)
  • Dimension: 17×17×35mm
Heschen von Heschen

SQ-759W-CRP0

1.0

Heschen Square Inductive Proximity Sensor Switch Non-Shield Type PL-08N2 Detector Distance 8mm 10-30VDC 200mA NPN Normally Closed(NC) 3 Wire

€7,39
€7,39
