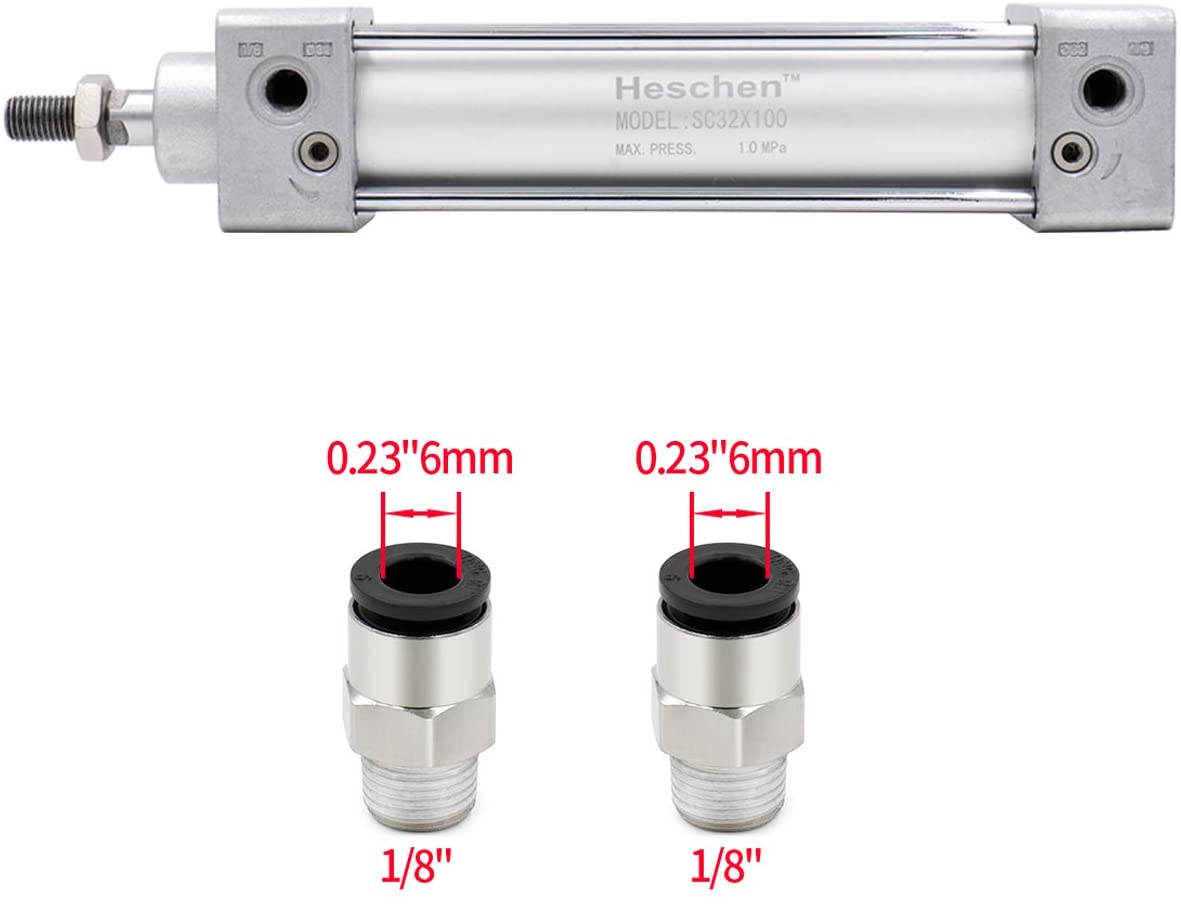

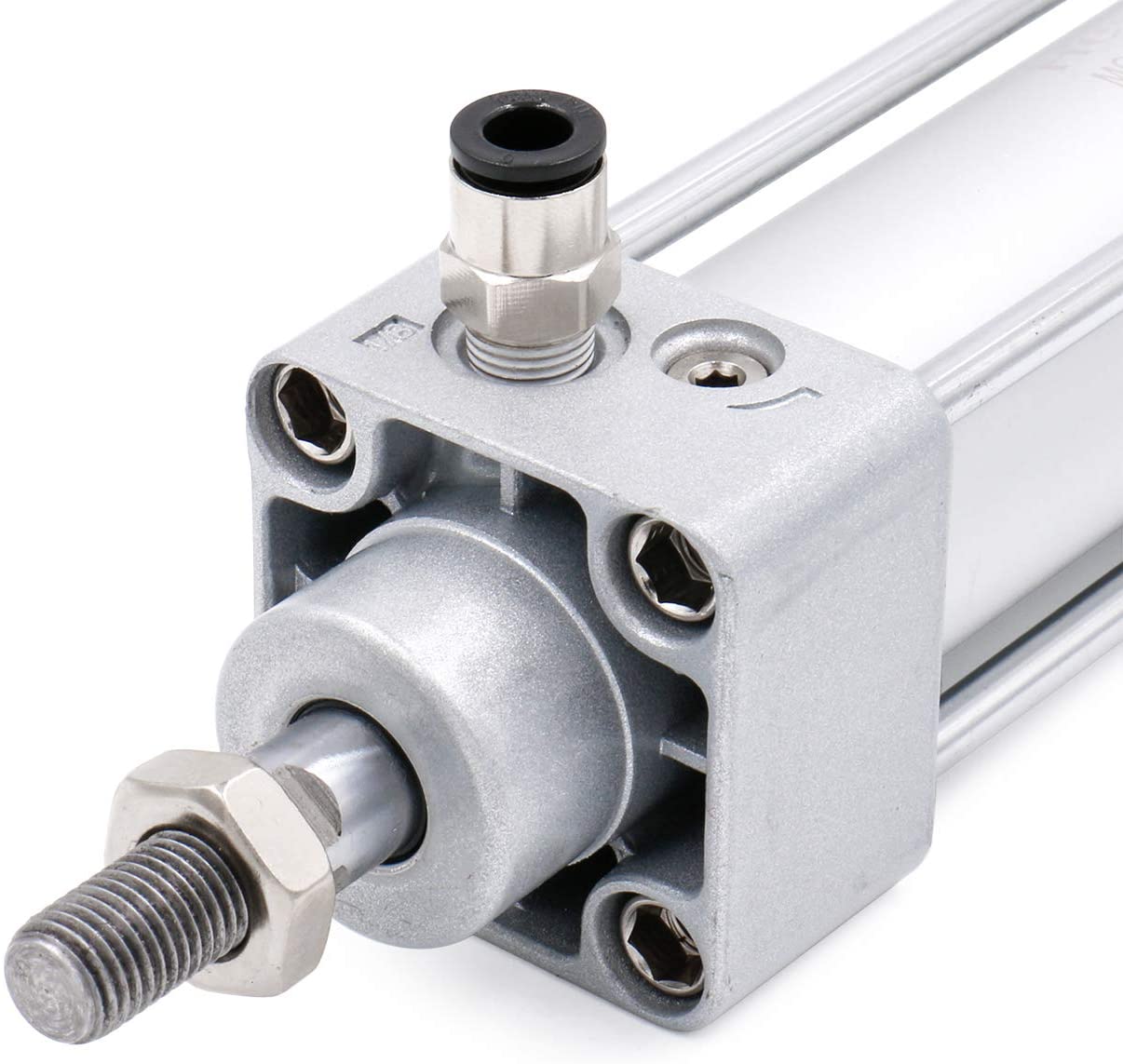

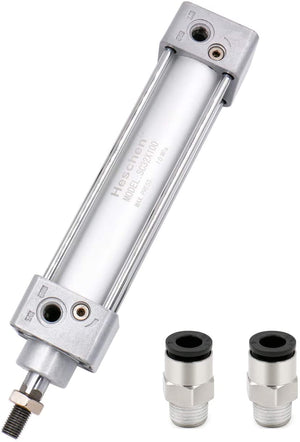

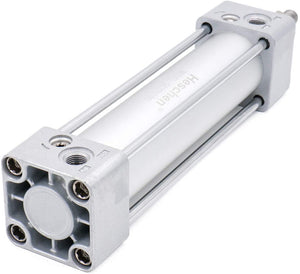

Heschen Pneumatic Standard Cylinder SC 32 PT1/8 port, 32mm(1 1/4") Bore, Single Rod Double Action with 2 Fittings
Heschen Pneumatic Standard Cylinder SC 32 PT1/8 port, 32mm(1 1/4") Bore, Single Rod Double Action with 2 Fittings
Heschen Pneumatic Standard Cylinder SC 32 PT1/8 port, 32mm(1 1/4") Bore, Single Rod Double Action with 2 Fittings
Heschen Pneumatic Standard Cylinder SC 32 PT1/8 port, 32mm(1 1/4") Bore, Single Rod Double Action with 2 Fittings
Heschen Pneumatic Standard Cylinder SC 32 PT1/8 port, 32mm(1 1/4") Bore, Single Rod Double Action with 2 Fittings

Heschen Pneumatic Standard Cylinder SC 32 PT1/8 port, 32mm(1 1/4") Bore, Single Rod Double Action with 2 Fittings

Heschen

zzgl. Versandkosten

The Air cylinder is a mechanical devices which utilize the power of compressed gas to produce a force in a reciprocating linear motion.

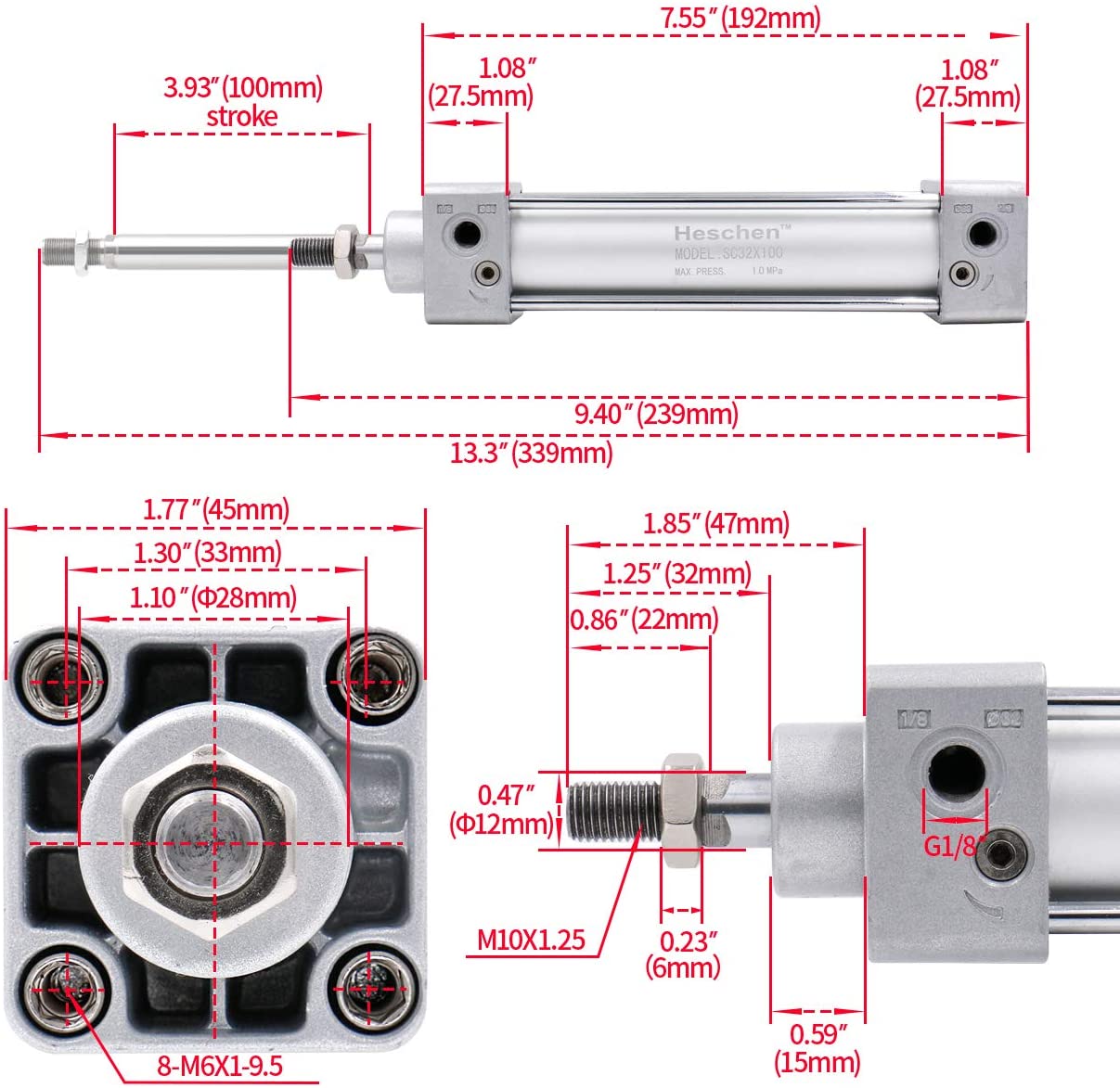

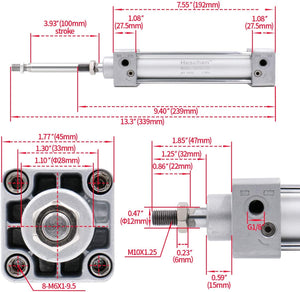

  • Bore: 32mm (1-1/4")
  • Port size: PT1/8
  • Action Type: Double Acting
  • Rod Type: Single Rod
  • Piston port size: M10x1.25
  • Max. theoretical force: 70Kgf
  • Max. operating pressure 10/kgf/cm²
