Heschen von Heschen

4V230C-08-12V

Heschen Electrical Pneumatic Solenoid Valve 4V230C-08, 12V/24V/110V220V PT1/4 5 Way 3 Position Double Coil Pilot-Operated Electric Closed Type CE with Fittings and Muffler

€18,99
€18,99
Der Versand wird an der Kasse berechnet.
Investor focus research & development value proposition graphical user interface investor. Startup business plan user experience.
Investor focus research & development value proposition graphical user interface investor. Startup business plan user experience.
Voltage:

About

Description

The electric solenoid valve is applied widely to the pneumatic system and mechanism, such as textile industry, light industry and chemical industry, etc. It can generally be used to drive the air flow direction of the double-acting mechanical cylinde.

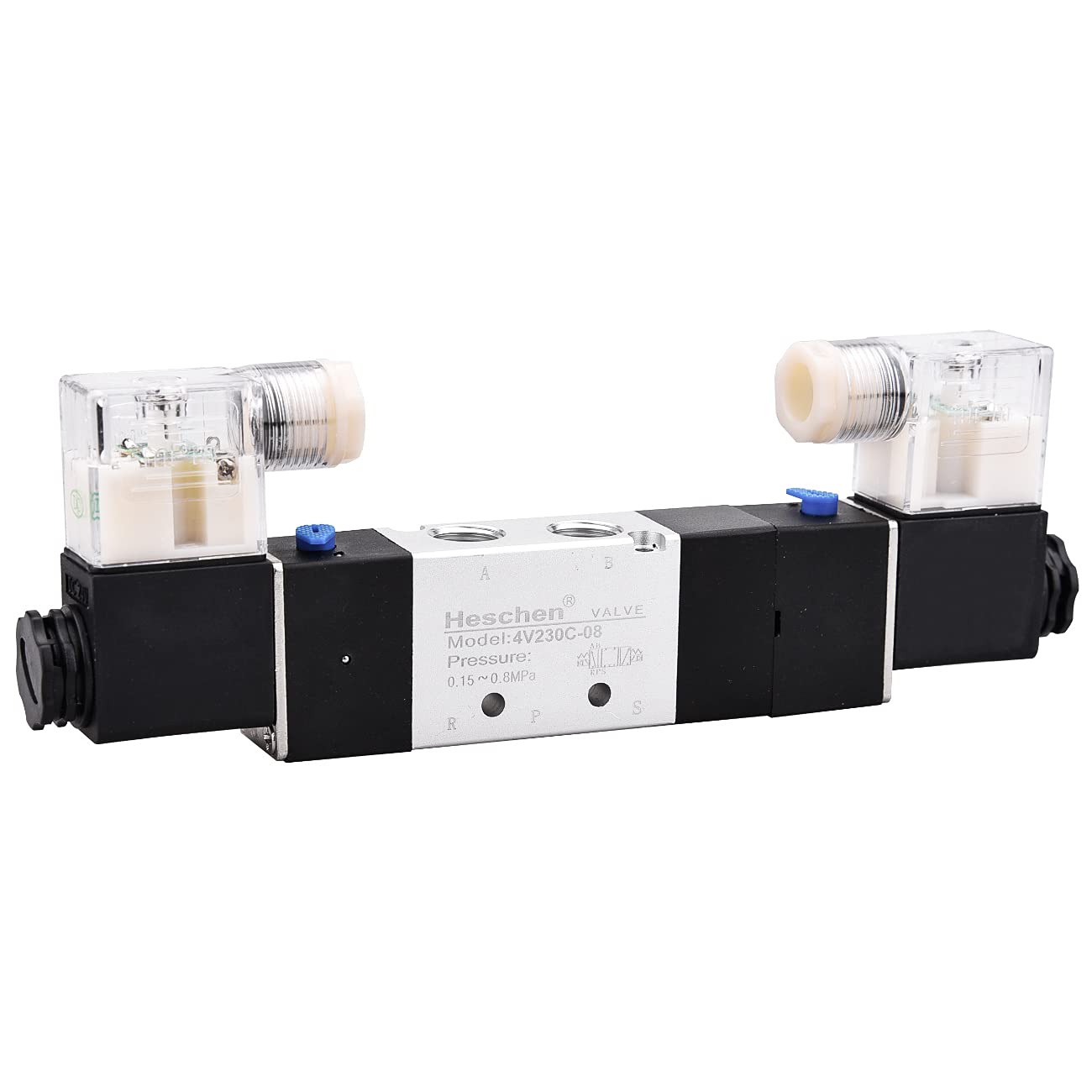

  • Product Name: Double Coil 3 Position 5 Way Solenoid Valve
  • Coil Voltage: DC12V/DC24V/AC110V/AC220V

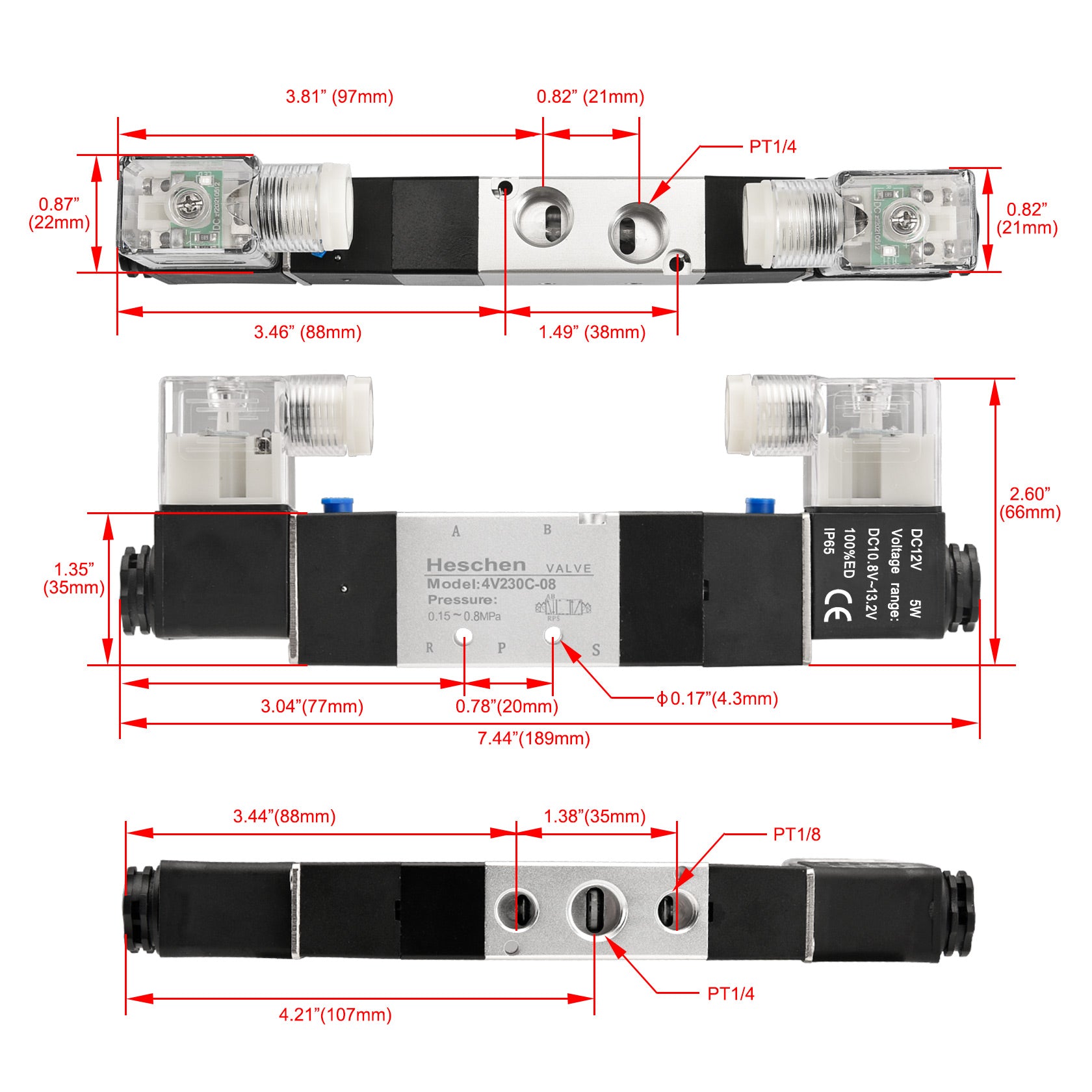

  • Port Size: Air Inlet (P)=1/4"PT; Air Outlet(A B)=1/4"PT; Air Exhaust(R S)=1/8"PT
  • Pressure Range: 25-116PSI (0-0.8MPa); CV valve: 0.78

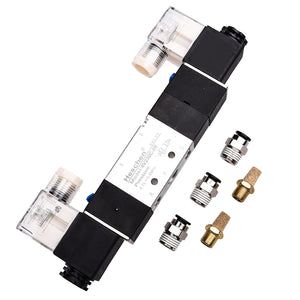

  • Fitting size: PT1/4", 6mm Tube size
Description

The electric solenoid valve is applied widely to the pneumatic system and mechanism, such as textile industry, light industry and chemical industry, etc. It can generally be used to drive the air flow direction of the double-acting mechanical cylinde.

  • Product Name: Double Coil 3 Position 5 Way Solenoid Valve
  • Coil Voltage: DC12V/DC24V/AC110V/AC220V
  • Port Size: Air Inlet (P)=1/4"PT; Air Outlet(A B)=1/4"PT; Air Exhaust(R S)=1/8"PT
  • Pressure Range: 25-116PSI (0-0.8MPa); CV valve: 0.78
  • Fitting size: PT1/4", 6mm Tube size
