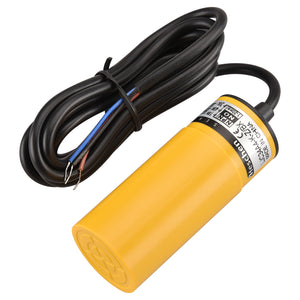

Heschen 34mm Diameter Capacitive Proximity Sensor Switch, Non-Shield Type, LJC34A4-K-Z/BX, Detector 1-20mm, 10-30VDC 200mA, NPN Normally Open(NO), 3 wire, CE Listed

€13,29
€13,29
Der Versand wird an der Kasse berechnet.
Investor focus research & development value proposition graphical user interface investor. Startup business plan user experience.
Investor focus research & development value proposition graphical user interface investor. Startup business plan user experience.

About

Description

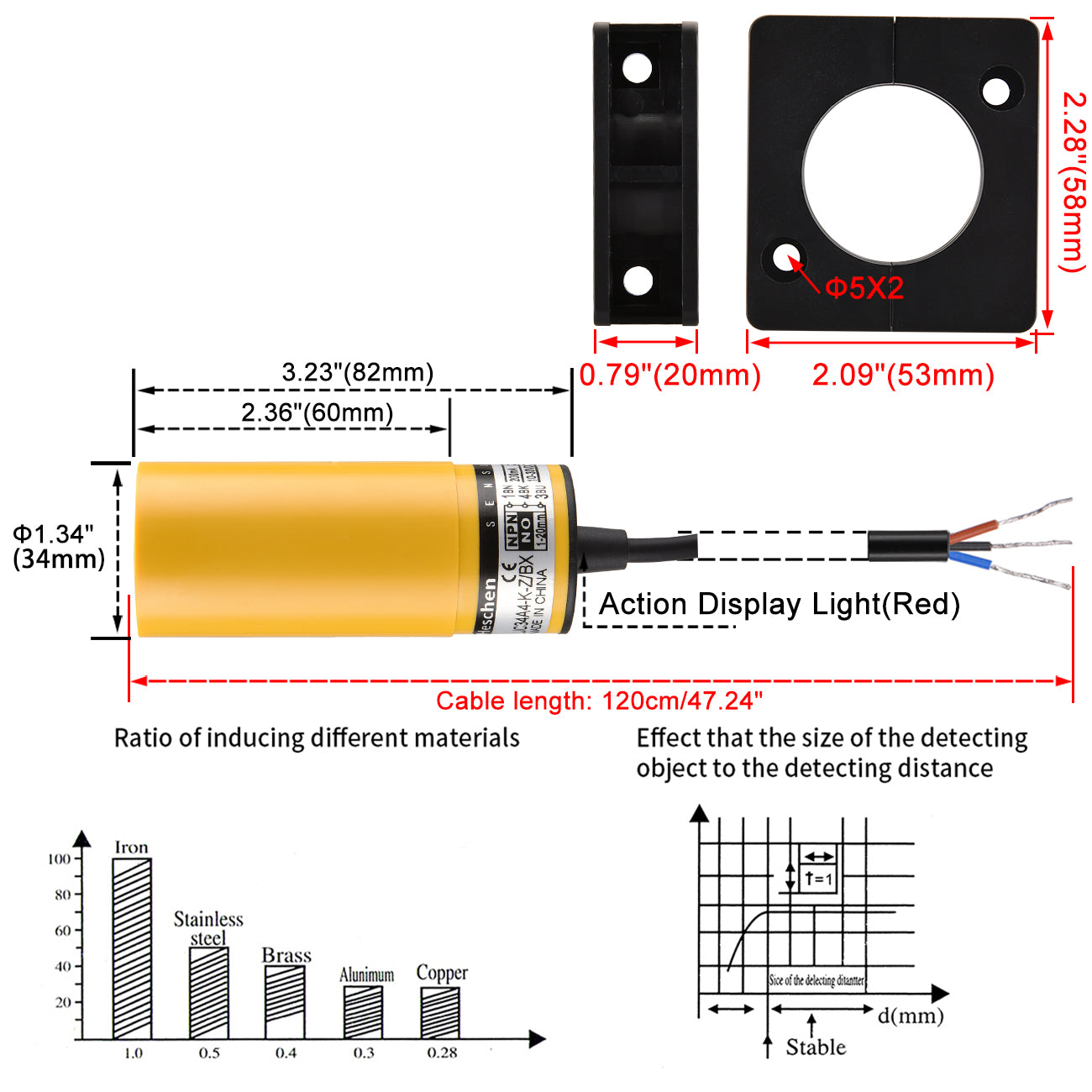

  • Mounting Hole Diameter: 34mm; Cable length: 150cm/59"
  • Detecting Distance: 25mm±10%; Set Distance：0-22mm
  • Output Type: NPN Normally Open(NO); Non-Shield Type
  • Current Output: 200mA; Working Voltage: 10-30 VDC
  • Detection Object: Can Detect Any Dielectric
Description
  • Mounting Hole Diameter: 34mm; Cable length: 150cm/59"
  • Detecting Distance: 25mm±10%; Set Distance：0-22mm
  • Output Type: NPN Normally Open(NO); Non-Shield Type
  • Current Output: 200mA; Working Voltage: 10-30 VDC
  • Detection Object: Can Detect Any Dielectric
