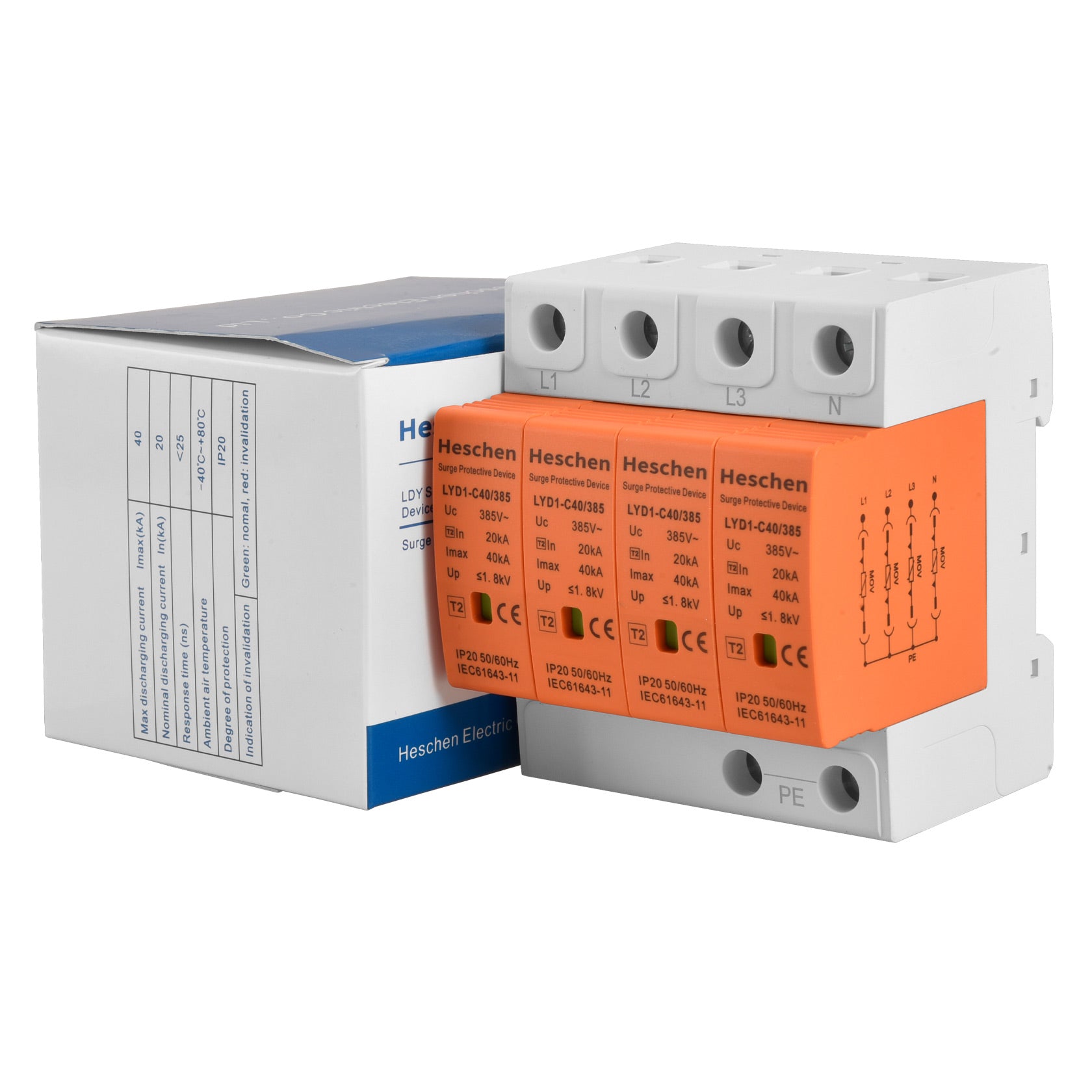

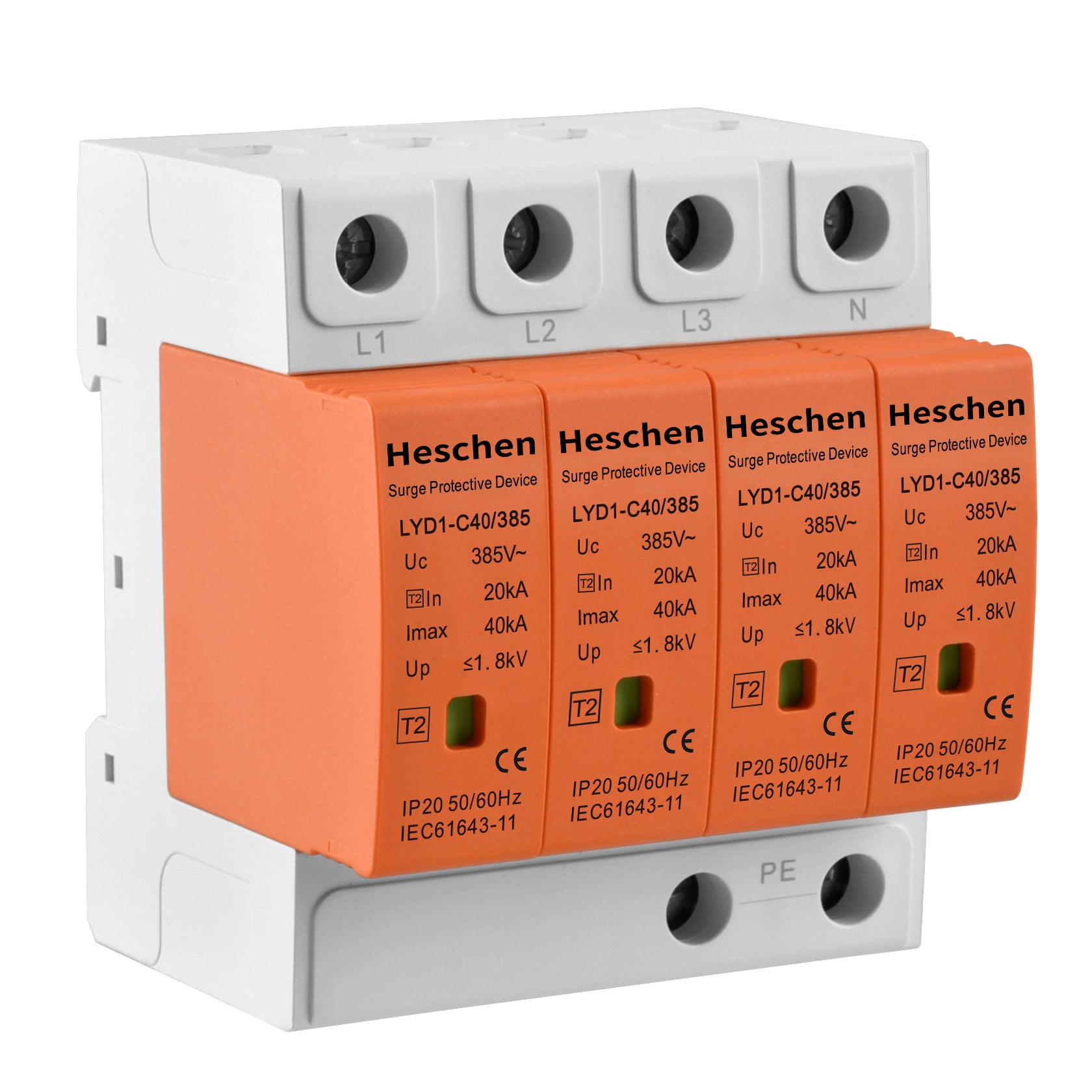

Heschen Surge Protective Device, LYD1-C40/385, 4P 385V 20KA, Fire-Proof, Low-Voltage Arrester, 35mm DIN Rail Mounting

€24,99
€24,99
Der Versand wird an der Kasse berechnet.
Investor focus research & development value proposition graphical user interface investor. Startup business plan user experience.
Investor focus research & development value proposition graphical user interface investor. Startup business plan user experience.

About

Description

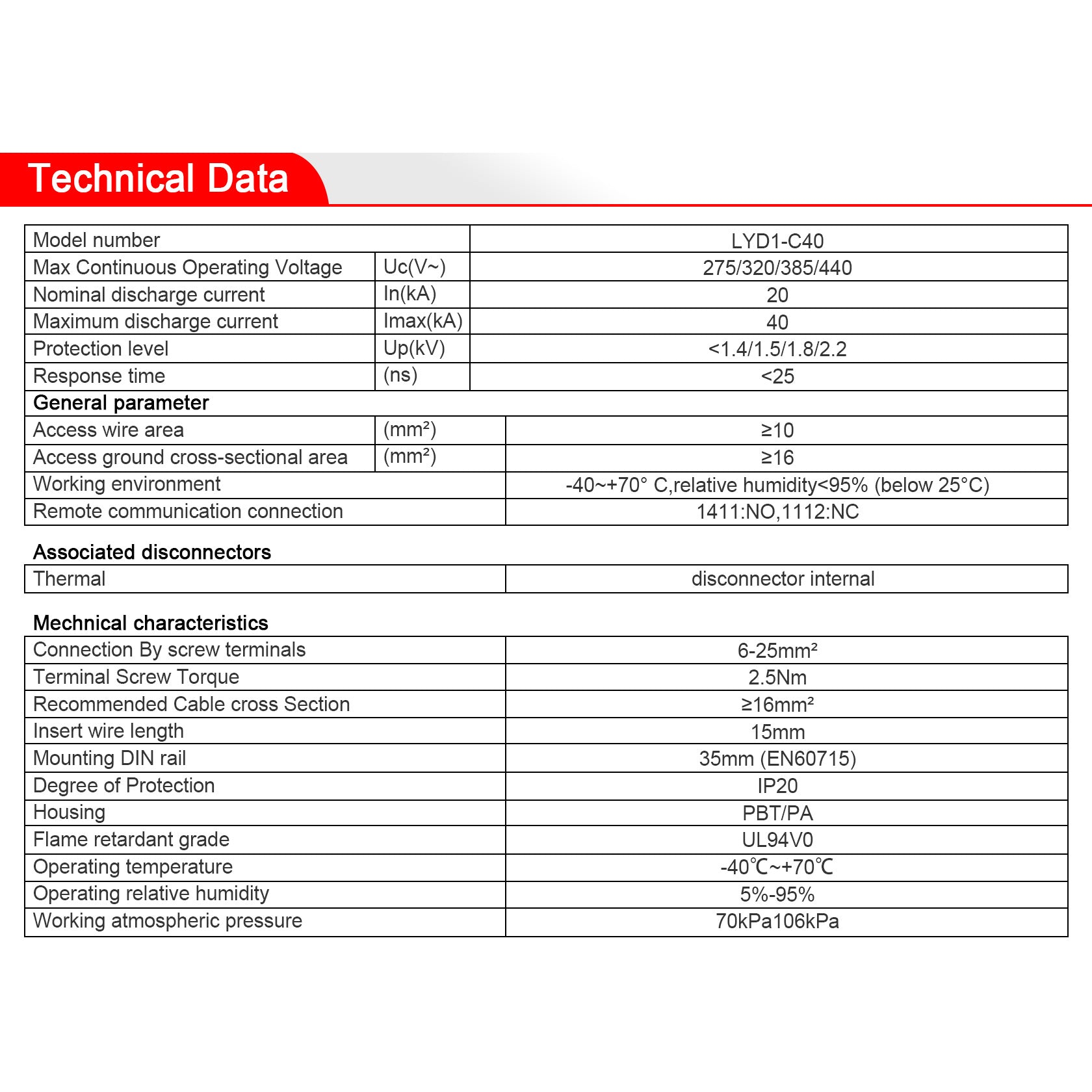

  • Max Continuous Operating Voltage：385VAC
  • Voltage Protective Level: 1.8kV
  • Max Discharging Current: 40kA
  • Norminal Discharge current: 20kA
  • Response Time: <25ns, IP 20, 50/60Hz
  • Weight: 400g
Description



  • Max Continuous Operating Voltage：385VAC
  • Voltage Protective Level: 1.8kV
  • Max Discharging Current: 40kA
  • Norminal Discharge current: 20kA
  • Response Time: <25ns, IP 20, 50/60Hz
  • Weight: 400g
