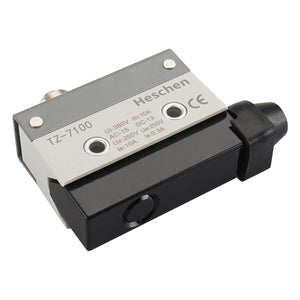

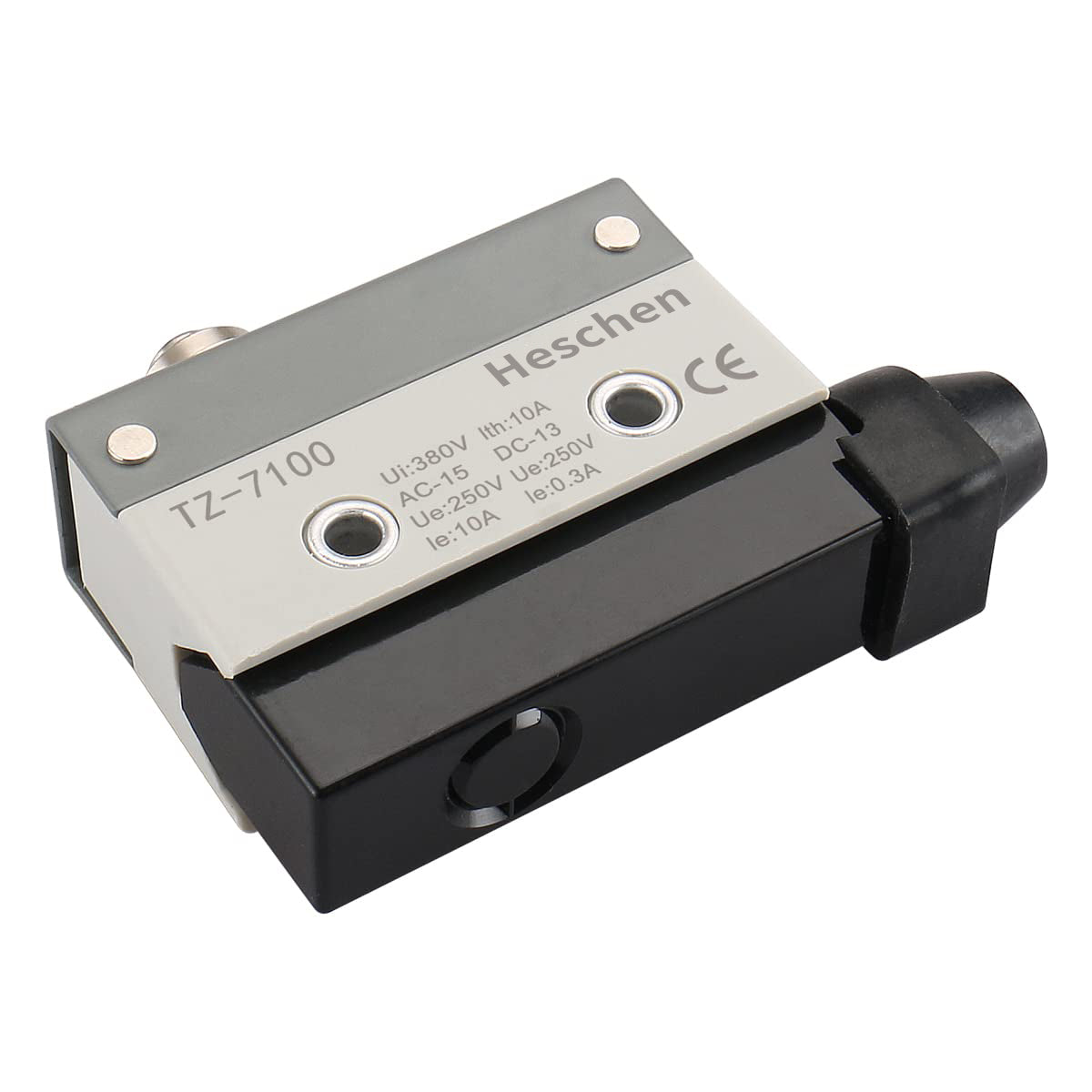

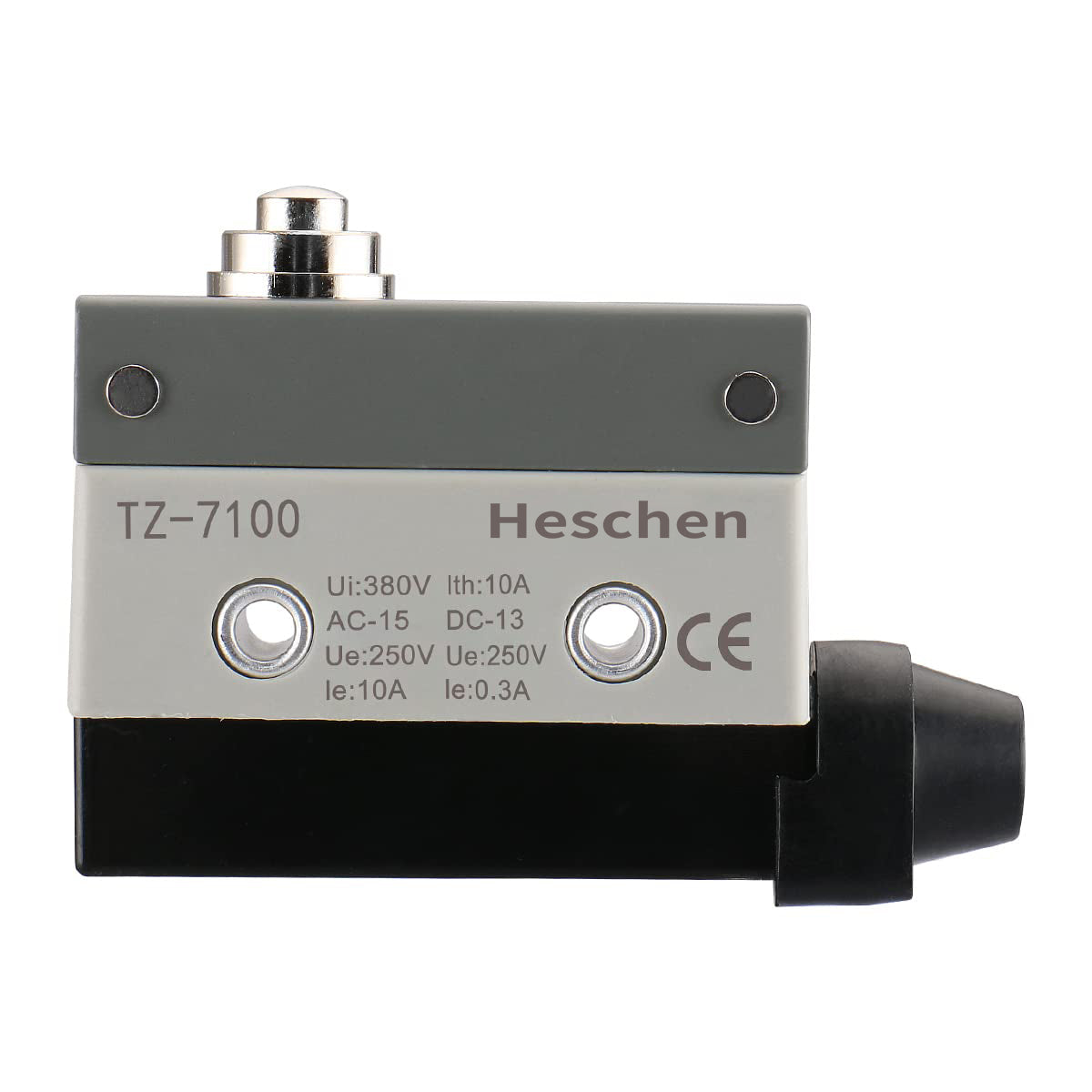

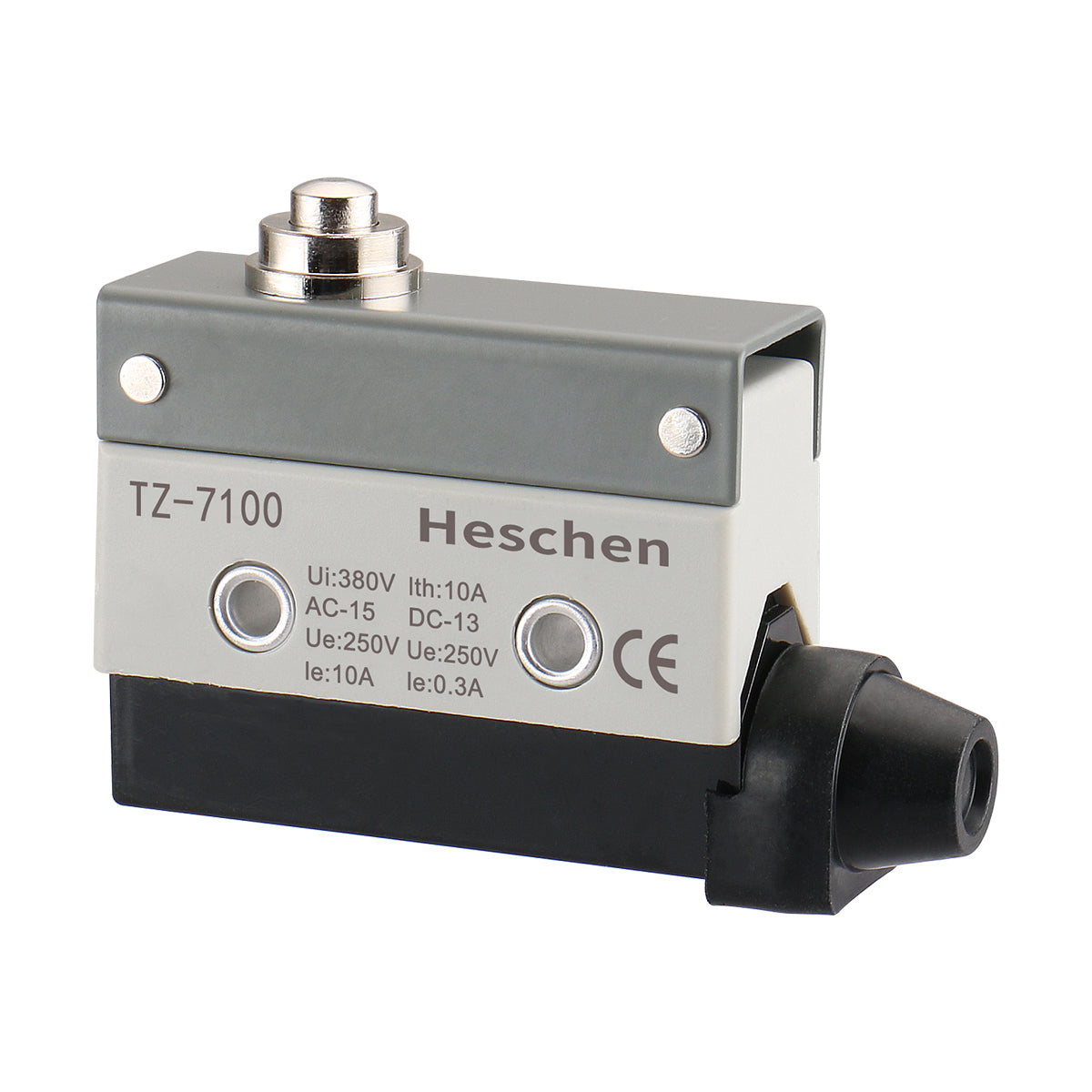

Heschen Limit Switch Short Push Plunger SPDT 1NC+1NO AC DC 380V 10A Momentary Type TZ-7100 CE Listed
- Product Name: Horizontal Limit Switch ; Model: TZ-7100;

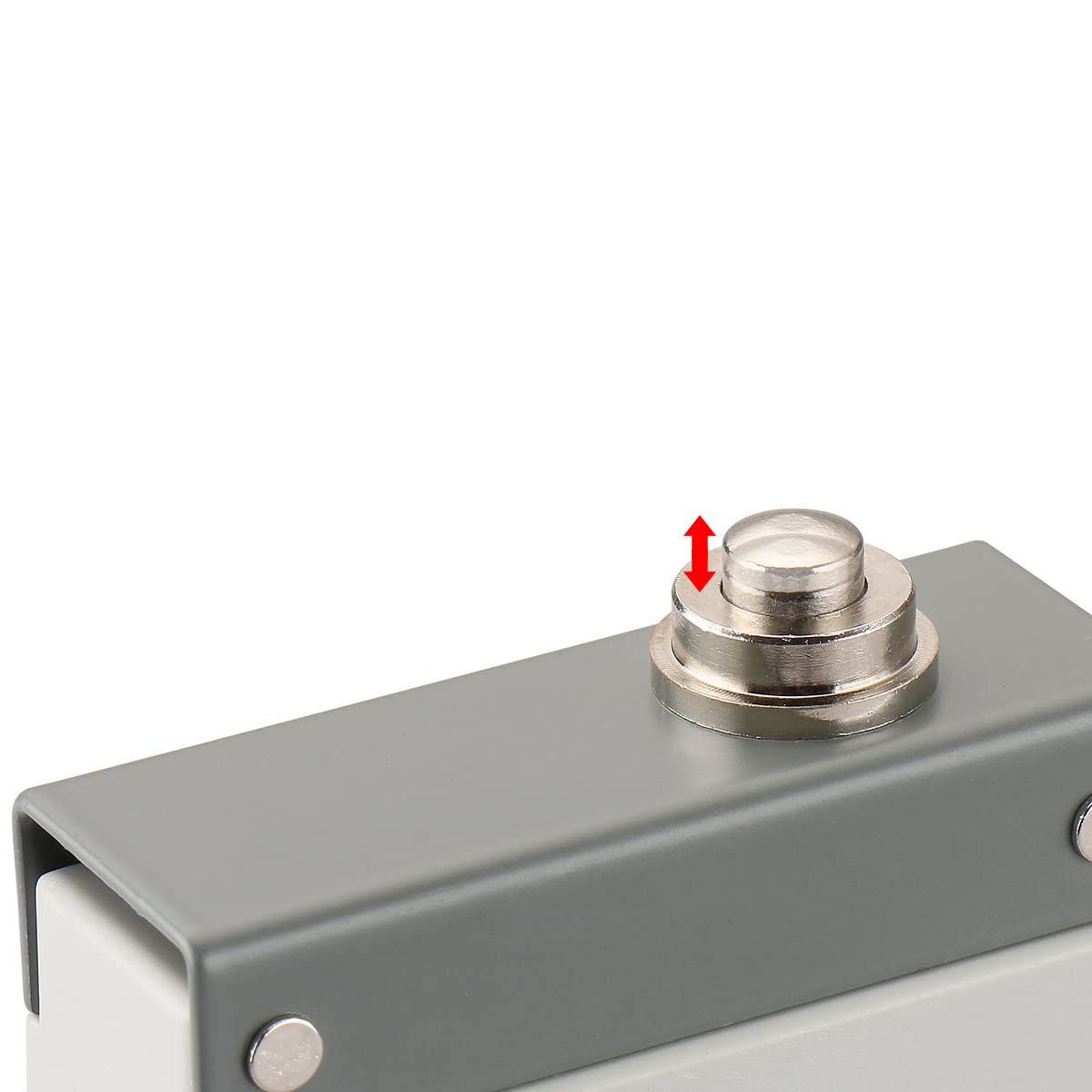

- Action Type: Momentary; Actuator Type: Short Push Plunger;

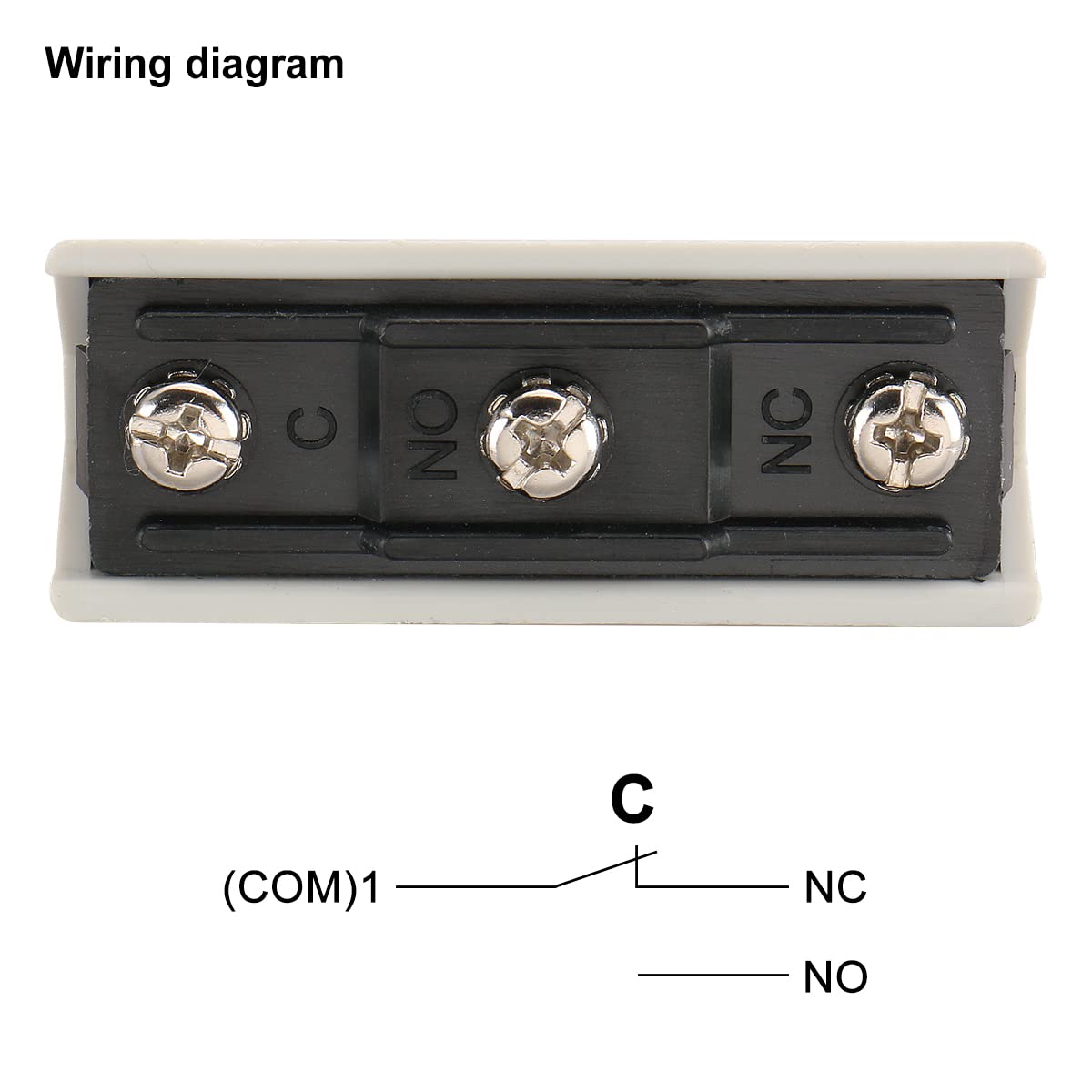

- Contact Type: SPDT 1NO+1NC; Terminal Style: Screw*3;
- Rating: Ui: 380V Ith:10A; AC-15 Ue: 250V Ie: 10A; DC-13 Ue: 250V Ie: 0.3A;

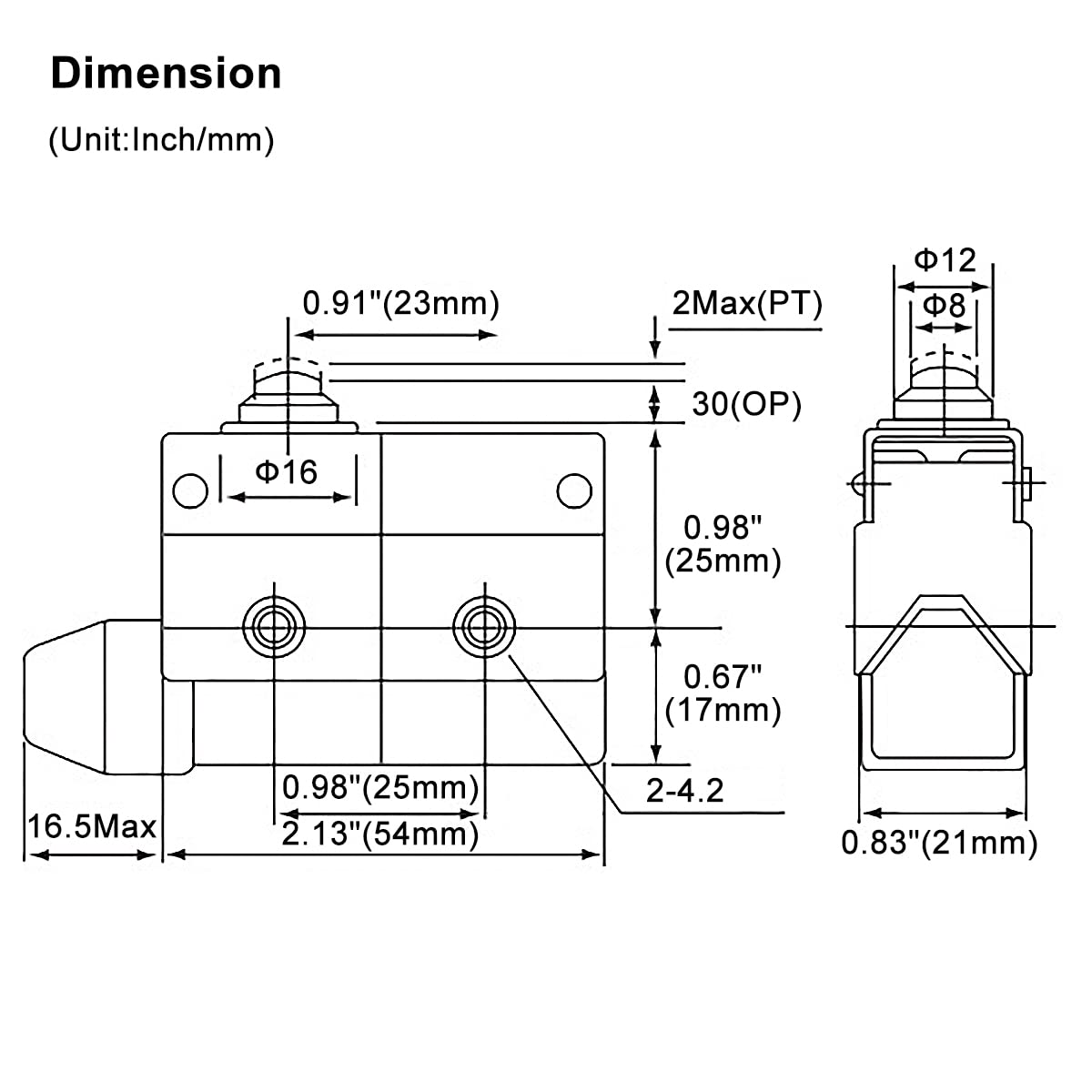

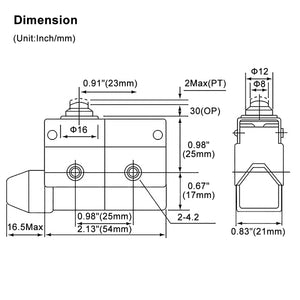

- Overall Size: 71 x 21 x 42mm / 2.83" x 0.8" x 1.65" (L*W*H);
- Fixing Holes Dia.: 4mm/0.16''; Distance for holes:25.4mm/10'';
- Degree of Protection: IP65; Weight:67g;
-
More quantity more discount, send an Email to get a quotation
