SKU:YE-FHBS-U4OX-1

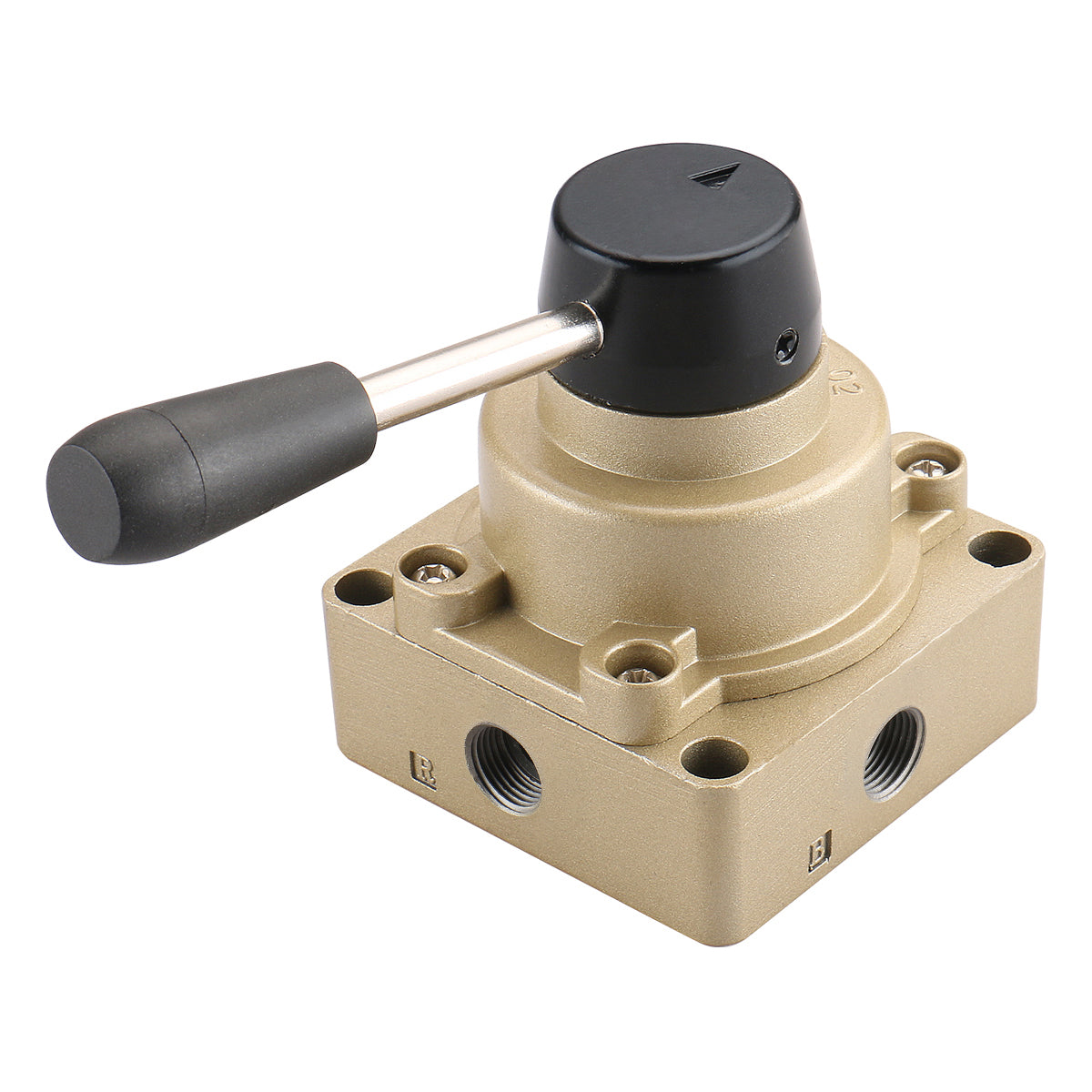

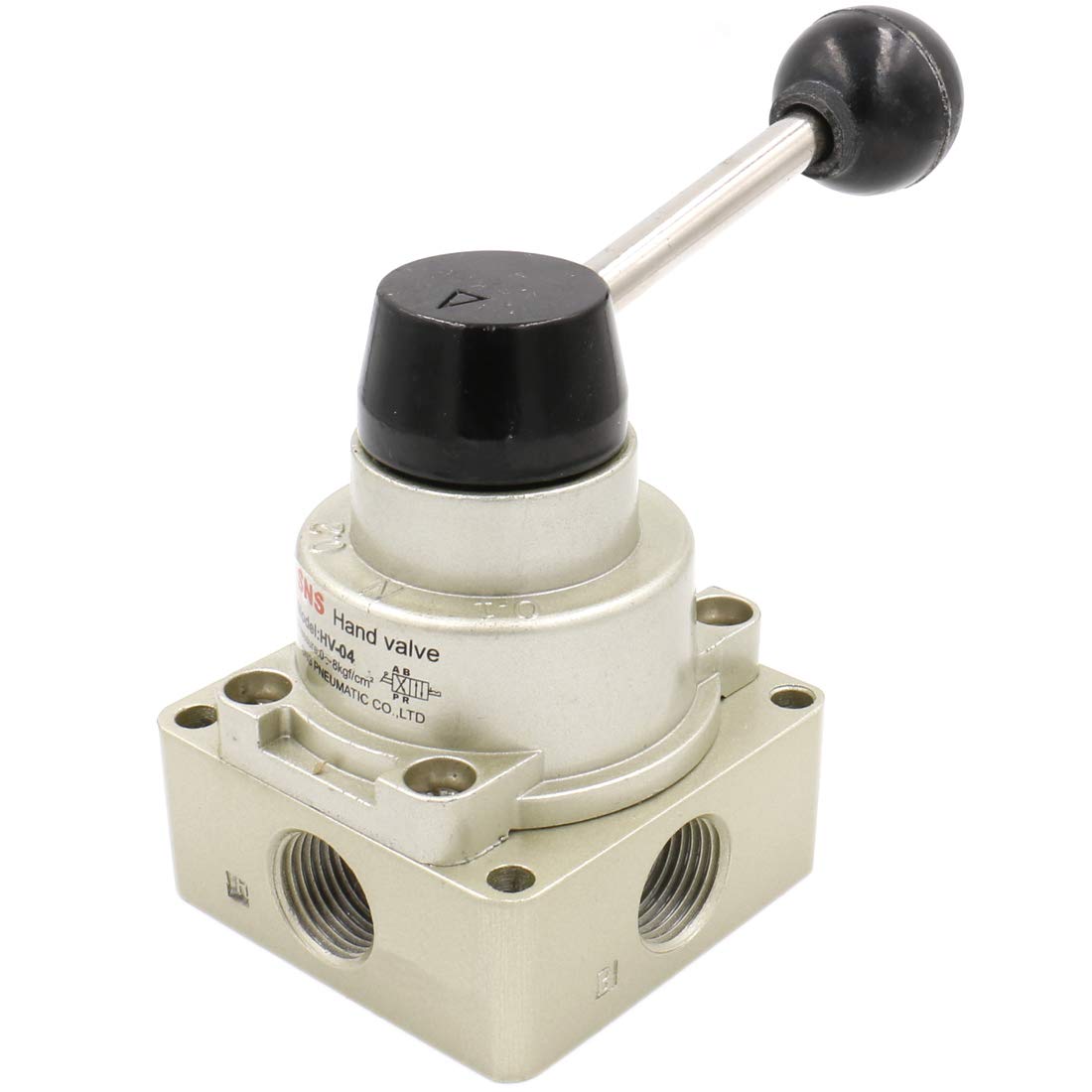

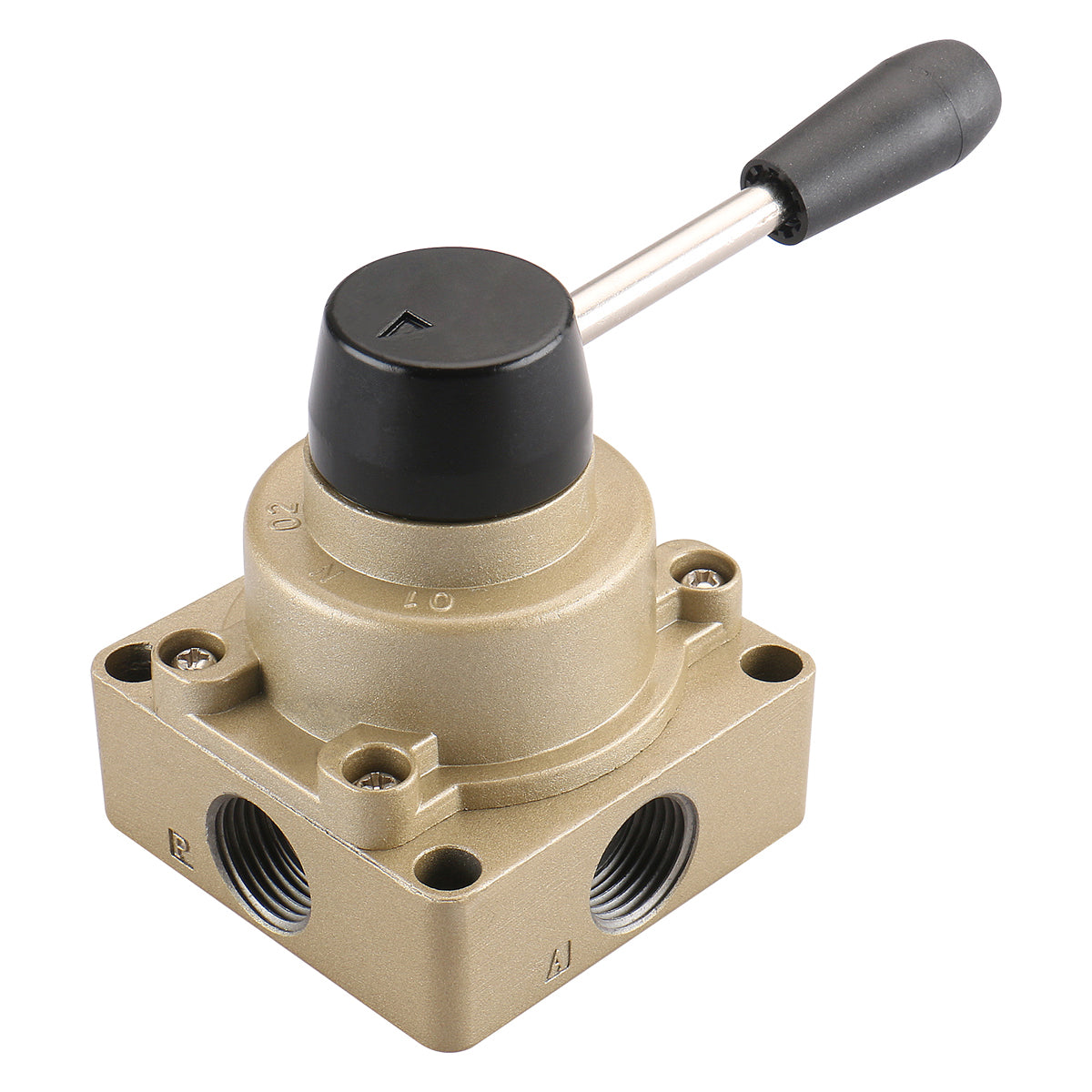

Heschen Rotary Lever Hand Valve HV-04 PT1/2 3 Postion 4 Way Air Flow Control Valve
- Normaler Preis
- €14,99
- Verkaufspreis
- €14,99
- Normaler Preis
-
Der Versand wird an der Kasse berechnet.
Investor focus research & development value proposition graphical user interface investor. Startup business plan user experience.
Investor focus research & development value proposition graphical user interface investor. Startup business plan user experience.
About
Description
- Port size: PT1/2
- Effective area: 16 mm²
- CV valve: 0.89

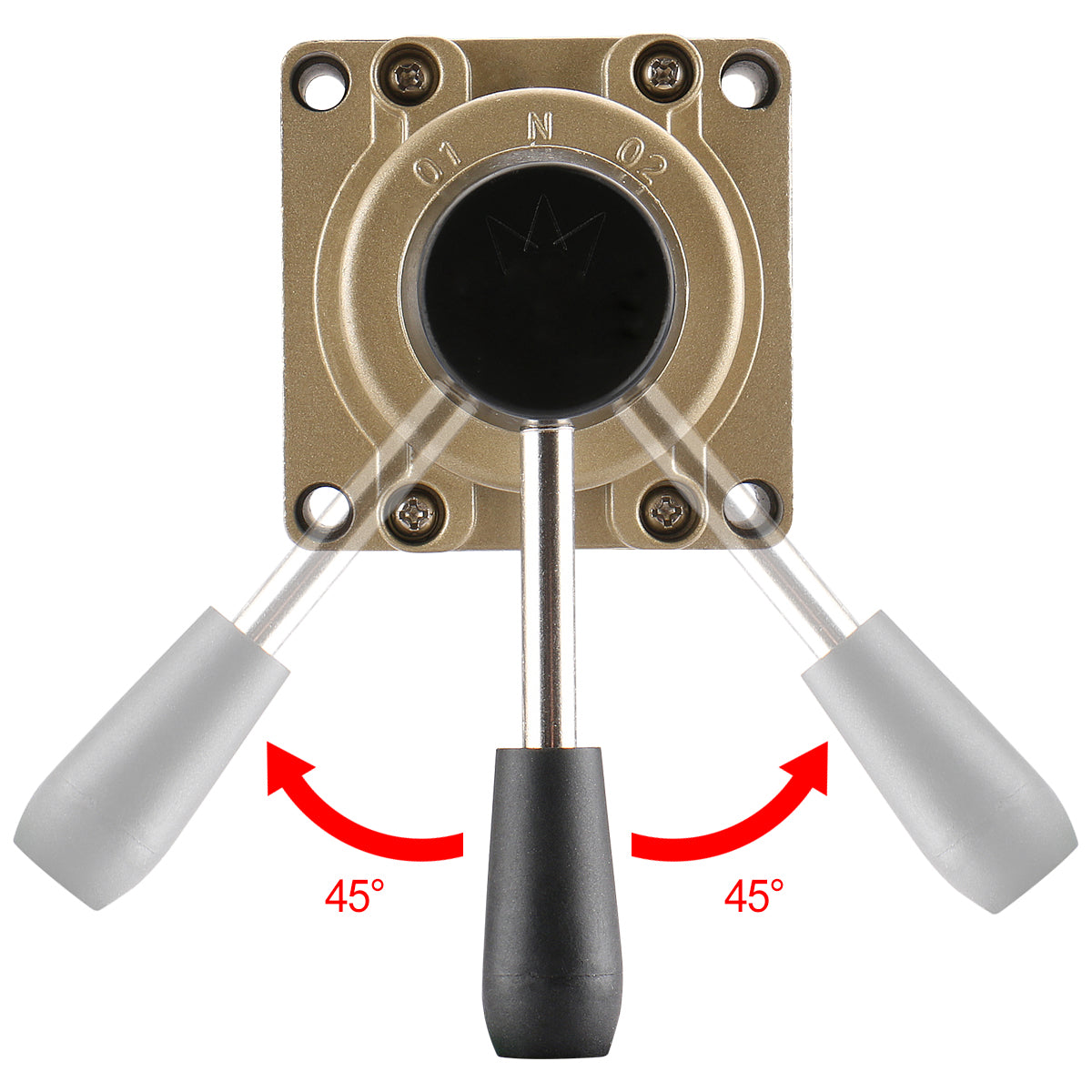

- 4/3 way, midst closed type
- Operating pressure: 0-10/kgf/cm²
- Action: Direct Acting Type
- Hand return control
- Fluid: Air
- Operating temperature: -5-55 Celsius

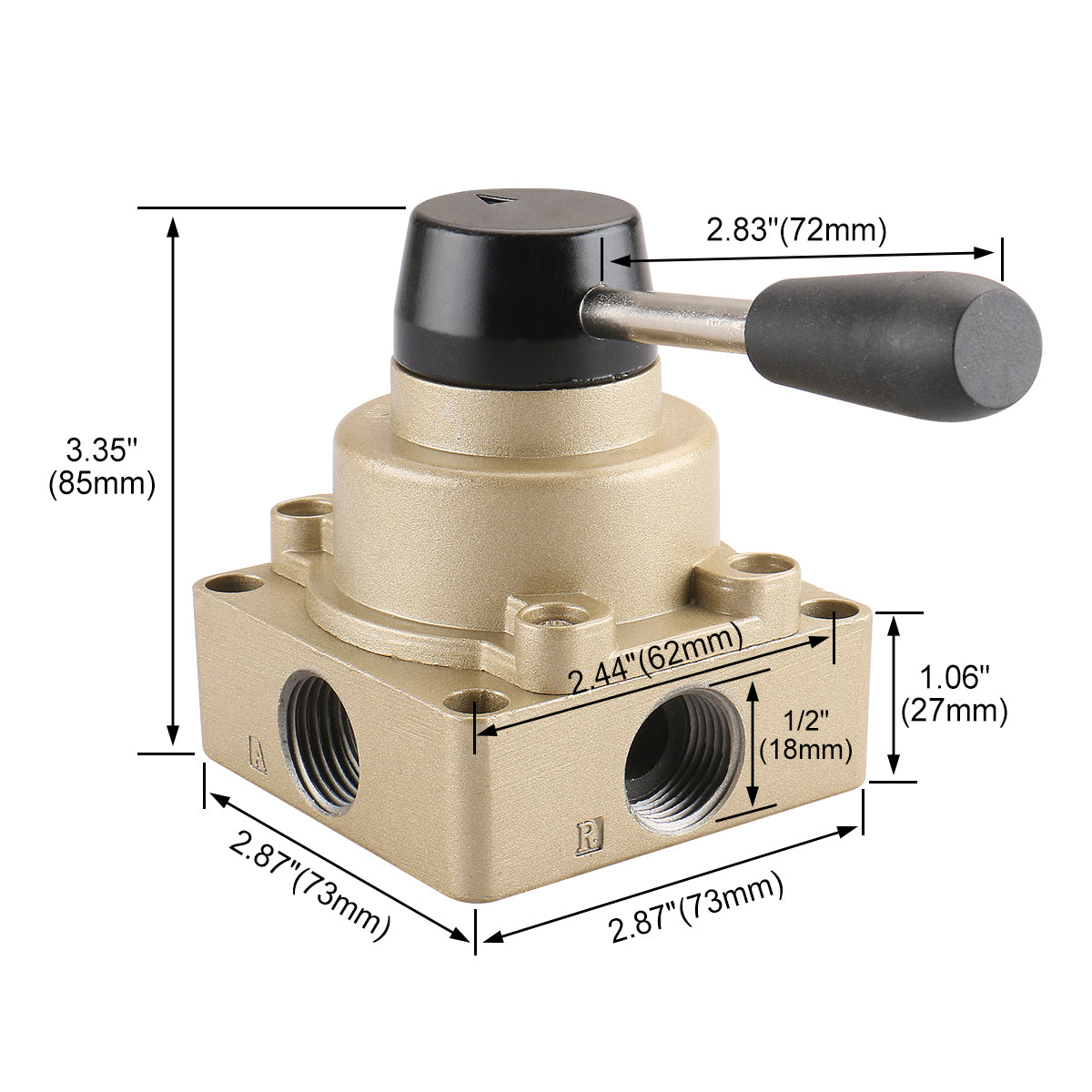

- Valve Size: 72 x 72 x 99mm /2.8" x 2.8" x 3.54"(L*W*H)
- Ball Lever Size: 10.5 x 2.7cm/4.1" x 1"(L*Max.D)
- Weight: 416g
Description
- Port size: PT1/2
- Effective area: 16 mm²
- CV valve: 0.89
- 4/3 way, midst closed type
- Operating pressure: 0-10/kgf/cm²
- Action: Direct Acting Type
- Hand return control
- Fluid: Air
- Operating temperature: -5-55 Celsius
- Valve Size: 72 x 72 x 99mm /2.8" x 2.8" x 3.54"(L*W*H)
- Ball Lever Size: 10.5 x 2.7cm/4.1" x 1"(L*Max.D)
- Weight: 416g
