M18 Inductive Proximity Sensor Switch LJ18A3-8-J/EZ

Heschen M18 Inductive Proximity Sensor Switch Non-shield Type LJ18A3-8-J/EZ Detector 8mm 90-250VAC 400mA Normally Open(NO) 2 Wire

Heschen

€6,79
Einzelpreis pro

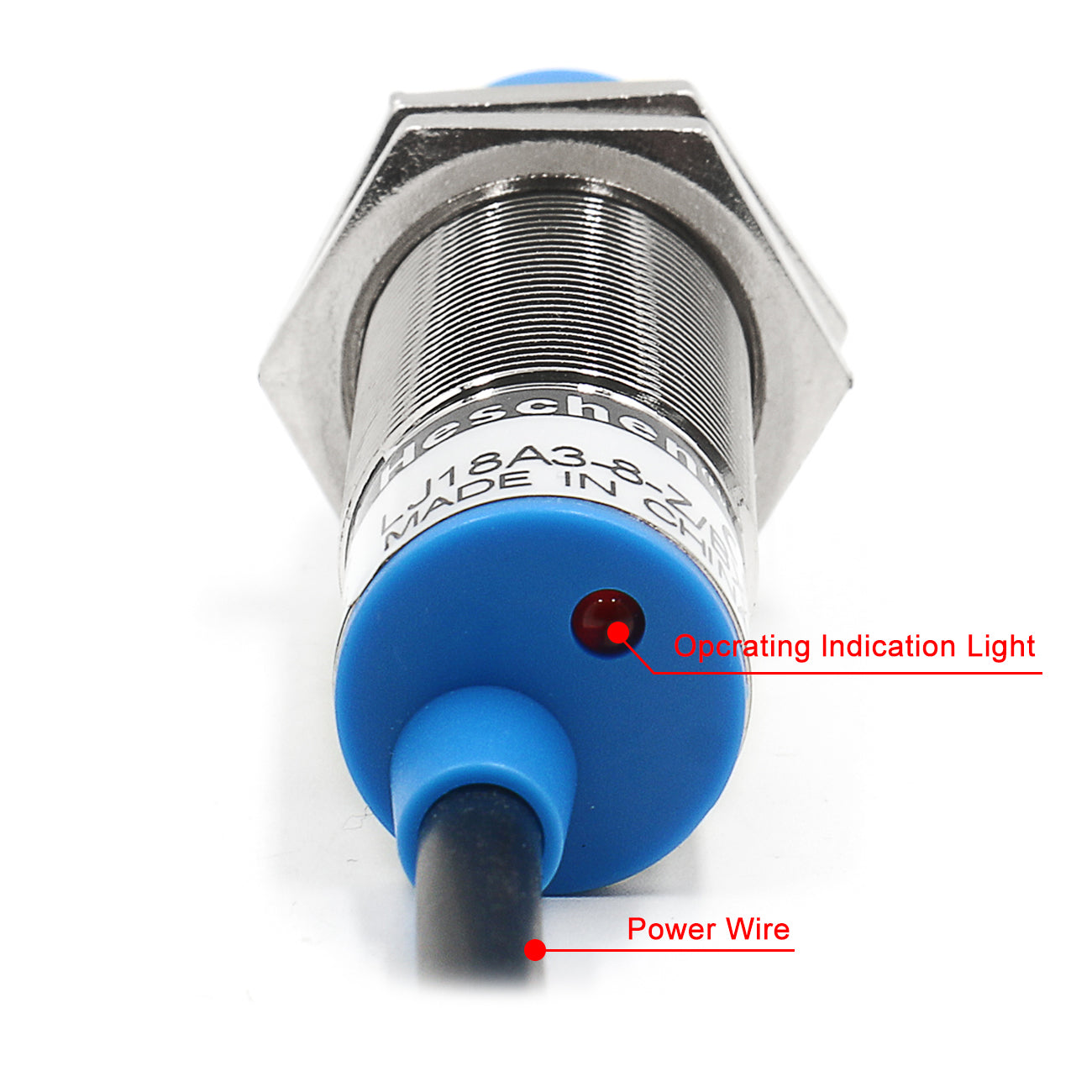

Power supply reversal connection protection; short-circuit protection, can directly connect with PLC. Used in common places with medium enviroment resistance. Red LED indicates that it's available to detect the sensor operation state. Economic and simple operation. Widely used, can be substitution of min-type switch and limit switch.

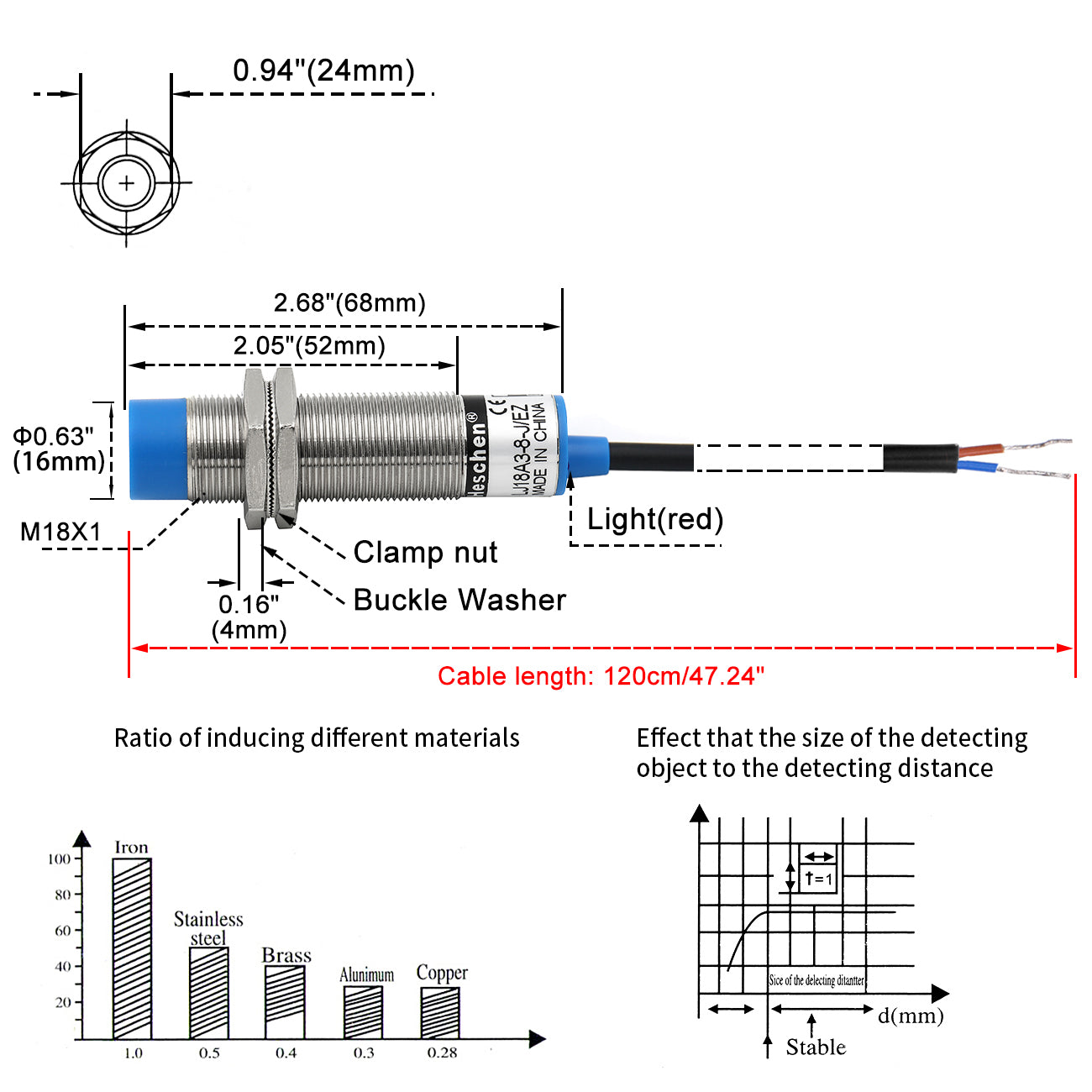

Mounting Hole Diameter: 18mm;
Cable Length: 120cm/48"
Detecting Distance: 8mm±10%;
Set Distance: 0-7mm
Output Type: AC Normally Open(NO); Non-shield Type
Current Output: 200mA;
Working Voltage: 10-30 VDC
Detect Object: Magnetic Metal
IP 67 protection
For large quantity, we will give more discount
