Description

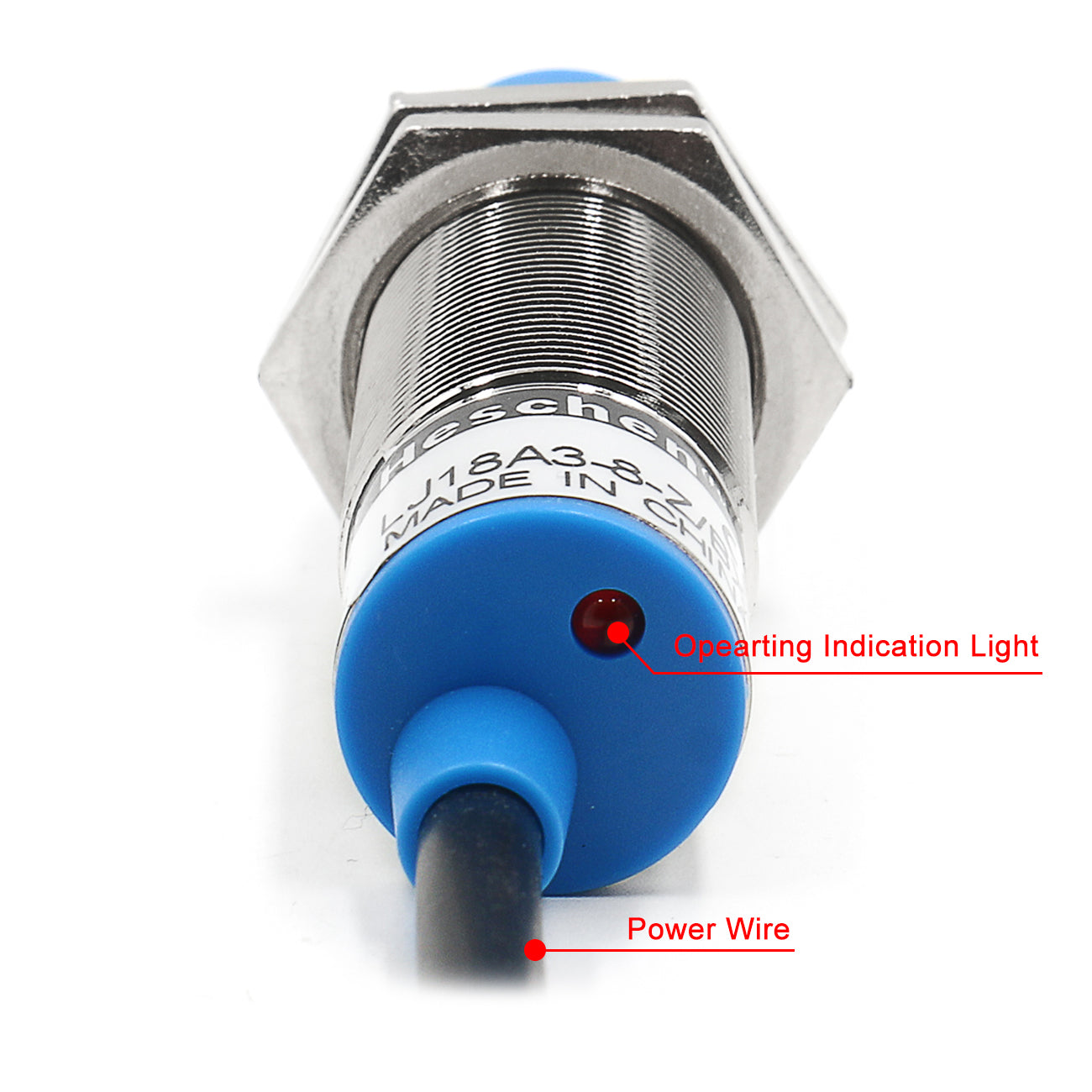

Power supply reversal connection protection; short-circuit protection, can directly connect with PLC. Used in common places with medium enviroment resistance. Red LED indicates that it's available to detect the sensor operation state. Economic and simple operation. Widely used, can be substitution of min-type switch and limit switch.

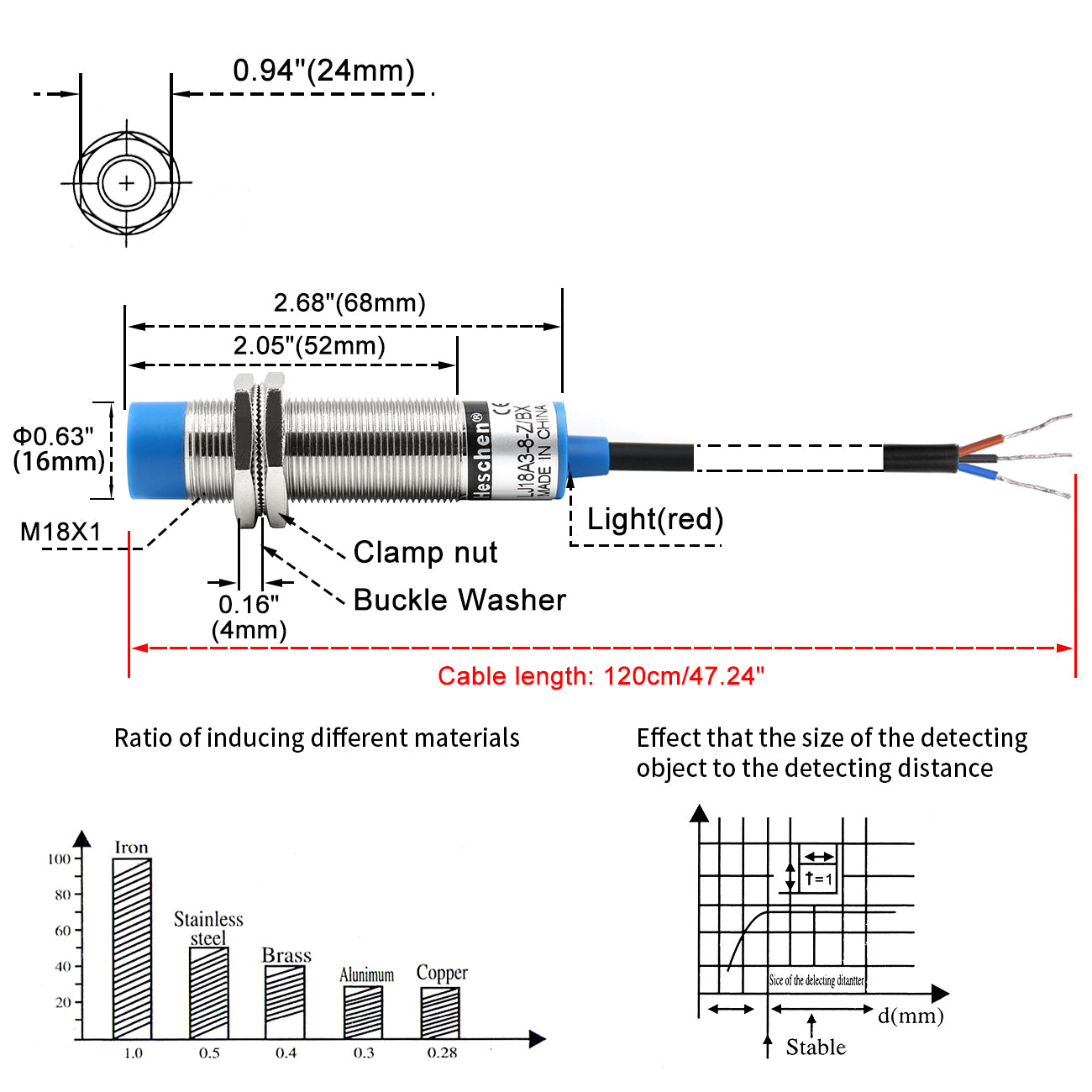

- Mounting Hole Diameter: 18mm;
- Cable Length: 120cm/48"
- Detecting Distance: 8mm±10%;
- Set Distance: 0-7mm
-

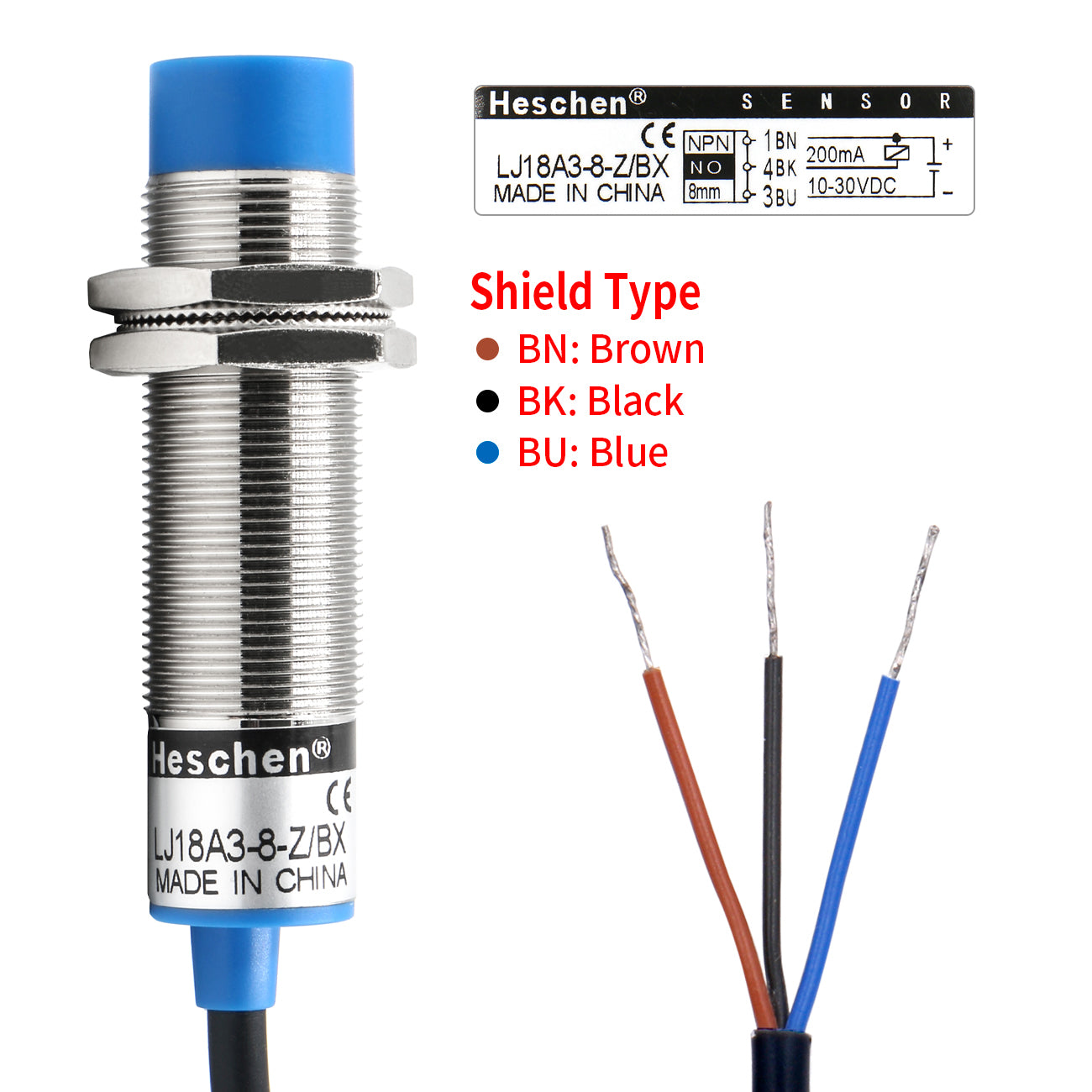

Output Type: NPN Normally Open(NO); Non-shield Type
- Current Output: 200mA;
- Working Voltage: 10-30 VDC
- Detect Object: Magnetic Metal
- IP 67 protection
- For large quantity, we will give more discount
Description
Power supply reversal connection protection; short-circuit protection, can directly connect with PLC. Used in common places with medium enviroment resistance. Red LED indicates that it's available to detect the sensor operation state. Economic and simple operation. Widely used, can be substitution of min-type switch and limit switch.
- Mounting Hole Diameter: 18mm;
- Cable Length: 120cm/48"
- Detecting Distance: 8mm±10%;
- Set Distance: 0-7mm
-
Output Type: NPN Normally Open(NO); Non-shield Type
- Current Output: 200mA;
- Working Voltage: 10-30 VDC
- Detect Object: Magnetic Metal
- IP 67 protection
- For large quantity, we will give more discount
Heschen
von
Heschen
SKU:TH-KRWQ-W8B9
Heschen M18 Inductive Proximity Sensor Switch Non-shield Type LJ18A3-8-Z/BX Detector 8mm 10-30VDC 200mA NPN Normally Open(NO) 3 Wire
- Normaler Preis
- €6,79
- Verkaufspreis
- €6,79
- Normaler Preis
-
Der Versand wird an der Kasse berechnet.
