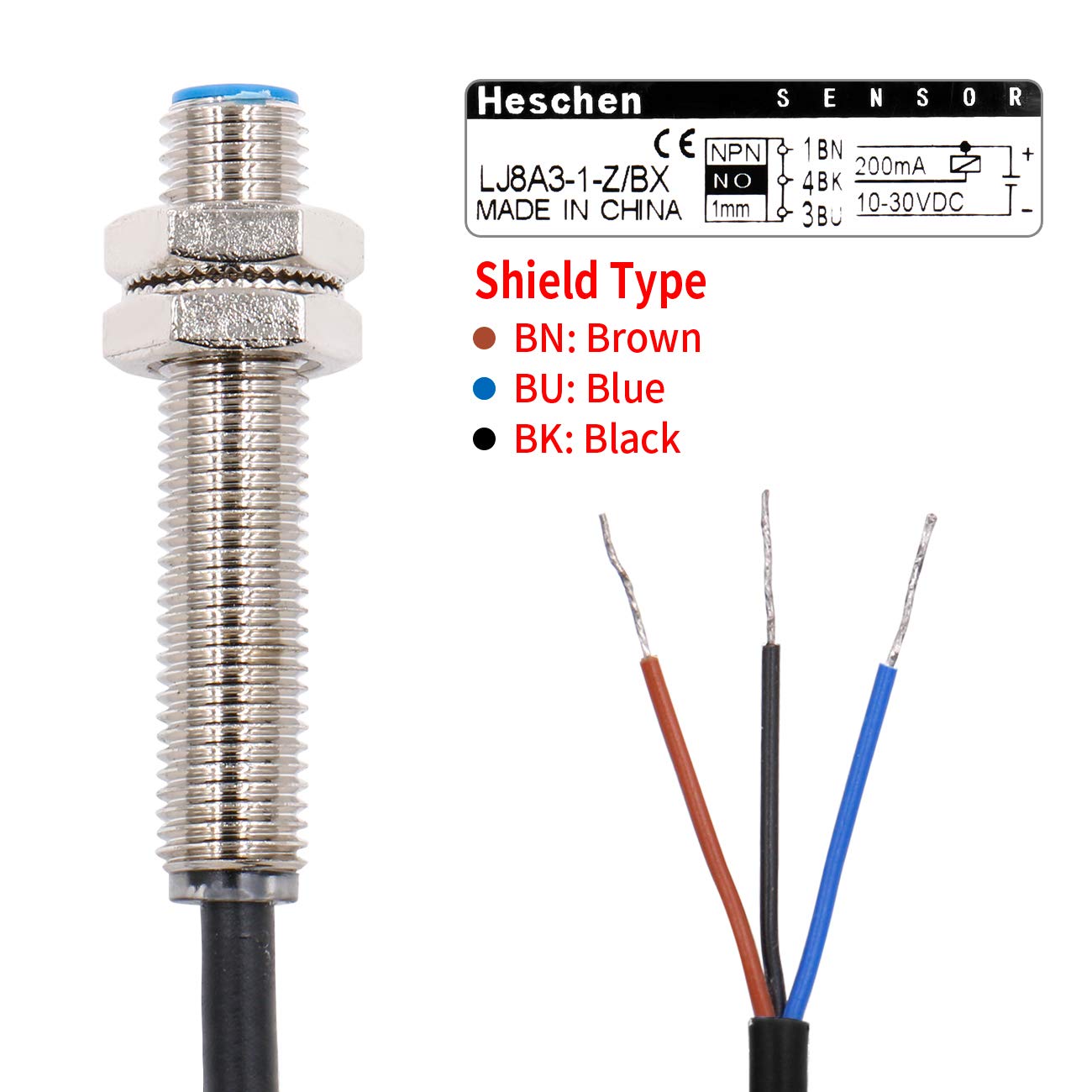

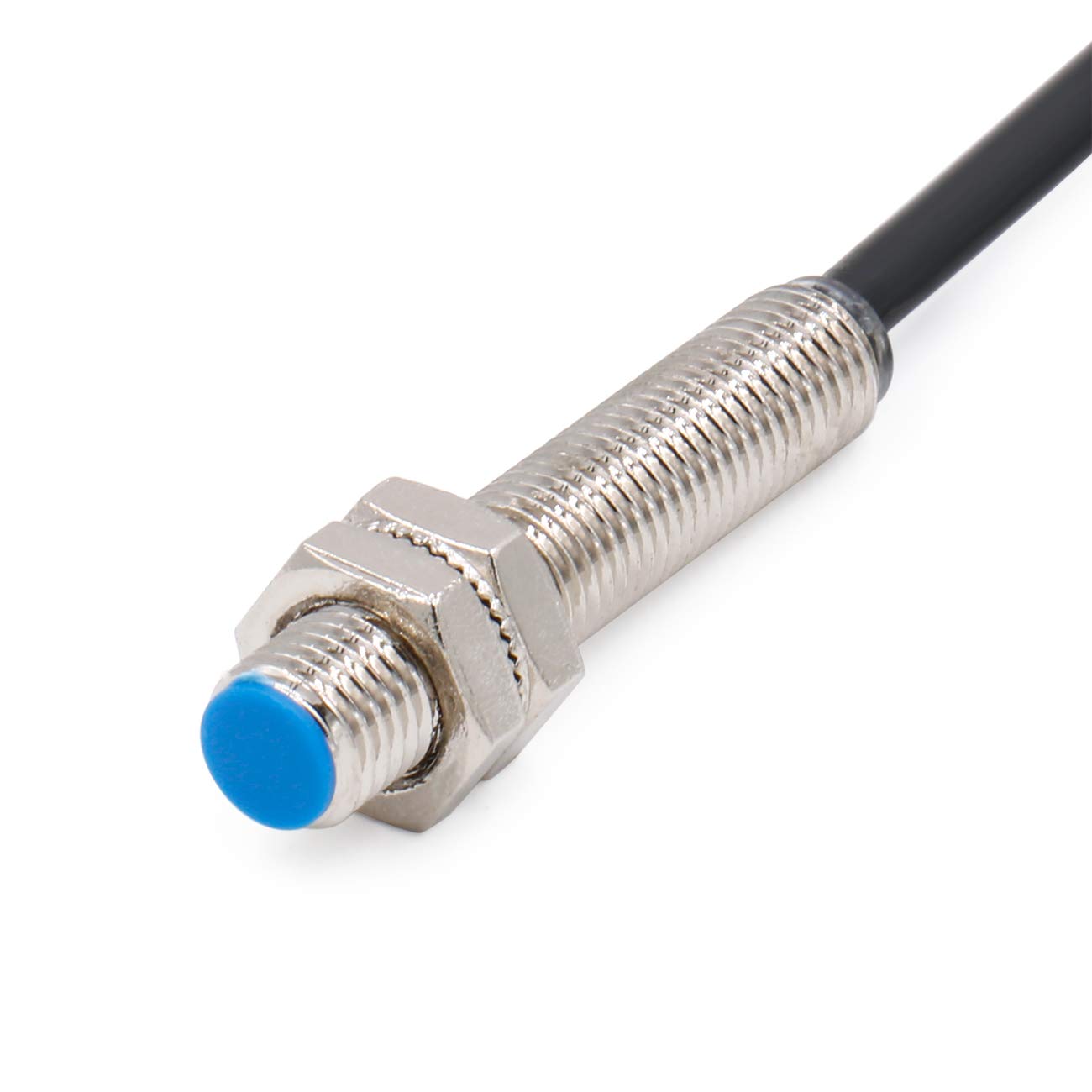

Heschen M8 Inductive Proximity Sensor Switch Shield Type LJ8A3-1-Z/BX Detector 1mm 10-30VDC 200mA NPN Normally Open(NO) 3 Wire

Heschen

€6,89
Einzelpreis pro

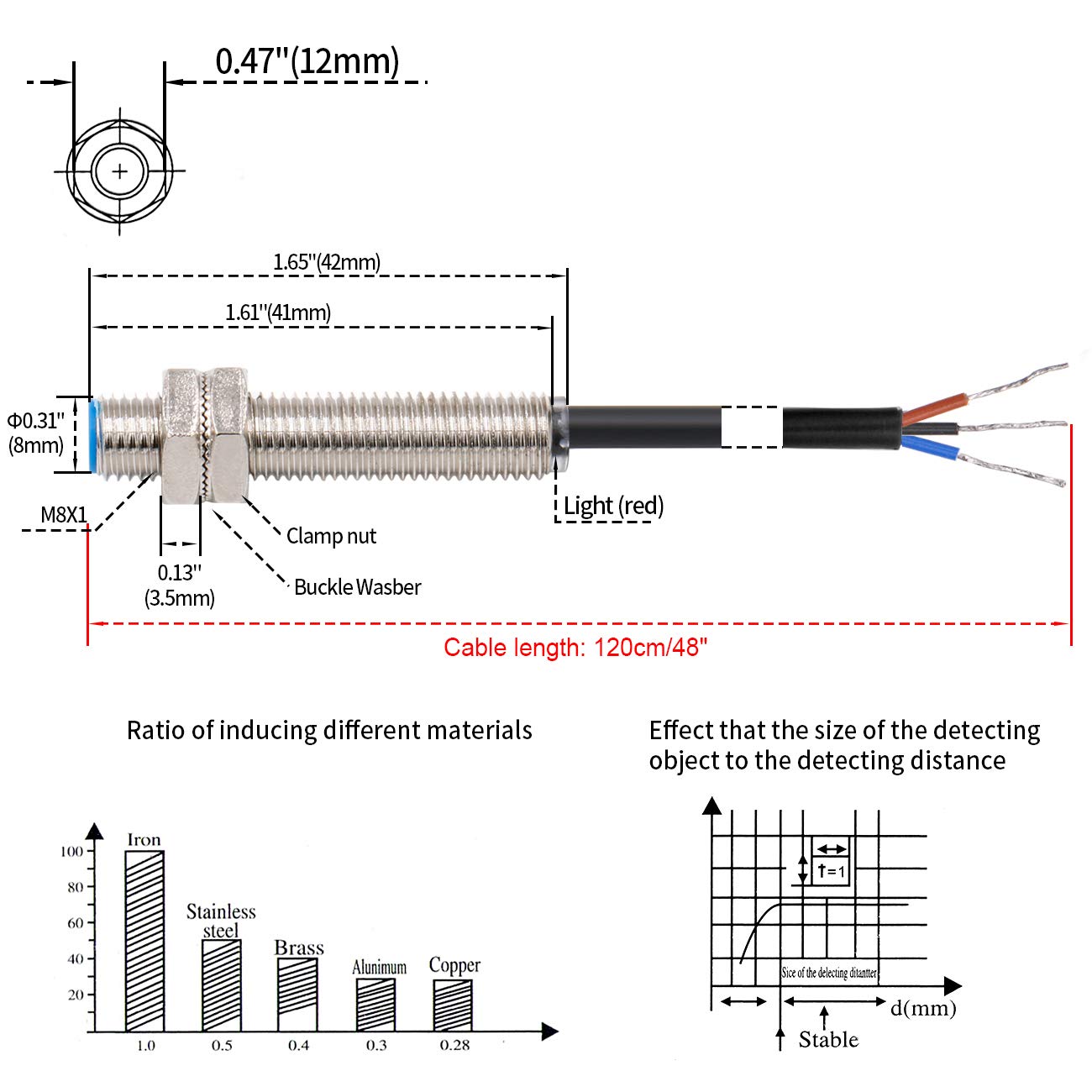

Mounting Hole Diameter: 8mm; Cable length: 120cm/48"
Detecting Distance: 1.5mm±10%; Set distance: 0-1.2mm
Output Type: NPN NO(Normally Open); Shield Type
Current Output: 200mA; Working Voltage: 10-30 VDC
Detect Object: Magnetic Metal

Power supply reversal connection protection; short-circuit protection, can directly connect with PLC; Used in common places with medium enviroment resistance; Red LED indicates that it's available to detect the sensor operation state
