capacitive proximity sensor switch NPN NO
kapazitiver Näherungssensorschalter NPN NO
sensore di prossimità capacitivo interruttore NPN NO

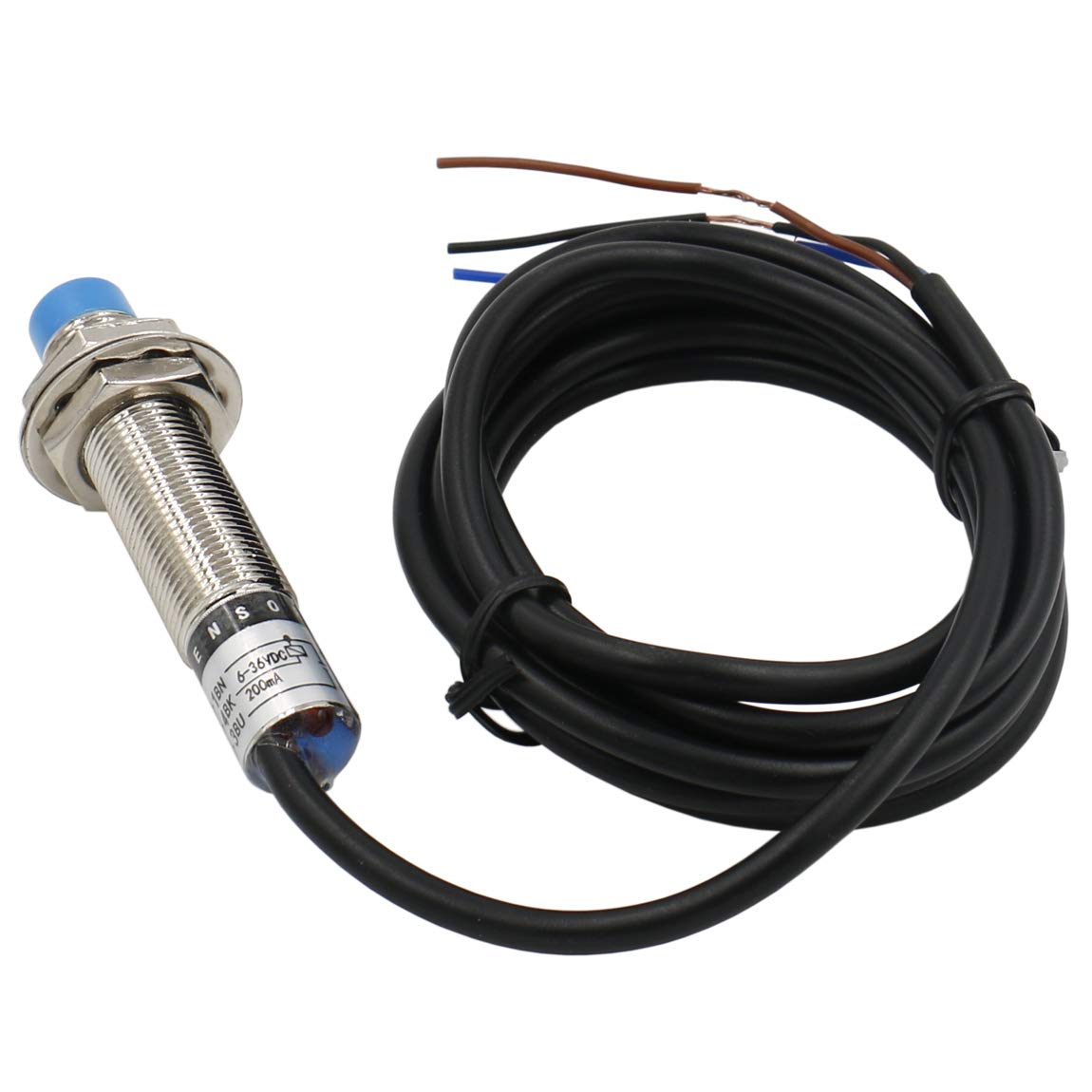

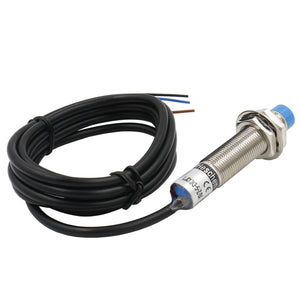

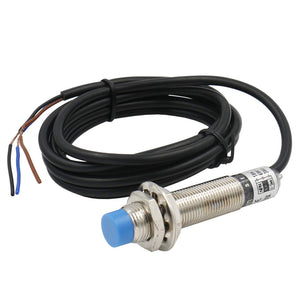

Capacitive Proximity Sensor Switch LJC12A3-5-Z/BX Detector 1-5mm NPN Normally Open(NO) 3 wire
Capacitive Proximity Sensor Switch LJC12A3-5-Z/BX Detector 1-5mm NPN Normally Open(NO) 3 wire

Capacitive Proximity Sensor Switch LJC12A3-5-Z/BX Detector 1-5mm NPN Normally Open(NO) 3 wire

Heschen

zzgl. Versandkosten

The LJC12A3 capacitive proximity sensor switch used widely in automatic control industry for detecting, controlling, and noncontact switching. It will send a signal when close to the plastic, glass, metal etc.

  • mounting hole diameter: 12mm
  • detecting distance: 1-5mm
  • working voltage: 10-30VDC, current output: 200mA
  • output type: NPN NO(Normally Open)
  • cable length: 124cm/49.2"
  • Weight: 55g
