Heschen von Heschen

E3JK-RR11

Heschen Photoelectric Switch Sensor, E3JK-RR11 AC/DC 24-240V AC3A/250V 100mm‑7m Sensing Distance

€33,99
€33,99
Der Versand wird an der Kasse berechnet.
Investor focus research & development value proposition graphical user interface investor. Startup business plan user experience.
Investor focus research & development value proposition graphical user interface investor. Startup business plan user experience.

About

Description

  • Model: E3JK‑RR11

  • Wide‑voltage AC/DC power supply: 24‑240V AC±10% 50/60Hz / 24‑240V DC±10%, max ripple 10% p‑p. Retro‑reflective photoelectric sensor without M.S.R function, sensing range 100 mm‑7 m when matched with TD‑09 reflector.

  • SPDT relay control output, rated 3A at 250V AC (cosφ=1), minimum load 5V DC 10mA. Equipped with COM / NO / NC relay contacts; Orange operation indicator & green stability indicator for real‑time working status diagnosis.

  • Robust environmental adaptability: Operating temperature ‑25℃ ~ +55℃ (no freezing & condensation), storage temperature‑40℃ ~ +70℃. Anti‑interference against incandescent lamp 3000lx and sunlight up to 11000lx; Ambient operating humidity 35‑85% non‑condensing

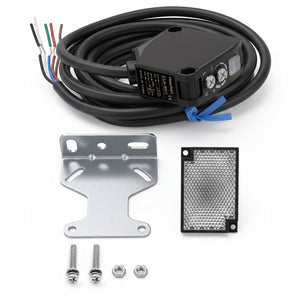

  • POM adjusting knob. Package includes photoelectric sensor, reflector TD‑09‑compatible metal mounting bracket, fixing screws & nuts. Directional angle ≥1.5°, minimum detectable opaque object diameter 75 mm (TD‑09 reflector).

  • Electrical safety performance: Insulation resistance ≥20MΩ(500VDC), dielectric strength 1500VAC 50/60Hz for 1min. Shock resistance: 100 m/s² for malfunction‑proof, 500 m/s² destruction limit.

  • Notice: Avoid frost, condensation and heavy dust for long‑term reliable operation.


Description

  • Model: E3JK‑RR11

  • Wide‑voltage AC/DC power supply: 24‑240V AC±10% 50/60Hz / 24‑240V DC±10%, max ripple 10% p‑p. Retro‑reflective photoelectric sensor without M.S.R function, sensing range 100 mm‑7 m when matched with TD‑09 reflector.

  • SPDT relay control output, rated 3A at 250V AC (cosφ=1), minimum load 5V DC 10mA. Equipped with COM / NO / NC relay contacts; Orange operation indicator & green stability indicator for real‑time working status diagnosis.

  • Robust environmental adaptability: Operating temperature ‑25℃ ~ +55℃ (no freezing & condensation), storage temperature‑40℃ ~ +70℃. Anti‑interference against incandescent lamp 3000lx and sunlight up to 11000lx; Ambient operating humidity 35‑85% non‑condensing

  • POM adjusting knob. Package includes photoelectric sensor, reflector TD‑09‑compatible metal mounting bracket, fixing screws & nuts. Directional angle ≥1.5°, minimum detectable opaque object diameter 75 mm (TD‑09 reflector).

  • Electrical safety performance: Insulation resistance ≥20MΩ(500VDC), dielectric strength 1500VAC 50/60Hz for 1min. Shock resistance: 100 m/s² for malfunction‑proof, 500 m/s² destruction limit.

  • Notice: Avoid frost, condensation and heavy dust for long‑term reliable operation.
