cam switch 63A 3 position 3 phase
Nockenschalter 63A 3 Position 3 Phase
interrupteur à came 63A 3 positions 3 phases
commutatore a camme 63A 3 posizioni trifase
interruptor de leva 63A 3 posiciones 3 fases

Universal Rotary Cam Selector Changeover Switch SZW26-63 660V 63A ON-OFF-ON 3 Position 3 Phase 12 Terminals CE

Heschen

zzgl. Versandkosten

Changeover switch mainly suitable for electrical wiring in the power switch and Squirrel cage type asynchronous motor start-up, reversing, speed switches, also can make the conversion of the control circuit. plastic external material, 3 positions, locking action type, 12 screw terminals, fit for 1.3cm panel thickness.

  • Model：SZW26-63/D303.3
  • Ui : 660V ; Ith : 63A
  • 3 Phase

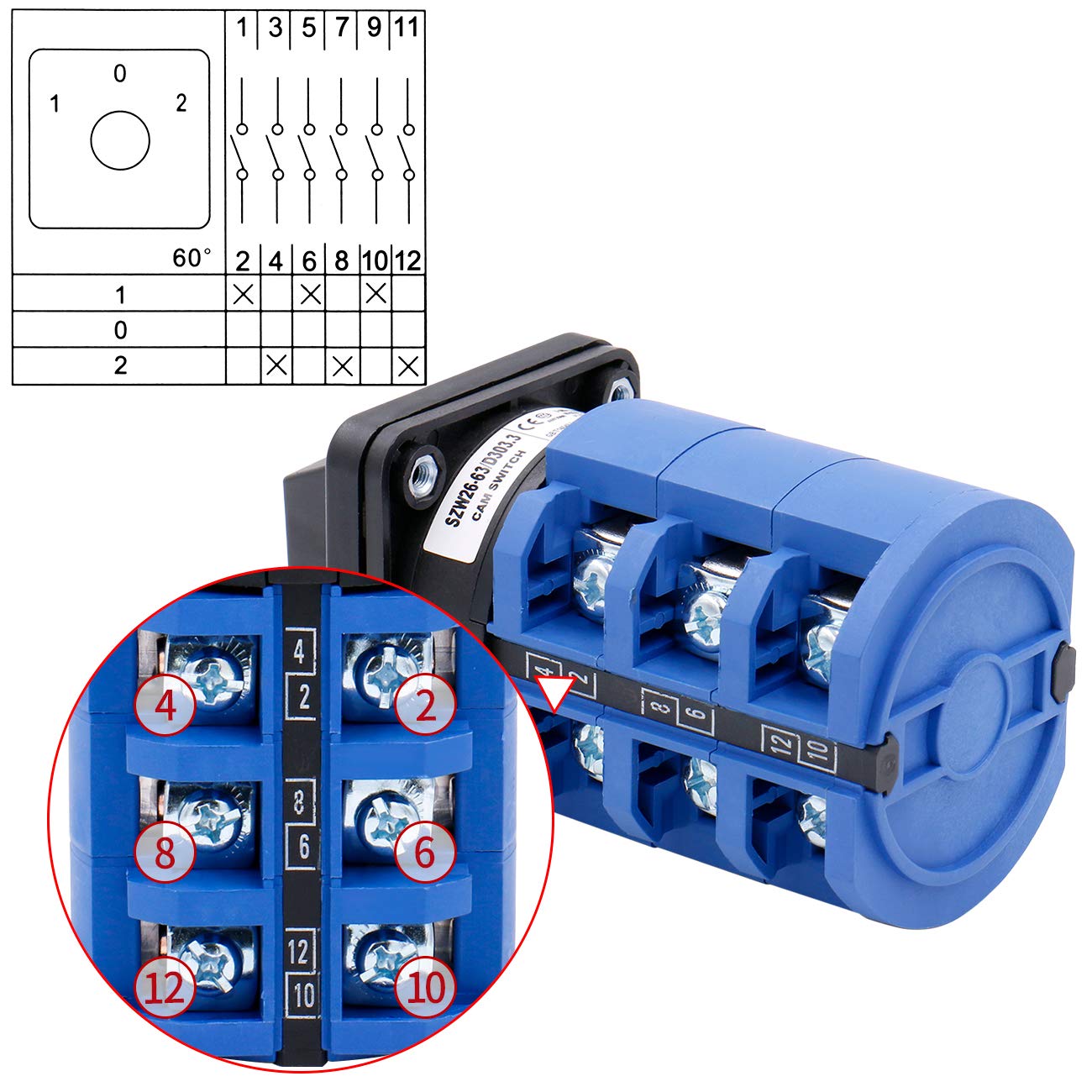

  • Positions: 3 Positions(1-0-2)

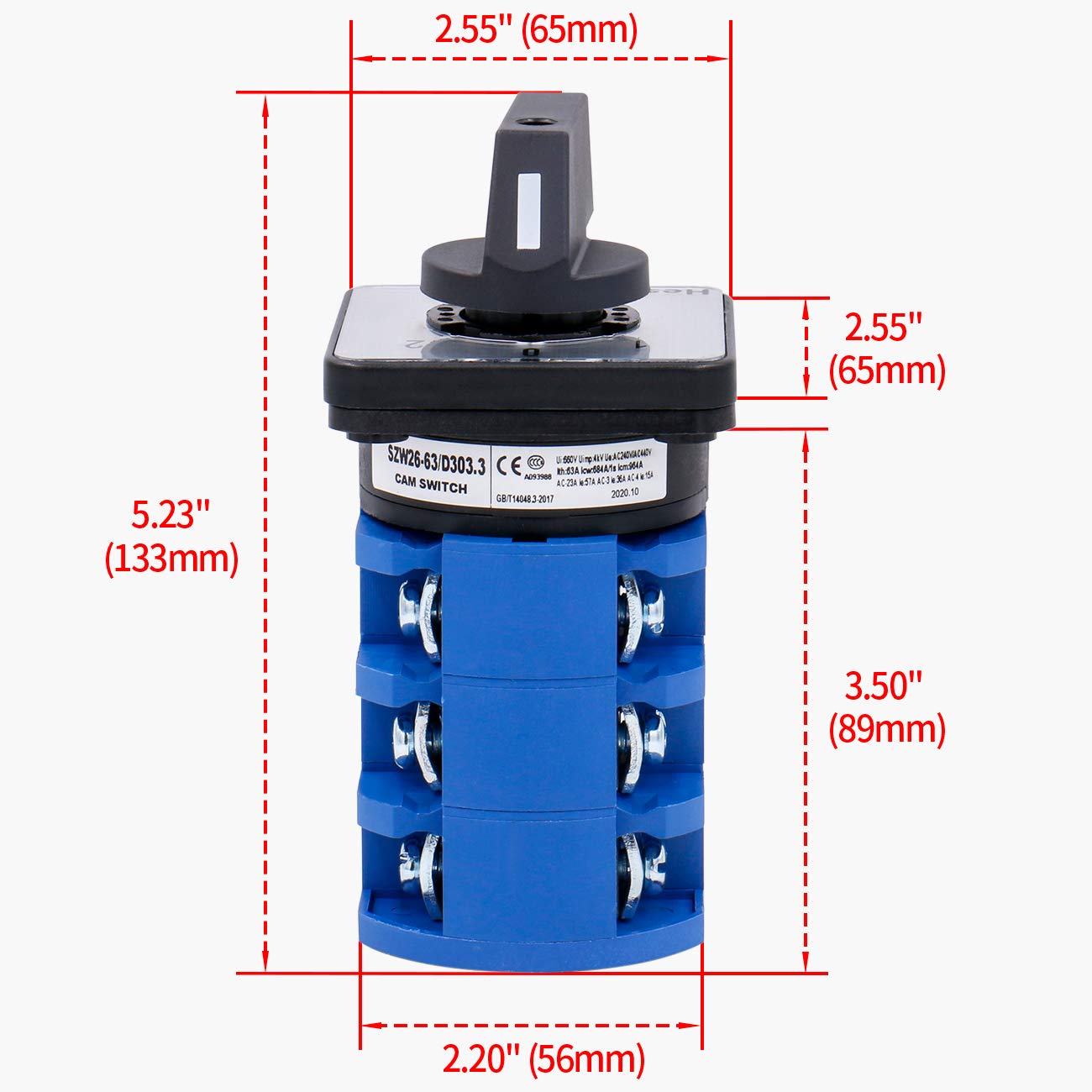

  • Overall Size: 131 x 65 x 65mm /5.1" x 2.5" x 2.5"(L*W*T)
  • Total Weight: 439g
