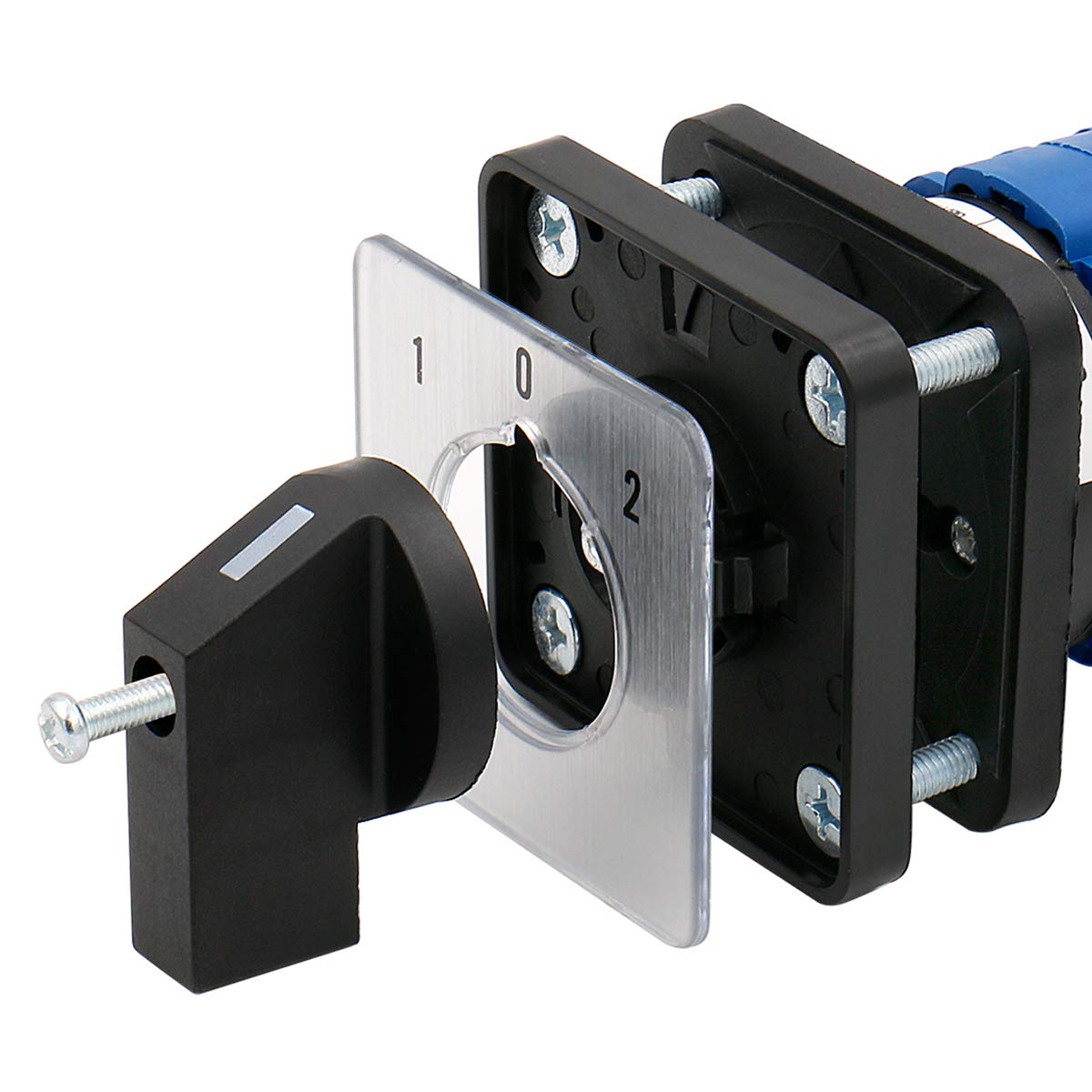

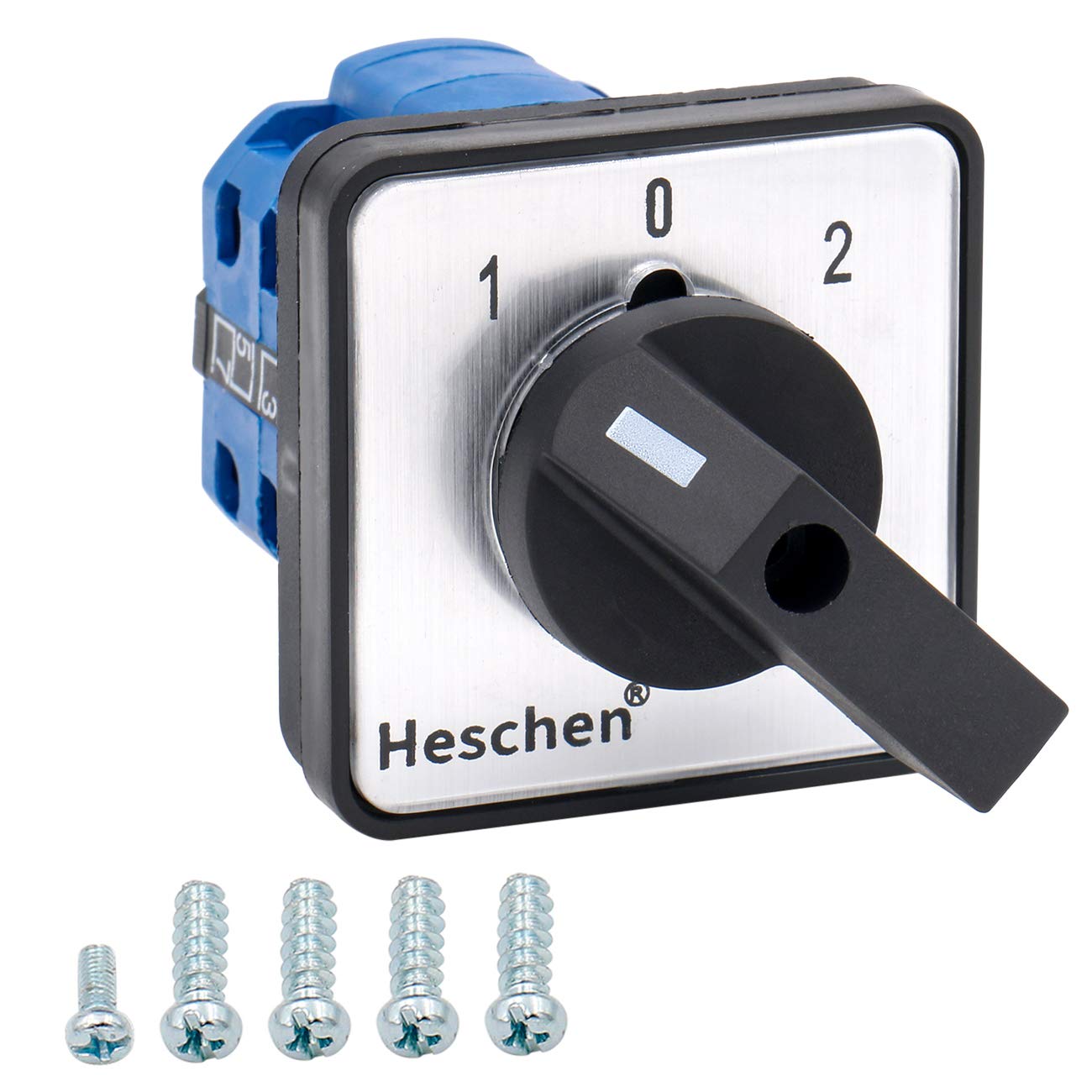

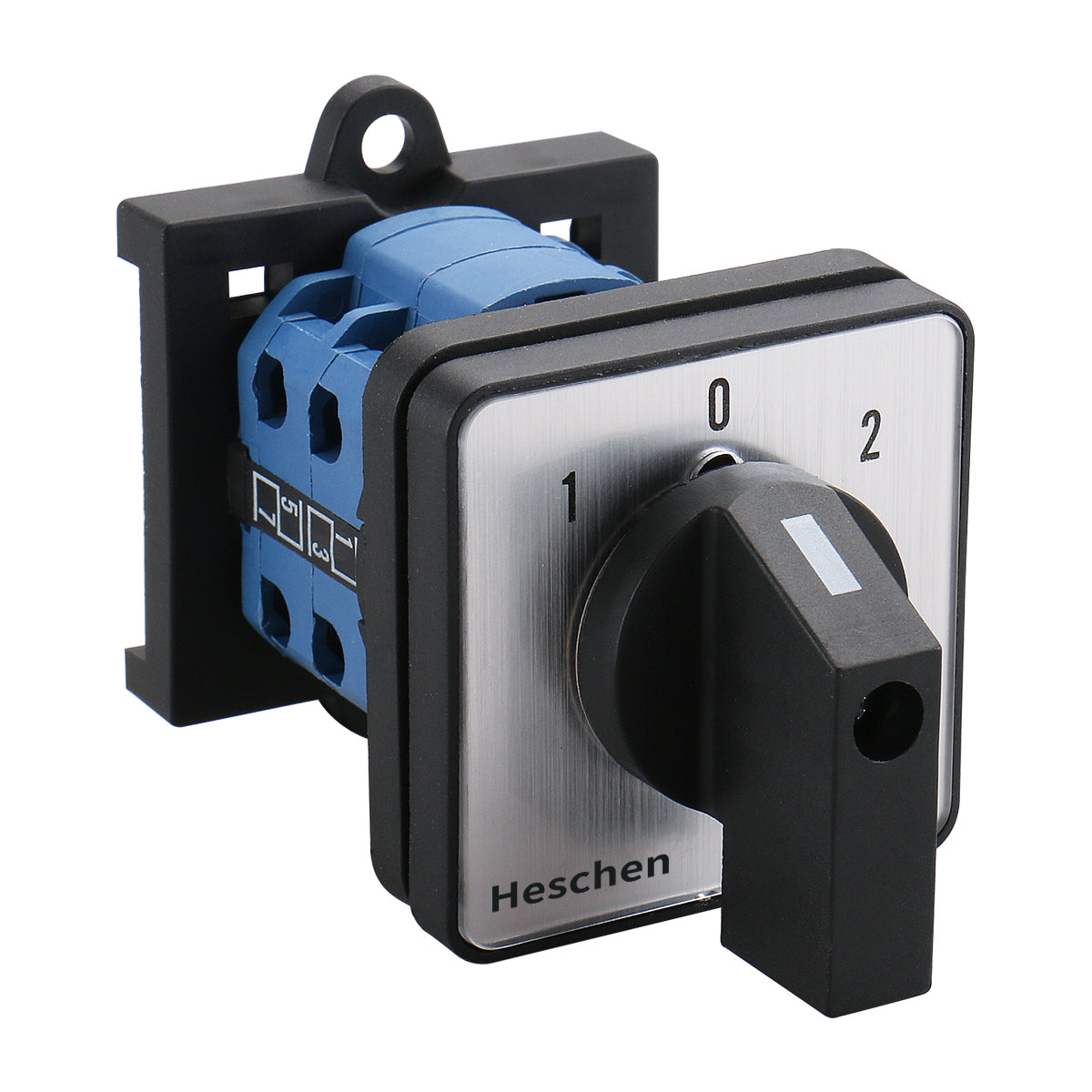

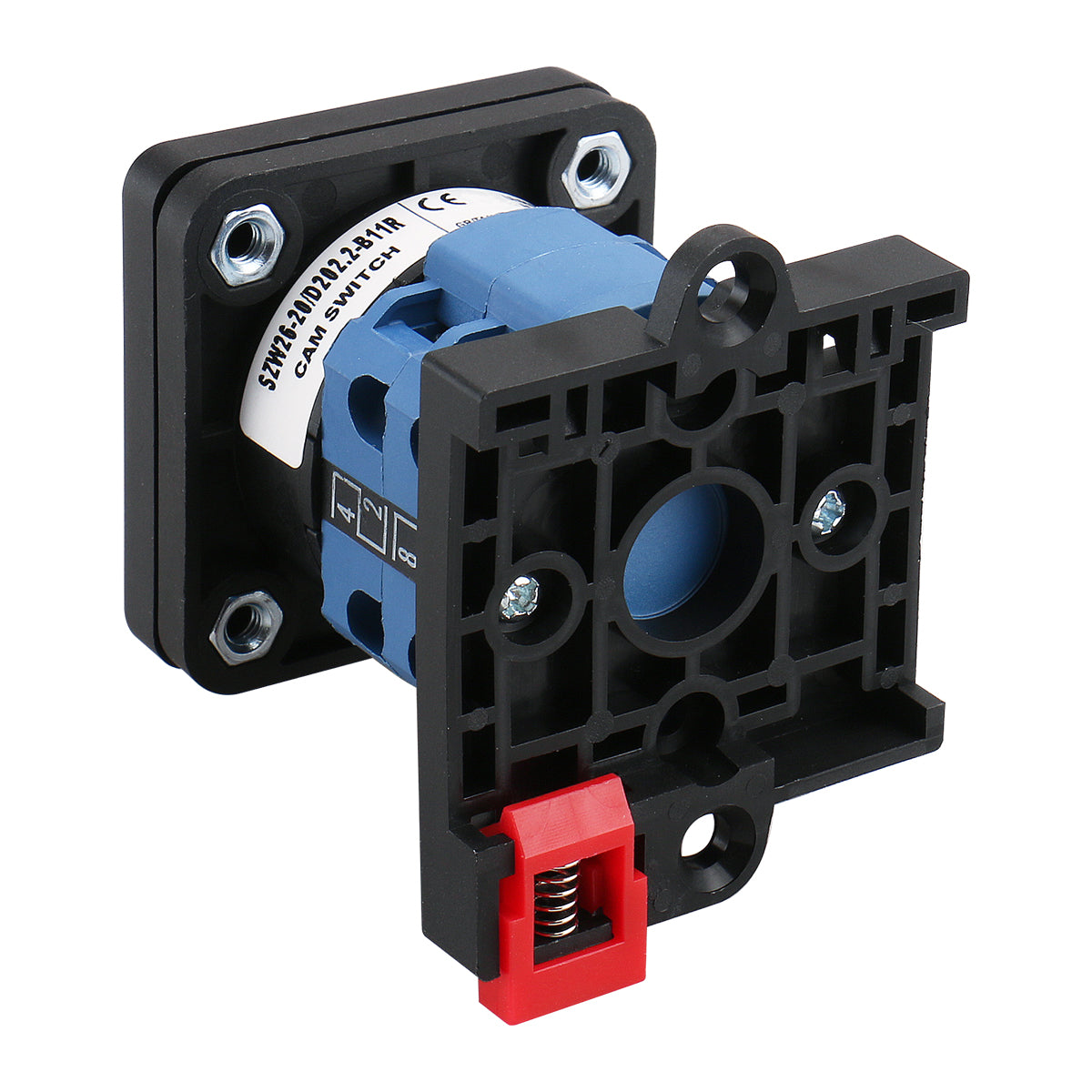

Universal Rotary Cam Selector Changeover Switch for DIN rail-mounting 35 mm SZW26-20/D202.2-B11R 660V 20A ON-OFF-ON 3 Position 2 Phase 8 Terminals CE
Changeover switch mainly suitable for electrical wiring in the power switch and Squirrel cage type asynchronous motor start-up, reversing, speed switches, also can make the conversion of the control circuit. Feature plastic external material, 3 positions, locking action type, 8 screw terminals, fit for the thickness between 1mm to 4mm of the mounting board.
- Ui : 660V ; Ith : 20A

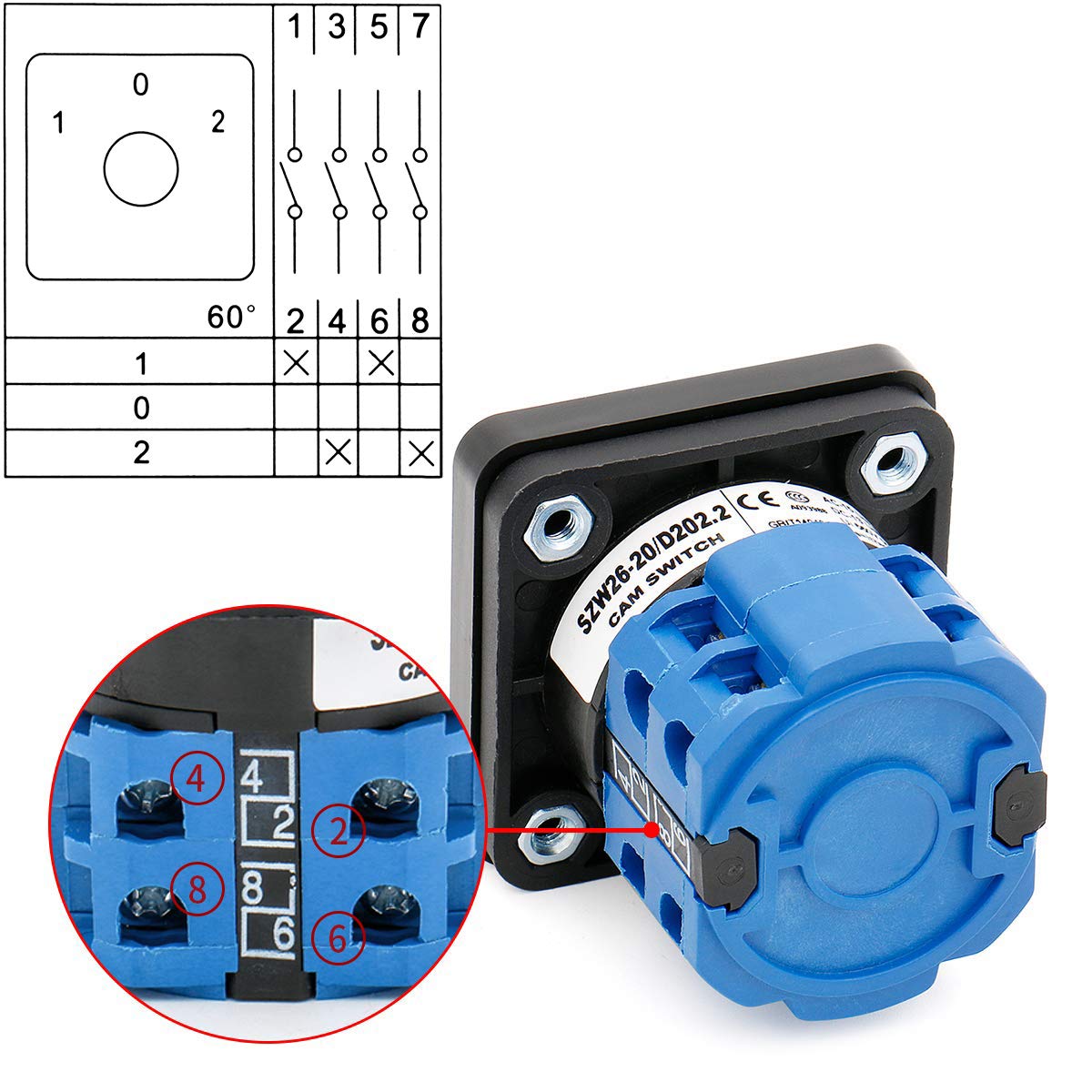

- 2 Phase, 8 Terminals
- Positions: 3 Positions(1-0-2)

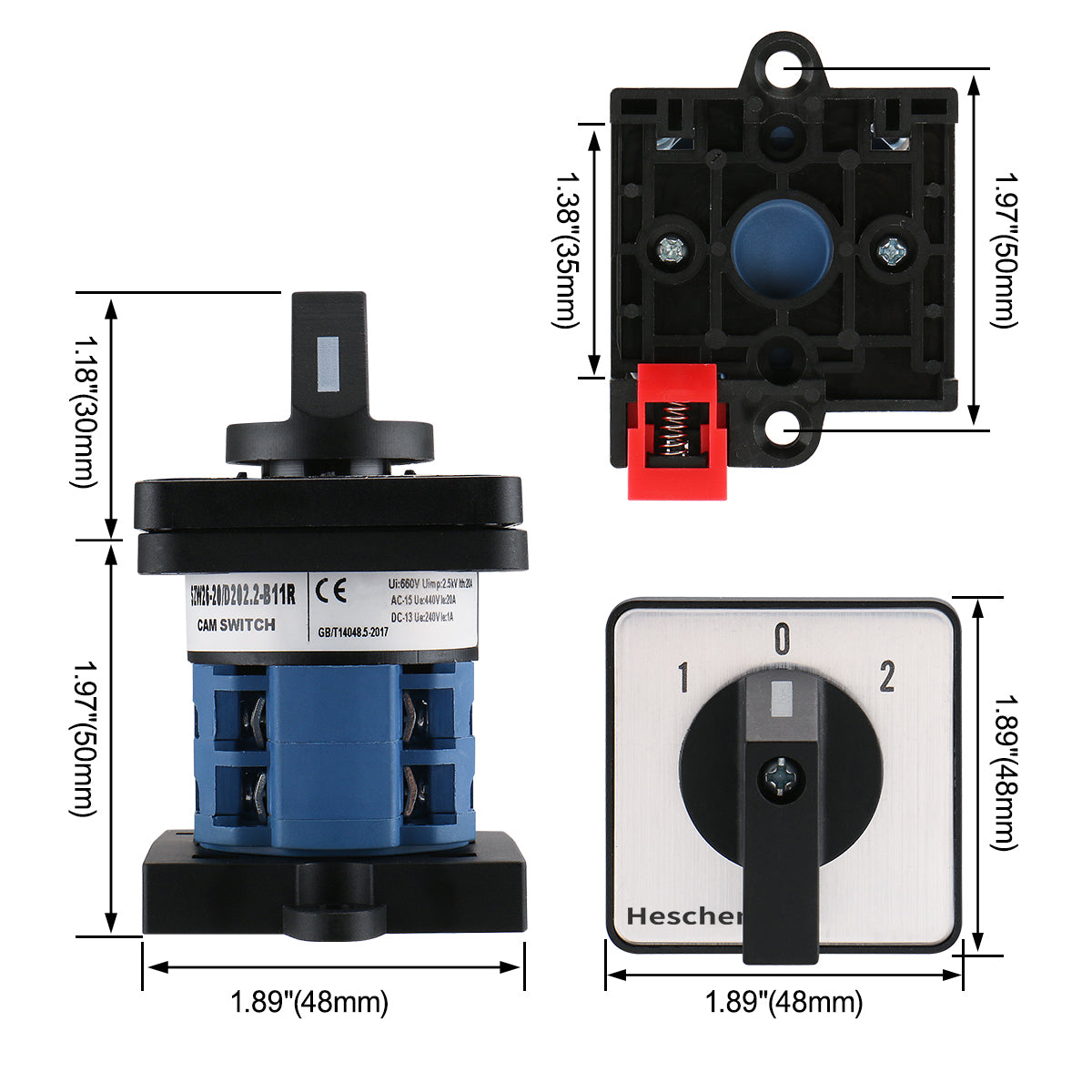

- Size: 50 x 65 x 85mm /2" x 2.5" x 3.35"(L*W*T)
- Weight: 120g
